Equipped With

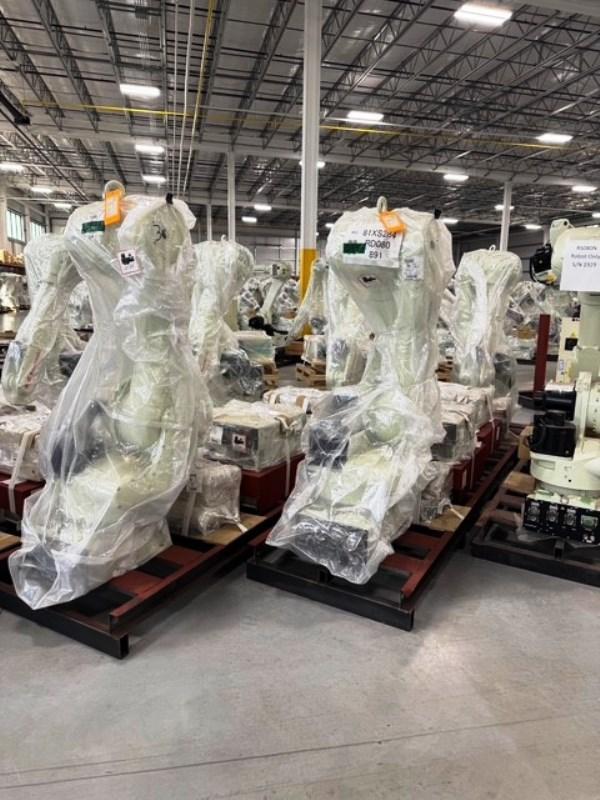

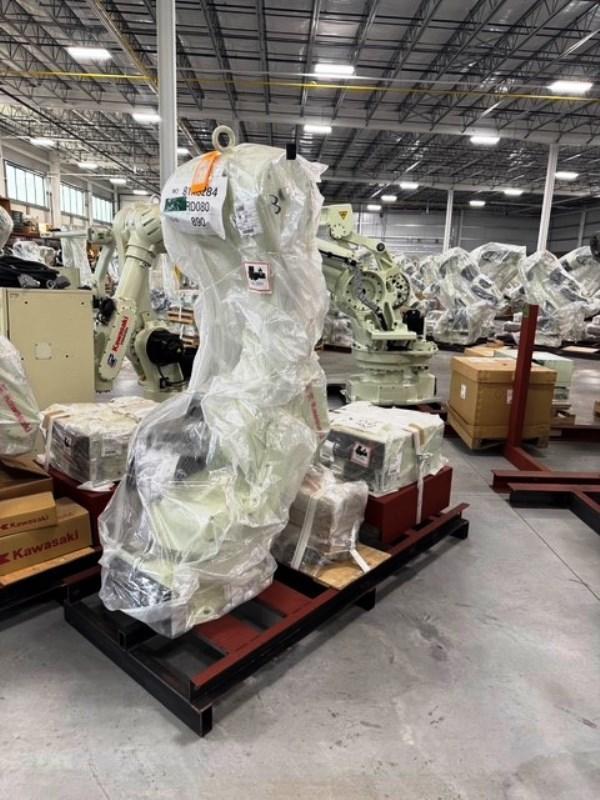

New KAWASAKI RD080NEE03 ROBOT AND CONTROLLER

New 2025

RD080NEE03 Robot and Controller:
5 Axes
80 kg Payload Capacity
2100 mm Horizontal Reach
Positional Repeatability: +/-0.06
Interna Pneumatic Piping - (08 mm x 2 Lines)
Built-in Harness: Sensor Harness 12 Imputs
10m Main Robot Harness

Software Ehernet IP
28W 37 Pin-32/32 IO
Main CPU Board with: 16GB Memory, Block Step (Basic) and AS
(Advanced) Language Software is Standard and Included
Multi-Function Panel (Genll Teach Pendant) with Color Touch Screen
LCD Display with 10m Cable
IP67 Rated Robot Arm
Power Requirement 440-480 Volt +/-10%, 3-Phase, 50/60 Hz
RS232C and USB Port


Options:
Cubic S Standard (Robot Safety Monitoring Unit)                                              $2,655.00
Not Available with Continuous Spin Software Function
Provides Capabilities as a Motion Area Monitor, Joint Monitor
Speed Monitor, Stand-Still Monitor, Tool Orientation Monitor
Protective Stop, Emergency Stop with Safty Staus Output
