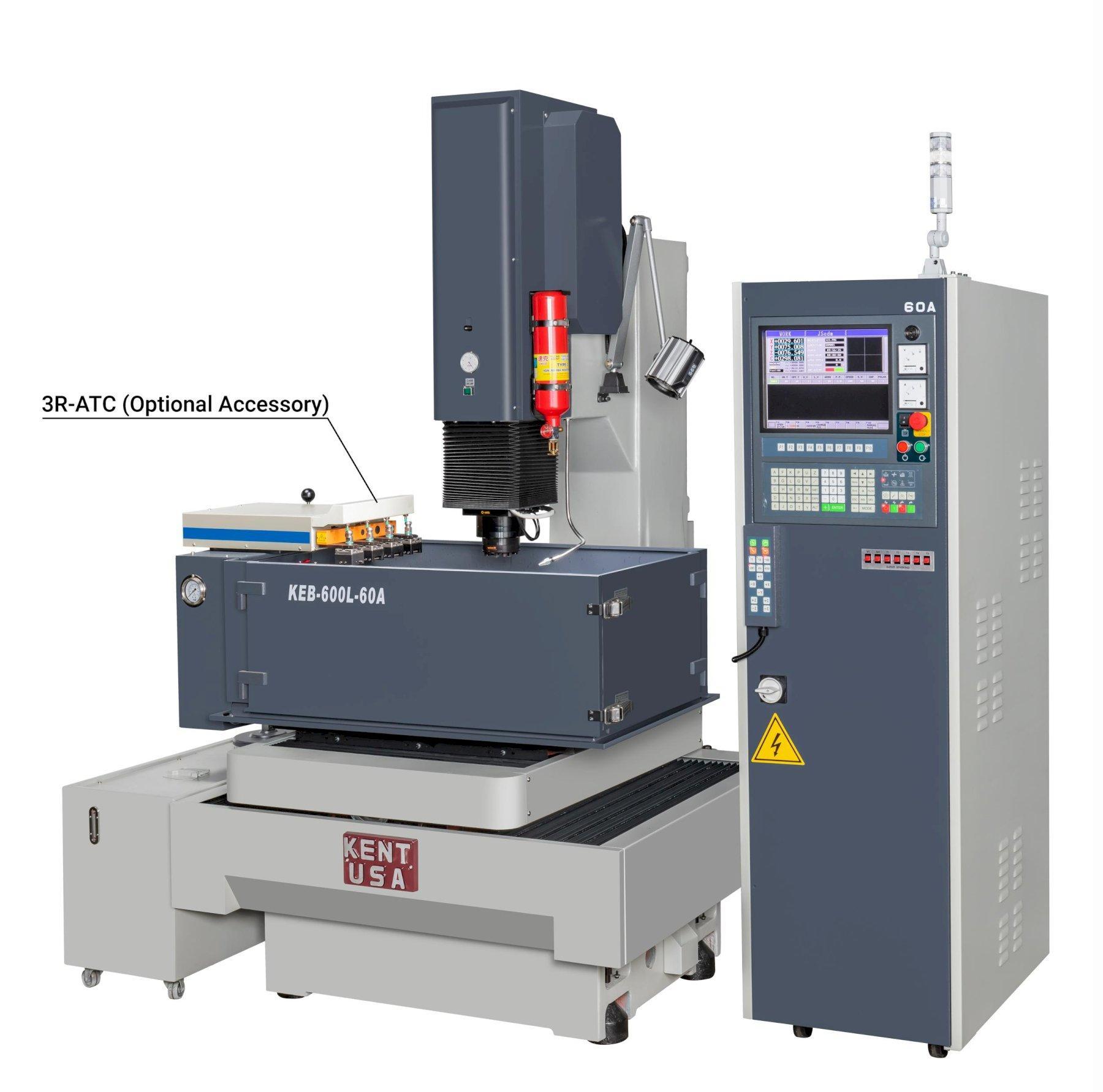

NEW KENT MODEL KEB-600L SINKER TYPE EDM
Year
Not provided
Stock #
16007
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW KENT MODEL KEB-600L SINKER TYPE EDM
·
60 Amp power supply capacity
· Fully ribbed solid casting for maximum rigidity and stability
· Built-in 3-axis DRO system integrates with machine control for positioning and auto z-depth setting in for simple programming
· Maximum 256 programmable steps for setting all machining parameters enables complete start to finish auto cycle for even the most complex jobs
· MOSFET electric discharge circuit design is ideal for fast burning, reduced electrode wear, and uniform surface finish applications
· Precision linear ways with lubricated ball screws and AC Servo motors on X, Y, Z-axis
· Single or 3 axes lateral movement, round orbiting, square orbiting, etc.
· Multi-cavity machining, Auto Home Function

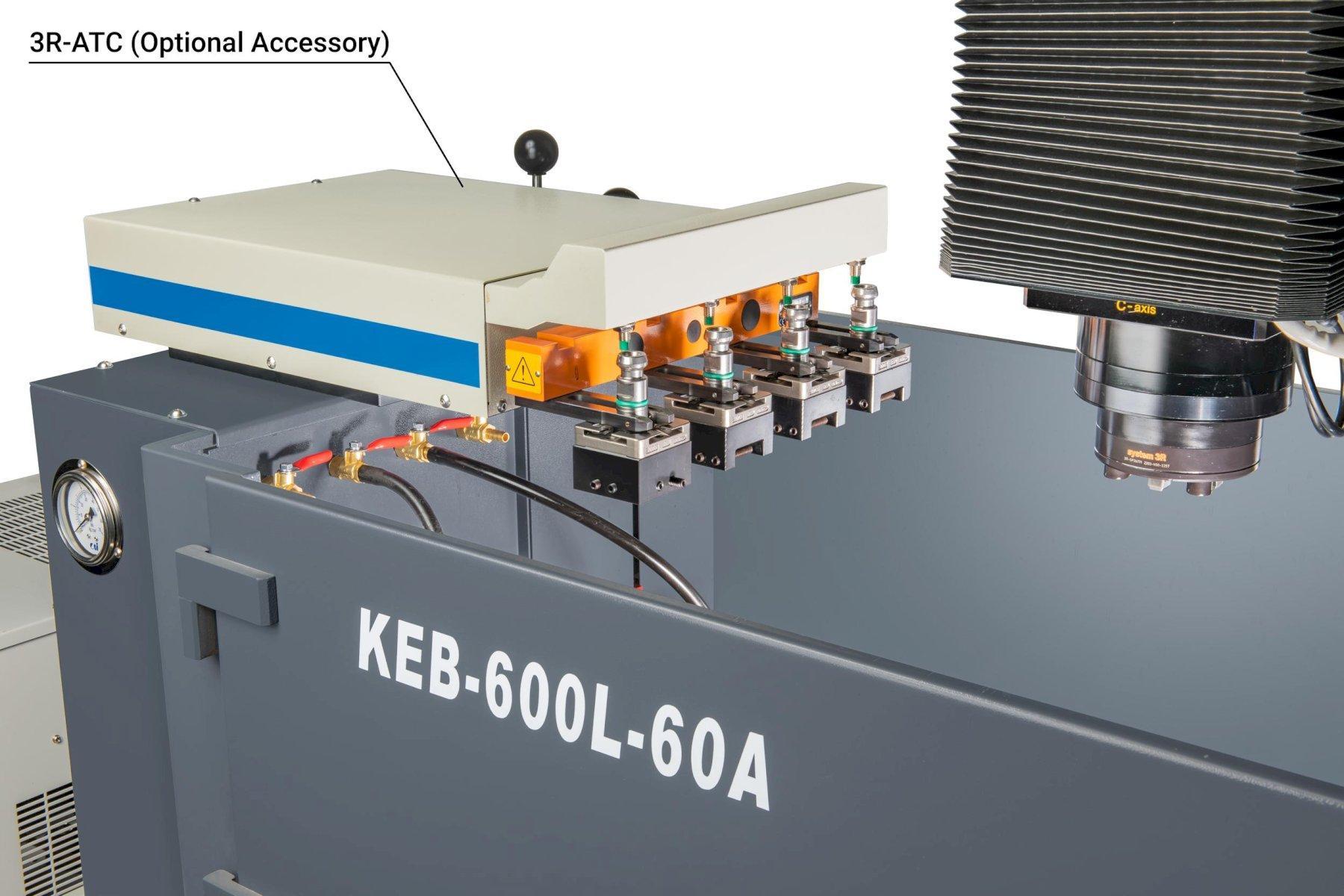

With Side loran function (X, Y axis), Angle Vector machining function, and ARC clockwise & ARC counter clockwise functionSTANDARD ACCESSORIES: Work head, work lamp, filter (2 pcs), tool box, automatic fire extinguisher, 15” color LCD, remote control box
|
Work tank: |
43.3” x 23.6” x 15.7” |
|
Work table: |
27.6” x 15.7” |
|
Travel (x/y/z): |
15.7” x 11.8” x 11.8” |
|
Distance between platen to table: |
10.6”~24” |
|
Max electrode weight: |
221 lbs |
|
Max work piece weight: |
2204 lbs |
|
Max Output current: |
60 Amp |
|
Max stock removal: |
400 mm3/min |
|
Best surface finish: |
Ra 0.2 mm |
|
Best electrode wear: |
< 0.12% |
|
Machine dimensions: |
95” x 63” x 93” |
|
Net weight: |
4409 lbs |
