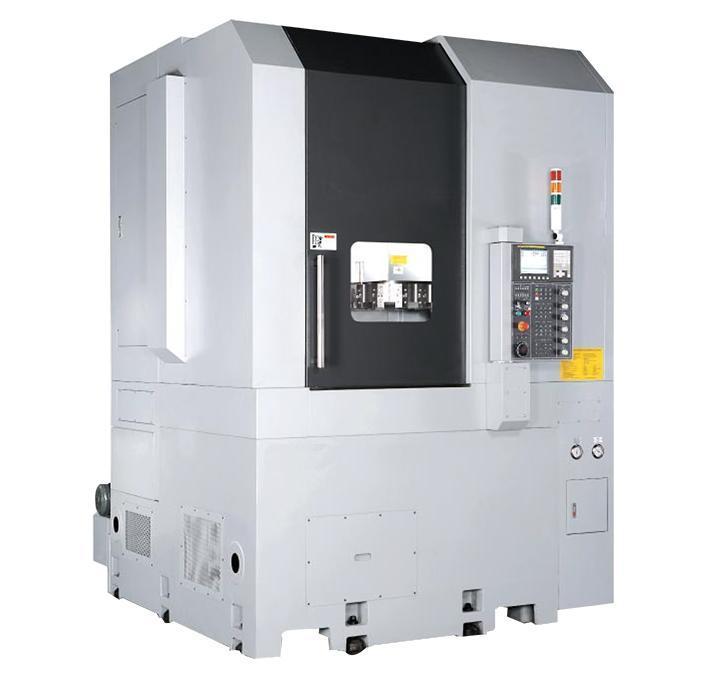

NEW KENT USA KVT-55E CNC COMPACT VERTICAL TURNING CENTER

Manufacturer

KENT USA

Model

KVT-55E

Year

Not provided

Stock #

19250

Condition

New

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

NEW KENT USA KVT-55E CNC COMPACT VERTICAL TURNING CENTER

he Kent CNC Vertical Turning Centers combine proven machine design with advance technology in control and manufacturing. A full range of vertical turning lathes, from the small KVT-55E to 100E compact vertical turning centers, is geared for the auto industry and the larger sizes are targeted for the windmill and power industries. The Kent CNC product line covers the 8”, 10”, 12”, 15”, 20” and 24” vertical chucker turning applications. Reliability and performance make this series a favorite among demanding job shops and in-house productions alike.  The heavy cutting spindle and rigid machine structure enable higher machining efficiency with better finish and longer tool life – resulting in greater productivity and profitability all around.  Upgrade your global competitiveness today.

  • Up to 39.3″ max turning diameter and 27.5″ max turning length

  • Up to 43.3″ max swing diameter

  • Symmetrically designed reinforced headstock

  • High precision spindle with dual-roller bearing and self-alignment angular bearings

  • High speed and high accuracy 8-station hydraulic turret


SPECIFICATIONS


Max Swing                                       30"
Max Turning Diameter                    21"
Max Turning Length                        21"
Spindle Speed                                  50-2,500 RPM
Spindle Nose                                    A2-8
Chuck Diameter                               12" (Opt 15")
Turret Type                                       Bolt On Tool
No Tools                                           12
Travels
    X Axis                                            -.8" - 10.8"
    Z Axis                                             21.6"
Rapid Traverse
     X Axis                                            .8 IPM
     Z Axis                                            .9 IPM
Motor
    Spindle                                           20 / 24 HP
    X & Z Axis Motor                          4 HP
Coolant Pump Motor                       .7 + 1.3 HP
Approx. Dimensions                         73" x 118" x 120"
Approx. Weight                                 11,684 Lbs

Attachments

There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
