NEW KENT USA KVT-75E CNC COMPACT VERTICAL TURNING CENTER

Manufacturer

KENT USA

Model

KVT-75E

Year

Not provided

Stock #

19251

Condition

New

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

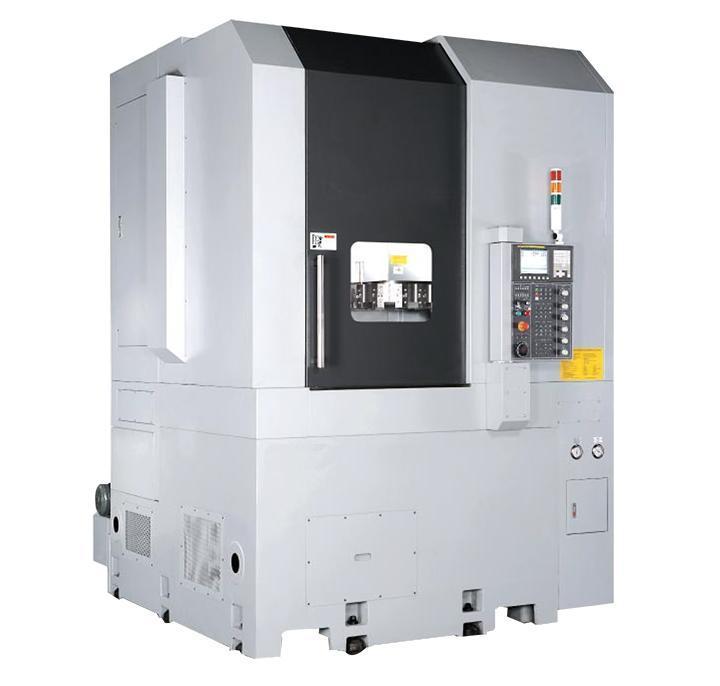

NEW KENT USA KVT-75E CNC COMPACT VERTICAL TURNING CENTER

he Kent CNC Vertical Turning Centers combine proven machine design with advance technology in control and manufacturing. A full range of vertical turning lathes, from the small KVT-55E to 100E compact vertical turning centers, is geared for the auto industry and the larger sizes are targeted for the windmill and power industries. The Kent CNC product line covers the 8”, 10”, 12”, 15”, 20” and 24” vertical chucker turning applications. Reliability and performance make this series a favorite among demanding job shops and in-house productions alike.  The heavy cutting spindle and rigid machine structure enable higher machining efficiency with better finish and longer tool life – resulting in greater productivity and profitability all around.  Upgrade your global competitiveness today.

  • Up to 39.3″ max turning diameter and 27.5″ max turning length

  • Up to 43.3″ max swing diameter

  • Symmetrically designed reinforced headstock

  • High precision spindle with dual-roller bearing and self-alignment angular bearings

  • High speed and high accuracy 8-station hydraulic turret


SPECIFICATIONS


Max Swing                                       33.5"
Max Turning Diameter                    29.5"
Max Turning Length                        27.5"
Spindle Speed                                  20-1,400 RPM
Spindle Nose                                    A2-11
Chuck Diameter                               24" (Opt 32")
Turret Type                                       Bolt On Tool / VDI
No Tools                                           12
Travels
    X Axis                                            -1.7" - 14.7"
    Z Axis                                             31.5"
Rapid Traverse
     X Axis                                            .8 IPM
     Z Axis                                            .9 IPM
Motor
    Spindle                                           20 / 24 HP
    X & Z Axis Motor                          5 HP
Coolant Pump Motor                       .7 + 1.3 HP
Approx. Dimensions                         93" x 137" x 158"
Approx. Weight                                 33,069 Lbs
