NEW KENT USA MH-630 CNC HORIZONTAL MACHINING CENTER
Year
Not provided
Stock #
19245
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With

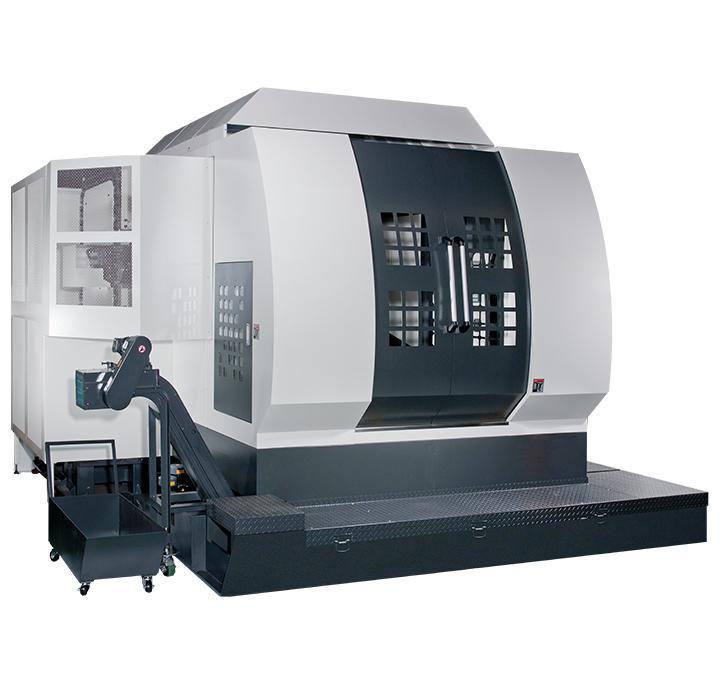

NEW KENT USA MH-630 SINGLE PALLET CNC HORIZONTAL MACHINING CENTER
The Kent CNC Horizontal Machining Center Standard Series combine proven machine design with advance technology in control and manufacturing. Reliability and performance make this series a favorite among demanding job shops and in-house productions alike. The heavy cutting spindle and rigid machine structure enable higher machining efficiency with better finish and longer tool life – resulting in greater productivity and profitability all around. Upgrade your global competitiveness today.
-
Travels of up to 39.4″ x 25.6″ x 29.5″
-
Up to 31.5″ x 31.5″ rotary table size
-
Up to 4,409 lbs work load
-
Fanuc 0i-MD controller
-
Full package of Fanuc servo system
SPECIFICATIONS
APC No
Table Size 24.8" X 24.8"
Travels
X Axis 39.4"
Y Axis 25.6"
Z Axis 29.5
Max Load Capacity 2645 Lbs
Spindle Taper BT-50
Spindle Speed 45-4500 RPM (Opt 50-6000 RPM)
Cutting Feedrate 1-157 IPM
No Tools 60 ATC
Spindle Motor 20 / 24 HP
X/Y/Z Servo Motors 5 HP
Approx. Dimensions 207" x 182" x 121"
Approx Weight 28,219 Lbs
Attachments
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
