NEW KENT USA MODEL KVP-12 VERTICAL MACHINING CENTER

Specifications

Equipped With

NEW KENT USA MODEL KVP-12 VERTICAL MACHINING CENTER

Product Highlights

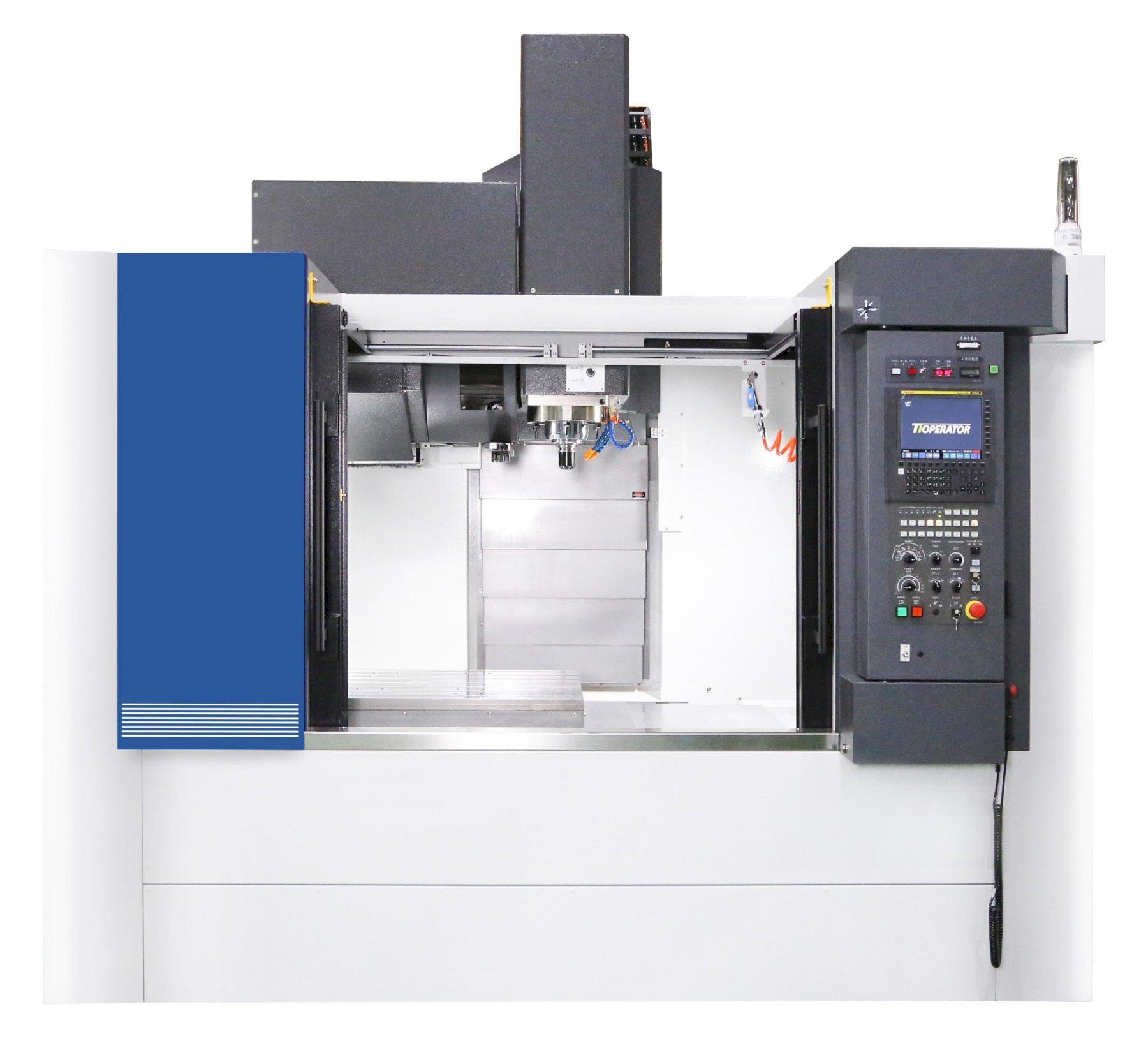

The KENT CNC KVP-12 Vertical Machining Center is designed for high efficiency, precision, and reliability. It features a spacious machining area with X/Y/Z travels of 50.0″ / 26.4″ / 28.0″ (1,270 / 670 / 710 mm) and rapid traverse speeds of 1,417 / 1,417 / 1,181 in/min (36 / 36 / 30 m/min), providing ample room and speed for various machining tasks.

The direct-drive spindle minimizes heat transmission from the motor and offers high precision, low vibration, and easy maintenance. Standard spindle speed is 10,000 rpm, with an optional upgrade to 15,000 rpm. The BIG-PLUS dual-face contact system enhances spindle and tool holder rigidity for better machining accuracy.

An intelligent spindle system includes clamping position sensors and automatic coil switching for optimal power output at all speeds. An optional spindle cooling system further improves thermal stability and precision. Combined with air-shield sealing for bearing protection, the KVP-12 delivers consistent, high-performance results with long-term reliability.

X/Y/Z-Axis Travel: 50.0″ / 26.4″ / 28.0″ (1,270 / 670 / 710 mm)
X/Y/Z-Axis Rapid Traverse: 1,417 / 1,417 / 1,181 in/min (36 / 36 / 30 m/min)

Spindle Speed: 10,000 rpm (Opt. 15,000 rpm)

Standard Accessories

10,000 rpm (Direct-drive)
BBT-40 Tool Shank
24 pcs Tool Capacity
Auger-Style Chip Conveyor
Spinlde Through Coolant
FANUC fine surface machining
FANUC Tool life management
Air gun set
LED work light
Tri-color warning light (LED)
Manual pulse generator
Workpiece counter (CNC)
Air blow system
Automatic low-speed or high-speed winding switch(※)
Coolant tank with filter box
Spindle nozzle coolant

Optional Accessories

15,000rpm(Direct-drive)
HSK-A63 Tool Shank
30 pcs Tool Capacity
Coolant through Spindle: 20 bar
Coolant through Spindle: 50 bar
Spindle oil cooler
Electrical cabinet cooler
Bed flushing system
Coolant tank with chip conveyor
Chip shower
Coolant gun set
Disk type oil skimmer
Renishaw TS-27R (Tool Breakage Measurement System)
Factorytool breakage detector (Tool Breakage Measurement System)
Renishaw OMP60 (Workpiece measuring system)
Linear scale
Automatic door
Mist collector
Transformer/ Stabilizer
Hydraulic units and interface
Automatic power off system

Specification

KVP-12

Table size (LxW)

53.15″ × 27.95″ (1350mm × 710mm)

Max. loading capacity

2866 lbs (1300 kg)

Table height from floor

37.2″ (945mm)

T-slot (sizexNo.)

0.71″ × 7 (18mm × 7)

Spindle taper

7/24 Taper No.40

Spindle speed

10,000 rpm (Opt. 15,000 rpm)

X/Y/Z axis travel

50″ / 26.38″ / 27.95″ (1270mm / 670mm / 710mm)

Distance from table surface to spindle gage line

3.94″–31.89″ (100–810mm)

X/Y/Z axis rapid traverse

1417/1417/1181 in/min (36/36/30 m/min)

Cutting feedrate

0.04″–393.7″/min (1–10,000mm/min)

Tool shank

BT-40

Tool capacity

24 pc (Opt. 30 pc)

Max. tool diameter

Ø3.5″ (Opt. Ø2.95″) (Ø89mm / Opt. Ø75mm)

Max. tool diameter (w/o adjacent tool)

Ø4.92″ (Ø125mm)

Max. tool length

11.81″ (300mm)

Max. tool weight

15.43 lbs (7 kg)

Spindle motor

14.75/20.11/24.8 hp (11/15/18.5 kW)

X/Y/Z axis servo motor

5.36/5.36/9.39 hp (4/4/7 kW)

Machine Dimensions (Width x Depth x Height)

114.17″ × 128.54″ × 124.61″ (2900mm × 3266mm × 3166mm)

Machine Weight

19,841 lbs (9000 kg)

Controller

FANUC 0i-MF Plus

Attachments

There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
