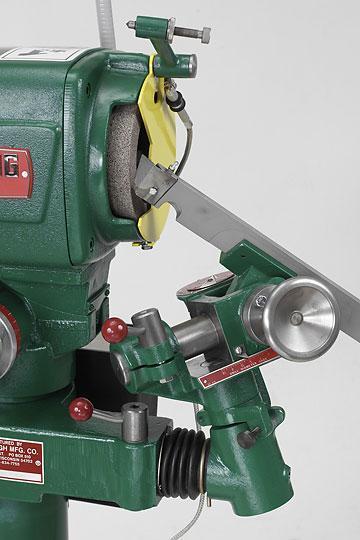

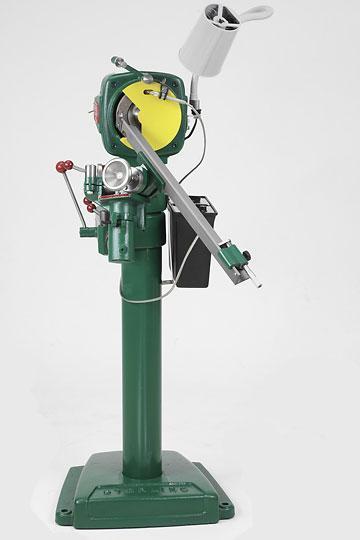

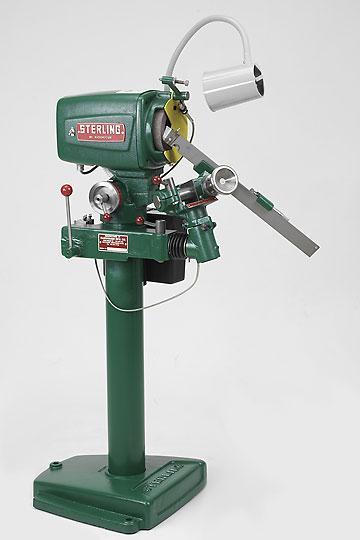

NEW STERLING BY MCDONOUGH MODEL DV DRILL GRINDER

New

SPECIFICATIONS:

Capacity: Sharpens 1/8″ to 2 1/2″ Diameter Drills (1/8″ to 3″ Calibration Available)

Versatility: Sharpens 2, 3, or 4 flute drills with variable included angles of 90º, 100º, 110º, 118º, 130º, and 140º

Precision: For accurately centered and free cutting drills in seconds

Simplicity: No chucks, no collets, and no wrenches to bother with when sharpening different diameter drills. The same drill holding unit handles all drills from 1/8″ to 2 1/2″ in diameter

Unmatched Capacity: The Sterling Drill Grinder is the only grinder capable of sharpening drills from 1/8″ to 2 1/2″ in diameter. It will accommodate any standard catalog drill within this size range without the hassle of using chucks, collets, or wrenches

Extra Versatility: The Sterling Drill Grinder will sharpen 2, 3, and 4-flute drills with 90º to 140º included angles

STANDARD EQUIPMENT:

Flexible work light permanently mounted

Diamond wheel dresser with a mounted diamond

45º, 50º, 55º, 59º, 65º, and 70º drill stops

6″ straight cup wheel, 70 grit, aluminum oxide (46 and 60 grit also available)

Micrometer head for accurate control of drill infeed

3/4 HP, 3,450 RPM, 115v/1ph, 60 cycle, NEMA C flange mount, totally enclosed fan-cooled, ball-bearing motor

Approximate Dimensions                                              48" x 24" x 50" H

Approximate Weight                                                      405 Lbs.

OPTIONAL EQUIPMENT:

3/4 HP / 220v, 440v / 3ph Motor with Push Button Start/Stop Switch

Mist Coolant Unit Kit (Includes: Face Plate, Strap, and Clip)

Special Calibration for Sharpening 3″ Diameter Drills (Complete with 3/4 HP / 3ph Motor)

3″ Calibration with No Motor
