OKUMA LB3000EX-II/800-MYW CNC LATHE
Year
2021
Stock #
19891
Condition
Very Good
Keep Scrolling To Learn More
Specifications
Equipped With

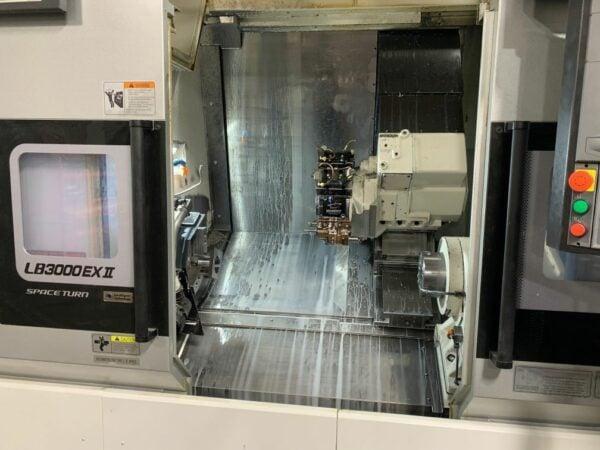

OKUMA LB3000EX-II/800-MYW CNC LATHE
--- LIVE TOOLING, SUB-SPINDLE, CHIP CONVEYOR, TAILSTOCK
New: 2021
SPECIFICATIONS
Swing Over Bed: 22.83"
Swing Over Saddle: 18.5"
Turning Diameter: 13.19"
Distance Between Spindles: 42.72"
Chuck Size: 1,2: 10", 6"
Bar Capacity 1,2: 3", 1.7"
X-Axis Travel: 10.24"
Z-Axis Travel: 39.76"
Y-Axis Travel: 4.53" (+276/-1.77)
C-Axis Indexing 1,2: 0.001, 0.001 Degree
Rapid Traverse (X/Z/Y): 984/1, 181/492 IPM
Spindle Nose 1,2: A2-8, JIS Flat Ø140
Spindle Speed 1,2: 6,000, 5,000 RPM
Spindle Power 1,2: 30, 15 HP
Main Spindle Bore Diameter 3.15"
Sub Spindle Bore Diameter Ø2.44"
Front Bearing Diameter 4.72"
Spindle ID Taper: 2 Deg
Tailstock: Yes
Tool Pre-Setter: Yes
Approximate Dimensions: 135.64" x 80.35" x 88.6"
Approximate Weight: 15,101 lbs.

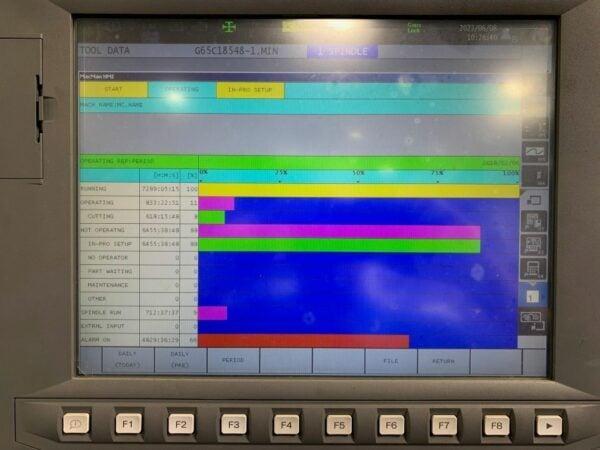

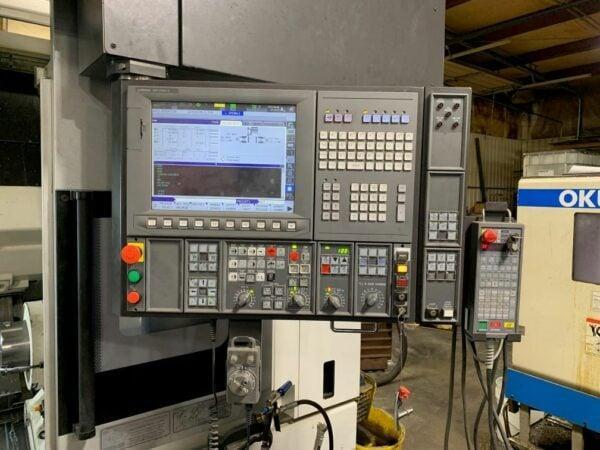

Controller OSP-P300L
EQUIPPED

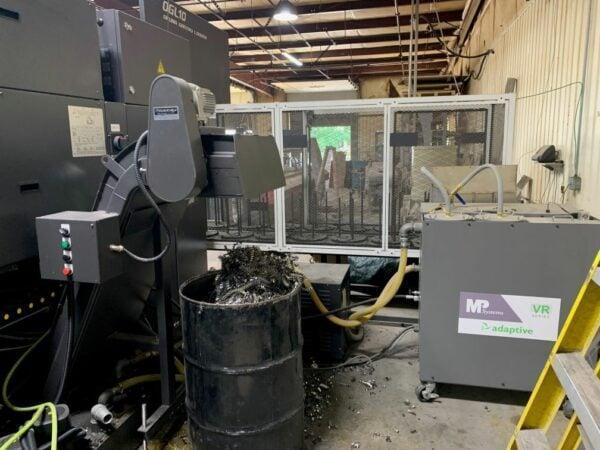

Chip Conveyor

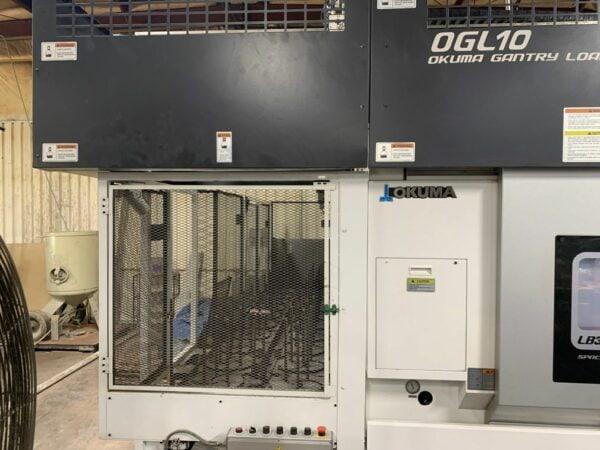

OGL-10 Loader with 20 Station Stacker Table
Kitagawa B206-01 6" Chuck for 140 Flat Spindle Nose, Right
Velocity Live Tool Kit
Velocity Static Tool Kit
Tailstock
