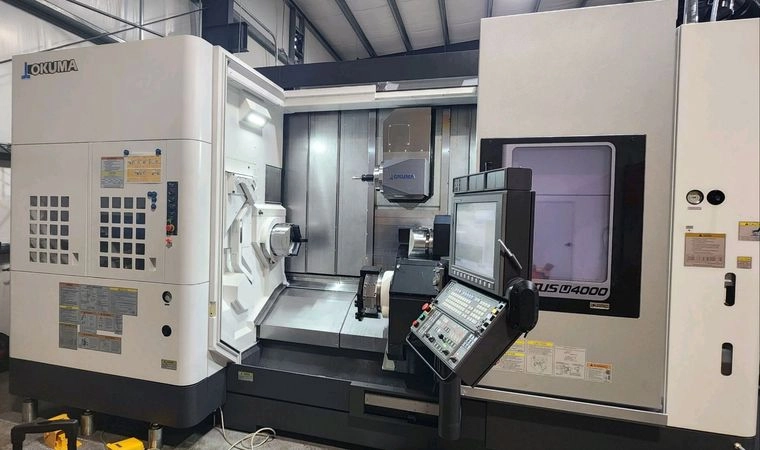

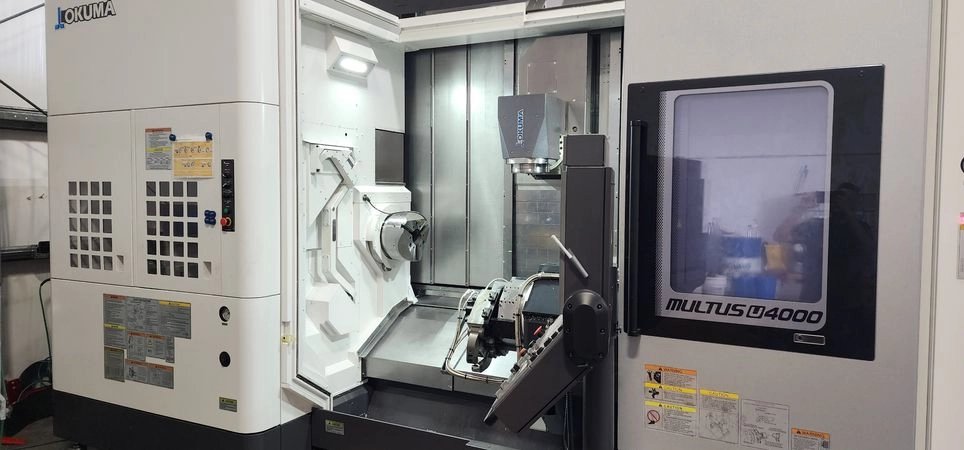

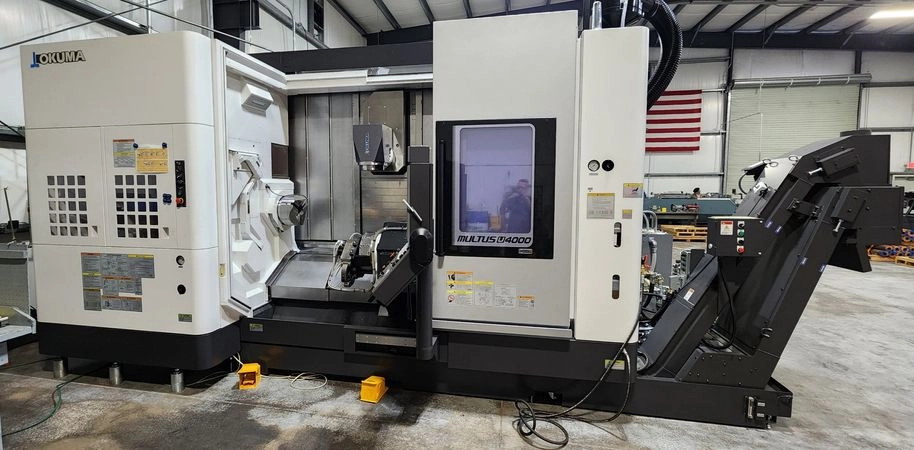

Okuma Multus U4000-2SWx1500 Multitasking CNC Turning Center

New 2022

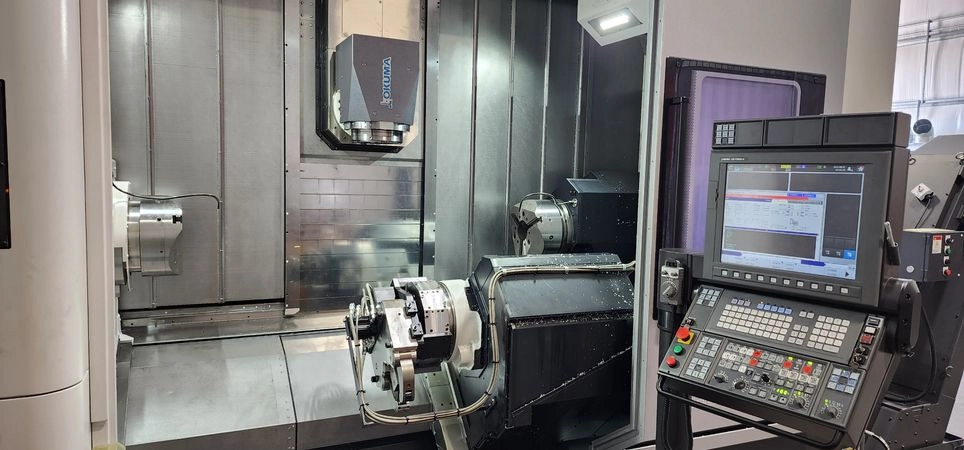

The 2022?Okuma?Multus?U4000-2SW x 1500 Multitasking CNC Turning Center is a full-featured multi-axis turning centre equipped with dual spindles, twin turrets including a Capto C6 live-tool upper turret, and a static lower turret, all controlled via the OSP-300 CNC system. It provides 27.36-inch X-axis, 62.99-inch Z-axis travel, 60-inch distance between centres, and a 12000?RPM milling spindle for high-speed, precision machining, alongside Y-axis, C-axis, and B-axis (–30° to +210°) for complex contouring and milling tasks.

1. Compared to simpler multitasking machines, this U4000 model elevates productivity with simultaneous dual-spindle processing, extensive tool capacity, broad-swing B-axis milling, and full 5-axis contouring capabilities—driving high throughput, reduced setups, and exceptional flexibility in a compact cell

   SPECIFICATIONS:
   X - Travel                                            27.36"
   Z - Travel                                            62.99"
   Distance Between Centers                 60"
   Max. Swing Over Bed                         25.59"
   Max. Turning/Cutting Length              59.16"

   SPINDLES:
   Bar Capacity                                      3.58"
   Chuck Description                             Schunk THW3-315 Quick Jaw Change Chuck
   Spindle Bore                                     5.51"
   S[omd;e Speed                                 4,200 RPM
   Spindle Motor                                   30 HP
   Spindle Nose                                    A2-8

   SECOND SPINDLE:
   Total Spindles                                  2
   Sub-Spindle                                     Equipped With:
   Second Chuck Description             Schunk THW3-315 Quick Jaw Change Chuck
   Second Spindle Bore                      3.15"
   Second Spindle Speed                   3,800 RPM

   TURRET:
   Total Position                               80
   Turret Options                              Upper Turret: Capto Co
                                                        Lower Turret: Static Toolling
   Twin Turret                                   Equipped With
   Second Turret Positions             12
   Live Milling Max. RPM               12,000 RPM

   Control:
   Additional Control Options:                   Collision Avoidance System (Cas)
   PC Advanced One Touch IGF Conversational Programming
   Lathe Tool Index Function - Multi Edge
   12 Position Negative Tool Radius Compensation
   Auto Gauging
   Y-Axis Gauging w/ Slope Gauging
   (8) Sets Spare M-Codes
   Machine Advanced One Touch Igf Conversational Programming
   Steady Rest Enable/Disable Switch
   Variable Spindle Speed Threading, Left (Main)
   Thread Phase Matching
   Feed Hold During Threading
   Inverse Time Feed Function
2.



    Transformer;Mist Collector

   Additional Options:
   Additional Machine Specs: Travels:
   - C-Axis: 360,000°
   - Y-Axis: 11.81" (+/-5.91")
   - B-Axis: -30 / +210°
   - B-Axis (Upper Turret): 0.001°

   Left Spindle:
   - BB: 3,000 RPM
   - BB Spindle (A2-11) with F2511 Cylinder and Draw Tube - Main Turret
   - Liquid Cooled Integral Spindle
   Right Spindle:
   - Right: 3,800 RPM
   - Spindle: SR-1670 Hydraulic Cylinder and Draw Tube Dual Function - Upper Turret
   - Liquid Cooled Integral Spindle

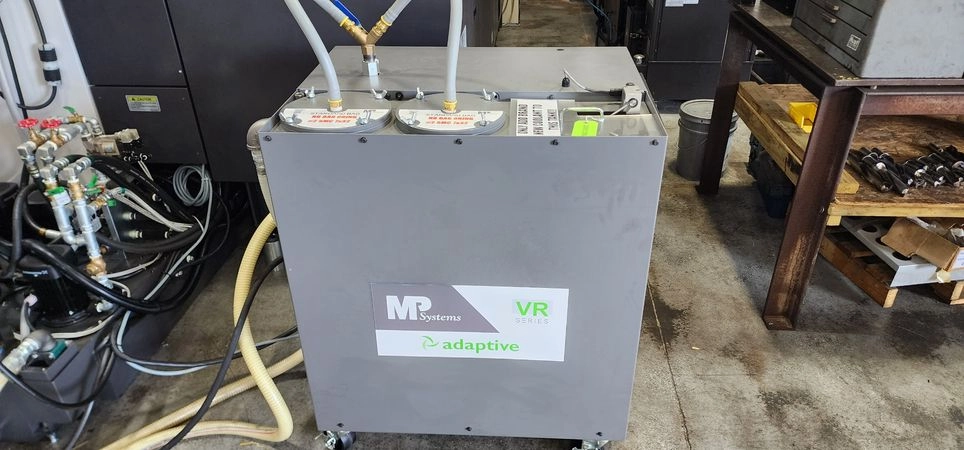

   High Pressure Coolant Pump with 50-Gal Reservoir
   Type B, Niagara Shower Coolant

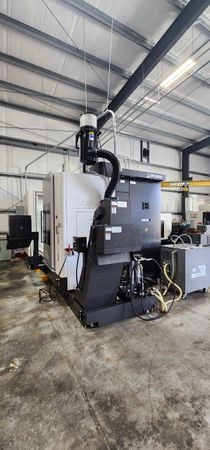

   Royal Mist Collector Package FX-1200
   Touchsetter Auto for 2 Saddle
   Multi-Tab Transformer (100kva)

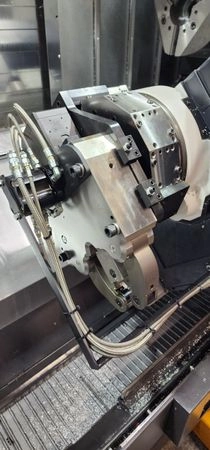

   Steady Rest Package to Mount to Lower Turret: Slux-Z-3 (1.97 - 7.88" Capacity)
   Step Stool Grate in Conveyor for Operator
