KNUTH "Plasma-Jet Air Pro" PLASMA CUTTING MACHINE
Year
Not provided
Stock #
16200
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| Plasma-Jet Air Pro 1530 H | |
|---|---|
| Working Area | |
| Cutting Width | 61 in |
| Cutting length | 120 in |
| Table height | 24 in |
| Table load capacity | 71 lbs/ft? |
| Rapid feed | 591 in/min |
| Weight (without plasma source) | 3,740 lbs |
- Compact design with guides integrated into the table frame
- Plasma cutting system for personal use providing high value at a lost cost
- Careful selection of the optimum components ensures that the same cutting functionality is available as in large plasma cutting systems
- Machine can be moved and transported in its fully assembled state
- The drives on both sides of the machine bridge and the drive of the X-slide along the machine bridge are carried out in a permanently precise manner by helical rack and pinion.
- The machine has a segment-wise suction of the working surface, whereby the respective suction flap is opened mechanically by the machine bridge passing.
- The distance between plasma cutting nozzle and plate surface is maintained by the Z axis height control; height control is regulated by an electric arc

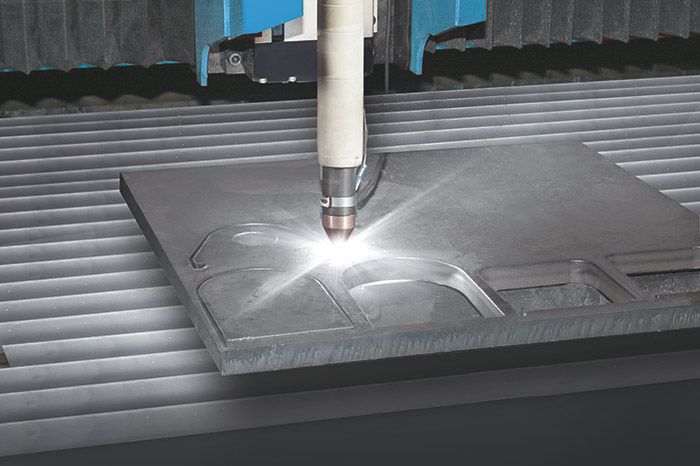

- Plasma cutter head with collision guard
- Table is prepared for filter system (mechan. closure control)
- Panasonic servo-motors and drives
- Automatic torch height control with Hypertherm THC sensor
- Cutter torch with magnetic coupling and crash sensor

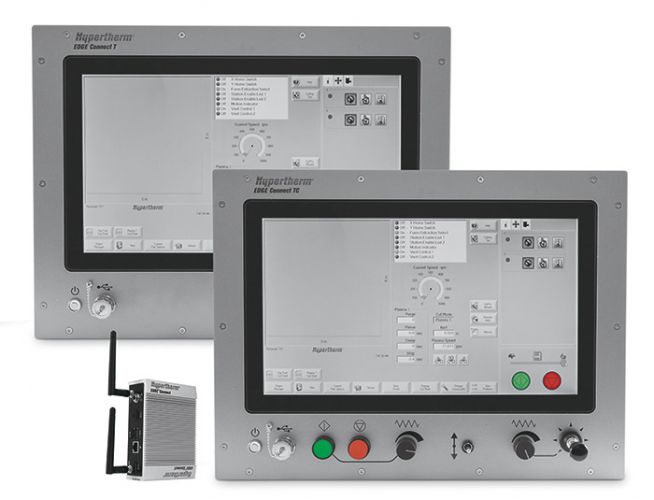

- Hypertherm Edge Connect CNC Unit
- 19 ÓTouchscreen von ELO
- Ethercat-E
- Laser pointer
- Libellula Wizard PRO
- Libellula.CAD 2D
