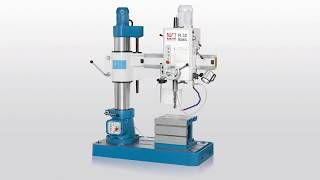

KNUTH "R 32 BASIC" RADIAL ARM DRILL
Year
Not provided
Stock #
16146
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| Drilling capacity | 1.26 in |
| Column diameter | 8 in |
| Throat | 13 - 32 in |
| Spindle nose-to-table surface distance | 13 - 34 in |
| Cube table dimensions | 16x16x14 in |
| Machine table dimensions | 54x28x6 in |
| Quill stroke | 9 in |
| Spindle mount | MT 4 |
| Speed range | (6) 75 - 1,220 rpm |
| Feeds | (3) 0 - 0.01 in/R |
| Motor rating main drive | 2 Hp |
| Overall dimensions (length x width x height) | 56x29x75 in |
| Weight | 3,135 lbs |
| Part No. | 101522 |
- For drilling, reaming and tapping
- Machine frame made of high-quality fine-grain cast-iron with heavy ribbing to ensure maximum reduction of vibrations
- Precision-ground gears for quiet operation
- Practical layout of electrical and mechanical controls at the headstock for easy operation
- Motorized arm height adjustment
- The spindle is made of high-quality hardened steel of consistent accuracy
- Mechanical clamping for head, column and arm
- coolant system
- cube table
- halogen lights
