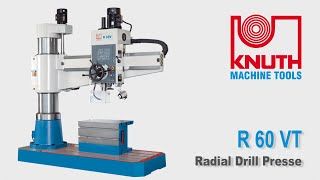

R 60 VT


Not provided

Stock #




Request A Quote

Keep Scrolling To Learn More


Equipped With

Working Area
Drilling capacity2.36 in
Tapping capacity, cast-ironM 50
Tapping capacity, steelM 45
Drilling depth (max.)12 in
Throat14 - 63 in
Spindle nose-to-table surface distance14 - 49 in
Drill head travel (horizontal)49 in
Speed range(2) 38 - 2,000 rpm
Spindle mountMT 5
Feeds0 - 11.81 in/min
Drive Capacity
Motor rating main drive5.4 Hp
Stroke motor2 Hp
Measures and Weights
Overall dimensions (length x width x height)99x42x110 in
Weight8,360 lbs
Part No. 101656

  • Base, column, boom and gear head are made of premium high-quality cast
  • Major design features include a large column and a highly torsion-resistant boom
  • Boom height adjustment via a powerful motorized drive and vertical spindle
  • The boom lifting gears run in an oil-bath for maximum reliability and minimum wear
  • Swivel axis and travel axis feature extremely smooth operation to make the operator's everyday production work easier
  • A central lubrication system ensures reliable lubrication of the column

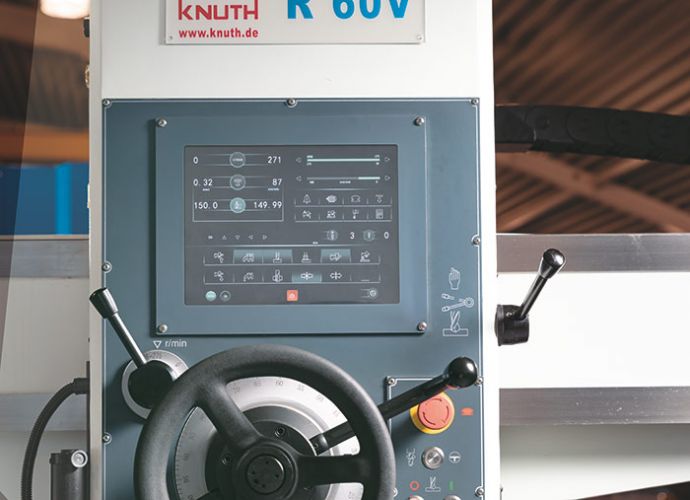

Electronically controlled servo quill feed with large touchscreen display

  • Drilling depth is electronically set and the input value is checked by the system
  • Measuring units for input and display can be selected by the operator (mm or inch)
  • The high-performance coolant system enabled at the touchscreen and will be turned on and off as a function of the main spindle
  • The machine has 2 gear steps, and the rpm can be infinitely varied and displayed at the monitor
  • A servo motor provides infinitely variable control of the quill feed - upon reaching the preselected drilling depth, the quill automatically returns to the starting position
  • Thread cutting is, however, completely manual, i. e., the operator changes the quillÕs rotational direction upon reaching the drilling depth
  • The operator sets the boom height by touching the respective icon, whereupon the system automatically releases and fixates the hydraulic clamps, turns off the lift motor, and considers all set limit stops
  • Drill head and column can be clamped/released together or separately
  • Boom can be moved vertically without losing the spindle-to-bore alignment
  • The control software also provides recommendations for rpm and feed in relation to the desired drill size
  • Various alarm screens warn the operator in case of operational errors and display information on the operational state

  • touch screen control panel
  • coolant system
  • cube table
  • LED work lamp
  • operator instructions
