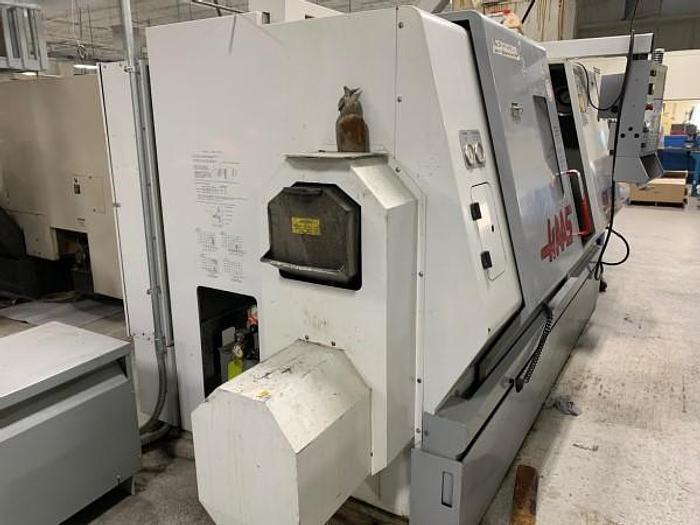

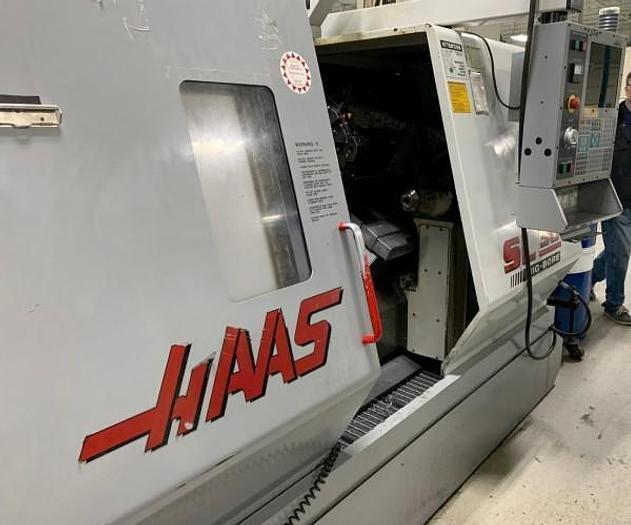

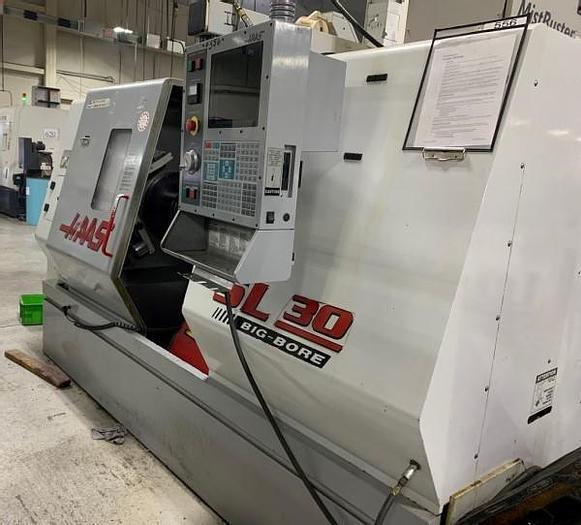

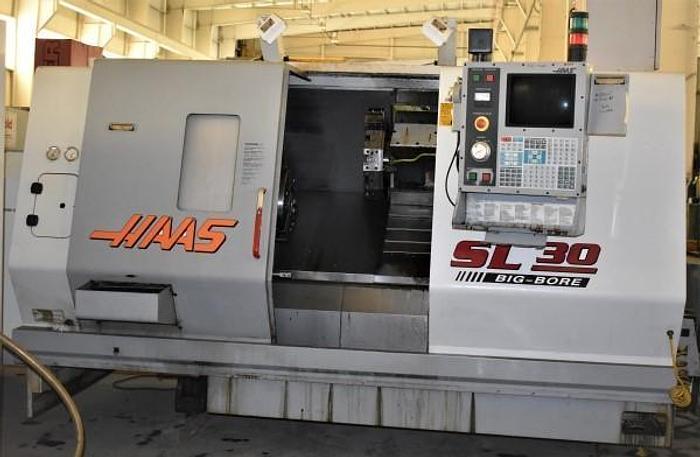

SL30TB HAAS "BIG-BORE" CNC TURNING CENTER

Manufacturer

HAAS

Model

SL30 TB Big Bore

Year

2001

Stock #

17353

Condition

Very Good

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

SL30TB HAAS "BIG-BORE" CNC TURNING CENTER

New 2001

EQUIPPED WITH:
HAAS CNC CONTROL
4" BIG BORE DRIVE SYSTEM

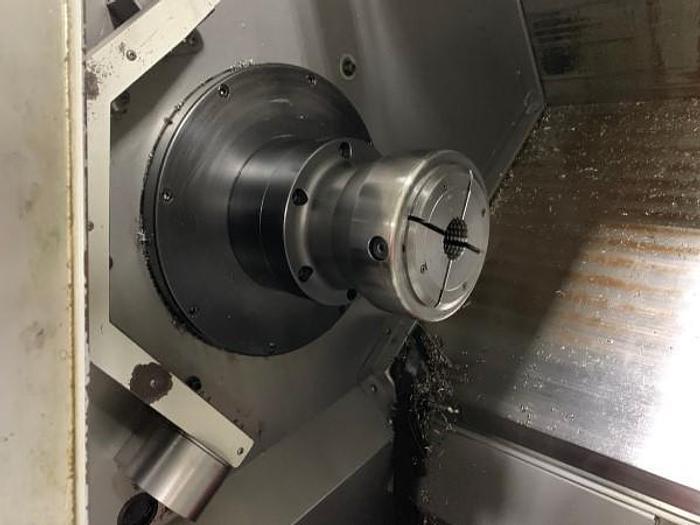

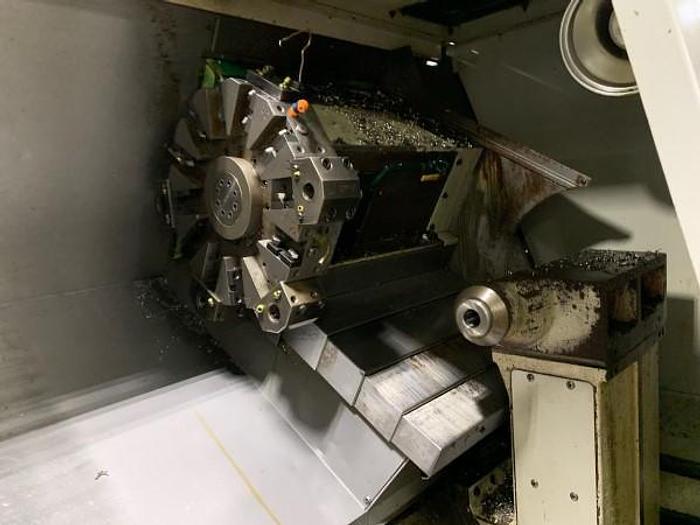

COLLET CHUCK - 12-POSITION TURRET
PROGRAMMABLE HYDRAULIC TAILSTOCK
COOLANT SYSTEM & CHIP CONVEYOR
TOOL PRESETTER

LNS "QUICK LOAD SERVO 80 S2" AUTOMATIC MAGAZINE BAR-FEED
SERIAL NO 300656, MODEL SERVO S2, SERIES QUICK LOAD






Round bar stock diameter capacity, minimum

0.236" 6MM

Round bar stock diameter capacity, maximum

3.15" 80MM

Bar capacity length, range

13.78" TO 63"

X or z-axis retract travel

23.6" 600MM

Weight capacity, bar stock

147LB 67KG

Weight capacity, loading table

1100LB 500KG

Feed rates, maximum

4000 IPM

Push force/torque

167 NM

Weight approximately

814LB 370KG


SPECIFICATIONS:

Spindle bore

4"

Bar capacity, maximum

4"

Swing over apron, maximum

30"

Swing over cross slide

14.5"

Maximum cutting diameter

16"

Between centers

39"

Maximum cutting length

34"

Spindle nose

A2-8

X-axis cross slide travel

11.3"

Z-axis carriage travel

34"

X-axis rapid traverse

710 IPM

Z-axis rapid traverse

710 IPM

Spindle speeds, range

TO 2400 RPM

Spindle motor, horsepower

40 HP

Overall dimensions, l x w

162" X 77"

Overall height

74"

Weight approximately

16,000 LBS
