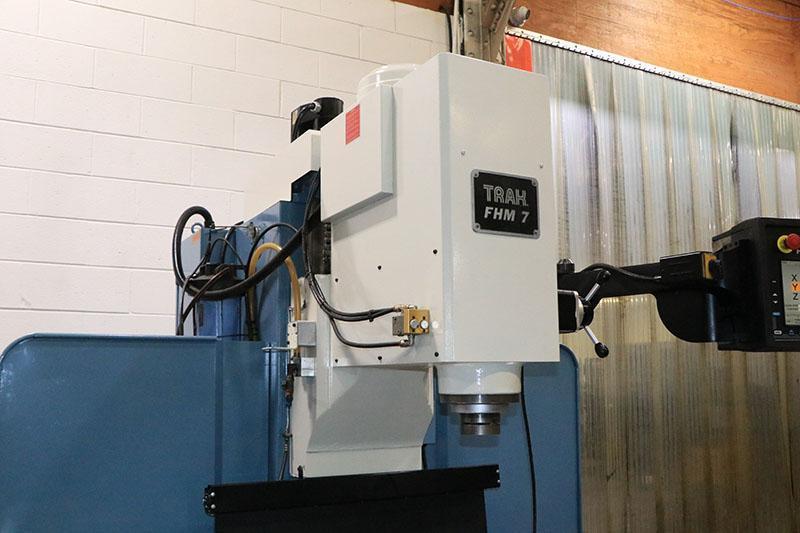

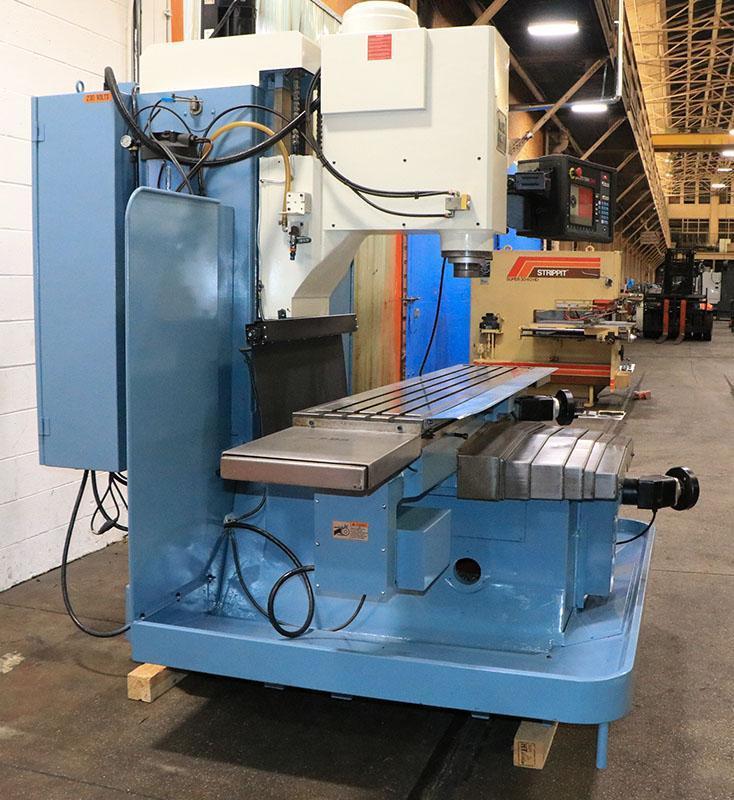

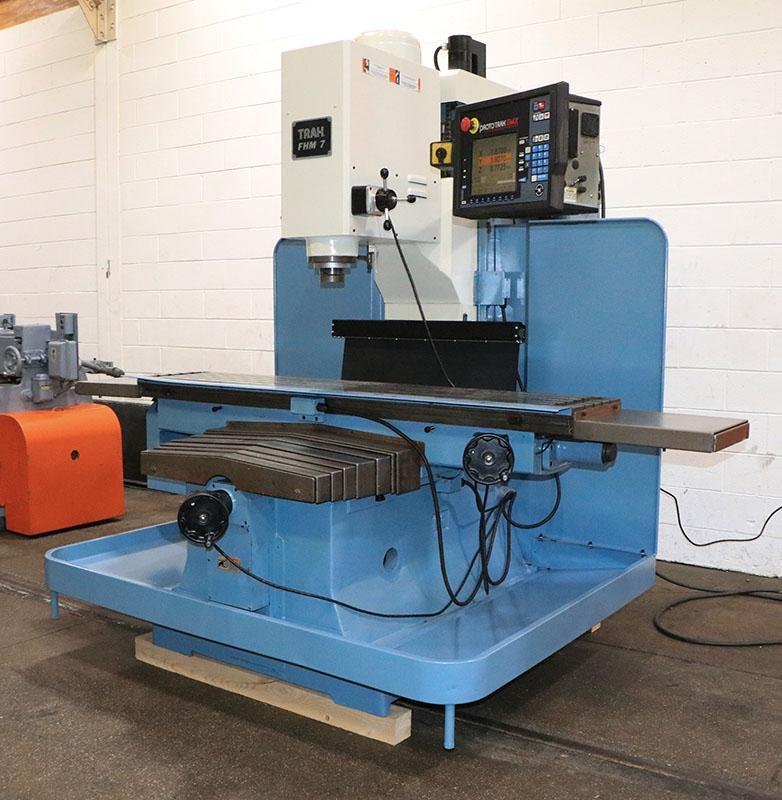

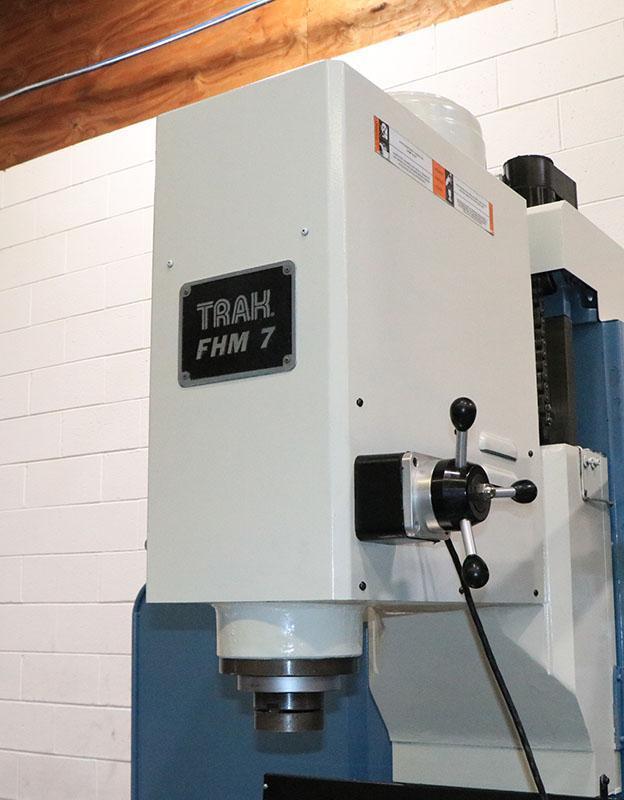

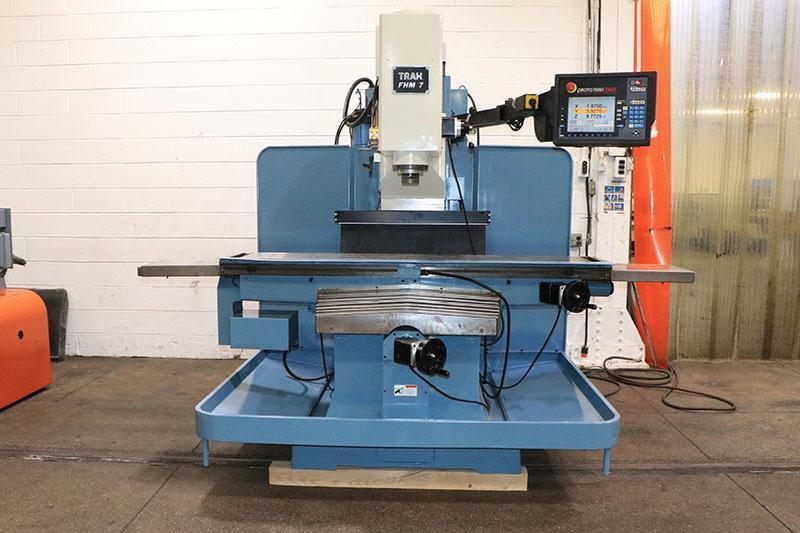

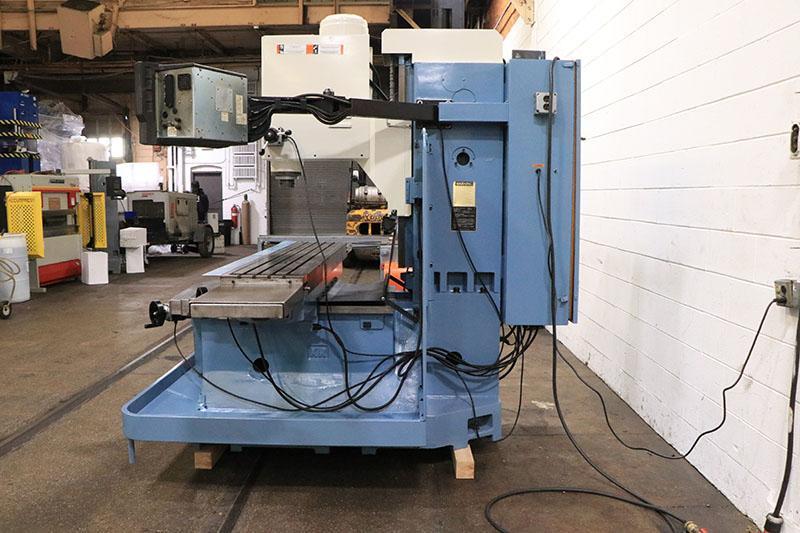

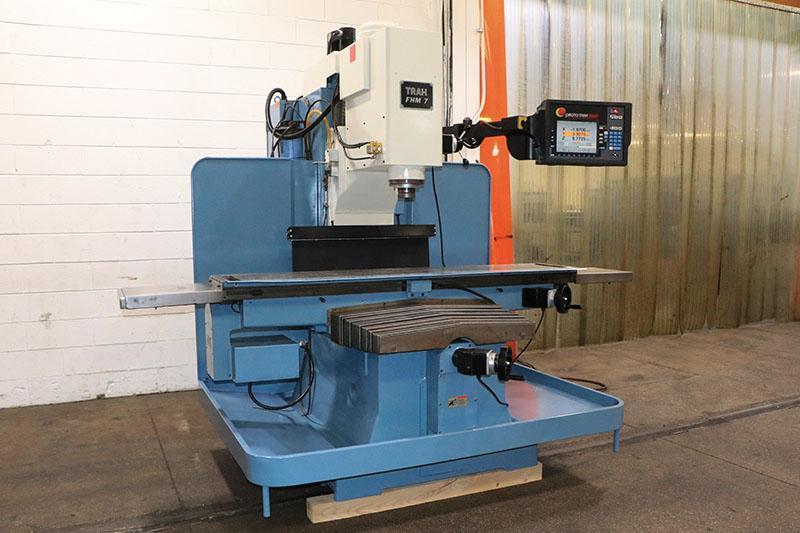

SOUTHWESTERN INDUSTRIES MODEL FHM 7 CNC VERTICAL MILL

NEW 2009

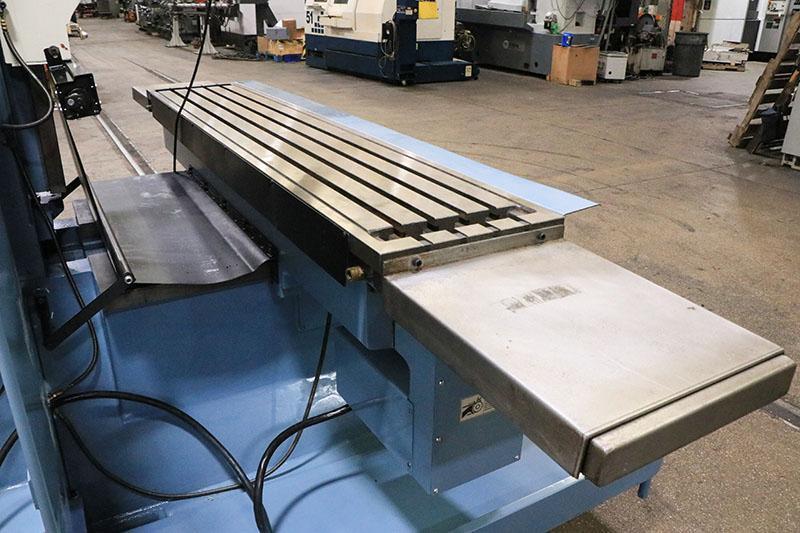

MACHINE HAD THE TABLE REGOUND & NEW TURCITE PUT ON MARCH 2025

SPECIFICATIONS:

TABLES SIZE ...................... 76" X 14"

TRAVELS:

TABLE  (X-AXIS) .................. 60"

SADDLE (Y-AXIS) .................. 23"

HEAD  (Z-AXIS) ................... 20.5"

QUILL DIAMETER ................... 5.06"

SPINDLE TAPER .................... #40

SPINDLE SPEED RANGE .............. 200 - 5000 RPM

SPINDLE CENTER TO COLUMN FACE .... 23.75"

SPINDLE MOTOR .................... 7.5 HP

MAX WEIGHT OF WORKPIECE .......... 2,200 LBS

TABLE HEIGHT FROM BED BOTTOM ..... 38.25"

MAX SPINDLE NOSE TO TABLE ........ 24"

MIN HEIGHT ....................... 91.75"

MAX HEIGHT ....................... 101"

APPROXIMATE MACHINE WEIGHT ....... 7,975 LBS.

EQUIPPED WITH:

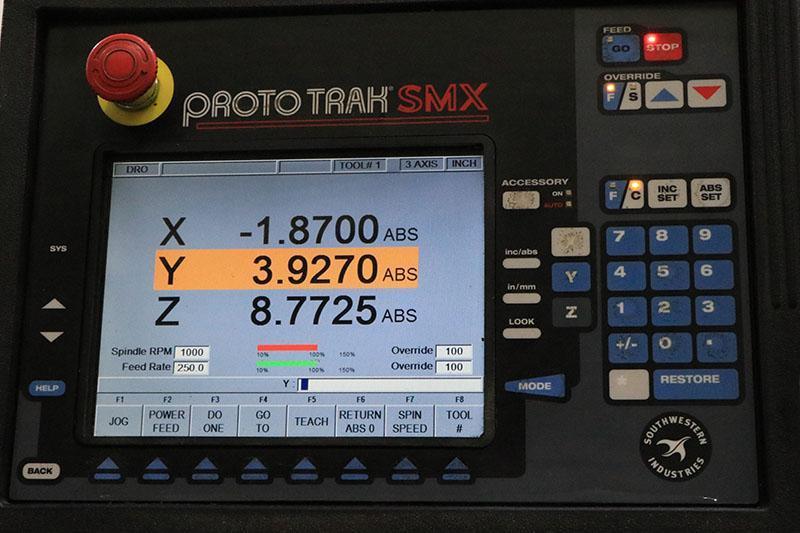

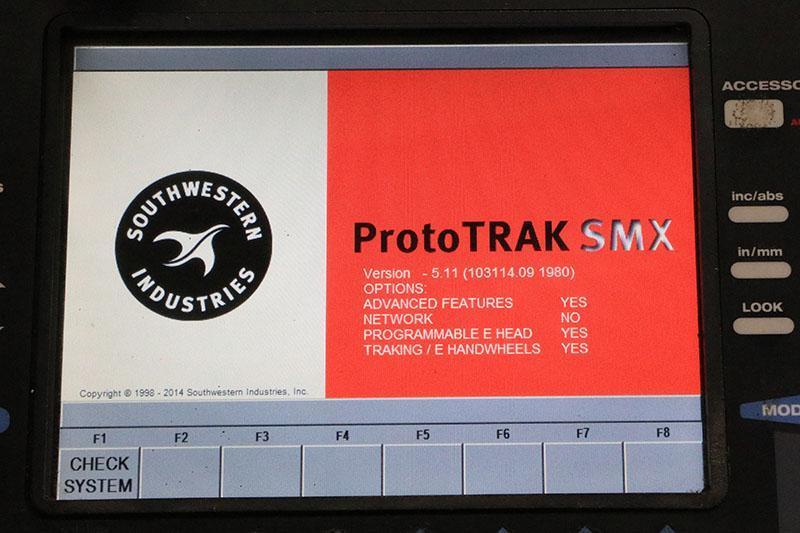

PROTO-TRAK MODEL: SMX CONTROL,

  WINDOWS OPERATING SYSTEM,

   ADVANCED FEATURES, PROGRAMMABLE E HEAD, TRAKing

   10.4" LCD SCREEN, RS232 PORT& RJ45 CONNECTOR,

   AUTO GEOMETRY ENGINE, LINEAR & CIRCULAR INTERPOLATION,

   TWO OR THREE AXIS, ROTATE OR MIRROR, (2) USB PORTS,

   & MUCH MUCH MORE!

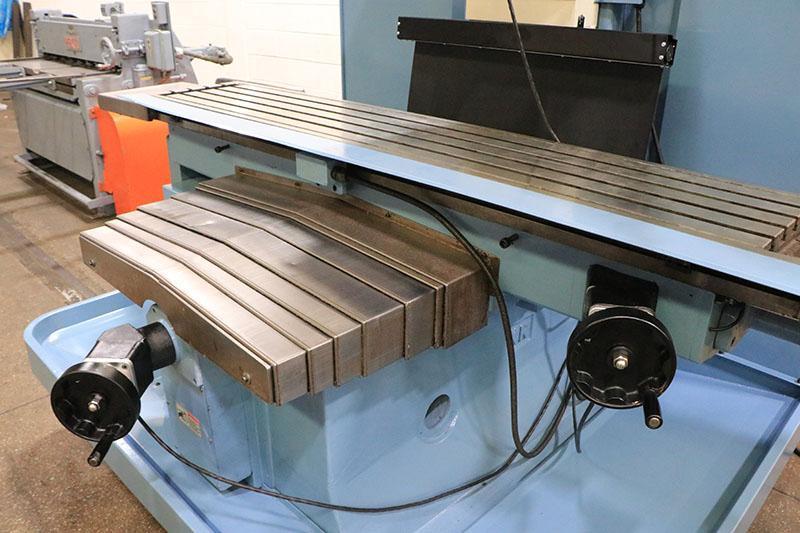

TRAKing/ELECTRONIC HANDWHEELS

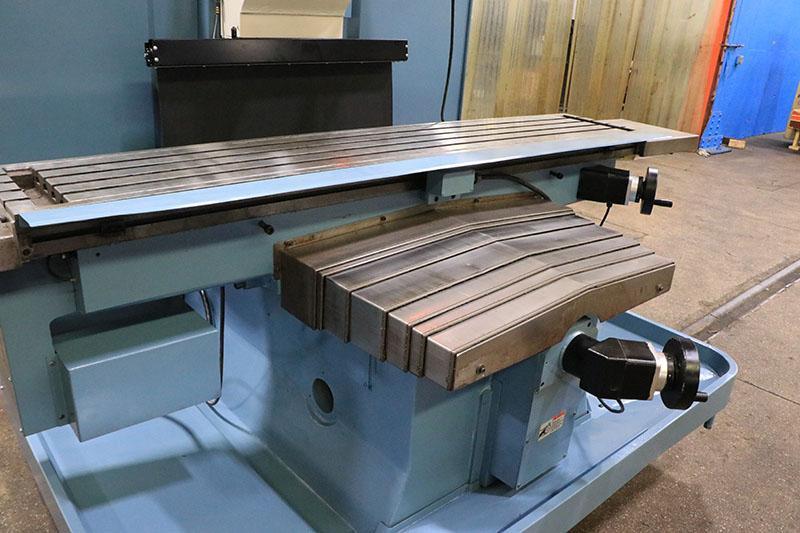

BALL SCREWS & AC SERVO MOTORS FOR X,Y & Z AXES

YASKAWA SPINDLE DRIVE

TORQUE-RITE POWER DRAW BAR

HARDENED & GROUND BOX WAYS

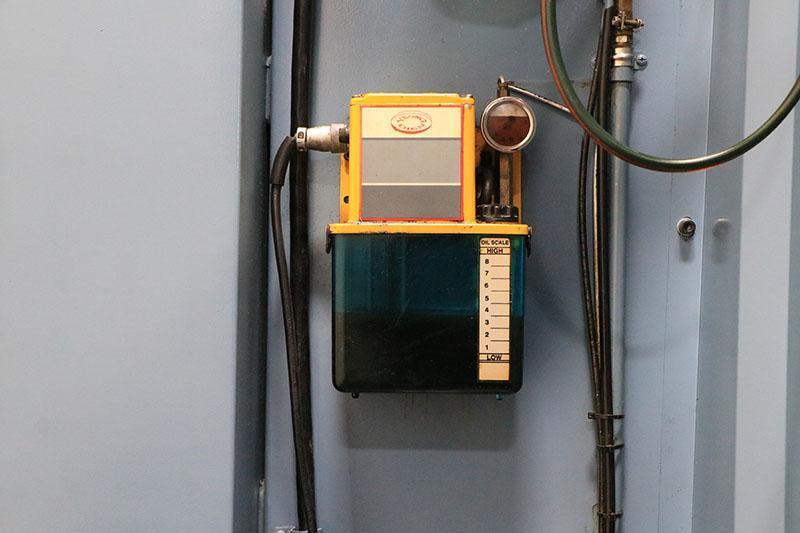

AUTOMATIC LUBRICATION SYSTEM

COOLANT SYSTEM w/CHIP PAN & SPLASH SHIELD

7.5 HORSE POWER SPINDLE MOTOR & INVERTER
