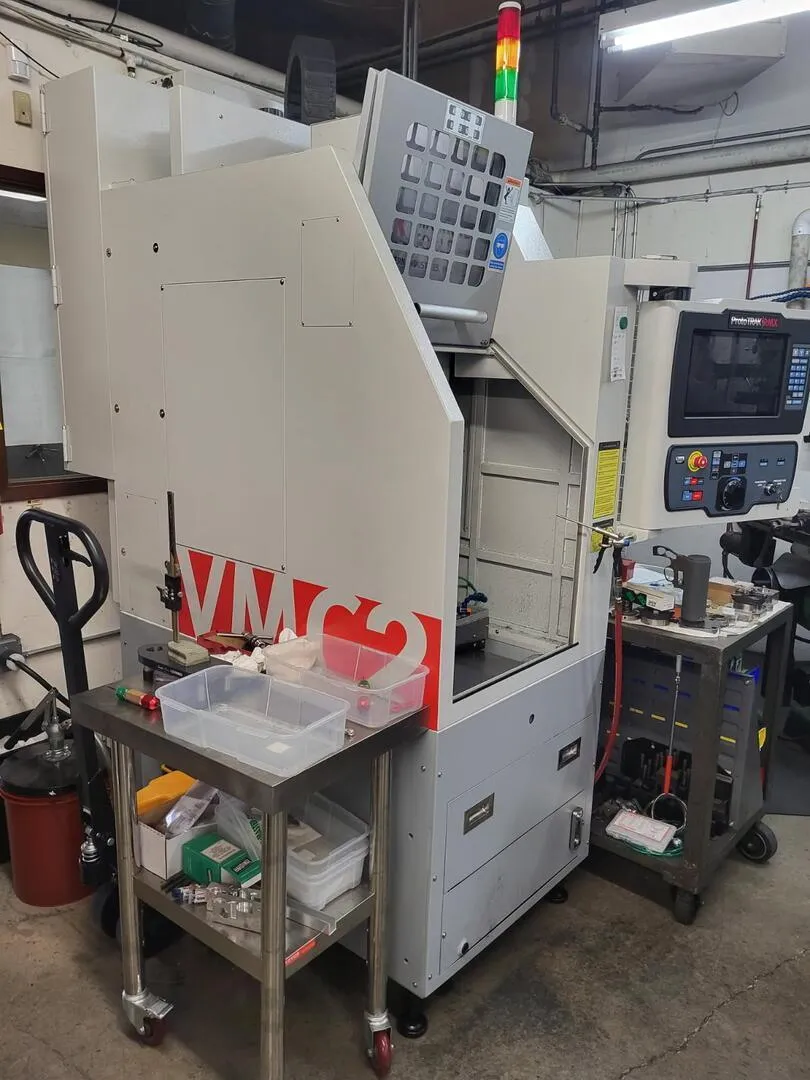

SOUTHWESTERN INDUSTRIES TRAK VMC 2

New: 2024

Specifications:

Table Size :                   18″ x 15″

T-Slots (Number x Width x Pitch) :       4 x 0.629″ x 2.480″ (4 x 16 mm x 63 mm)

Travel (X, Y, Z Axis) with Soft Limits :    14″ x 12″ x 17″

Rapid Traverse (X, Y, Z) :          400 IPM in Toolroom Ops / 600 IPM in Production Ops

Spindle Taper :               30 Taper

Spindle Speed Range - Production Ops :   50 – 10,000 RPM

Spindle Speed Range - Toolroom Ops :    50 – 5,000 RPM

Spindle Nose Diameter :          2.2″

Tool Clamping Force (90 PSI) :       850 – 1,000 lbs

Tool Holder Type :            BT 30

ATC Tool Capacity :            8

Maximum Tool Weight (Incl. Holder) :    8 lbs

Maximum Tool Diameter :         2″

Tool Carrier Speed :            1.2 – 1.4 sec (front to back)

Tool Selection System :          Shortest path

Spindle Motor HP - Peak :         4.5 HP

Spindle Motor HP - Continuous :      3 HP

Power Requirements :          208V (208–240V acceptable), 3-phase, 30A
                     480V with transformer (440–520V acceptable), 3-phase, 15A

Maximum Weight of Workpiece :      500 lbs

Height of Table from Bottom of Bed :    34″

Min. Spindle Nose to Table Distance :    2.75″

Max. Spindle Nose to Table Distance :    20.25″

Spindle Center to Head Casting Face :    15.7″

Minimum Machine Height :         93″

Minimum Height to Fit Through Doorway :  93″

Maximum Machine Height (Head Up) :    101.5″

Length (Pendant Rotated 90°) :      88.25″

Overall Length (Cabinet Open 180° + Pendant 90°) : 113.5″

Footprint (Width x Length) :        30.5″ x 52″

Weight (Net / Shipping) :         2,825 / 3,175 lbs

Coolant Capacity :            15 gal

Coolant Pump Power :          1/4 HP

Air - CFM (at 90 PSI), SCFM :       2.5 CFM, 18 SCFM

Air Quality :               Air dried / water separator upstream of VMC

Lubrication Pump Capacity :        2 liters

Equipped with:

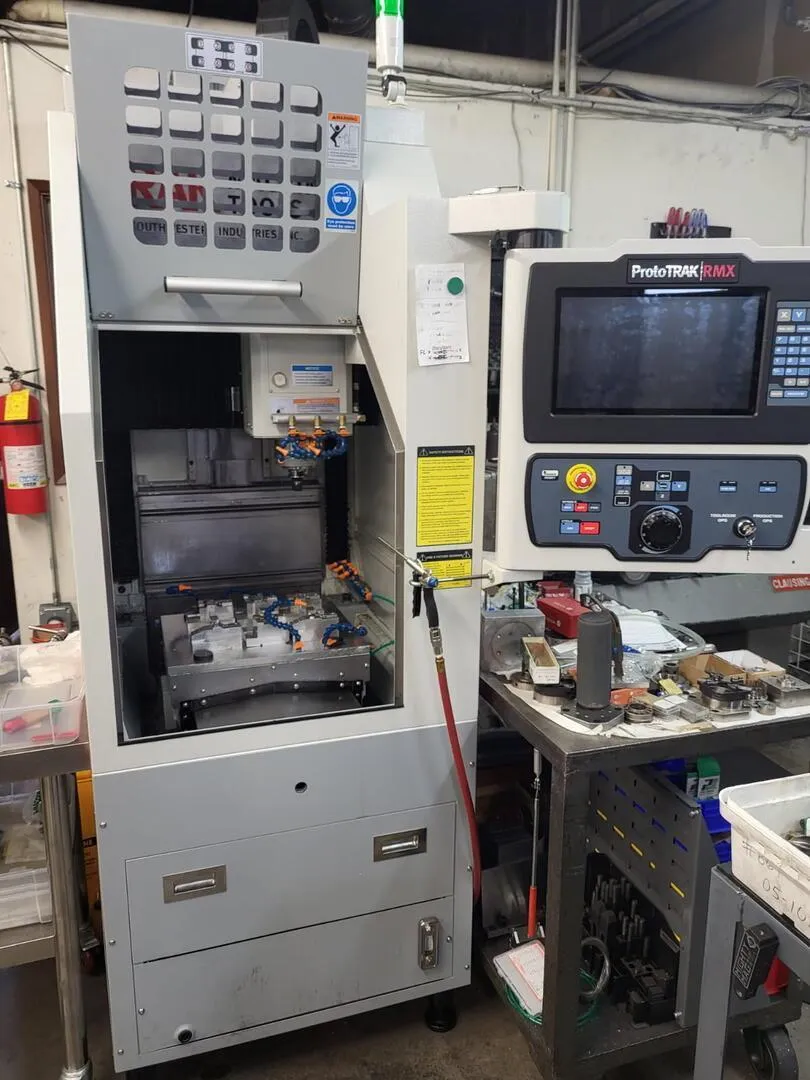

Prototrak RMX CNC Control
