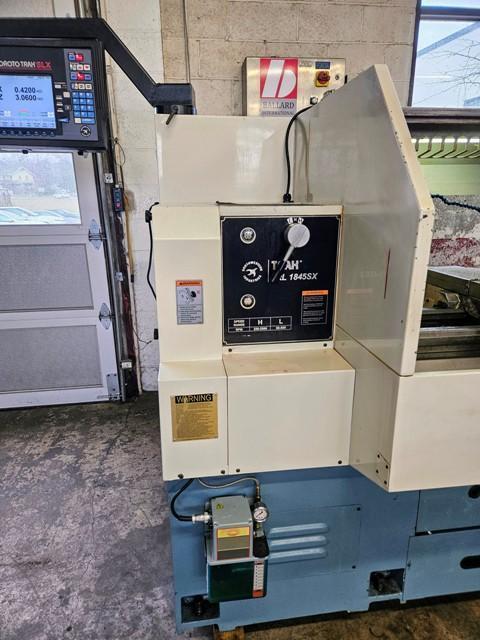

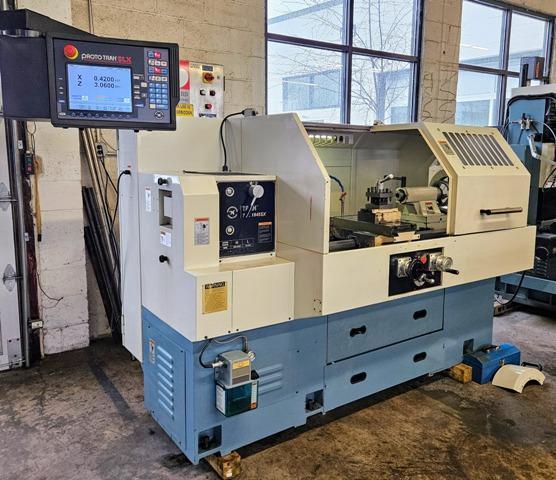

SOUTHWESTERN INDUSTRIES TRL 1845 SLX CNC LATHE
New 2014


Equipped with:
Prototrak SLX CNC Control
Advanced Features with Verify
Traking
10" 3 Jaw chuck
4 position Tool Post
Steady Rest


Specifications:
 Height of Centers.....................9"
 Distance between centers..............45"
 Swing over bed........................18 1"
 Swing over saddle wings...............17"
 Swing over cross Slide................9.13"
 Cross slide travel....................10.6"
 Tool section max......................1"
 Coolant tank capacity.................13 gal.
 Width of Bed..........................13.4"
 Height of Bed.........................12.4"
 Spindle Nose (Camlock)................D1-6
 Spindle through hole..................2.36"
 Spindle taper.........................MT#6
 Taper in reduction sleeve.............MT#4
 Spindle dia at front bearing..........3.35"
 Number of bearings....................2
 Bearing class (radial round)..........Normal
 Spindle speed range (RPM).............80-850, 250-2500
 Tailstock Quill travel................6"
  - Quill diameter.....................2.56"
  - Quill taper hole...................MT#4
 Spindle Motor HP......................10
 Power requirements, control...........110V; 1P; 10A
 Power requirements, machine...........220V;3P;60Hz
 Amps full load current................33
 Dimensions net........................94" x 52" x 73"
 Dimensions shipping...................91" x 52" x 84"
 Weight net............................3285 lbs.
 Weight shipping.......................3800 lbs.
 Maximum rapid feed X..................100
 Maximum rapid feed Z..................250
 Coolant pump motor....................1/8 HP
 Spindle motor brake...................Dynamic braking
 Way surface hardness..................480 - 560 HB
 Head stock lubrication................Oil bath
