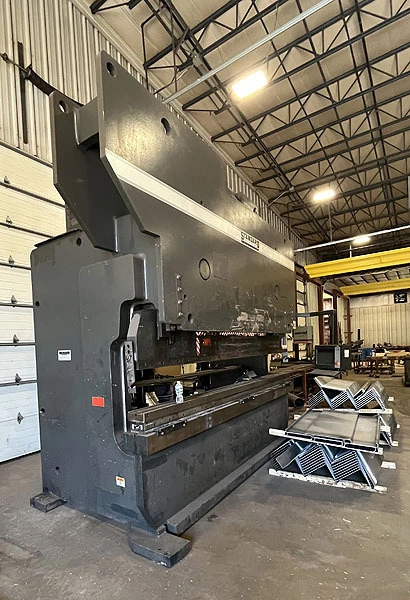

STANDARD PRESS BRAKE MODEL AB-400 TON X 12' OVERALL BED TOOLING-FLUSH MOUNT
Year
2011
Stock #
19979
Condition
Excellent
Keep Scrolling To Learn More
Specifications
Equipped With
STANDARD PRESS BRAKE MODEL AB-400 TON X 12' OVERALL BED TOOLING-FLUSH MOUNT
New: 2011
Forming: 400 Tons
Punching: 265 Tons
Bed/Ram Length: 12′
Between Frames: 10′ 5″
Open Height: 20″
Stroke: 10″
Closed Height: 10″
Throat Depth: 10″
EQUIPPED WITH:
Auto Lube System
FLUSH MOUNT ON FLOOR
# 575 Custom Tooling Package
Willa e-Wide Single Point Crown Adustment

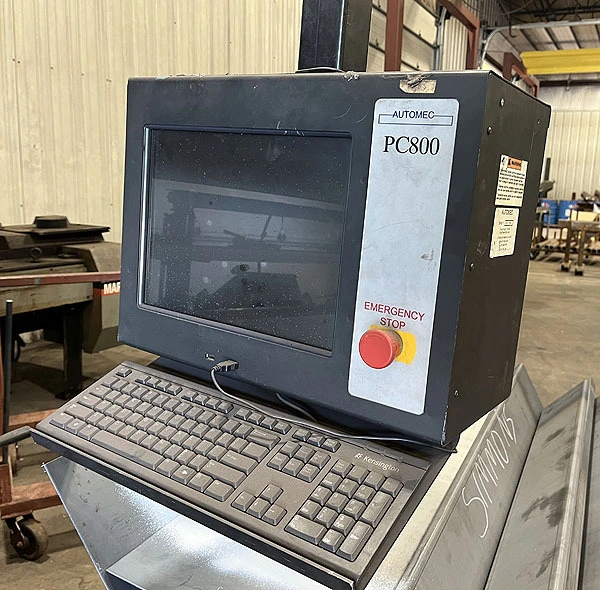

Automec EVC 800 3-Axis CNC Back Gauge
Standard Features:
Full-tonnage throughout strokeSolid, non-moveable lower beam substantially more rigid than “bed level” press brakes
+/- 0.001″ ram repeatability
Off-center loading capability
The most heavy duty press brake built in the USA
Extremely heavy duty lower beams allowing the least amount of deflection. Less deflection = longer tool life = more profitability
Groove in bed for tooling is standard on all brakes
Precision mechanical in-line depth stop as back-up for any CNC control
Weight: approx. 58,000 lbs.
