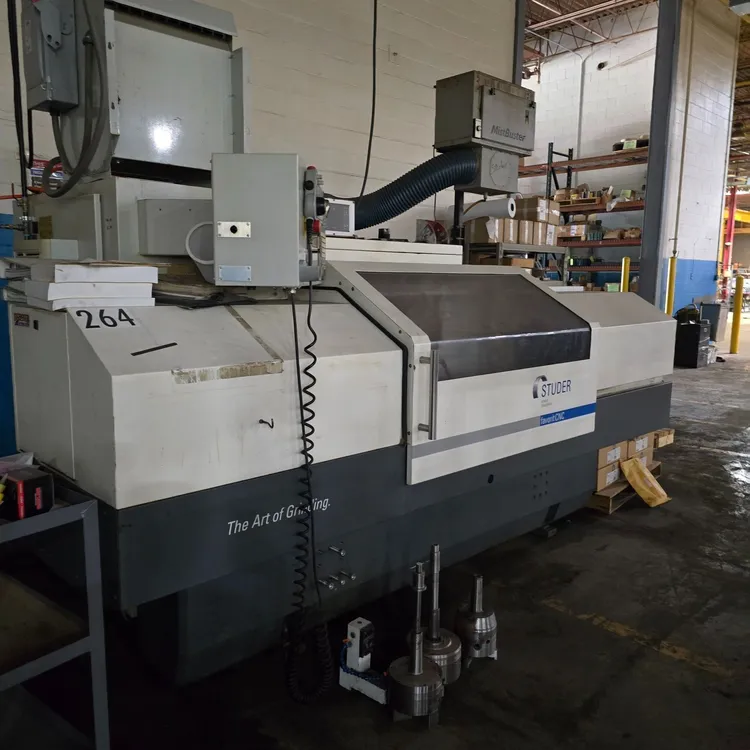

STUDER MODEL FAVORIT CNC – OD/ID UNIVERSAL CYLINDRICAL GRINDER

New: 2014 (Excellent condition)

Specifications:

Distance Between Centers:            1000 mm (39.4 in)
Center Height:                   175 mm (6.9 in)
Max Workpiece Diameter:             349 mm (13.75 in)
Max Workpiece Weight:              120 kg (264 lbs)
X-Axis Travel (Infeed):              285 mm (11.2 in)
Z-Axis Travel (Longitudinal):           1150 mm (45.3 in)
Max Axis Speeds:                 X = 10,000 mm/min | Z = 20,000 mm/min
B-Axis Swivel Range:               –15° to +195° (2.5° indexing)
C-Axis Range:                   Infinite rotation
OD Grinding Wheel:               Ø 500 mm (20 in) × 110 mm (4.3 in)
Spindle Power (OD):               11.5 kW (15.4 HP)
ID Grinding Spindle (Optional):         20,000 / 40,000 / 60,000 RPM variants

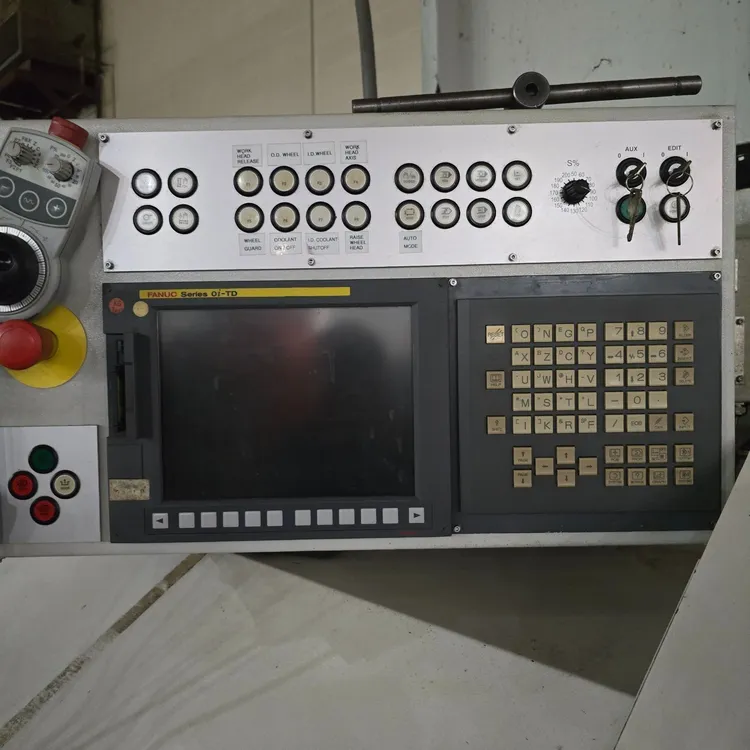

Control:                     Fanuc 0i-TD CNC
Programming:                  Studer Pictogramming software
Machine Base:                  Granitan S103 mineral casting

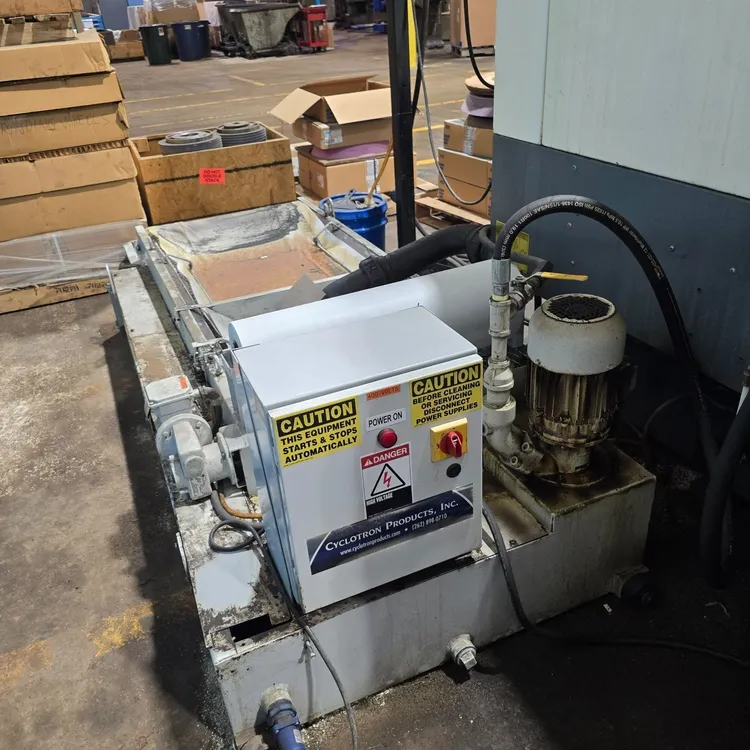

Coolant System:                 Compatible with external filtration and chiller units

Equipped with:
• Tooling
• Grinding wheels
• Work-holding fixtures
• Chucks

Options / Accessories
• In-process gauging
• Dynamic balancing
• Contact detection
• Dressing units
