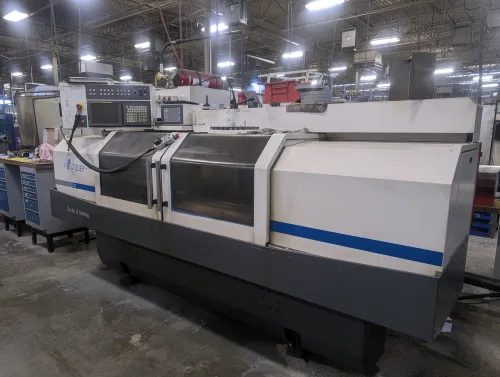

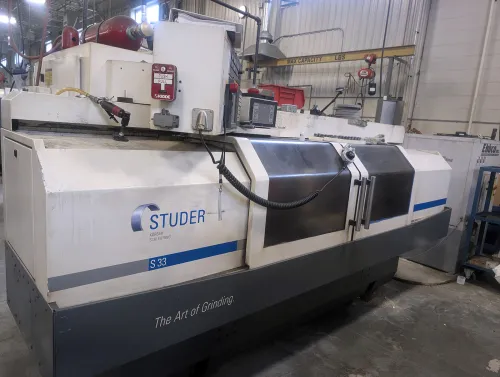

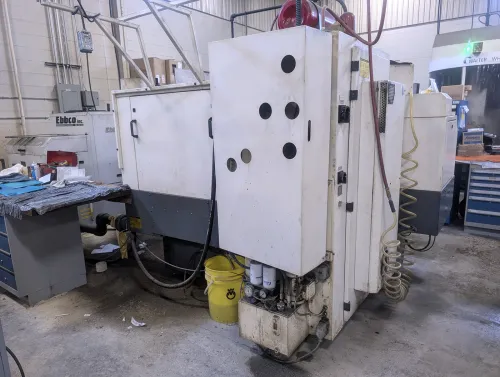

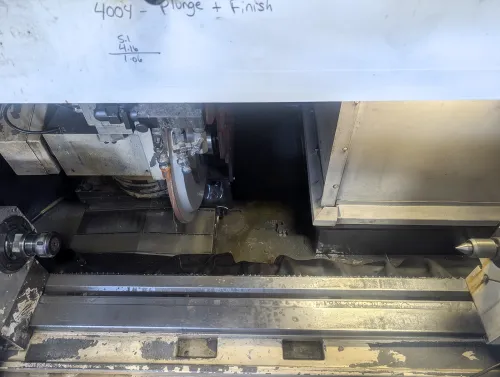

STUDER S33CNC CYLINDRICAL GRINDER

New: 2006

SPECIFICATIONS:

Center height:       6.9 in
Distance between centers:  25.6 in
Max workpiece diameter:   13.7 in
Max workpiece weight:    330 lbs
X-axis travel:       14.6 in
Z-axis travel:       31.5 in
Spindle drive power:    10.7 hp
Max spindle speed:     3,200 rpm
X-axis rapid speed:     590 in/min
Z-axis rapid speed:     787 in/min
Wheelhead swivel range (B-axis): 255°
Grinding wheel diameter (max): 20.0 in
Grinding wheel width (max):  3.15 in

EQUIPPED WITH:

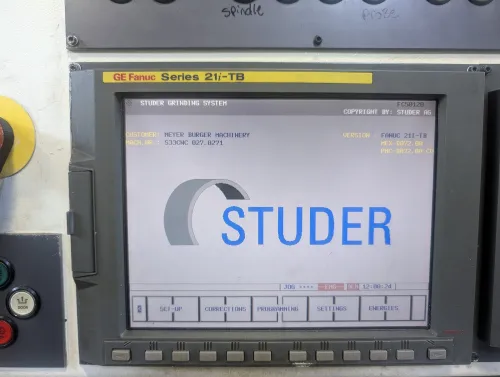

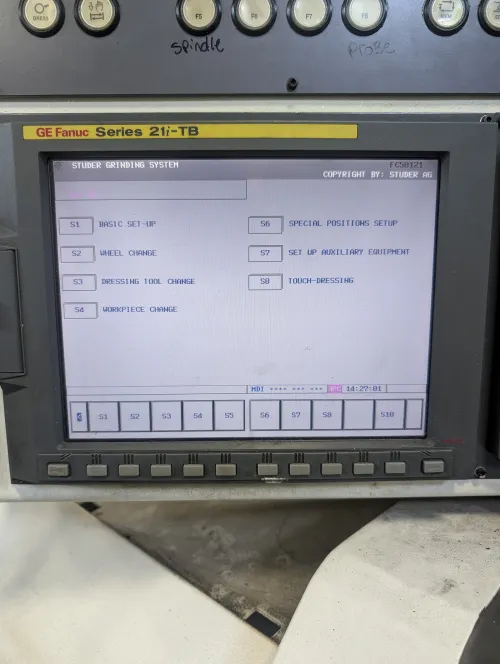

• Control: Fanuc Series 21i-TB with Studer Conversational Grinding System Interface

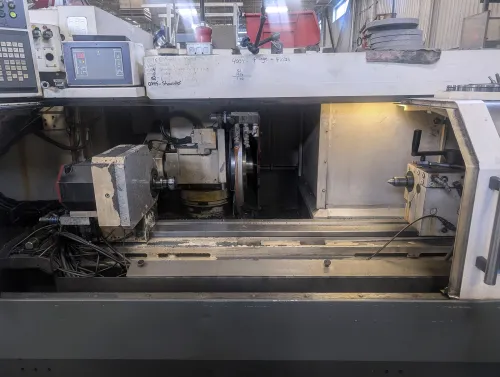

• Tailstock: Live center
• Large OD grinding wheel spindle
• Table-mounted plunge dresser
• Double T-slot worktable for dressing devices

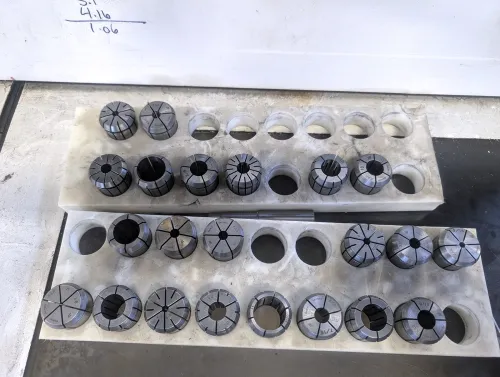

• Extra collets
• One extra wheel
