STUDER S41 CNC CYLINDRICAL OD/ID GRINDER

New: 2015

HIGHLIGHTS:

(1) OD Wheel – 4,500 RPM

(1) ID Spindle – 42,000 RPM

(1) Grooving Spindle for Splines

B Axis –45° to +225°

C Axis Workhead

Probing & Gauging

SPECIFICATIONS:

CNC Control: Yes

Type of CNC Control: Fanuc 31i-Model A

Center Height: 8.9 in / 226.06 mm

Center Distance: 39.4 in / 1,000.76 mm

Max Weight Between Centers: 550 lb / 249.48 kg

X Axis Travel: 13.8 in / 350.52 mm

Z Axis Travel: 45.3 in / 1,150.62 mm

Workhead Speed: 1,500 RPM

Workhead Power: 13.6 HP / 10.14 kW

C Axis: Yes

C Axis Index: 0.0001°

B Axis Indexing: –45° to +225°

Grinding Wheel Dimensions: 20" x 3.54" x 8"

Wheel Speed: 4,500 RPM

Wheelhead Motor: 20 HP

ID Spindle Speed: (2x) 42,000 RPM

Machine Dimensions: 154" x _ x 99"

Machine Weight: 20,000 lb / 9,071.84 kg

EQUIPPED WITH:

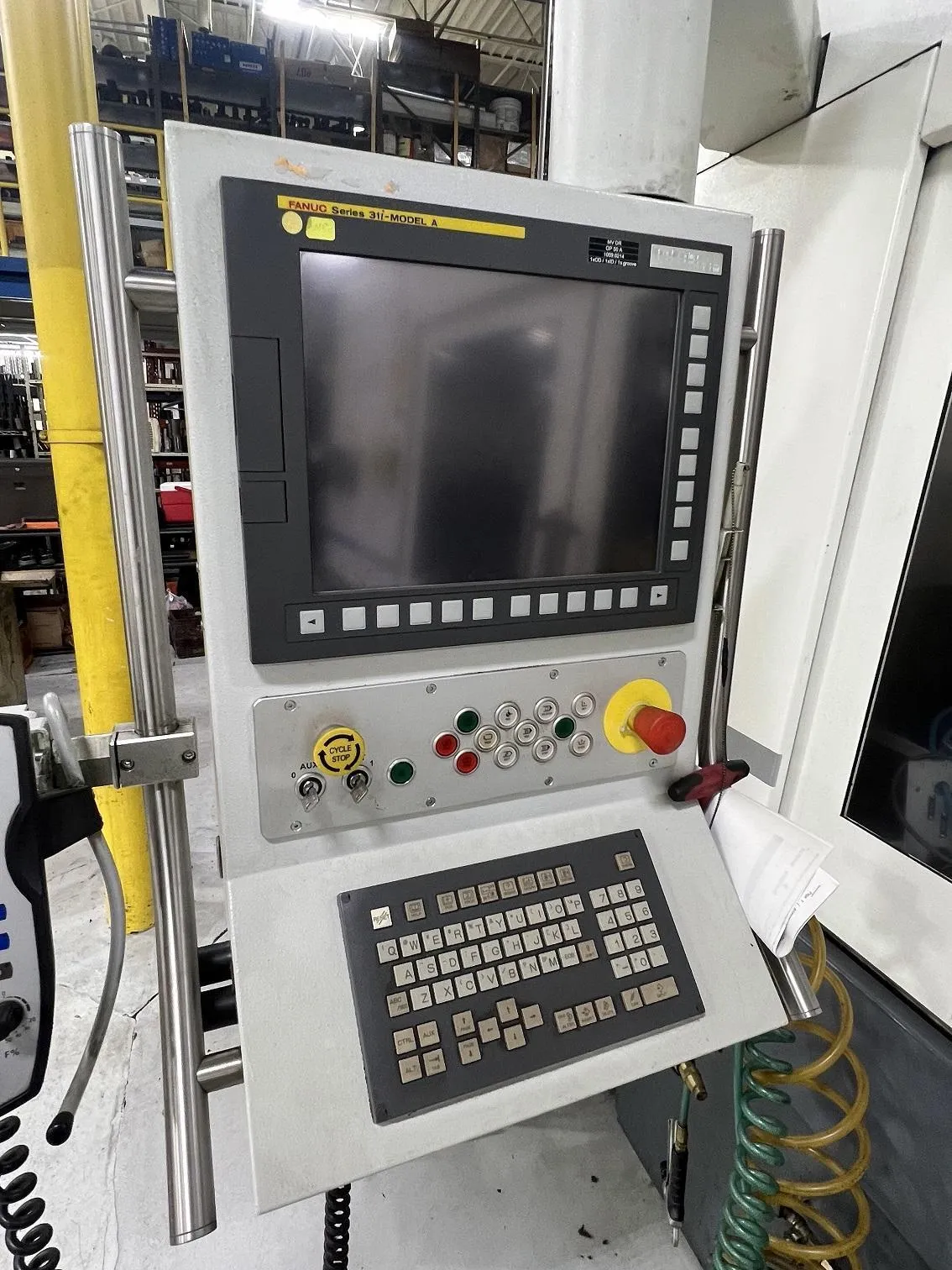

Fanuc 31i-Model A Control

(1) Fischer ID Spindle – 42,000 RPM T3

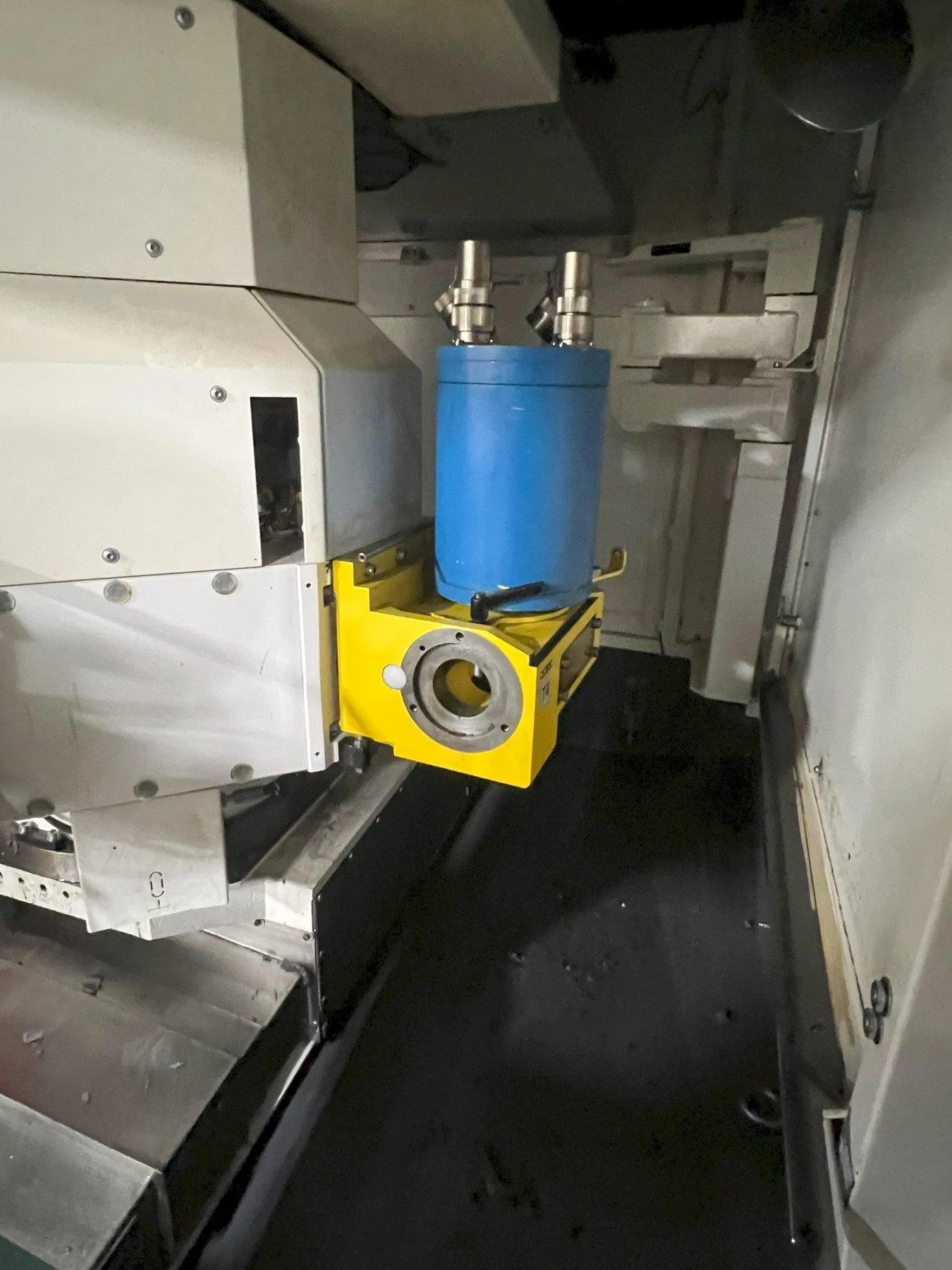

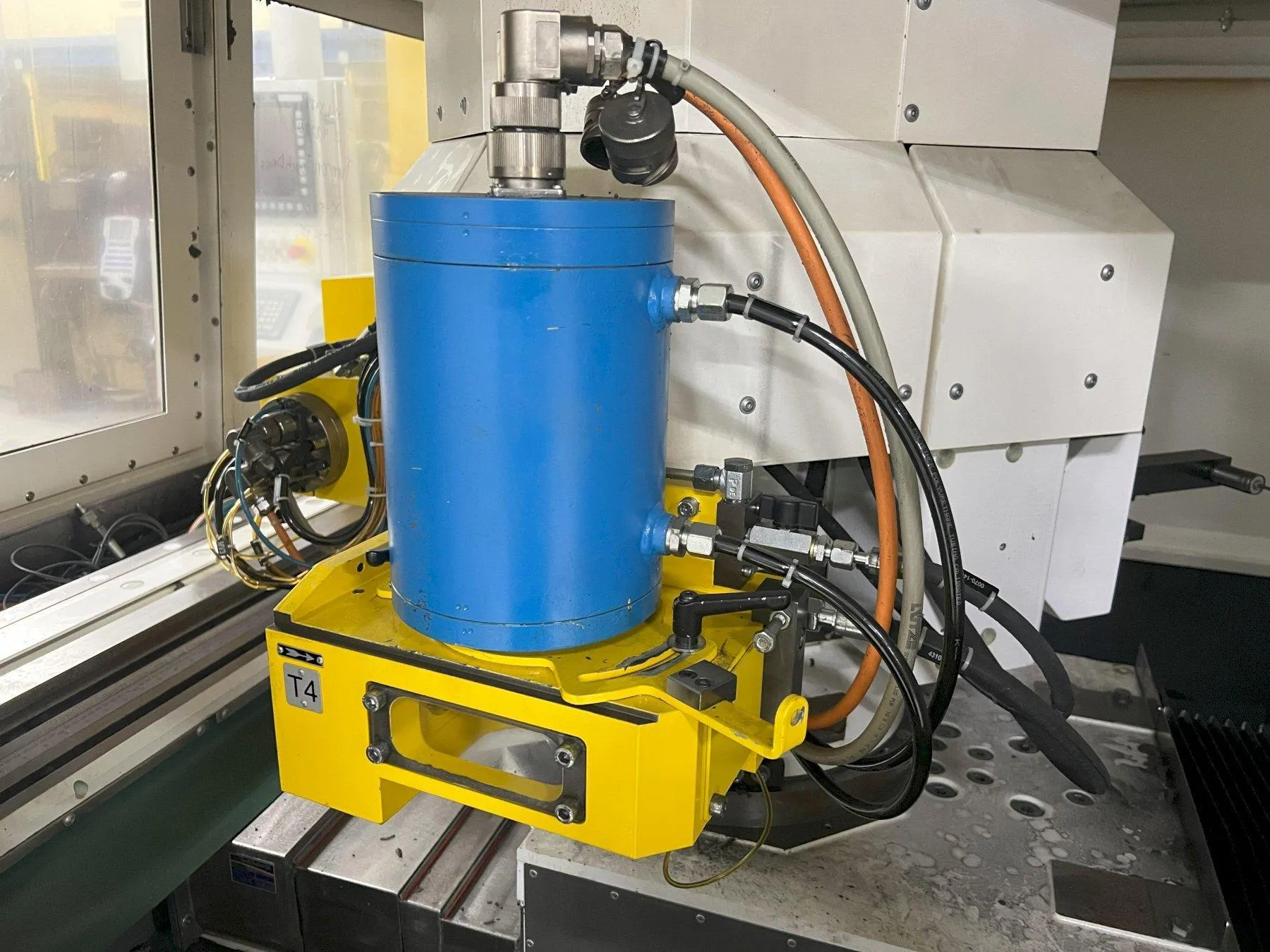

(1) Grooving Spindle T4

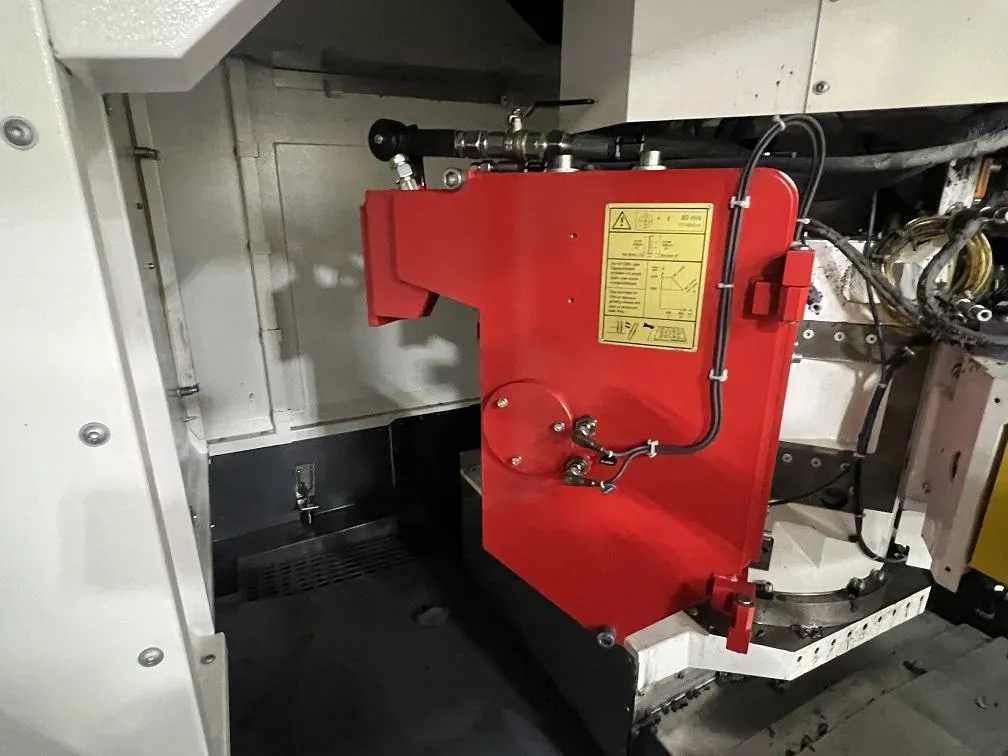

(1) OD Grinding Wheel – 15,748 SFPM T2

Transor Filtration System

Marposs Gauging

Dittel Balancing M6000

Workhead with C Axis

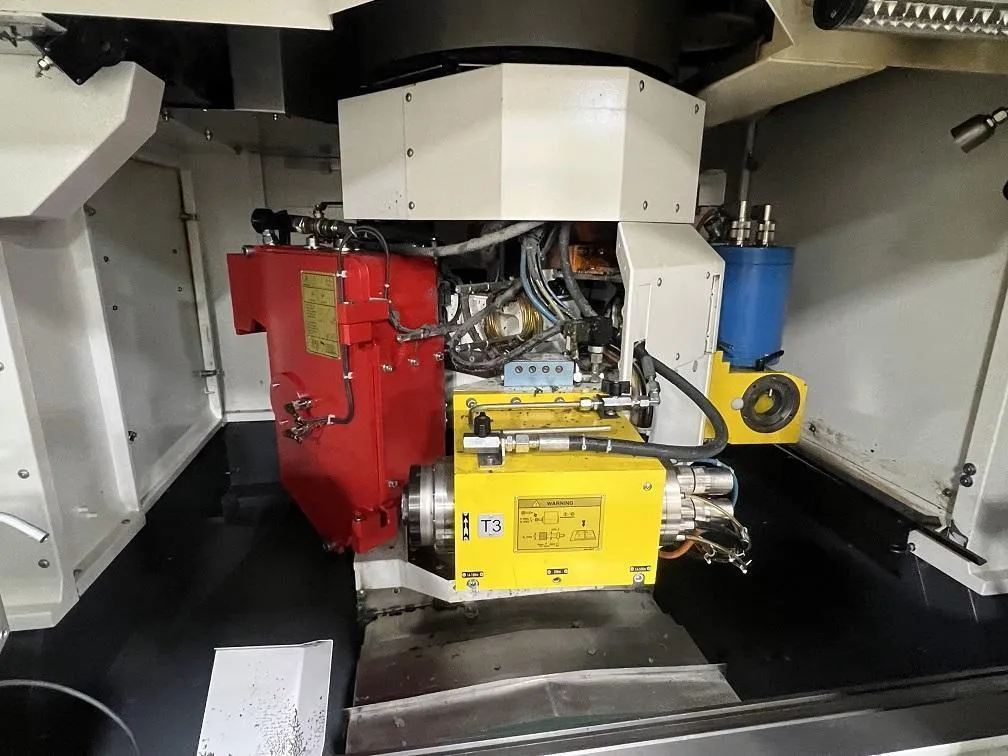

B Axis Wheelhead

No Tailstock

Probing H1 Touch Probe

Rotary Dresser
