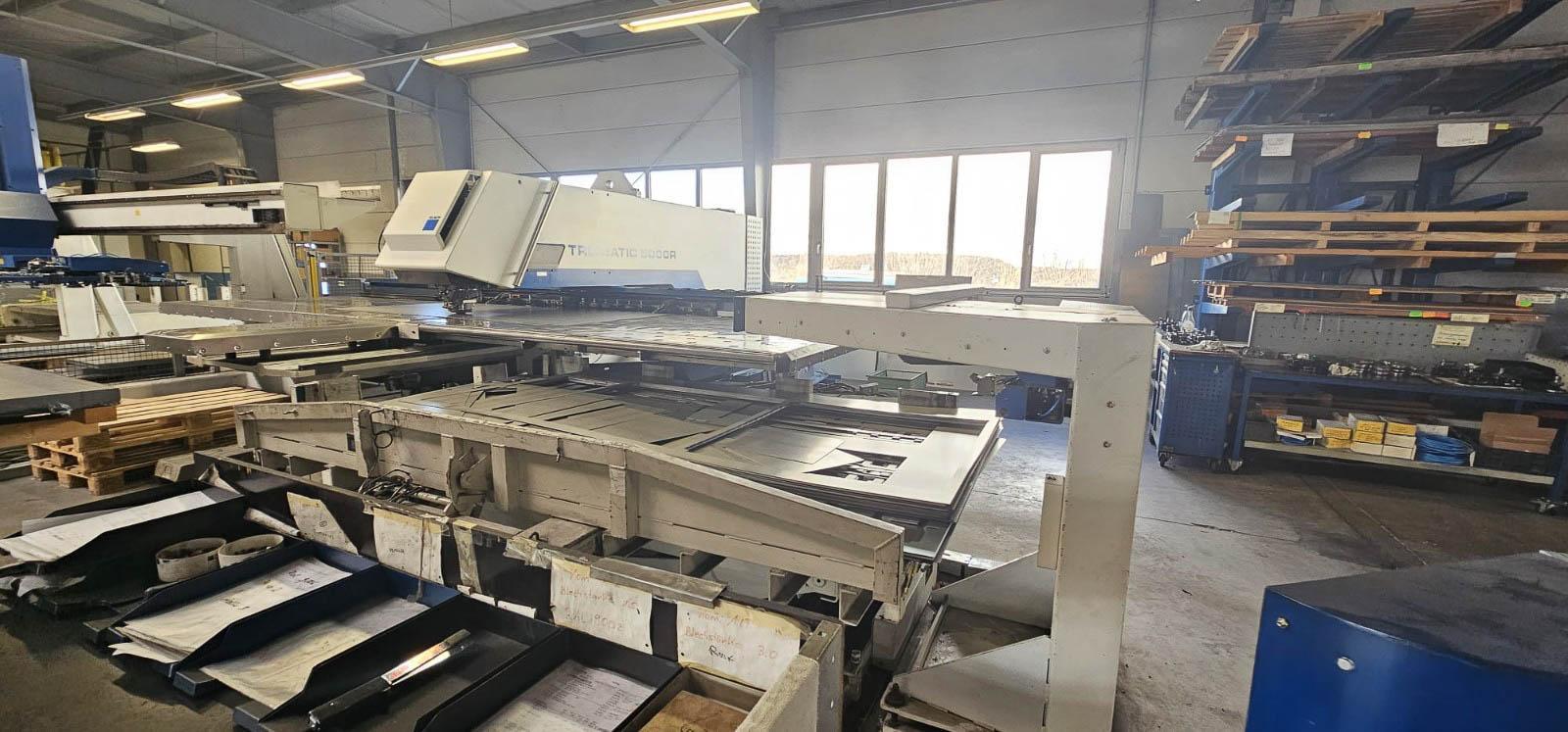

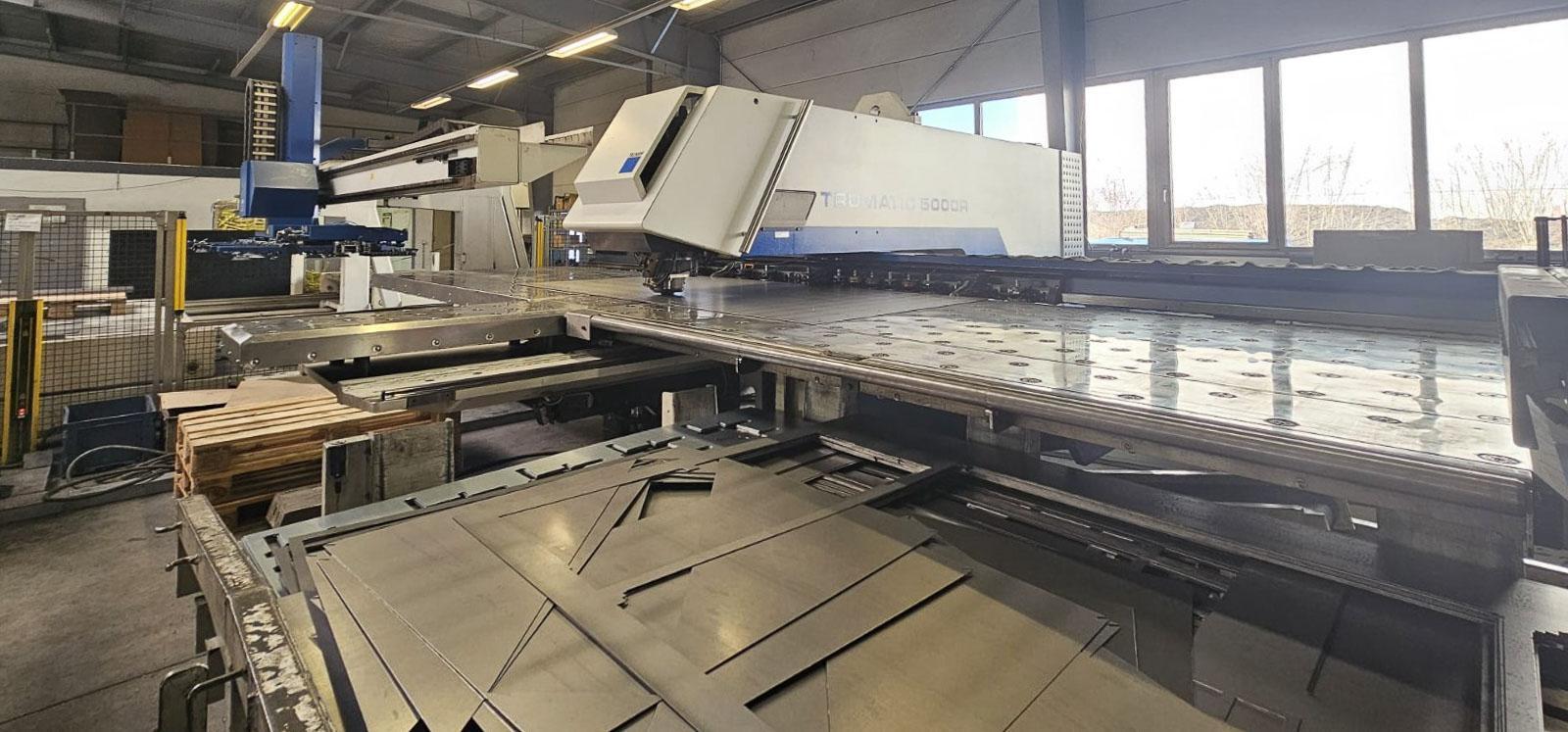

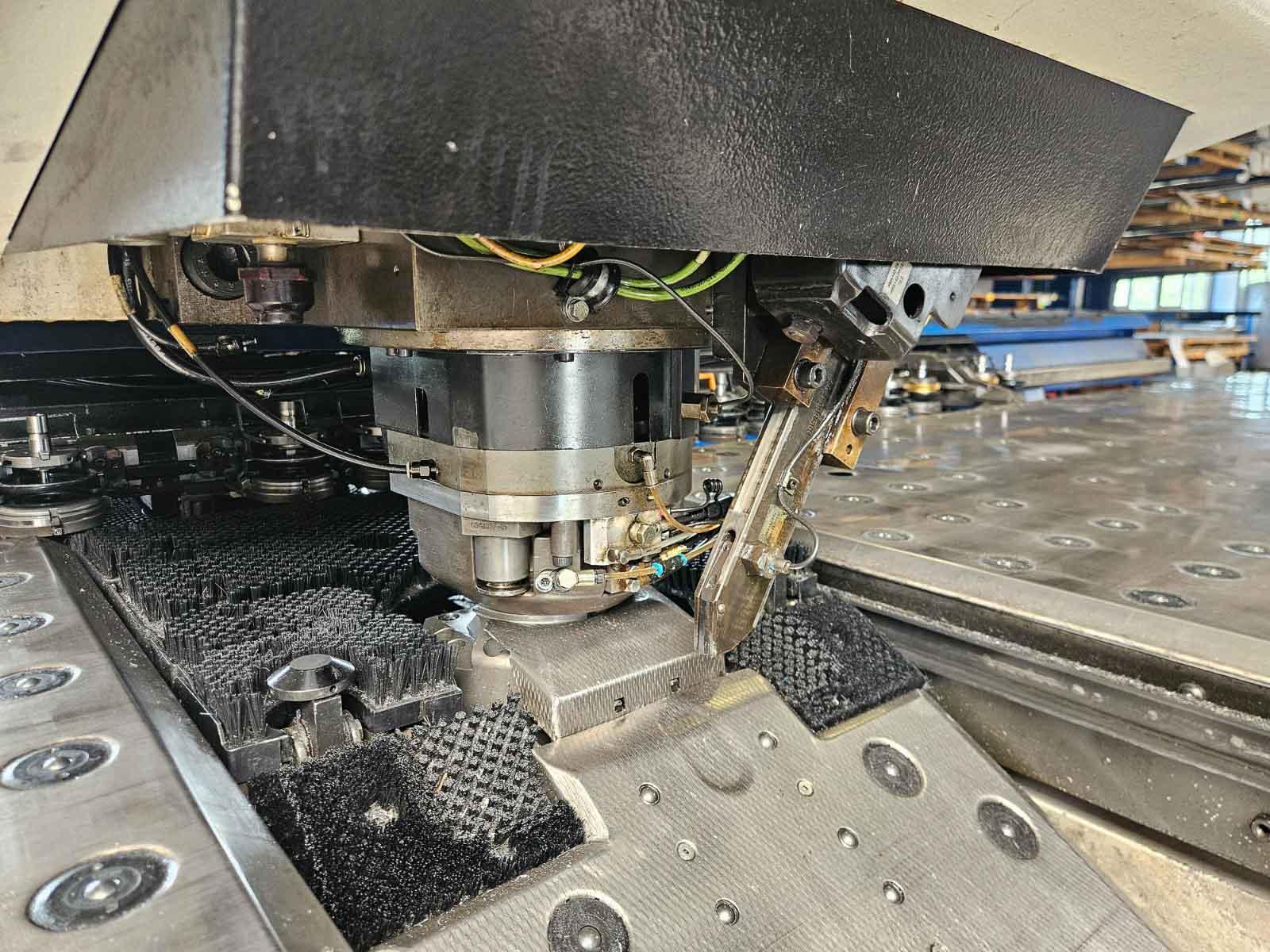

TRUMPF TRUMATIC 5000R CNC PUNCHING MACHINE

New: 2006

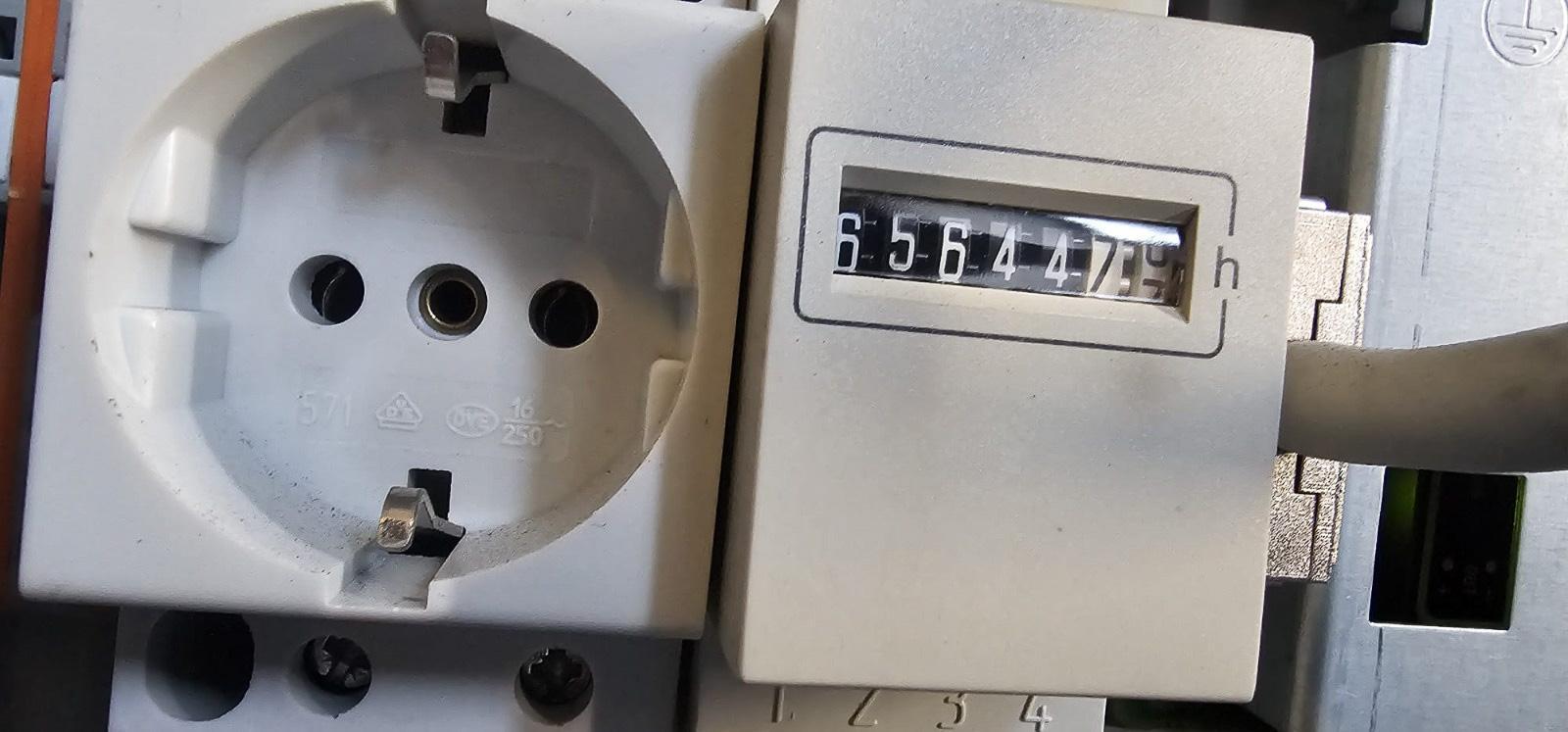

Operating Hours: 67,000 h

INCLUDED FEATURES & EXTRAS:

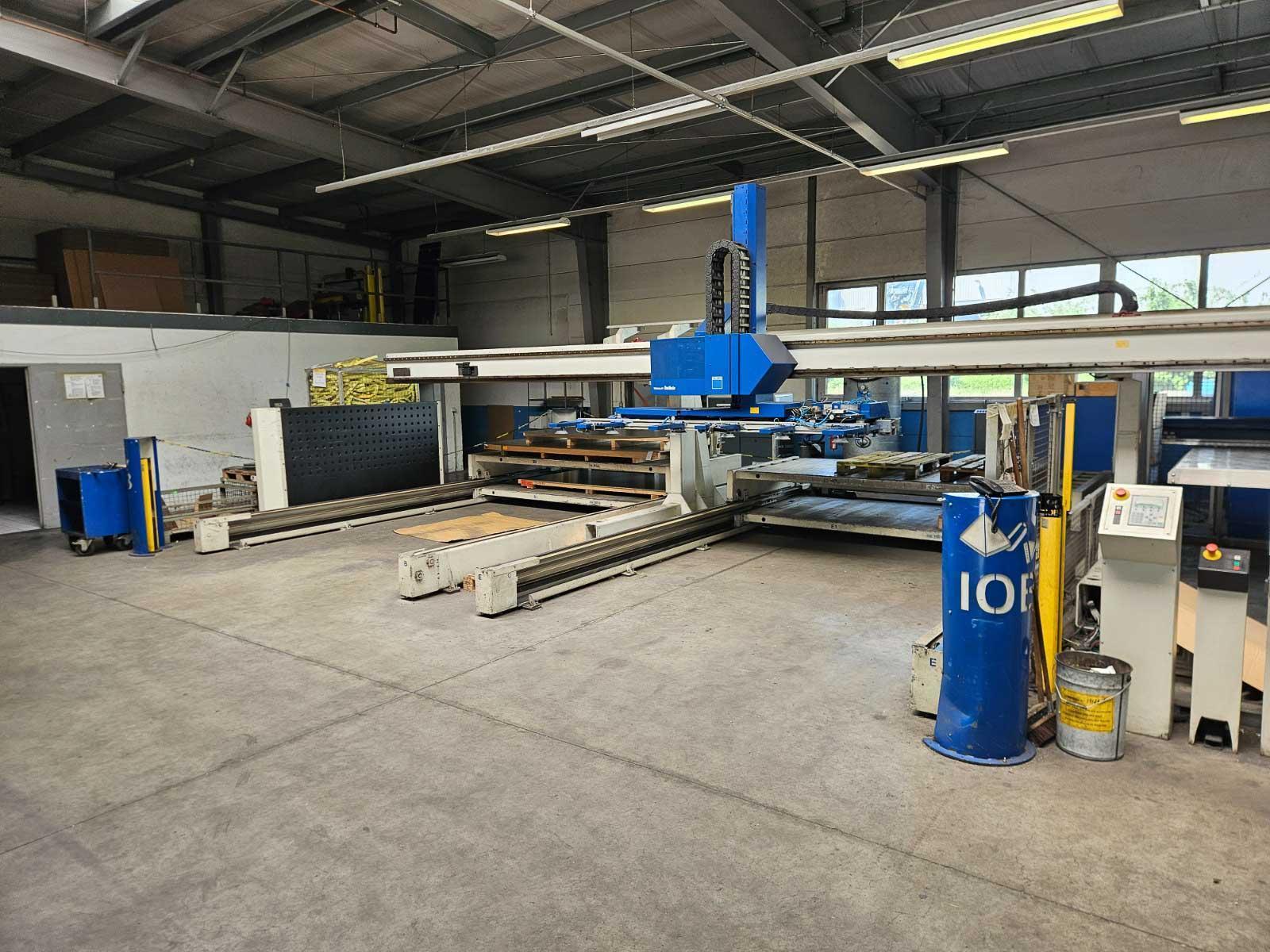

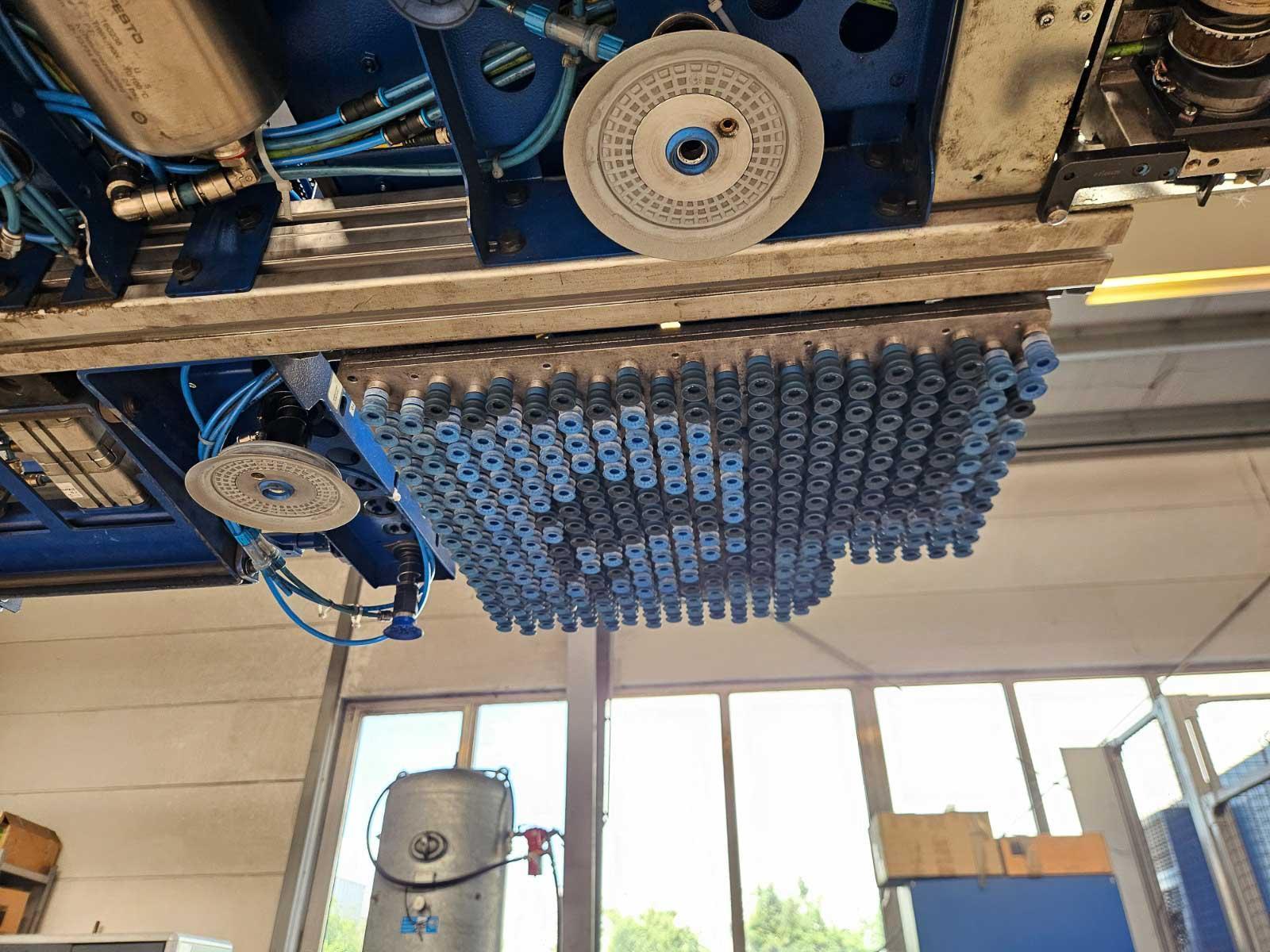

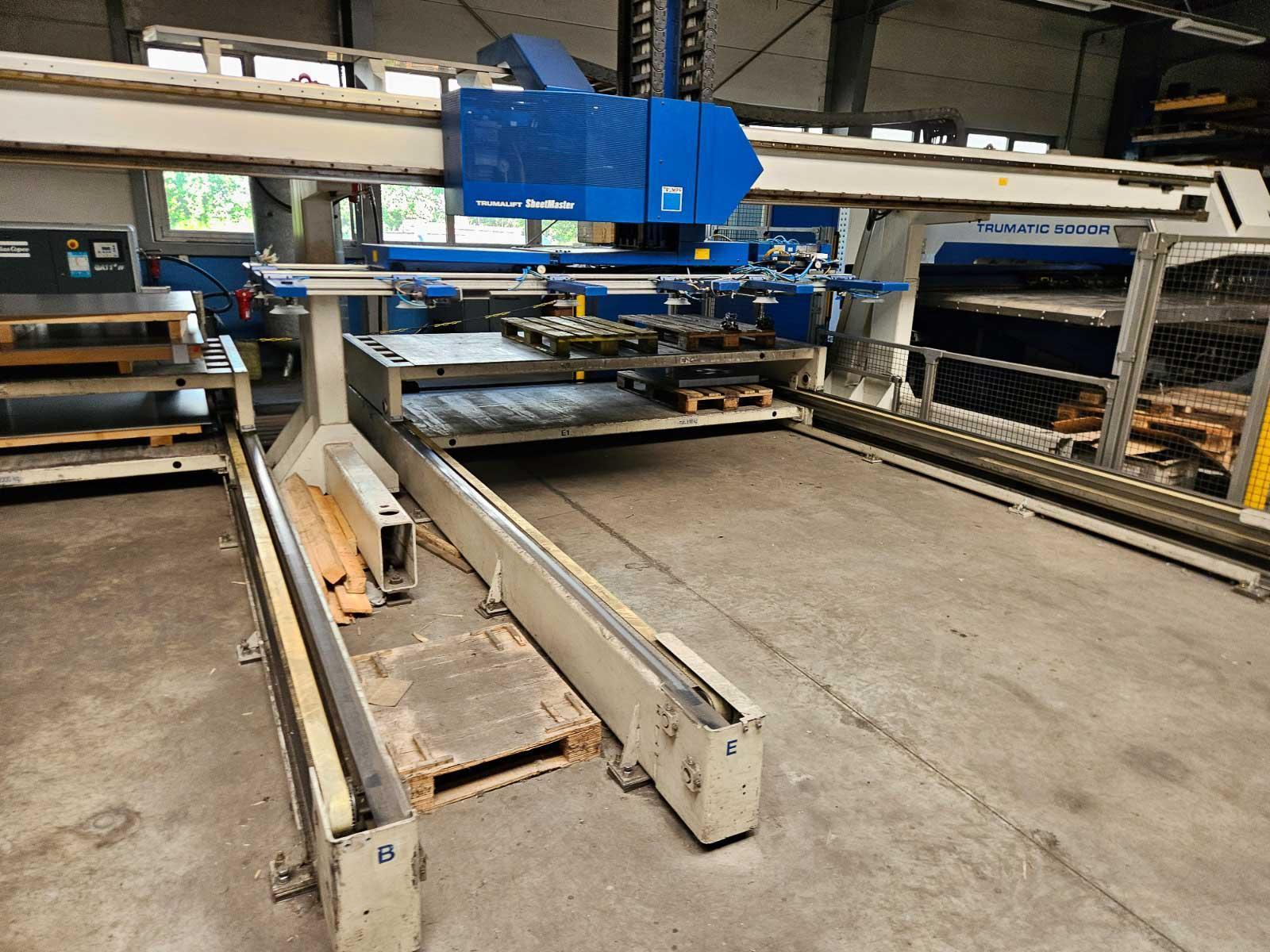

• SheetMaster for automatic sheet loading and unloading

• GridMaster and Sissertable for scrap and skeleton removal

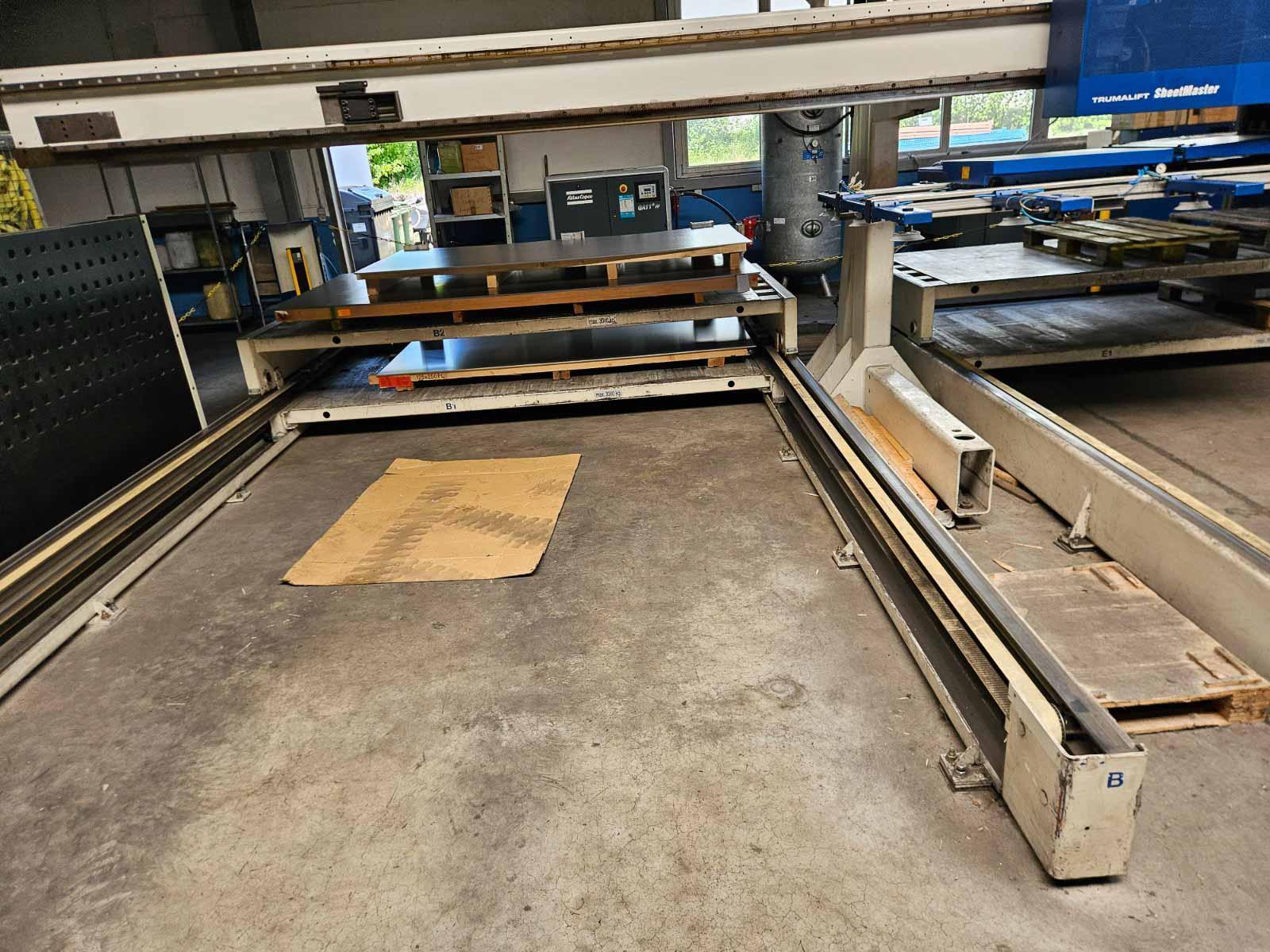

• 2x Twincarts for continuous production

• TrumaGrip

• 4 Clamps

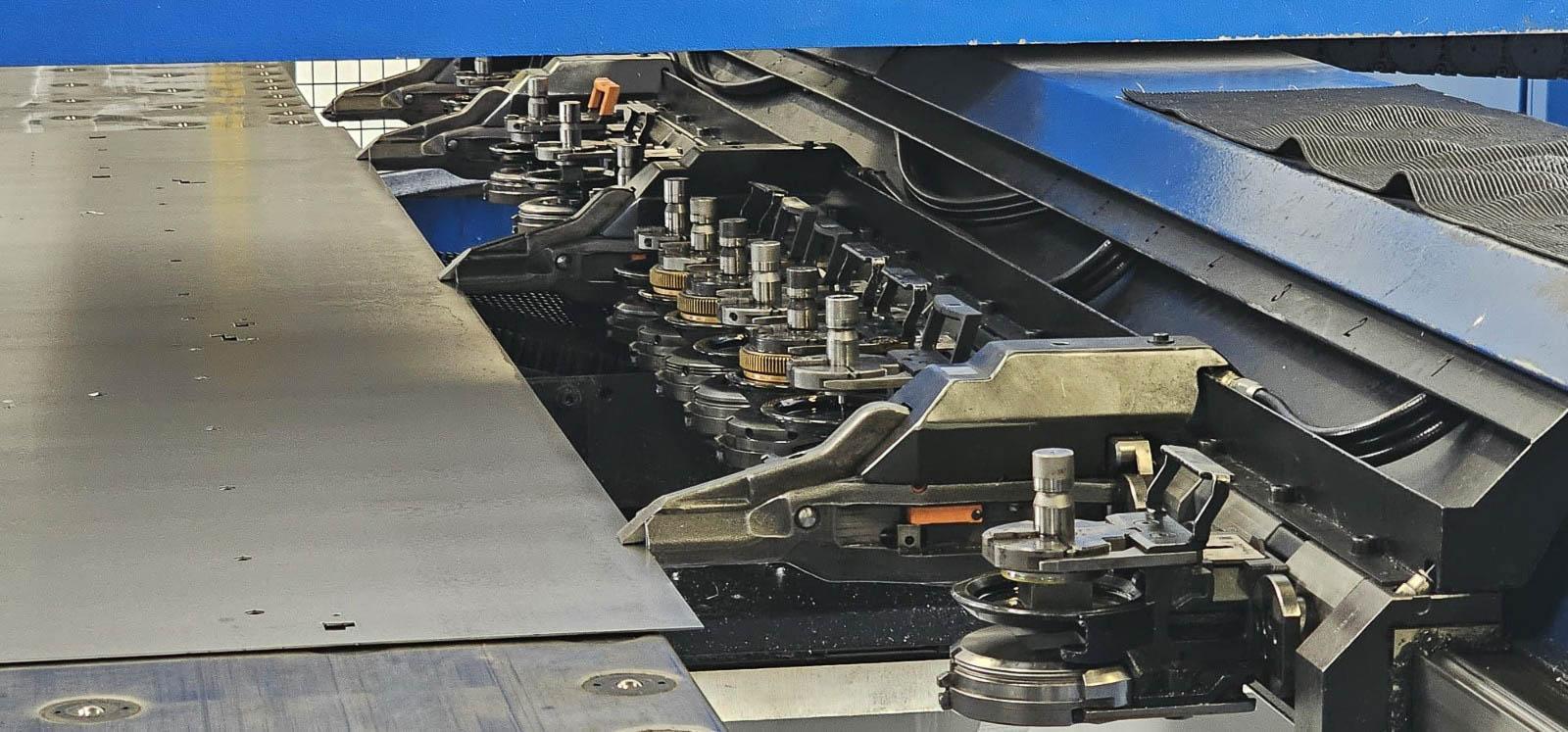

• 18 Tool Cassettes for fast, automatic tool changes

• Some tooling included

TECHNICAL SPECIFICATIONS:

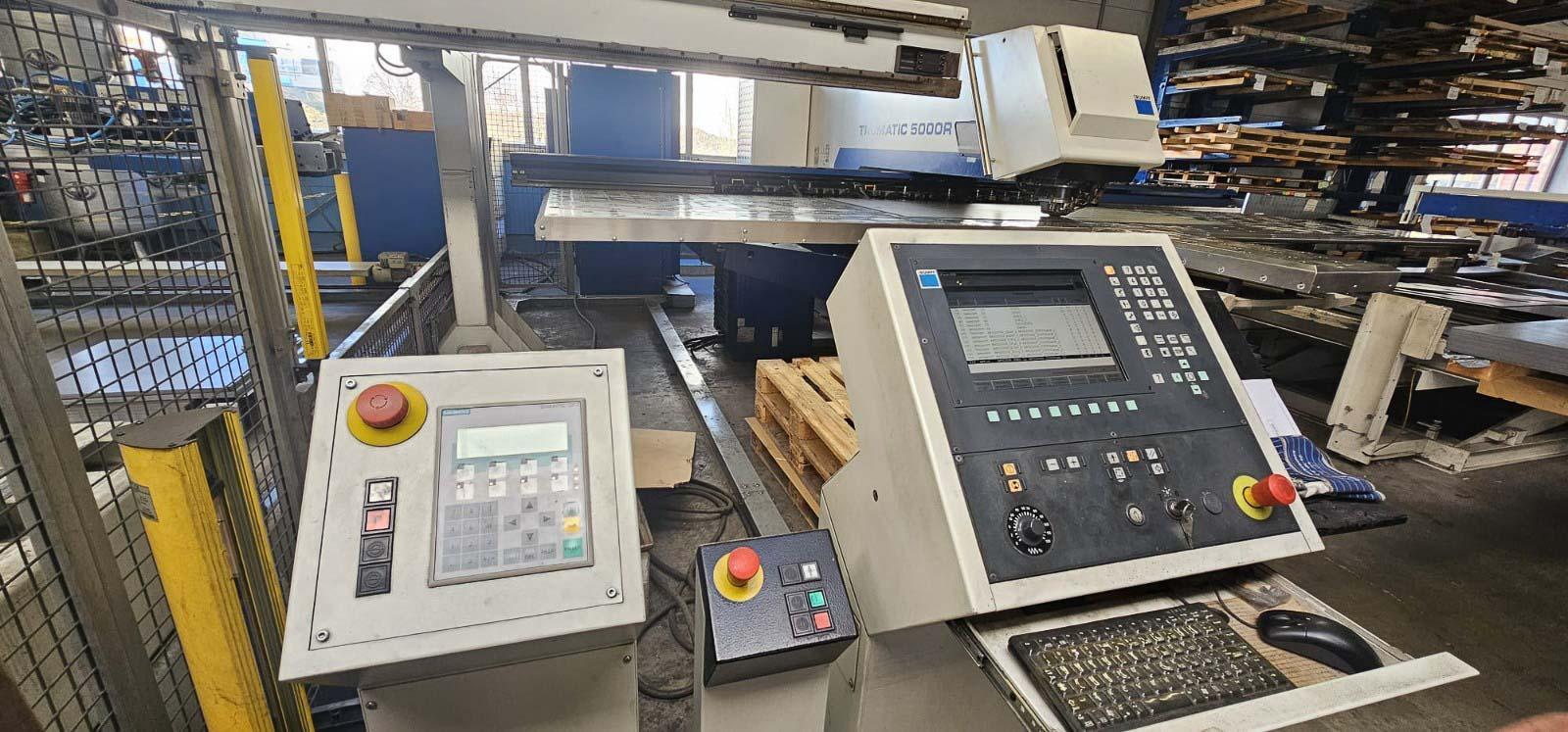

• Control: Siemens Sinumerik 840D

• Punching Force: 220 kN

• Max Material Thickness: 8 mm

• Max Workpiece Weight: 200 kg

• Working Area: 3000 x 1500 mm

• Max Punching Speed: 1,200 hits/min

• Axis Speeds:

  • X-axis: 100 m/min

  • Y-axis: 60 m/min

  • Simultaneous X/Y: 116 m/min

ELECTRICAL REQUIREMENTS:

• 400V / 3-phase / 50Hz (no neutral, ground only)

• Transformer may be required depending on your facility setup

MACHINE DIMENSIONS & WEIGHT:

• Dimensions: 7500 x 7500 x 2500 mm

• Weight: 17,500 kg

QUOTE VALID UNTIL: June 30, 2025
