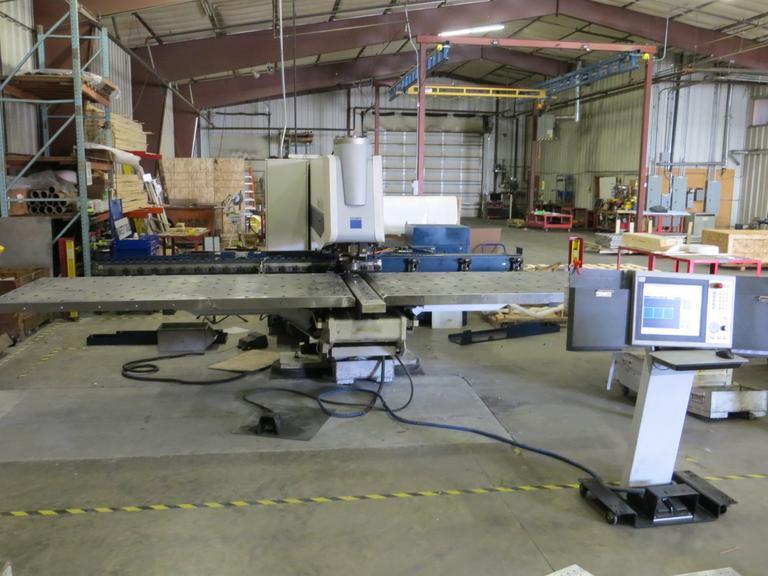

TRUMPF TRUPUNCH 3000 CNC ELECTRIC PUNCHING MACHINE

New: 2012

Specifications:
Control:  CNC
Tonnage Capacity:  20 tons
Maximum Sheet Size:  48 in × 96 in
Maximum Sheet Weight:  330 lbs
Maximum Sheet Thickness:  0.250 in
Throat Depth:  50 in
Turret Stations:  18-Station Linear Rail with (2) Clamping Stations
Punching Rate:  Punching up to 1000 SPM / Marking up to 2500 SPM
Maximum Positioning Speeds (X/Y):  X 3,543 IPM / Y 2,362 IPM
Simultaneous Positioning Speed:  4,250 IPM
C-Axis Speed:  330 RPM
Tooling Style:  Trumpf Cartridge

Equipped With:

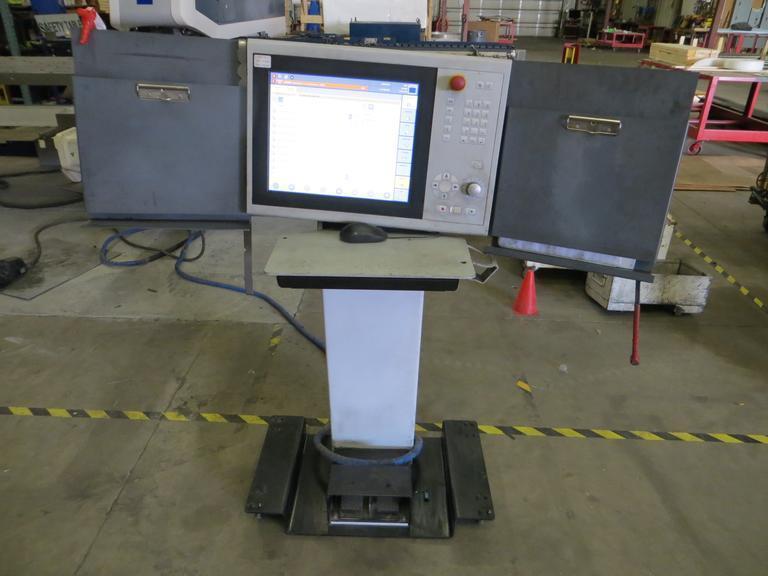

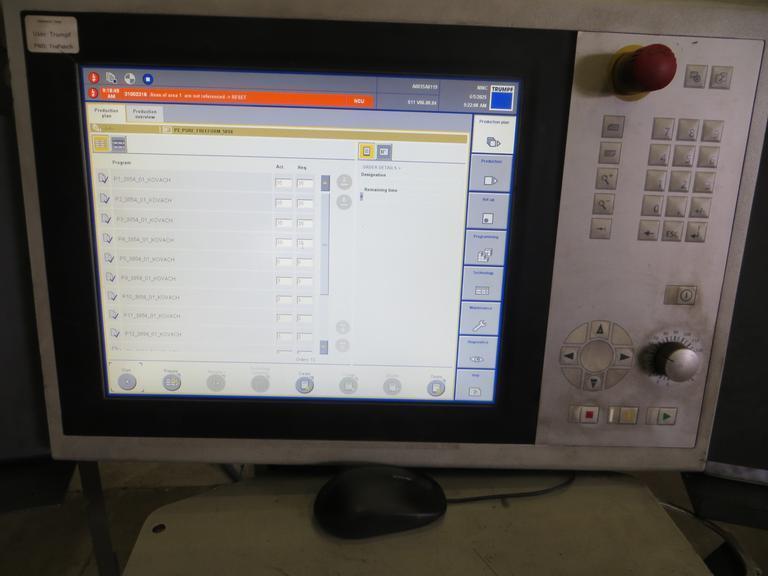

Trumpf CNC Control with 14 in Screen
18-Station Linear Tool Rail
Electric Servo Punch
Riedel Chiller
Foot Trip
Light Curtain
Roller Ball Table

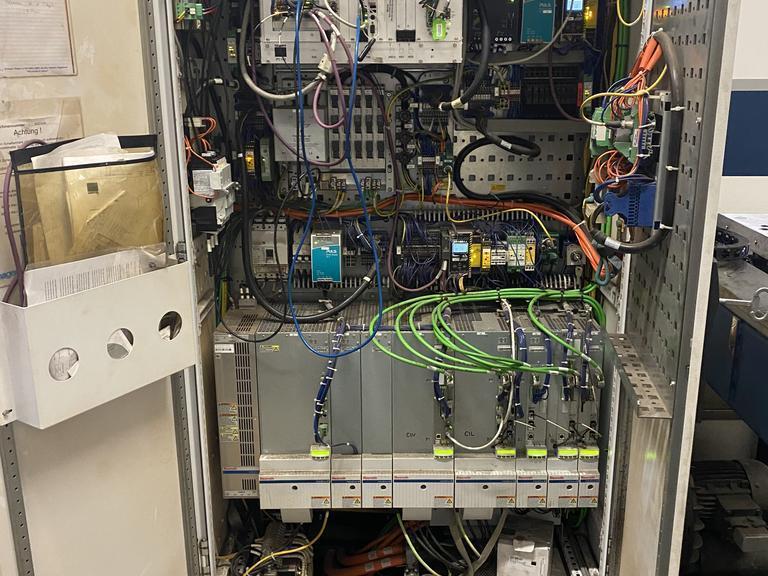

Electrical:
440 Volt, 3-Phase
