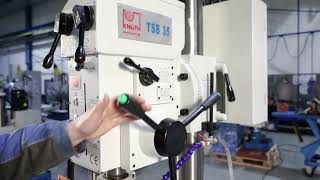

KNUTH MODEL TSB BENCH TYPE DRILL PRESS
Year
Not provided
Stock #
16145
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| TSB 25 | TSB 35 | |
|---|---|---|
| Working Area | ||
| Drilling capacity | 0.98 in | 1.38 in |
| Tapping capacity, steel | M 16 | M 22 |
| Foot set up area (length x width) | 12x13 in | 15x14 in |
| Vertical head travel | 19 in | 20 in |
| Spindle nose-to-foot distance | 26 in | 25 in |
| Throat | 9 in | 13 in |
| Column diameter | 4 in | 5 in |
| Headstock | ||
| Spindle speed | (6) 125 - 2,825 rpm | (12) 125 - 3,030 rpm |
| Spindle mount | 3 MT | 4 MT |
| Quill stroke | 4 in | 6 in |
| Drive Capacity | ||
| Motor rating main drive | 1 Hp | 1.6 Hp |
| Measures and Weights | ||
| Overall dimensions (length x width x height) | 28x17x62 in | 32x20x66 in |
| Weight | 484 lbs | 748 lbs |
| Feed | ||
| Quill feeds | (3) 0,1; 0,2; 0,3 in/R | |
High Power at a Low Price
- Drilling capacity 1.4"
- Throat 13"
- Spindle nose-to-foot distance 25"
- Spindle speed (12) 125-3030 rpm
- Spindle mount MT 4
- Rigid cast-iron construction
- Height-adjustable machine head
- 6 or 12 speed levels
- Rectangular table with T-slots and circumferential coolant groove
- Automatic quill feed
- Digital speed (rpm) display
- Coolant system
- Head swivels ± 45¡
- Tapping feature
- base
- protective shield
- tapping unit
- LED work lamp
- coolant system
- drill chuck
- operating tools
- operator manual
