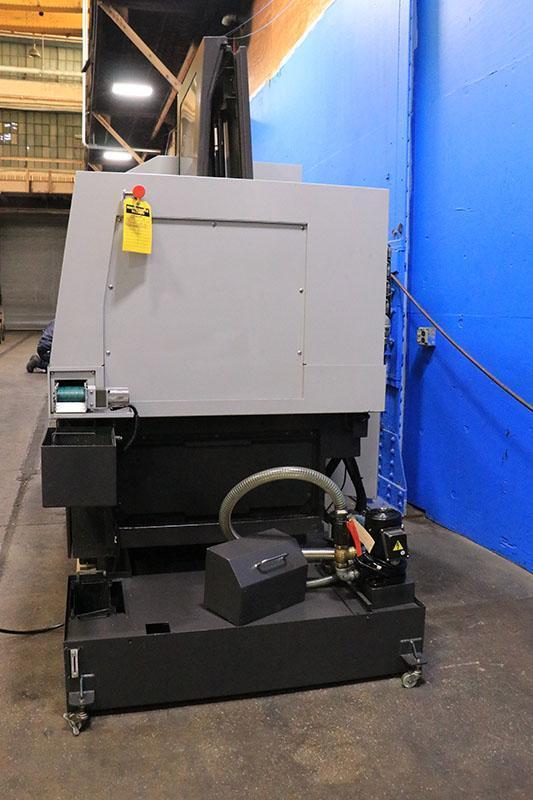

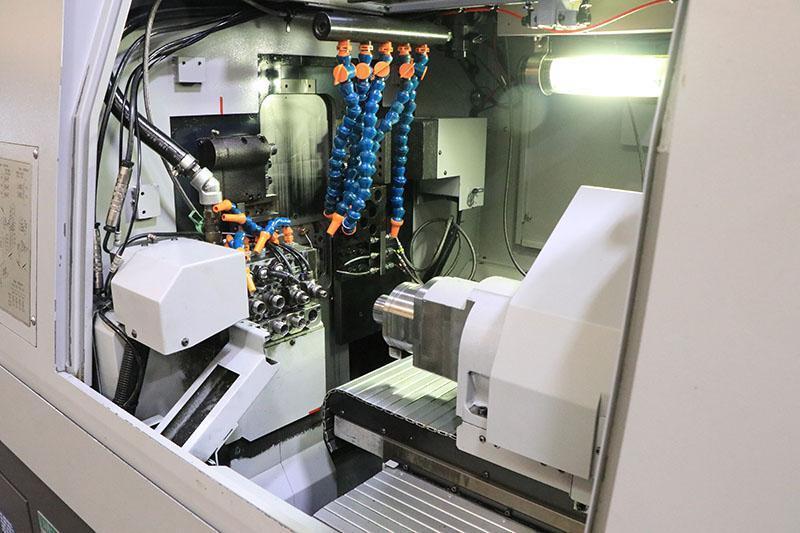

TSUGAMI BO205-II 7-AXIS CNC SWISS LATHE
Year
2012
Stock #
19922
Condition
Used
Keep Scrolling To Learn More
Specifications
Equipped With
TSUGAMI BO205-II 7-AXIS CNC SWISS LATHE
New 2012
EQUIPPED WITH

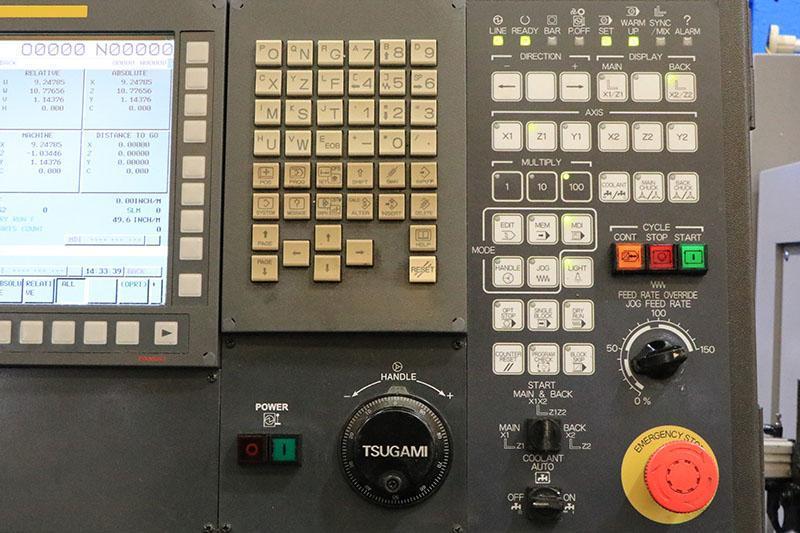

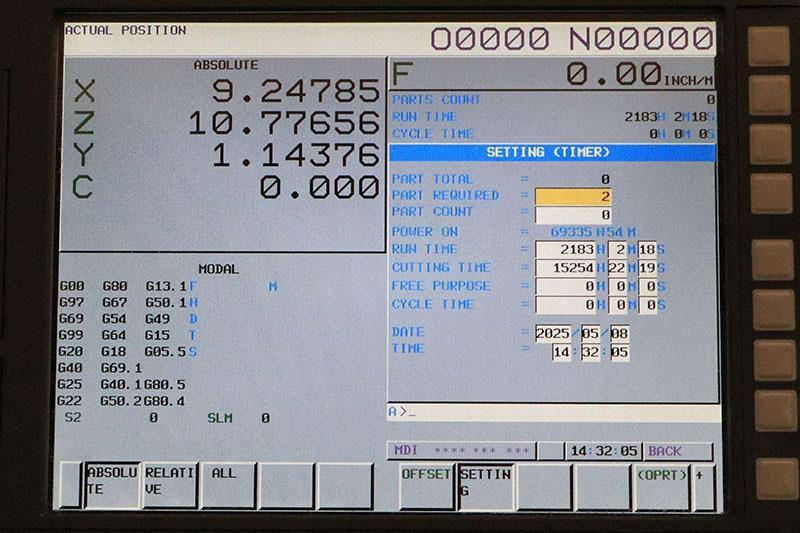

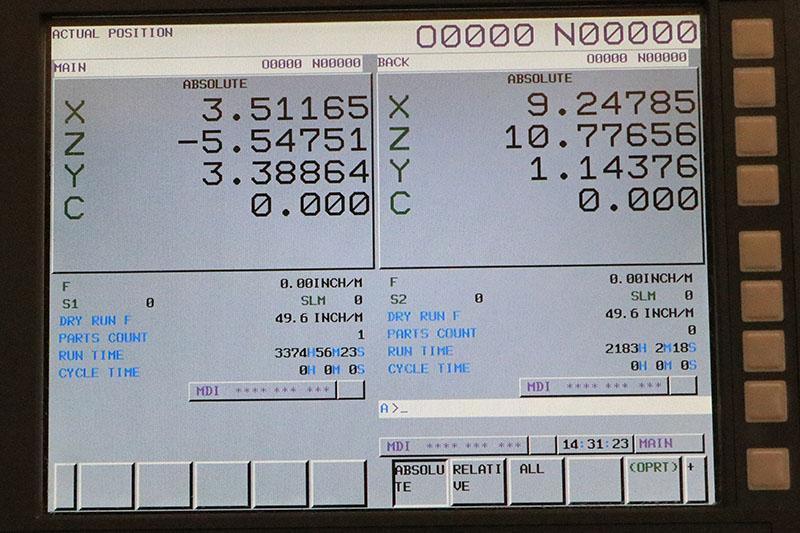

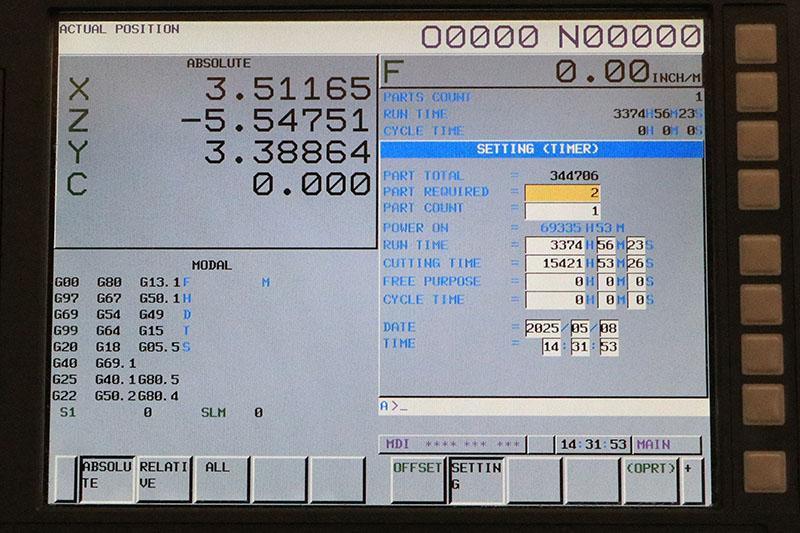

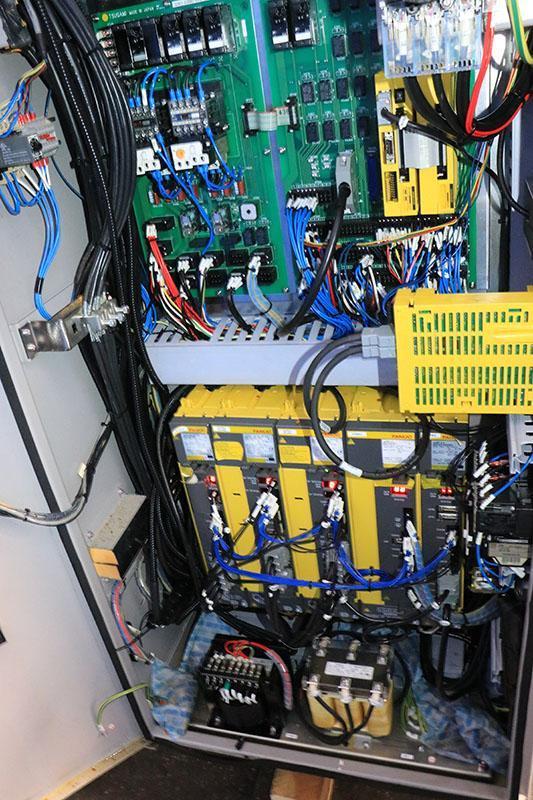

Fanuc Series 0i-TD CNC Control

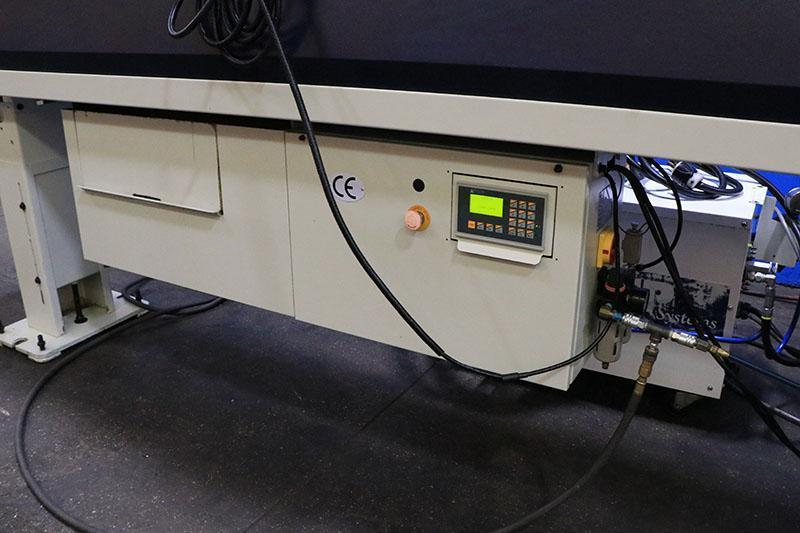

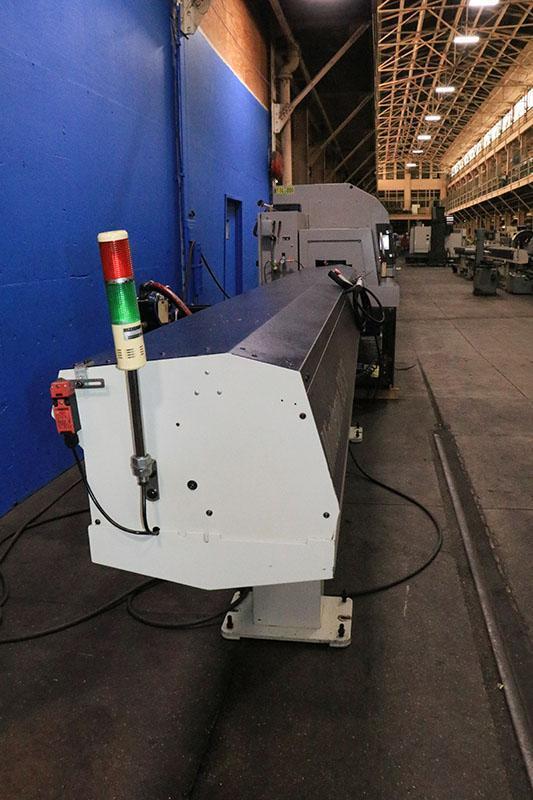

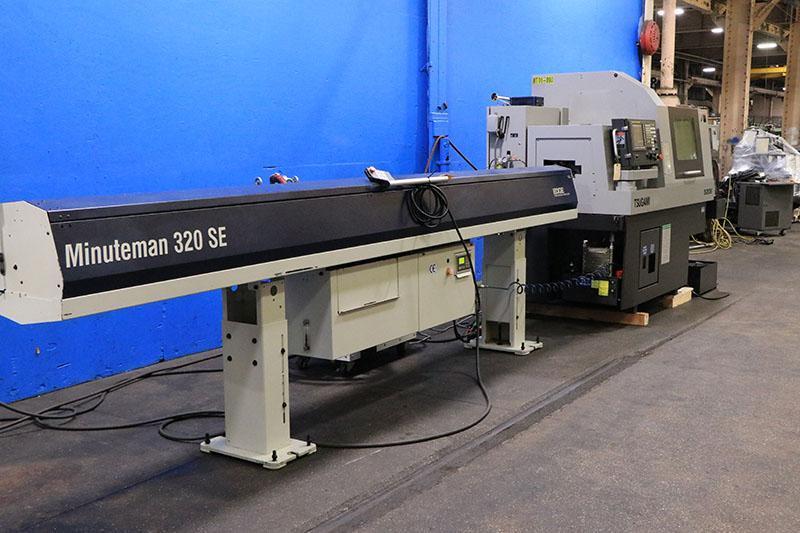

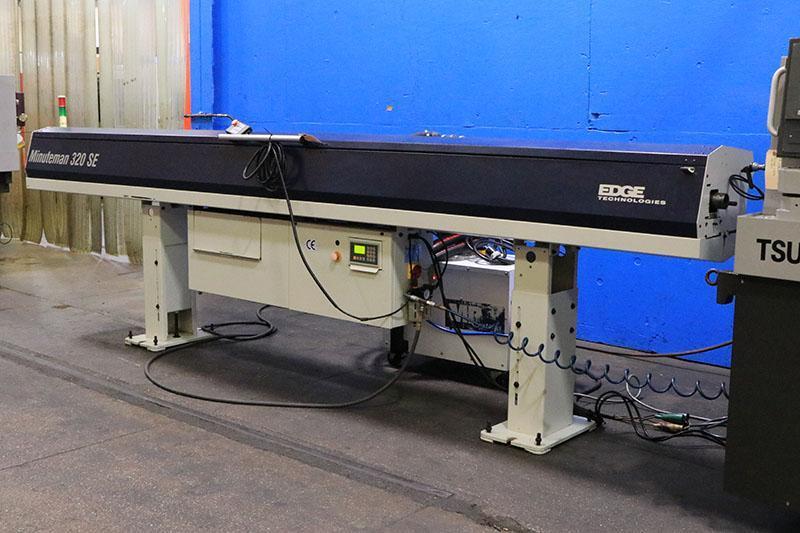

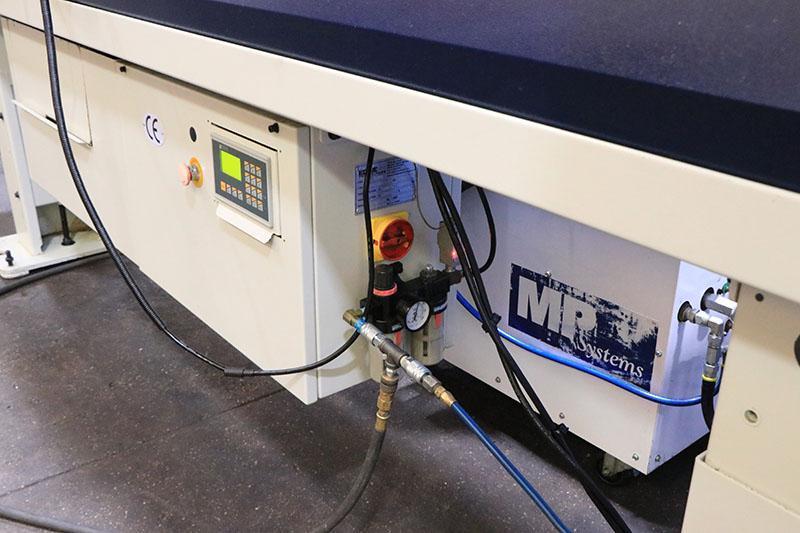

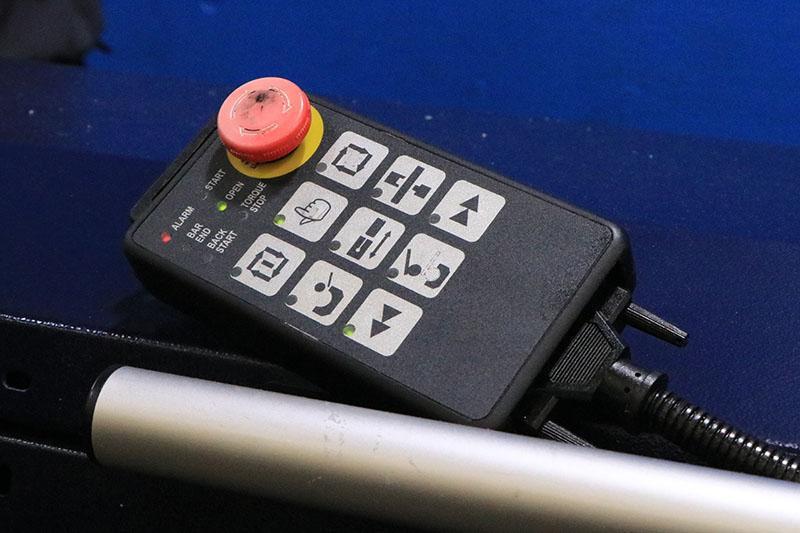

Edge Minuteman 320E Magazine Barfeed, 12'

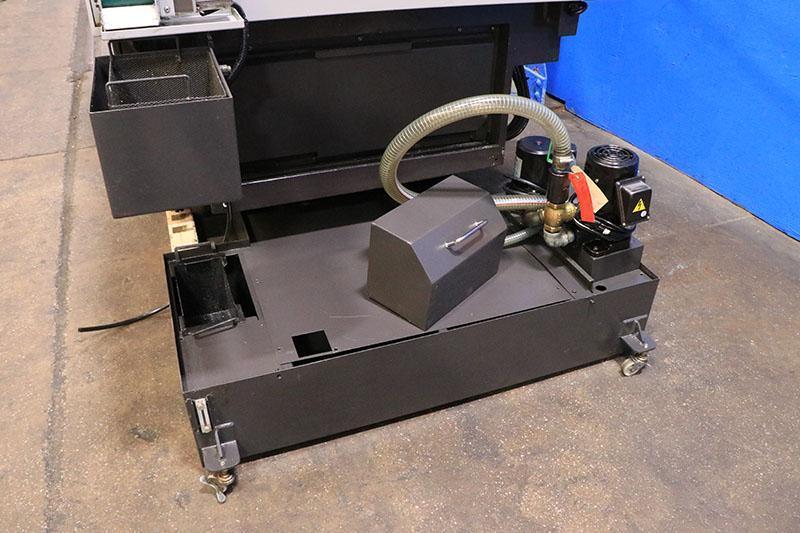

Chip Conveyor
SPECIFICATIONS
Barstock Diameter (Main/Sub): 3/4" (20mm)
Machining Length: 8.26" / 1-3/4" (210mm w/ Guide Bushing / 45mm without)
Drilling Diameter (Main/Sub): 3/8" / 0.31"
Tapping Diameter (Main/Sub): M10(II) / M8(II)
Cross Drilling Diameter: 1/4" (Optional)
Cross Tapping Diameter: M5 x 0.8 (Optional)
Back Drilling Diameter: 1/4" (Optional)
Back Tapping Diameter: M5 (Optional)
Live Tool Speed: 5,000 RPM
Main/Sub Spindle Speed: 10,000 / 12,000 RPM
Tool Storage Capacity: 21
Tool Size: 0.47" x 0.47" x 3.3"
Rapid Traverse Rate: 1259 IPM (X1-Axis: 944 IPM)
Main/Sub Spindle Motors: 2.9 HP / 4.9 HP
Machine Dimensions: 65" x 44" x 66"
Machine Weight: 4,409 lbs
