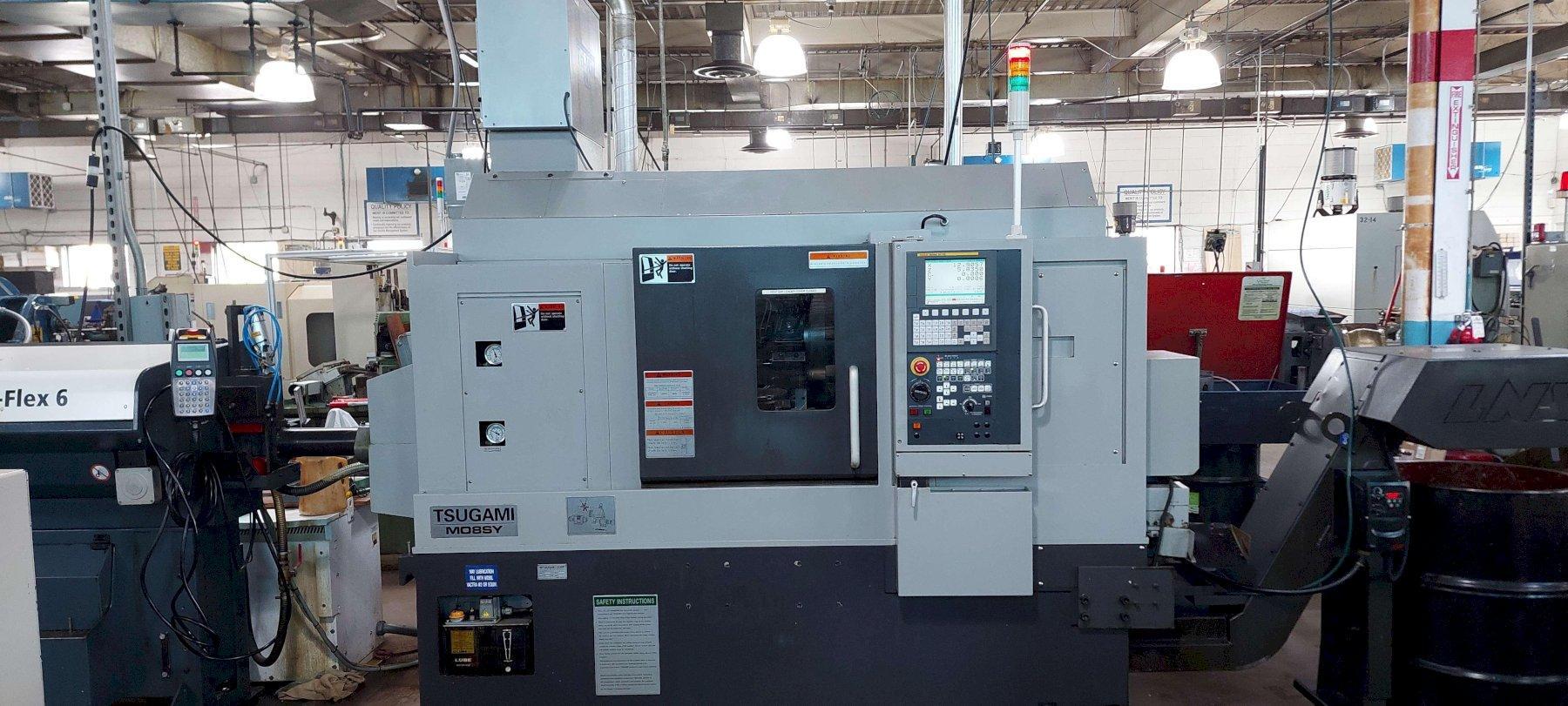

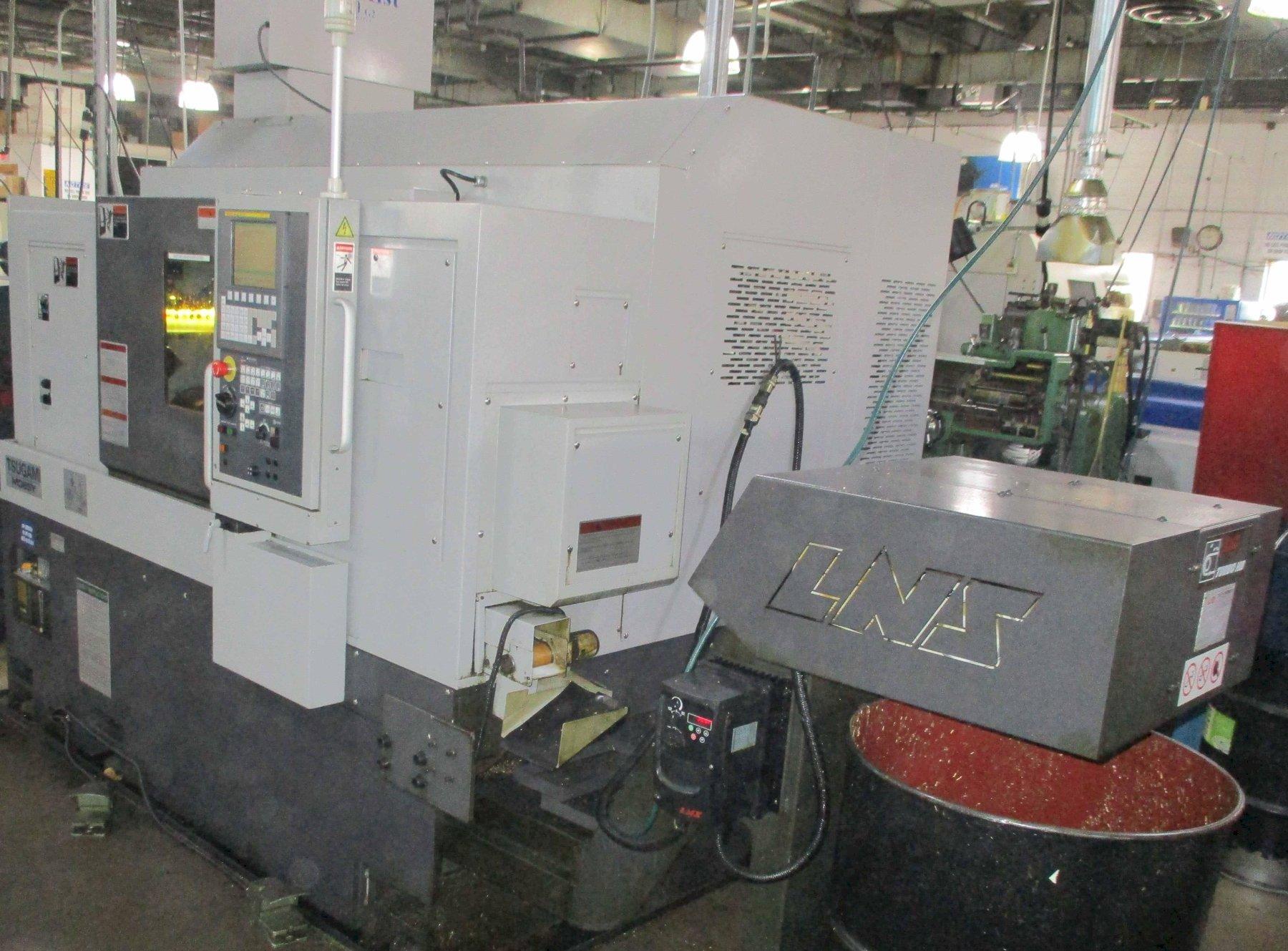

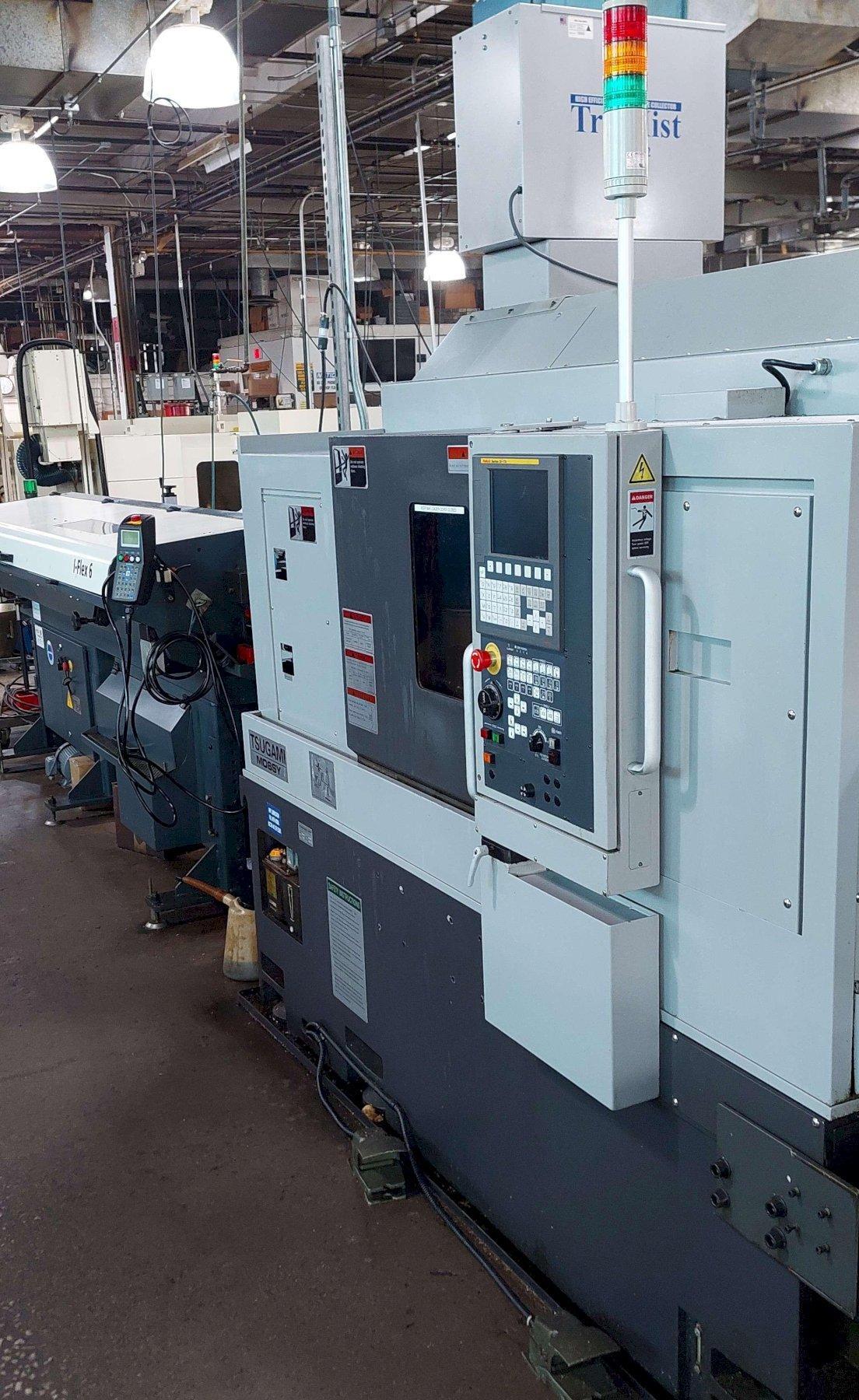

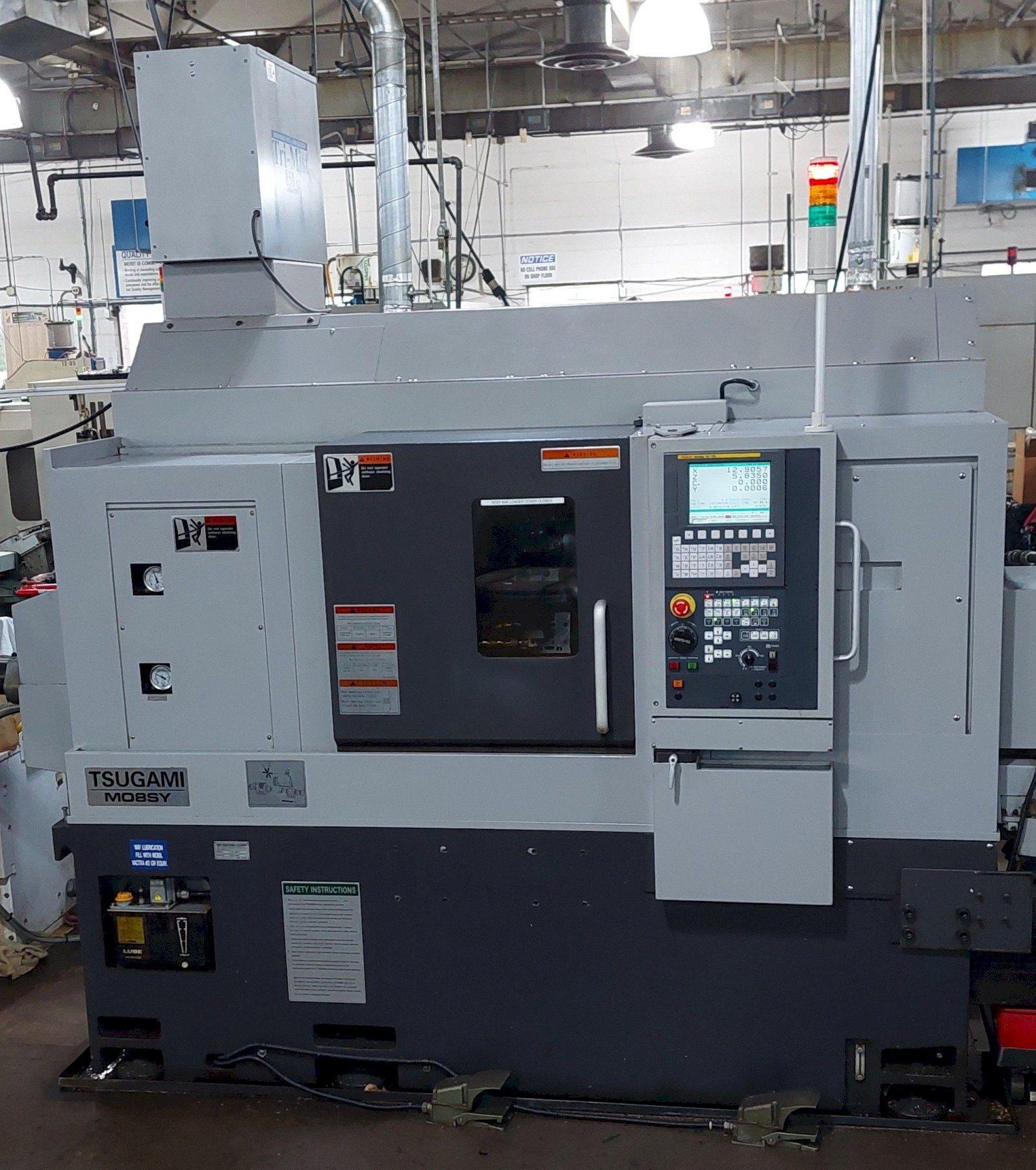

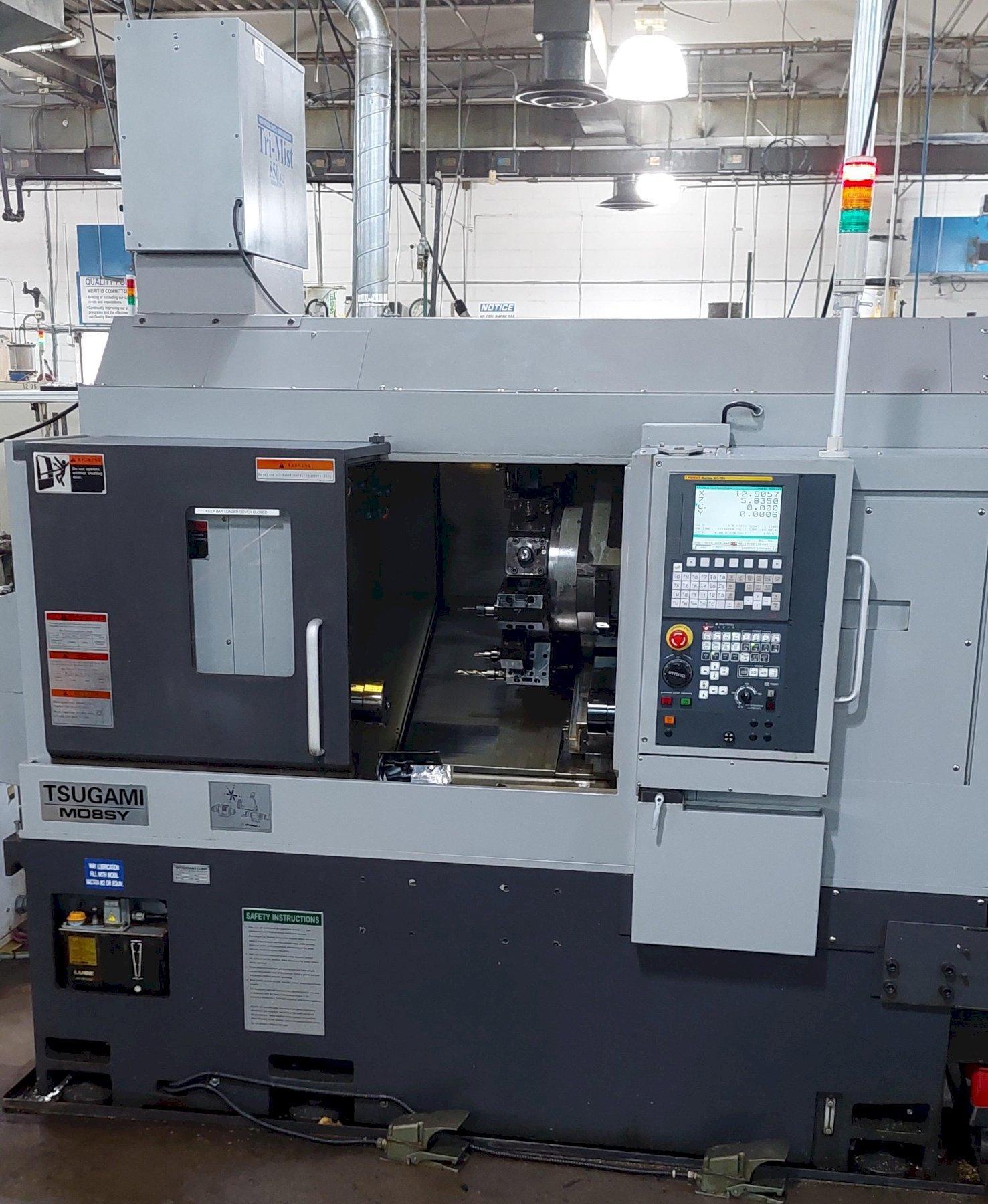

TSUGAMI M08SY CNC TURNING CENTER

New: 2014

Specifications:

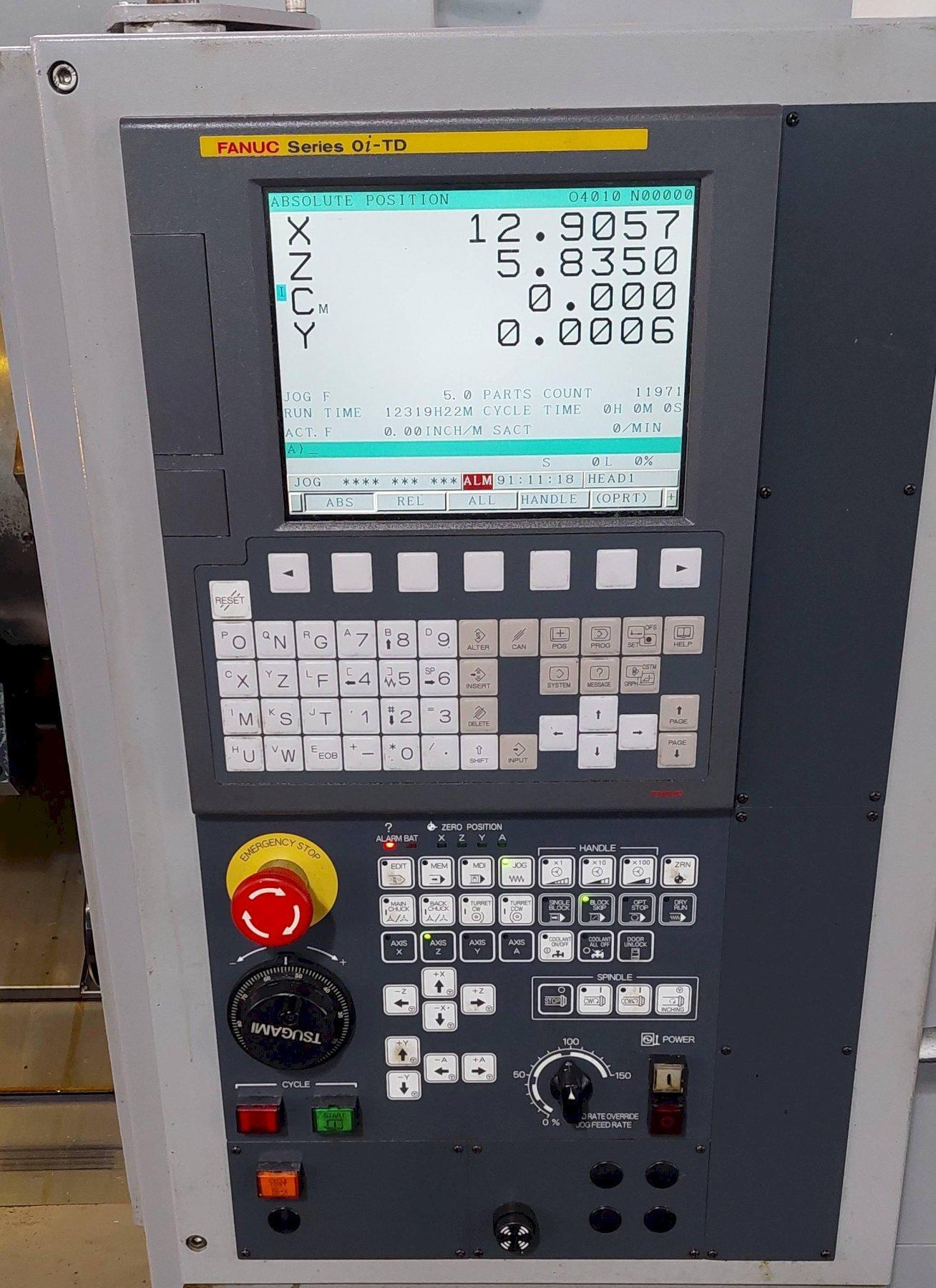

Control:  Fanuc 0i-Td
Axis Configuration:  4-Axis (X, Y, Z, and C)
Max Machining Diameter:  280 mm (11.02 in)
Max Turning Length:  380 mm (14.96 in)
Bar Capacity:  2.5 in (63.5 mm)
Main Spindle:  A2-6 nose, 8 in chuck, 4,500 RPM, 7.5 / 11 kW (10 / 14.8 HP), C-axis with spindle brake

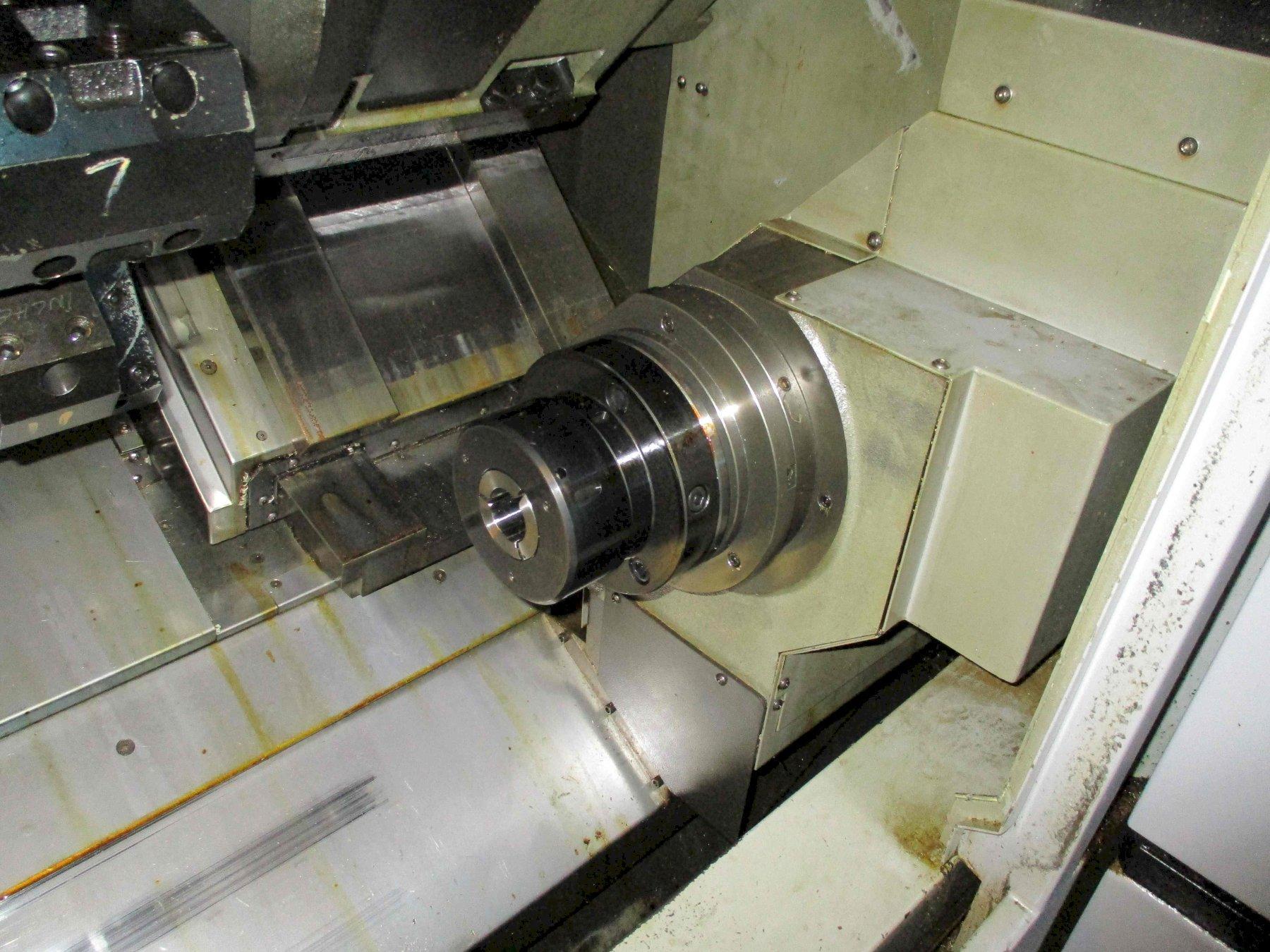

Sub Spindle:  6 in chuck (Flat 140), C-axis with spindle brake

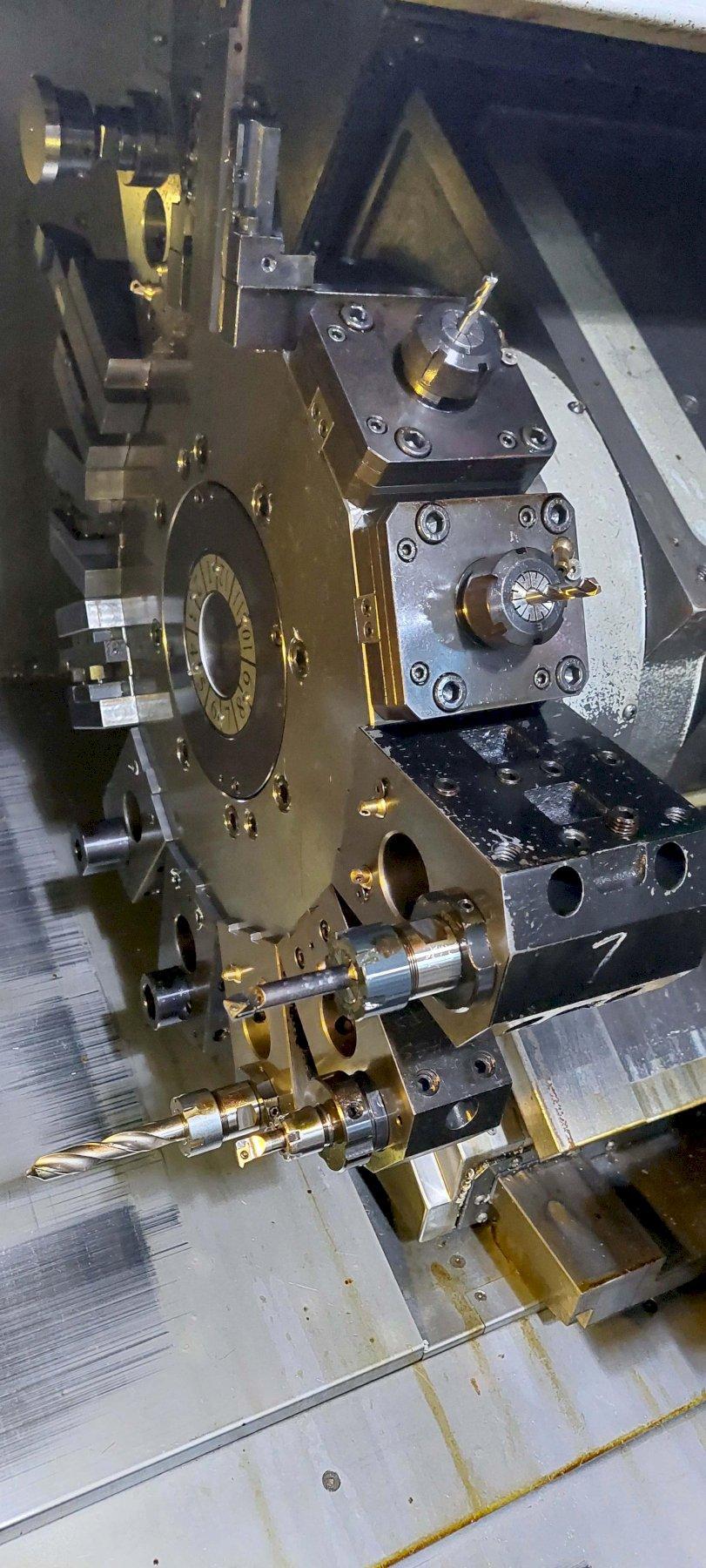

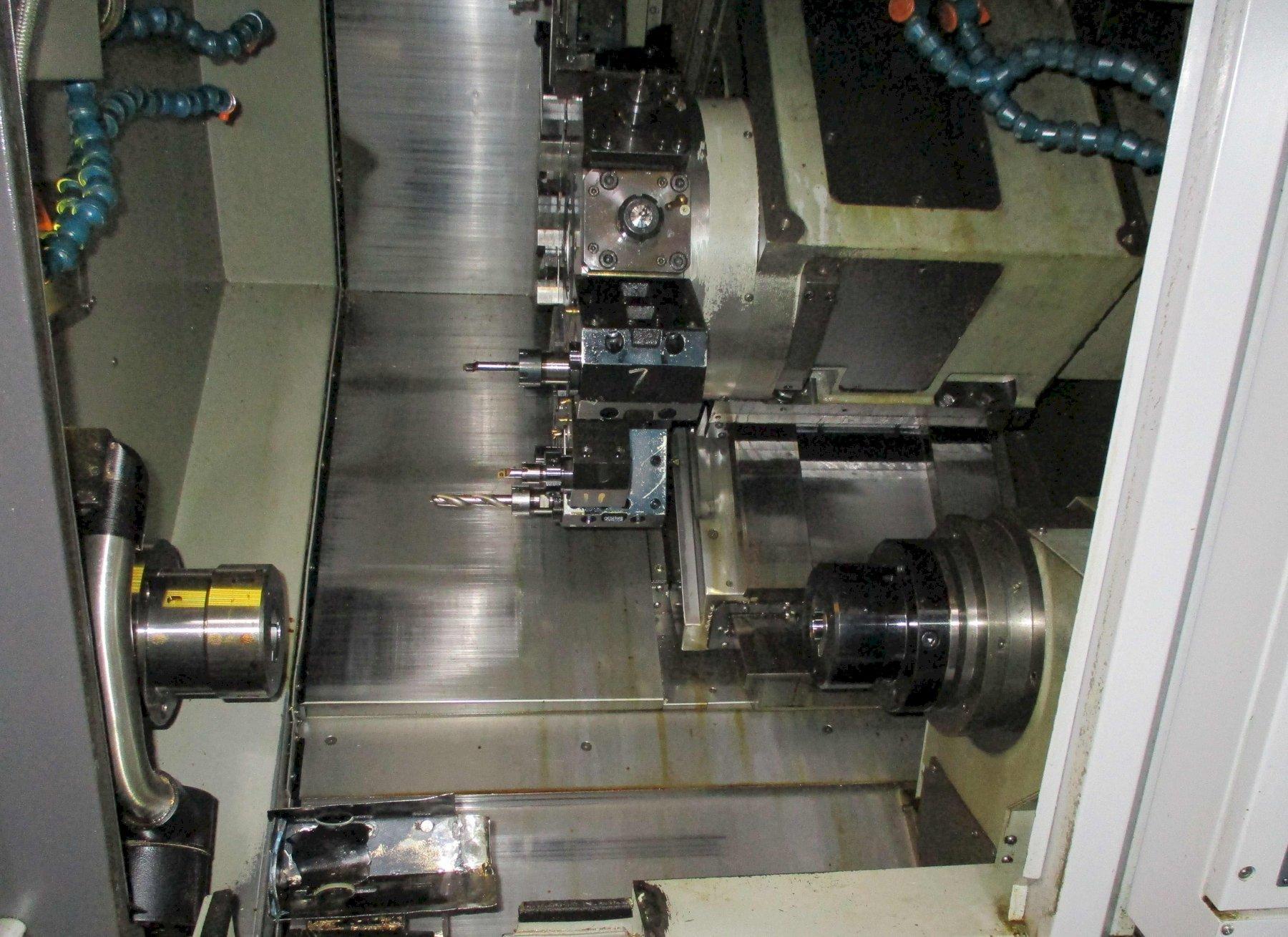

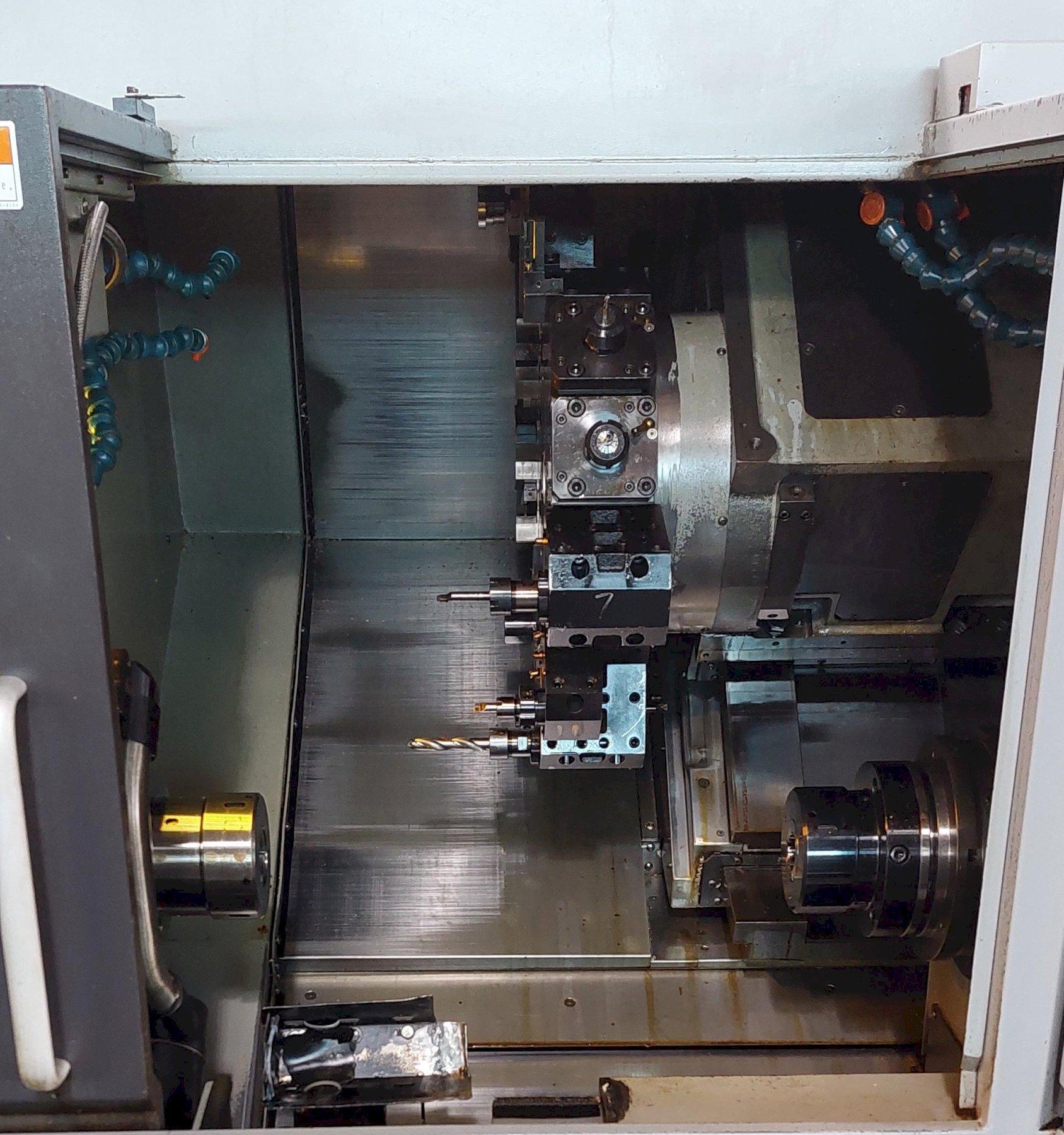

Turret:  12-station driven tool turret (all live-tool capable)
Live Tool Speed:  5,000 RPM
Axis Travels:  X-axis 8.70 in (221 mm), Y-axis ± 1.97 in (± 50 mm), Z-axis 15.75 in (400 mm)
Thru-Tool Coolant:  Yes (coolant through turret)
Machine Dimensions (approx.):  97.2 in W × 72.8 in D × 76 in H
Machine Weight (approx.):  13,000 lbs

Equipped With:

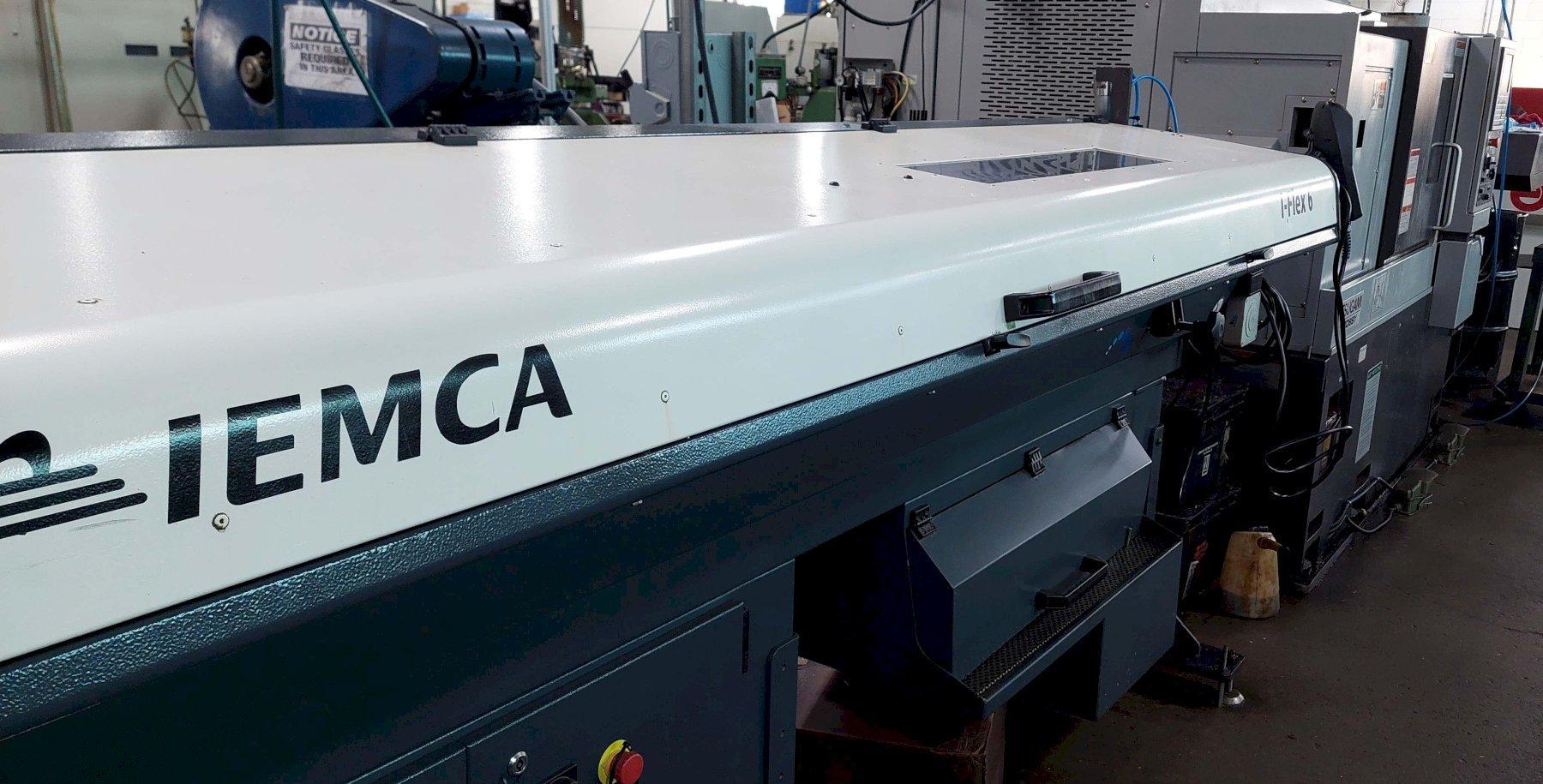

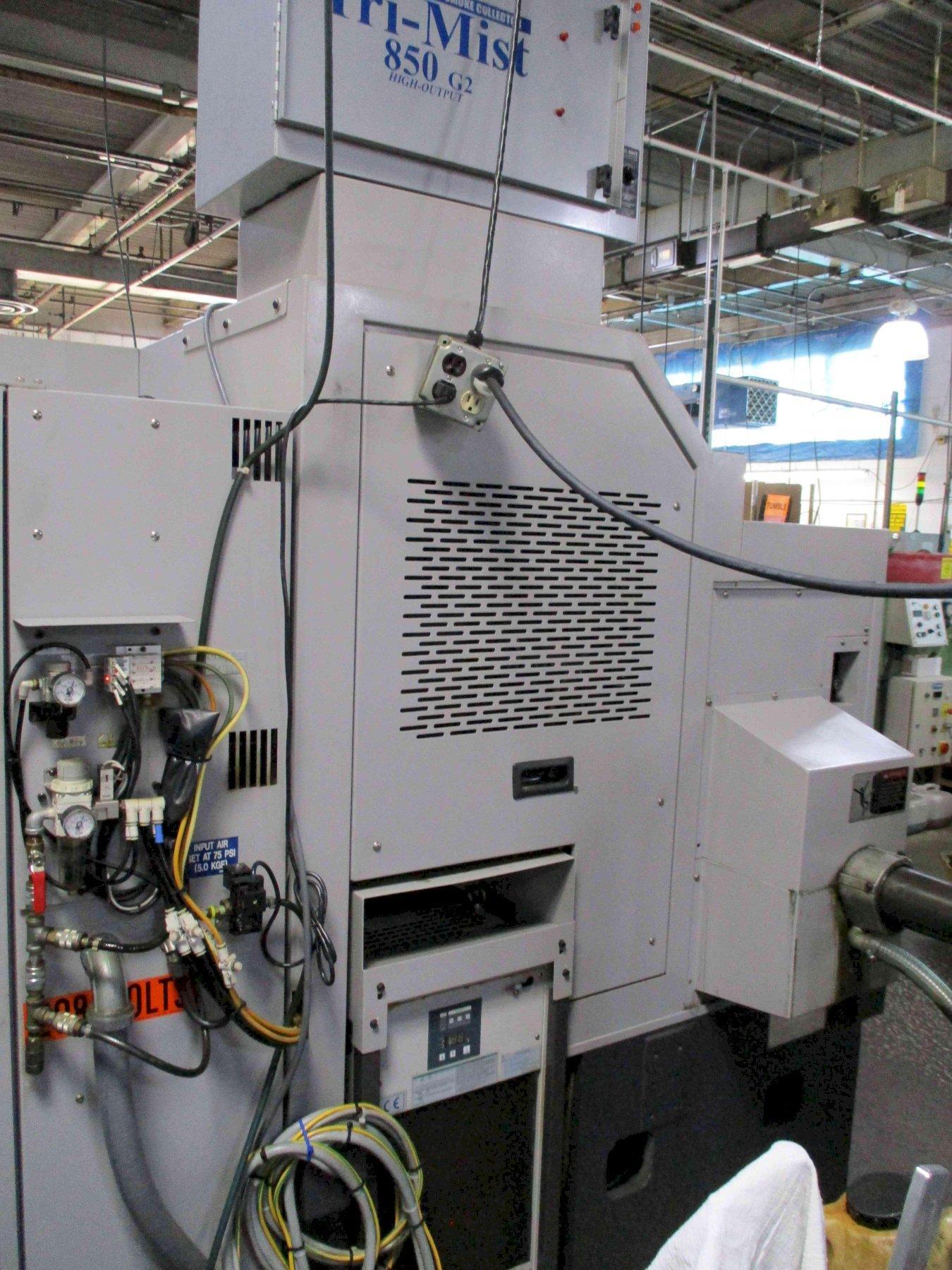

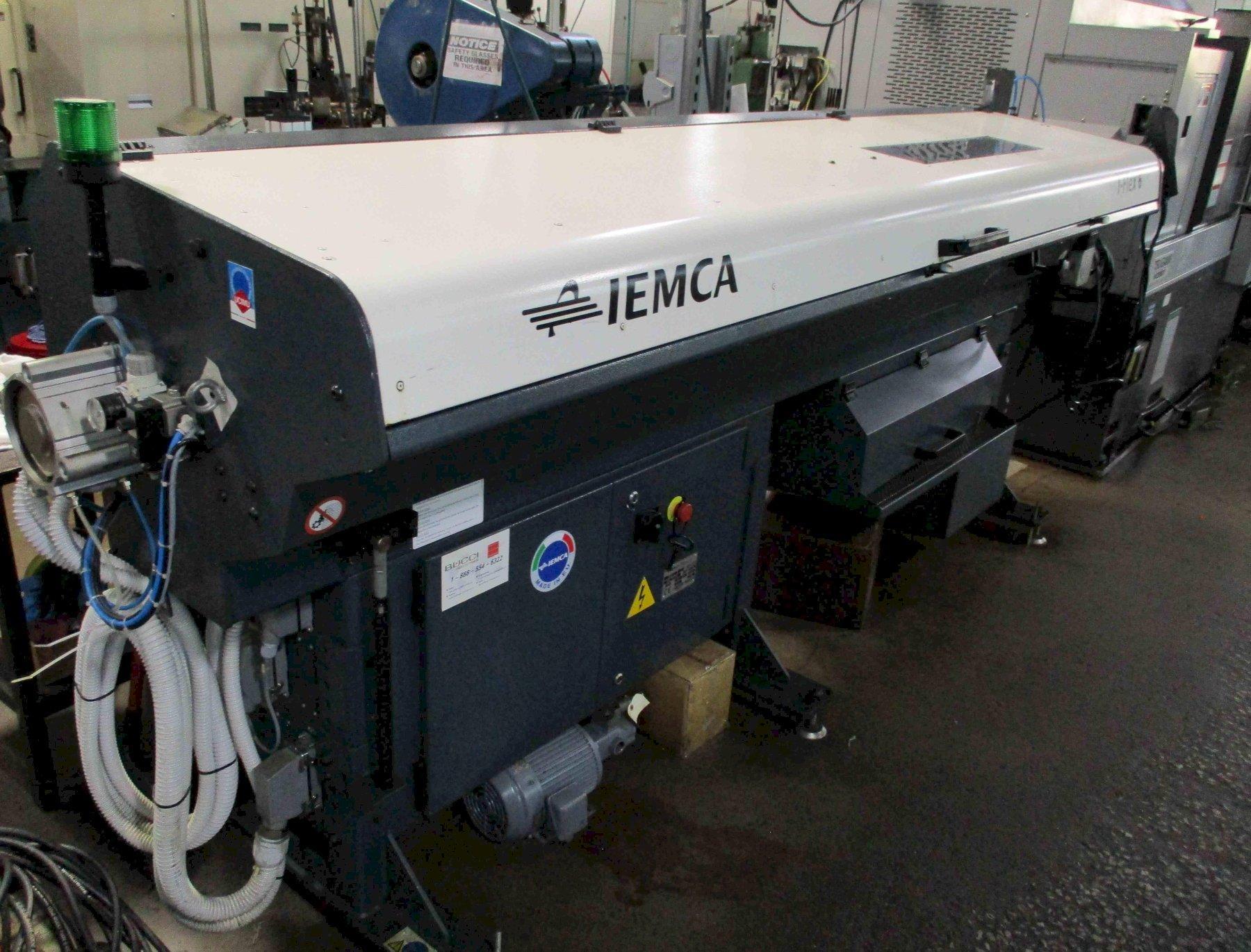

Iemca I-Flex magazine bar loader (6 ft bars), patrol light, coolant through turret, chip conveyor, transformer, mist collector, Kitagawa jaws (main and sub), ran oil, under 7,000 cut time hours

Tooling Package Included:
1 cutoff blade-style tool holder, 4 double turning tool holders (for main and sub spindle), 10 static end-working drilling holders (for main or sub spindle), 2 single live cross drilling holders, 2 single end-working live drilling holders, 1 single live adjustable angular drill holder

 Seller can prep for shipment but a rigger is required to load at buyer’s expense.
