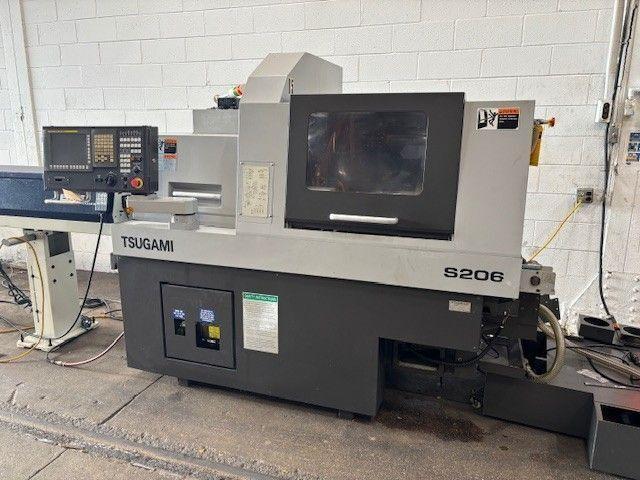

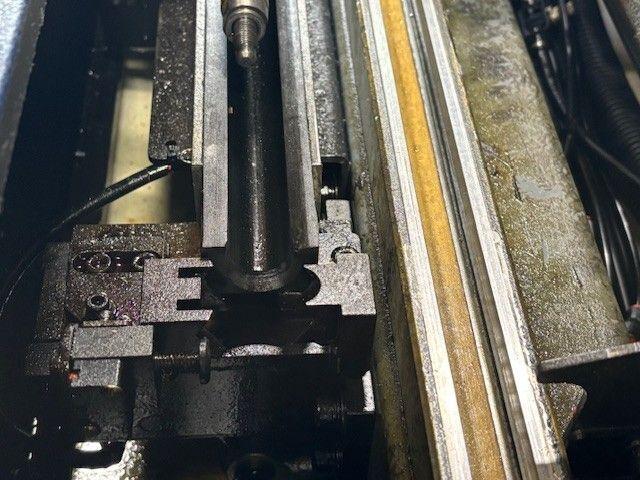

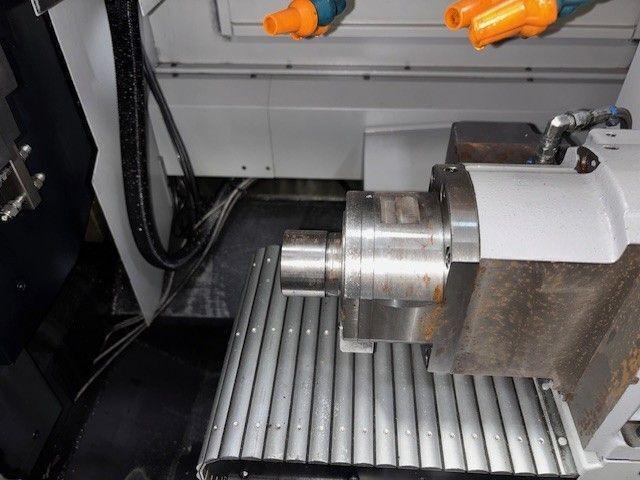

TSUGAMI S206 AUTOMATIC CNC SWISS-TYPE LATHE

New: 2011

Specifications:
Capacity:  0.75 in
Axis Configuration:  8-Axis
Machine Type:  Convertible Swiss-Type Lathe

Control:  Fanuc 31iTB CNC

Main Spindle Speed:  200 – 12,000 RPM
Main Spindle Motor:  2.2 / 3.7 kW
Main Spindle Indexing:  Full C-Axis

Sub-Spindle Speed:  200 – 12,000 RPM
Sub-Spindle Motor:  1.5 / 2.2 kW
Sub-Spindle Indexing:  Full C-Axis

Maximum Bar Diameter:  20 mm (3/4 in)
Maximum Machining Length:  210 mm (Direct Drive Rotary Guide Bushing)
            250 mm (Static Guide Bushing)
            80 mm (Carrier Type Rotary Guide Bushing)
            45 mm (Bushingless)

Maximum Drilling Diameter:  10 mm
Maximum Tapping Diameter:  M8
Deep Hole Drilling Diameter:  8 mm

Maximum Back Spindle Chucking Diameter:  20 mm
Maximum Back Spindle Drilling Diameter:  8 mm
Maximum Back Spindle Tapping Diameter:  M6

Maximum Tool Spindle Drilling Capacity:  6 mm (Front / Back Tool Post)
            8 mm (Rear Tool Post)
Maximum Tool Spindle Slotting Diameter:  30 mm

Tool Storage Capacity:  24 Standard / 35 Maximum
Tool Size:  12 × 12 × 100 mm

Rapid Traverse Rate:  32 m/min
X1 / Y1 Rapid Traverse:  24 m/min
Y2 Rapid Traverse:  15 m/min

Tool Spindle Speed:  200 – 8,000 RPM

Power Requirements:  14.3 kVA
Compressed Air Requirement:  0.4 MPa or Above
Air Discharge Rate:  40 NL/min

Machine Dimensions:  83 in × 47 in × 74 in
Machine Weight:  7,055 lbs

Equipped with:

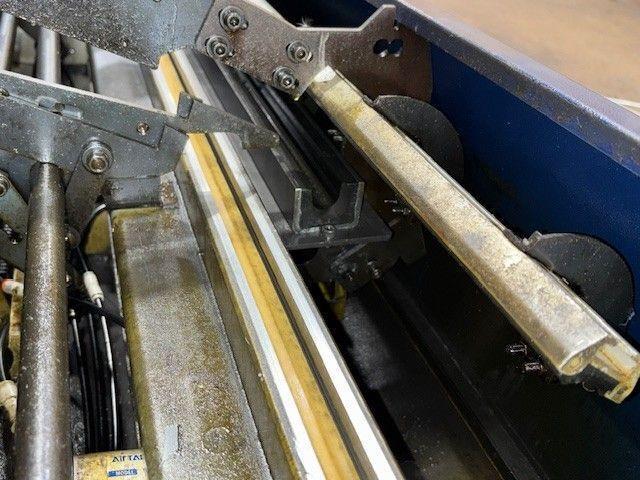

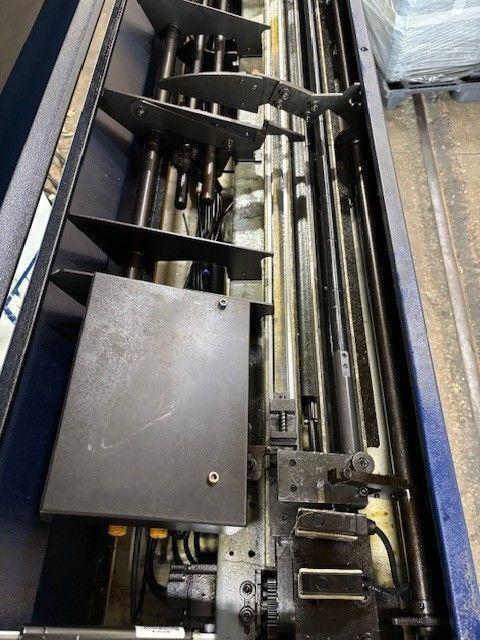

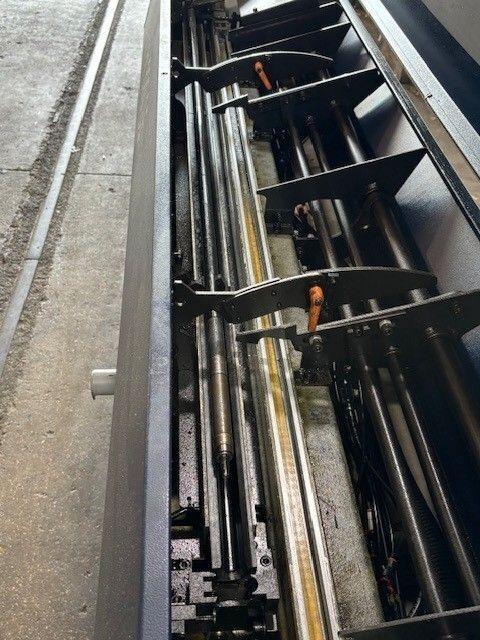

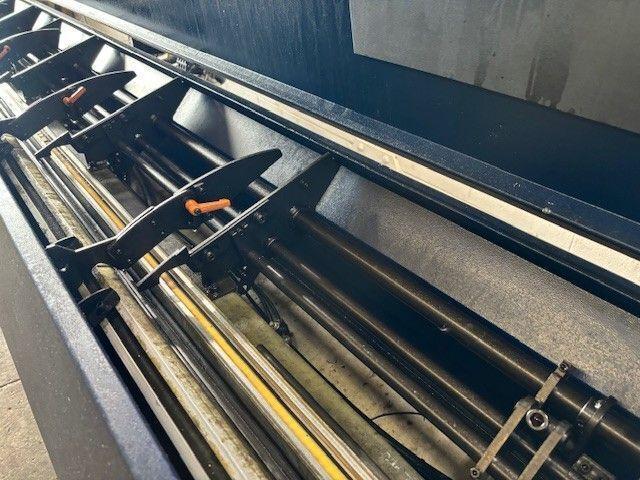

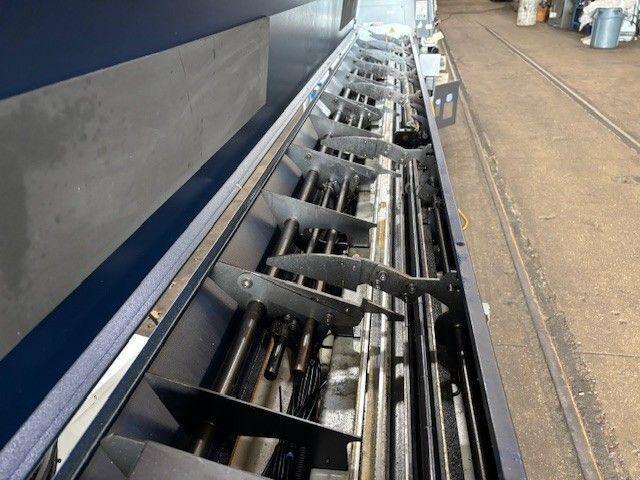

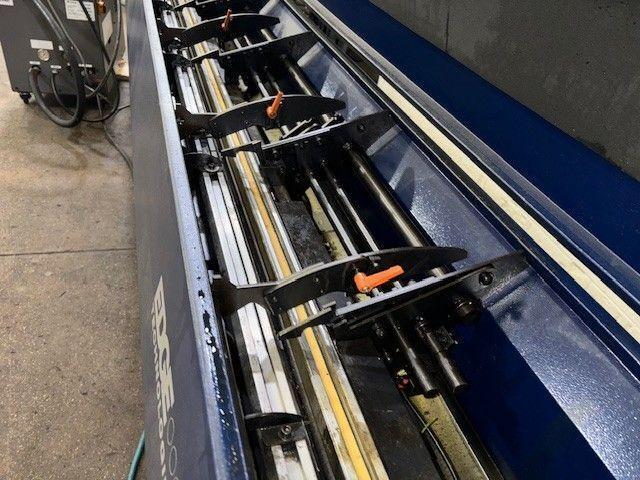

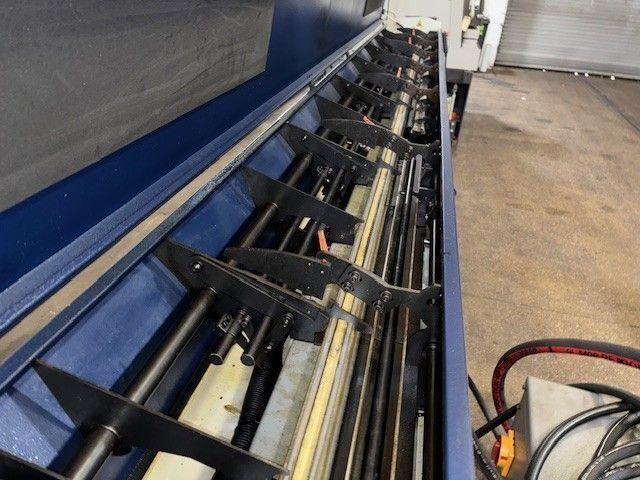

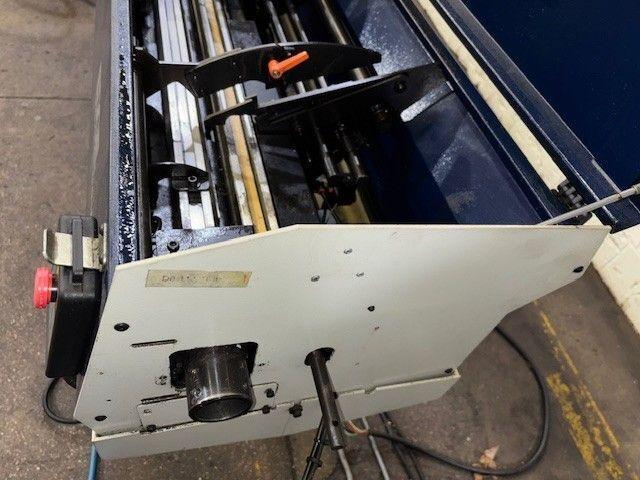

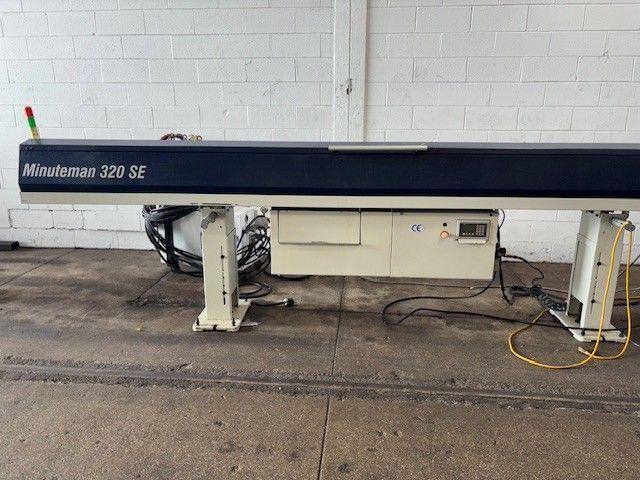

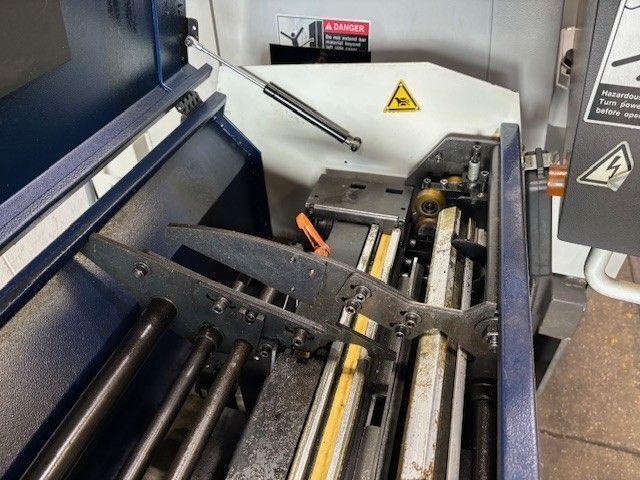

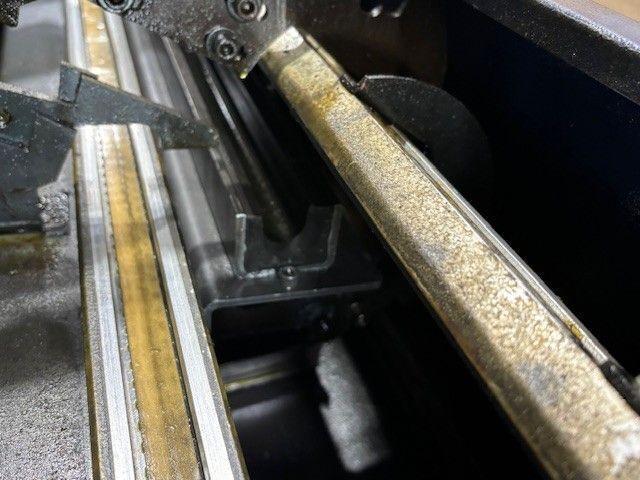

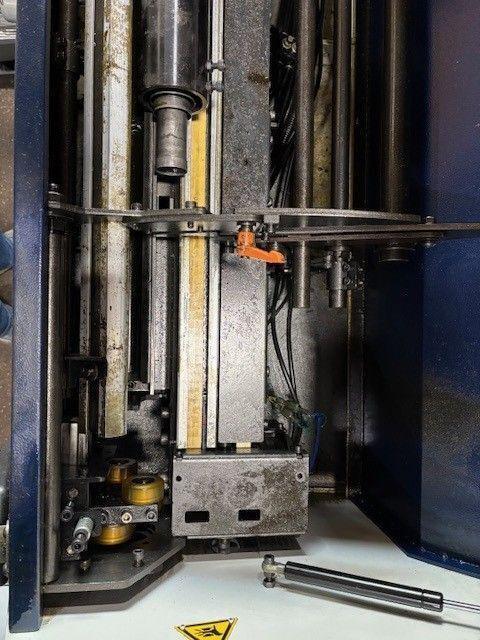

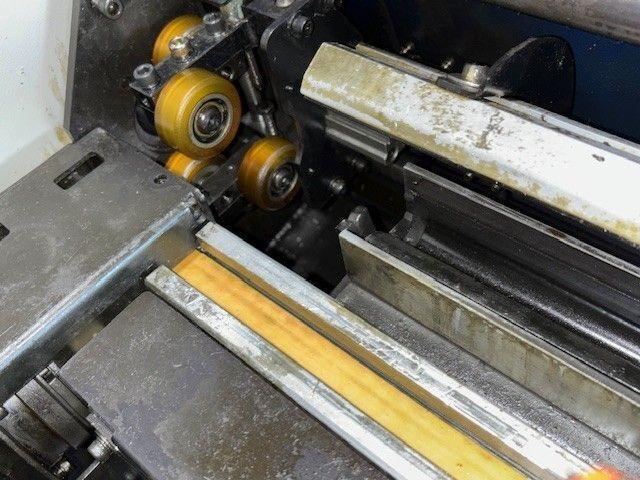

Edge Technologies Magazine Bar Loader
Fire Suppression System

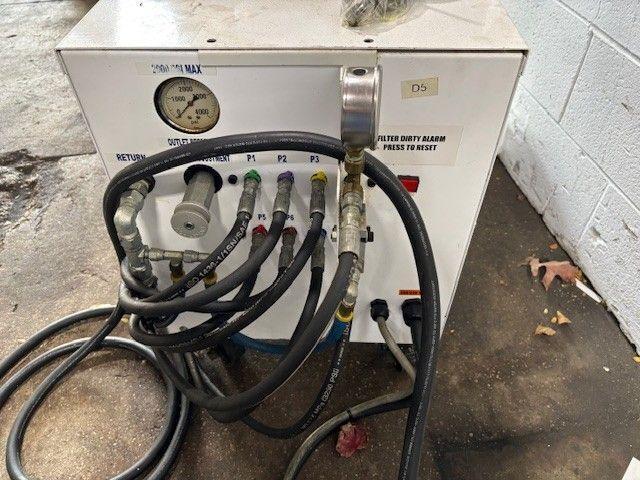

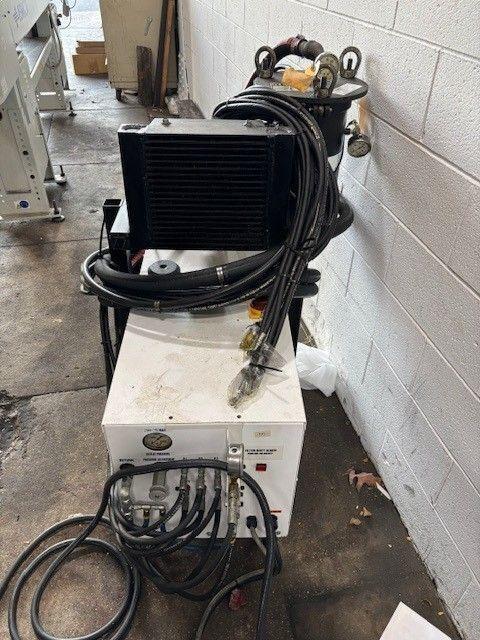

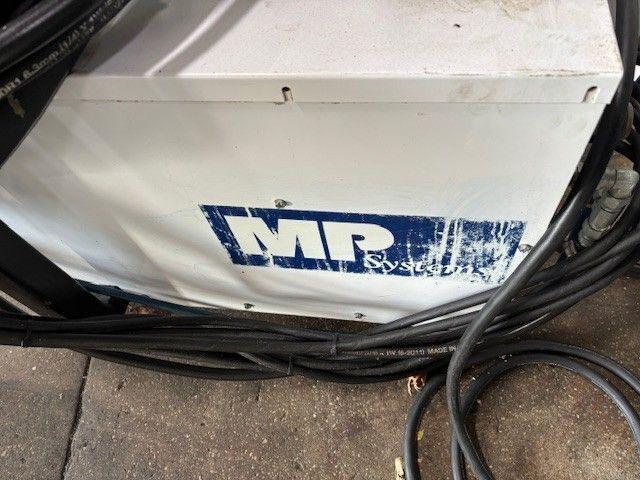

MP High Pressure Coolant Unit
Work Light Tower
Rotary Guide Bushing

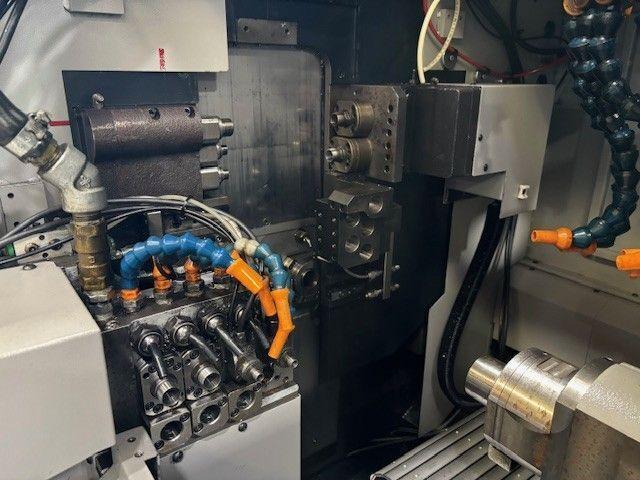

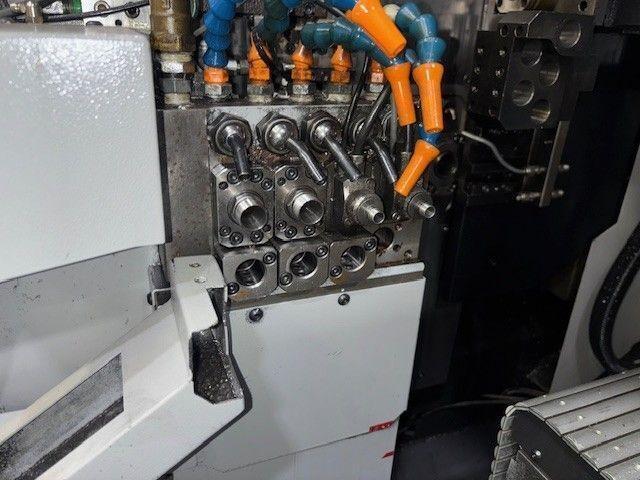

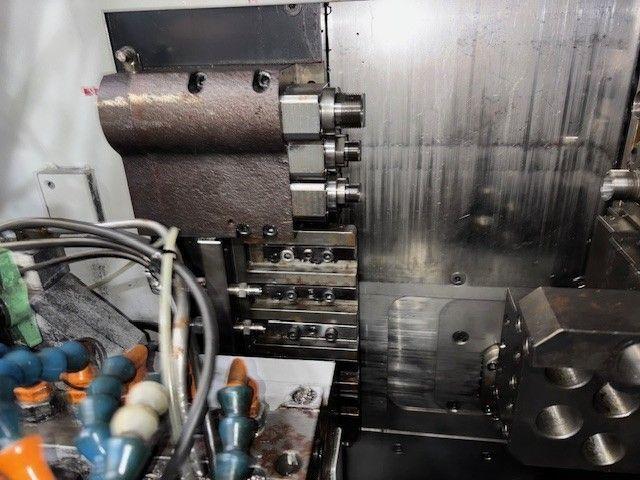

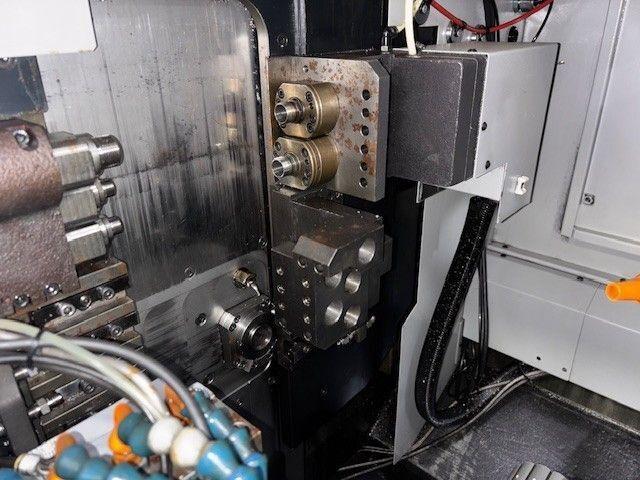

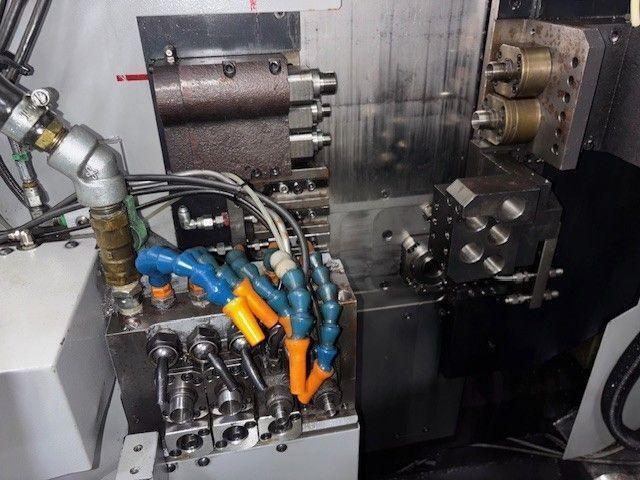

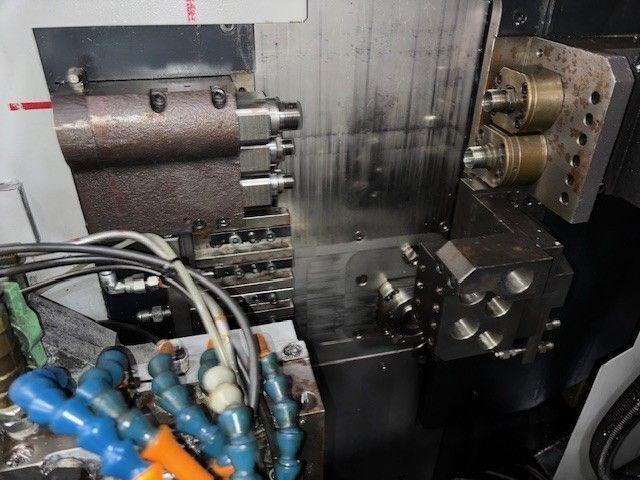

Live Tools on Front & Rear Tool Posts
Backworking Live Tools for Y2

Notes:
Non-Guide Bushing Kit Available from OEM
Buyer Is Responsible for Verifying Specifications and Inspecting the Machine Prior to Purchase
