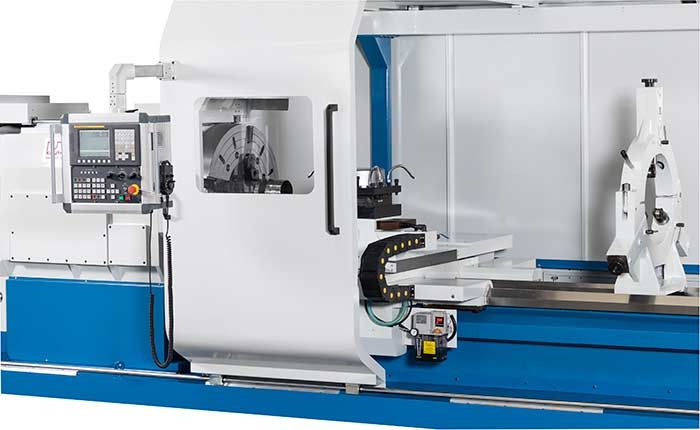

KNUTH "TubeTurn CNC" BOX WAY CNC LATHE
Year
Not provided
Stock #
16169
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| TubeTurn CNC 2830 | TubeTurn CNC 3630 | |
|---|---|---|
| Working Area | ||
| Turning diameter over bed | 39 in | |
| Turning-¯ over support | 26 in | 24 in |
| Bed width | 24 in | 30 in |
| Center height | 20 in | |
| Machining length (max.) | 118 in | |
| Travels | ||
| Travel X-axis | 23.6 in | 24 in |
| Travel Z-axis | 110 in | |
| Headstock | ||
| Speed range | 5 - 450 rpm | 3 - 315 rpm |
| Spindle bore | 11 in | 14 in |
| Rapid Feed | ||
| Rapid Feed X-axis | 157.48 in/min | |
| Rapid Feed Z-axis | 236.22 in/min | |
| Tool Head | ||
| Number of tool stations | 4 positions | |
| Accuracies | ||
| Positioning accuracy X-axis | 0.00118 in | |
| Positioning accuracy Z-axis | 0.00236 in | |
| Repeatability X-axis | 0.00047 in | 0.00472 in |
| Repeatability Z-axis | 0.00098 in | |
| Tailstock | ||
| Tailstock taper | MT 6 | metric 80 |
| Tailstock quill diameter | 5 in | 6 in |
| Tailstock quill stroke | 10 in | 12 in |
| Drive Capacity | ||
| Motor rating main drive | 24.8 Hp | 40.2 Hp |
| Motor rating X-axis | 3.4 Hp | 4 Hp |
| Motor rating Z-axis | 3.35 Hp | 4.02 Hp |
| Measures and Weights | ||
| Overall dimensions (length x width x height) | 229x56x60 in | 249x79x69 in |
| Weight | 17,600 lbs | 28,600 lbs |
- This machine was designed for use in demanding petroleum industry applications and integrates decades of experience
- The wide machine bed features large, hardened and ground guideways and high rigidity
- Machining lengths up to 118 inch - expandable to 63 inch upon request

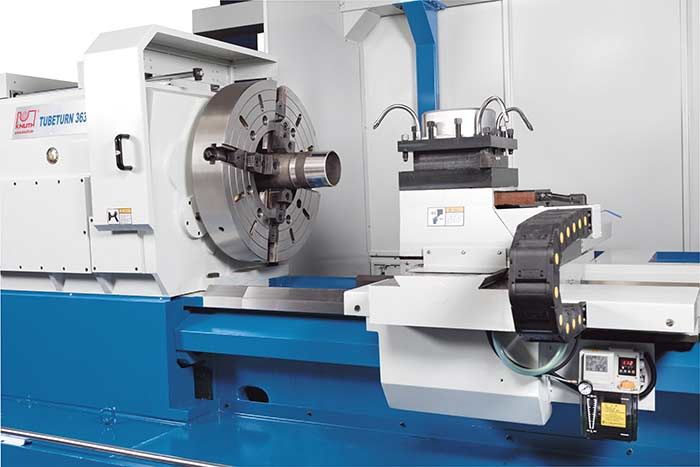

- Massive headstock with main spindle running in tapered roller bearings, and 2 lathe chuck mounts
- Spindle bore 14 inch (standard) - Up to 25 inch through-bore upon request
- Fanuc 0i-TF-V with Manual Guide 0i features advanced control technology and maximum reliability
- High-torque drives and preloaded ball screws on all axes
- Automatic 2-step gears with 2 infinitely variable speed ranges
- Hardened and ground gears for effective power transmission
- Powerful main drive motor with 40 HP rating
- Heavy-duty 4-station tool holder with automatic tool changing function
- Including high-performance coolant system, and central lubrication unit
Fanuc 0i TF control
- Easy programming and operation, short learning curve
- User-friendly graphics display for visual verification of parts programs
- Use of existing programs without reprogramming requirements
- High-speed machining and standard nano-interpolation
- Fixed cycles and custom macro B for simplified parts programming
- State-of-the-Art functionality, like jerk limitation, nano smoothing, and Al Contour Control ll - compatibile with previous version series 0 and series 0i models A, B, C and D
- Series 0i Model F are the successor models of the Series 0 and Series 0i, which are the most popular CNC controls worldwide with over 700,000 installations.
- With up to 4 simultaneously controlled axes, the CNC Series 0i provides the best controls for highly demanding machine tools.
- Fanuc 0i-TF V with Manual Guide 0i
- electronic hand-wheel
- two 4-jaw faceplate lathe chucks 31 inch ¯
- automatic 2-step gears
- 4-station tool holder
- steady rest 2" - 19"
- coolant system
- central lubrication
- Mechanical tailstock
- work lamp
- operating tools
- operating manual and programming instructions
