KNUTH TURNADO UNIVERSAL ENGINE LATHE
Year
Not provided
Stock #
16310
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| Turnado 230/1000 | Turnado 230/1500 | Turnado 280/1500 | Turnado 230/2000 | Turnado 280/2000 | |
|---|---|---|---|---|---|
| Working Area | |||||
| Workpiece length (max.) | 39 in | 59 in | 56 in | 79 in | 76 in |
| Turning diameter over bed | 18 in | 18 in | 22 in | 18 in | 22 in |
| Turning-¯ over support | 9 in | 9 in | 14 in | 9 in | 14 in |
| Turning diameter over gap bridge | 27 in | 27 in | 31 in | 27 in | 31 in |
| Gap bridge length | 6 in | 6 in | 7 in | 6 in | 7 in |
| Bed width | 12 in | 12 in | 14 in | 12 in | 14 in |
| Details | |||||
| Equipment | with position indicator | ||||
| Travels | |||||
| Travel X-axis | 11.2 in | 11.2 in | 12.4 in | 11.2 in | 12.4 in |
| Travel Z1-axis | 5 in | ||||
| Swing range of top slide | ± 52¡ | ||||
| Headstock | |||||
| Spindle speed | (12) 25 - 2,000 rpm | (12) 25 - 2,000 rpm | (12) 25 - 1,600 rpm | (12) 25 - 2,000 rpm | (12) 25 - 1,600 rpm |
| Spindle bore | 2 in | 2 in | 3 in | 2 in | 3 in |
| Spindle mount | Camlock D1-6 | Camlock D1-6 | Camlock D1-8 | Camlock D1-6 | Camlock D1-8 |
| Spindle taper | MT 6 | MT 6 | MT 7 | MT 6 | MT 7 |
| Feed | |||||
| Feed X-axis | 0.00055 - 0.03087 in/R | 0.00055 - 0.03087 in/R | 0.00079 - 0.02256 in/R | 0.00055 - 0.03087 in/R | 0.00079 - 0.02256 in/R |
| Feed Z-axis | 0.00122 - 0.06693 in/R | 0.00122 - 0.06693 in/R | 0.00232 - 0.0648 in/R | 0.00122 - 0.06693 in/R | 0.00232 - 0.0648 in/R |
| Tapping | |||||
| Tapping, metric | (47) 0 - 0.55 in | (47) 0 - 0.55 in | (47) 0.01 - 0.55 in | -- | (47) 0.01 - 0.55 in |
| Tapping, diametric | (50) 4-112 DP | ||||
| Tapping, module | (39) 0 - 0.28 in | ||||
| Tapping, withworth | (60) 2-112 TPI | ||||
| Tailstock | |||||
| Tailstock quill diameter | 2 in | 2 in | 3 in | 2 in | 3 in |
| Tailstock taper | MT 4 | MT 4 | MT 5 | MT 4 | MT 5 |
| Tailstock quill stroke | 5 in | 5 in | 7 in | 5 in | 7 in |
| Tailstock traverse adjustment | ± 13 in | ± 13 in | ± 12 in | ± 13 in | ± 12 in |
| Drive Capacity | |||||
| Motor rating main drive | 7.4 Hp | ||||
| Measures and Weights | |||||
| Overall dimensions (length x width x height) | 87x43x53 in | 109x43x53 in | 112x46x53 in | 128x43x53 in | 132x46x58 in |
| Weight | 3,784 lbs | 4,334 lbs | 5,214 lbs | 4,620 lbs | 5,984 lbs |
- Cost-effective, lasting value
- Practically arranged control panel with ergonomic layout of selection levers
- Wide bed, ground and hardened
- Offset tailstock for taper turning
- Large number of thread leads

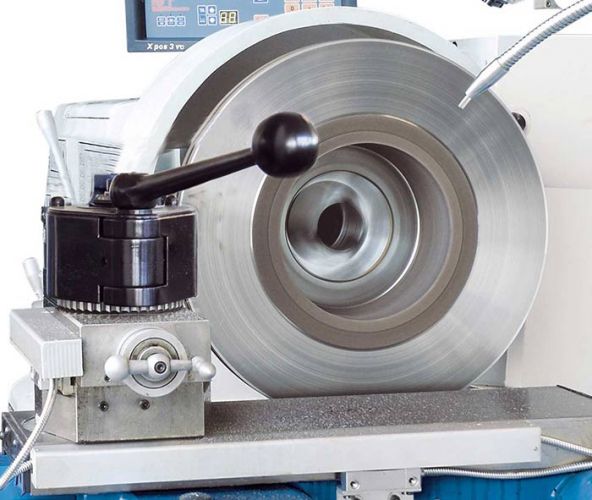

- Removable gap bridge for machining of large diameter
- Stop spindle with adjustable travel stops
3-axis position indicator
- Resulting in valuable time savings
- For increased productivity
- Easy to read display
- Operator-specific features
- Convenient keyboard layout
- Resolution: 0.0004 / 0.0002"
- Default coordinates
- Axis position is maintained when display is turned off
- Hole circle pattern calculation
- Calculator function
- Storage for 10 tools
- Radius / diameter toggle
- Mm/inch conversion
- Easy expansion and maintenance-free operation
- Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
- 3-axis position indicator
- 3-jaw chuck ¯ 12 inch
- 4-jaw face chuck ¯ 14 inch
- face plate ¯ 17.7"

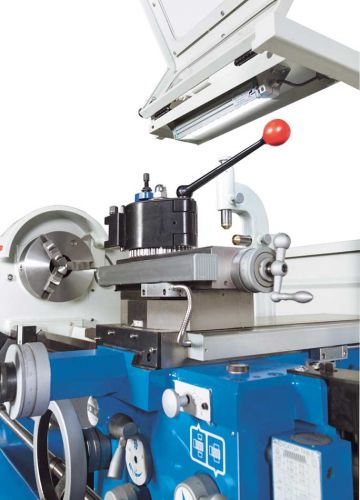

- Quick tool changer head WC
- Quick change tool holder WCD 32150
- coolant system
- steady and follow rest
- stop spindle
- includes fixed splash guard (wall)
- chuck guard
- foot brake pedal
- LED work lamp
- reducing sleeve
- dead center
- thread gauge
- operating tools
- operator manual
