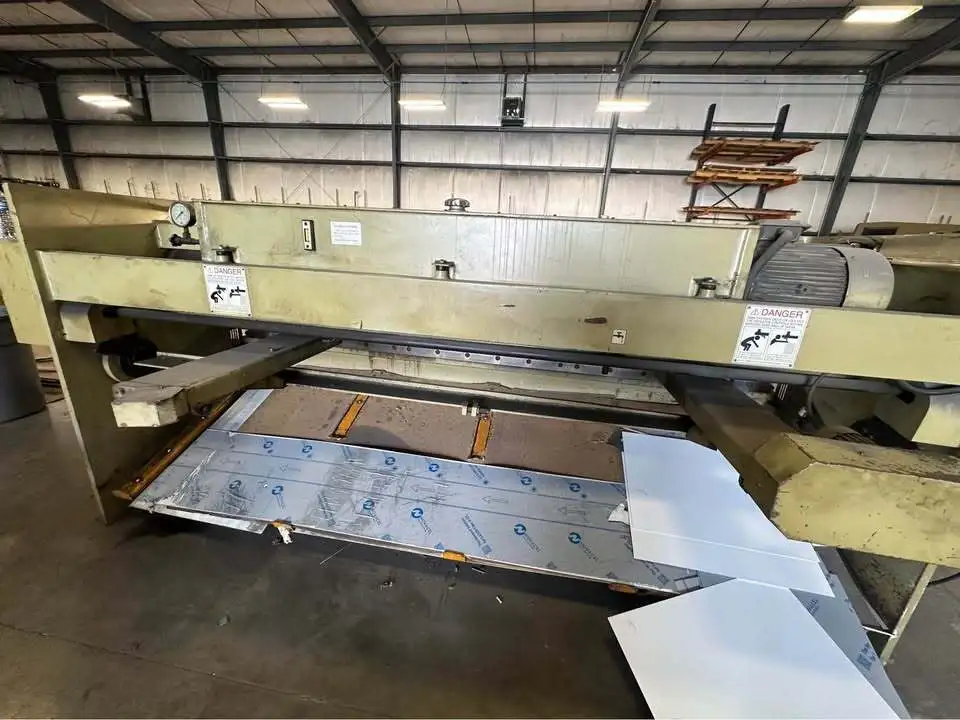

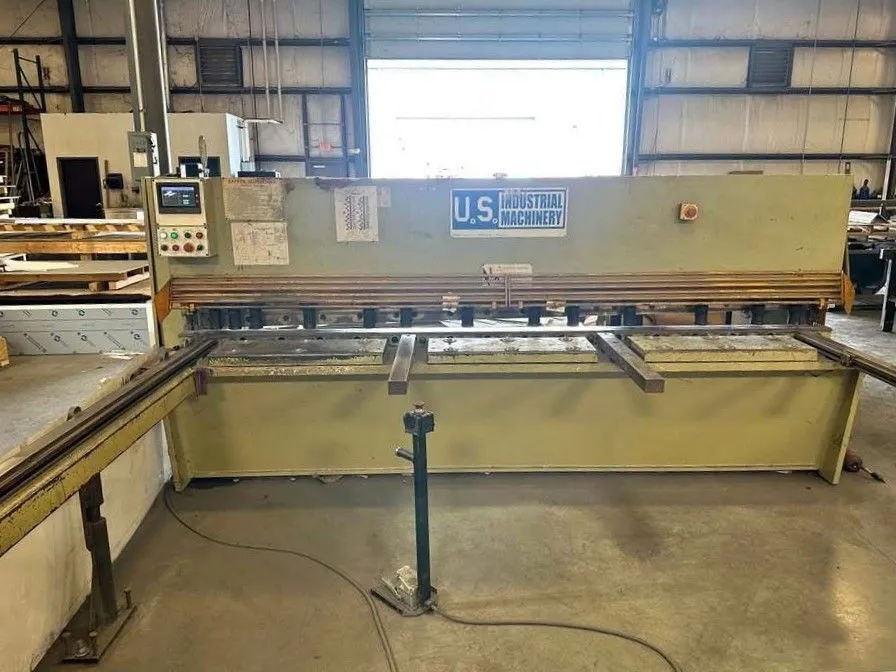

USED 10' X 1/4" US INDUSTRIAL MODEL US1025PMS HYDRAULIC SHEAR
Year
2013
Stock #
30400
Condition
Not specified
Keep Scrolling To Learn More
Specifications
Equipped With
USED 10' X 1/4" US INDUSTRIAL MODEL US1025PMS HYDRAULIC SHEAR
New 2013
Equipped With:
|
|

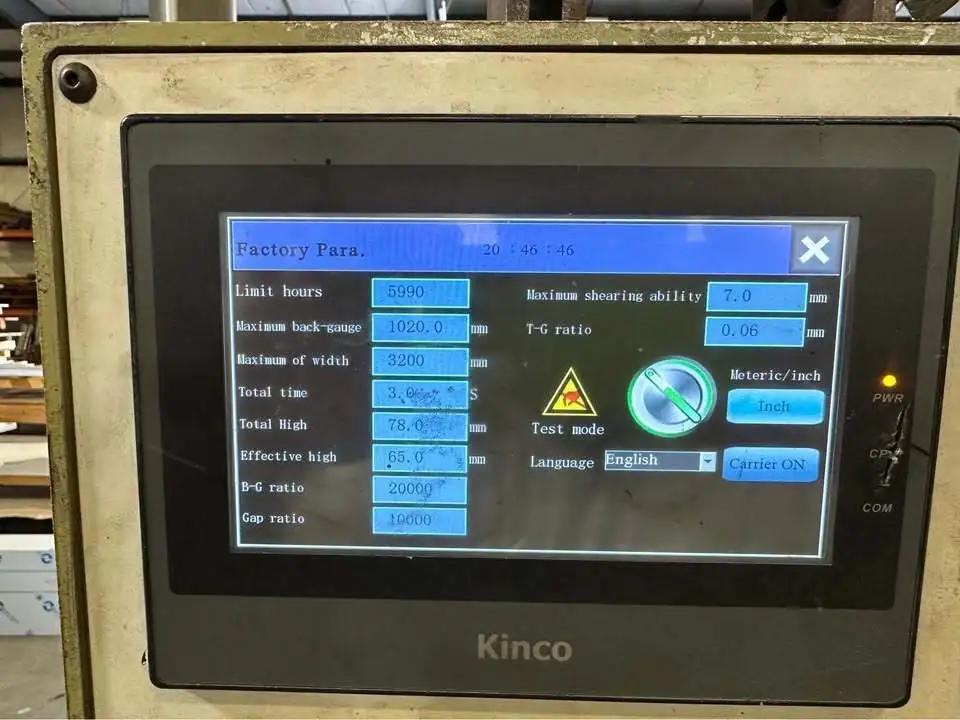

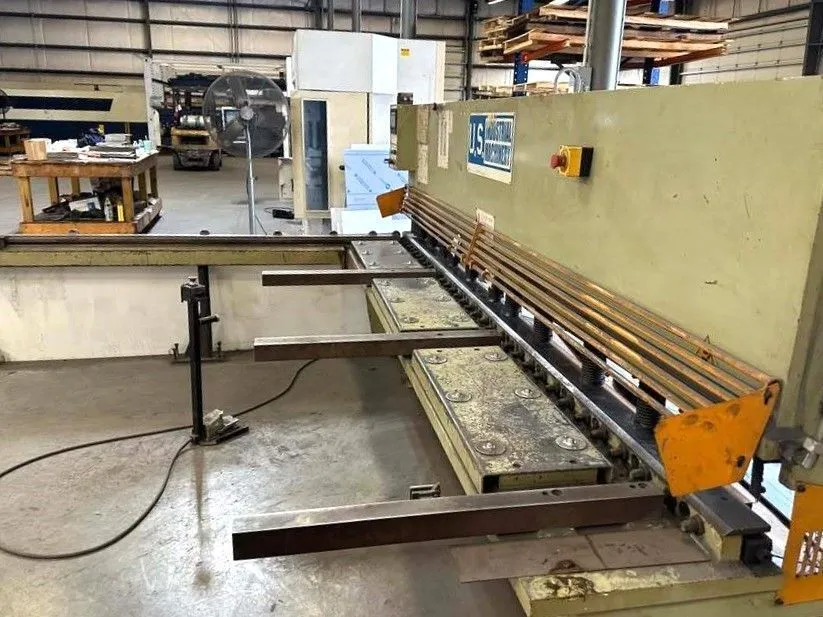

Motorized front-operated power back-gauge with digital Readouts
Front Supports, Squaring Arm
Fine adjustment handwheel
Back-gauge adjustment range from ½” to 36”
A swing-up mechanism for cut depths larger than 36″
Rear Roller Bearing Material Drop Support Chute
• Sheet Size: 126”
• Shearing Capacity: 1/4” Mild Steel @ 65,000 PSI UTS
1/8” Stainless Steel @ 95,000 PSI UTS
(Must consider option for Cr12MoV blades.)
• Shear Angle: 1 Degree 30’
• No Load Strokes: 14
• Throat Depth: 4.7”
• Adjustment Range of Back Gauge: 0.75” - 36”
• Hydraulic Oil Capacity: 71 Gal.
• Main Motor: 15 HP, 220 or 440 Volts, 3 phase, 45/22.5 amps
(Please specify your voltage requirement.)
• Net Weight: 15,550 lbs.
• Dimensions (L x W x H): 157” x 63” x 63”
Attachments
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
