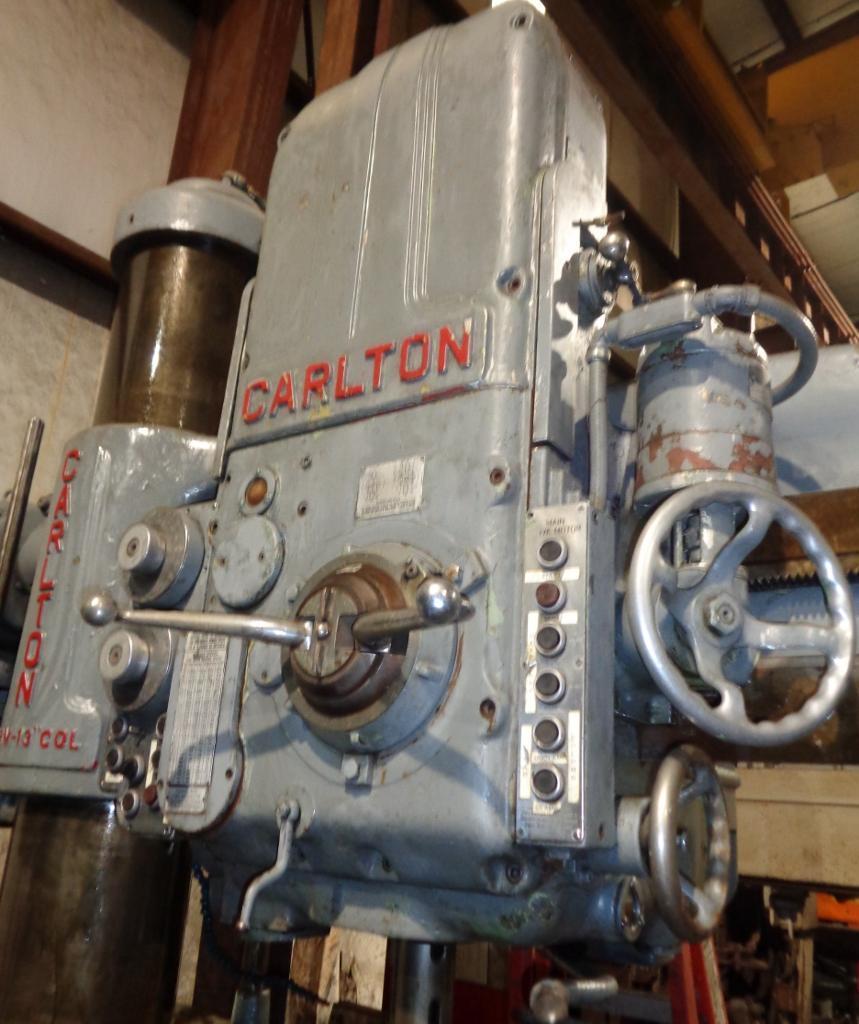

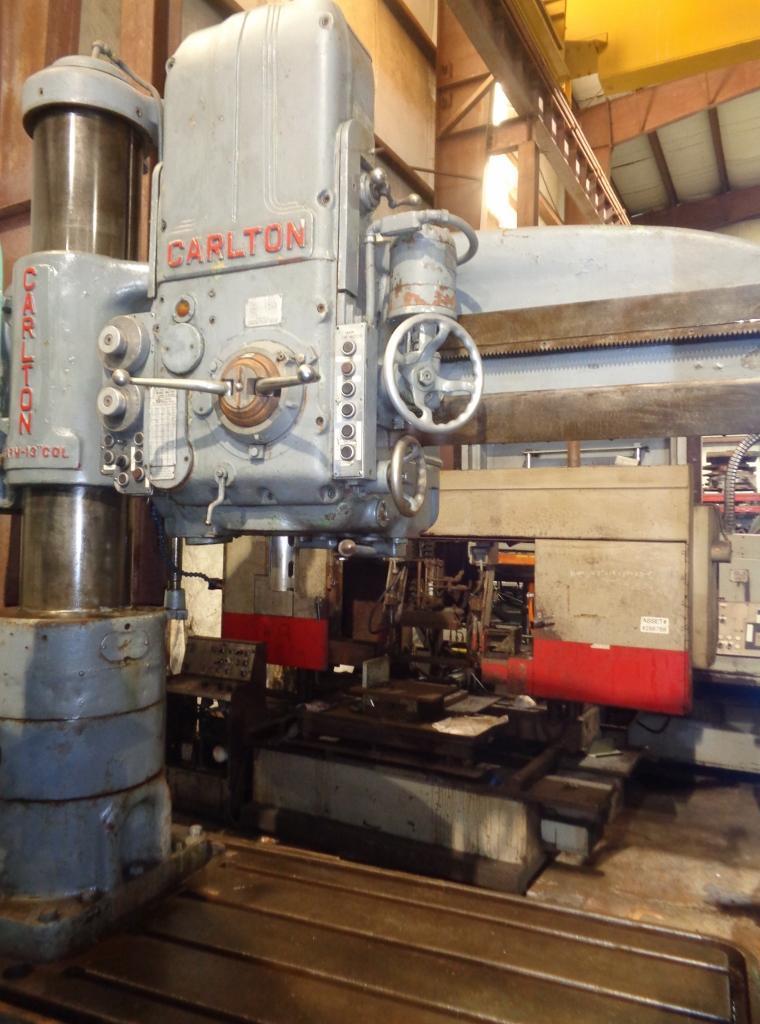

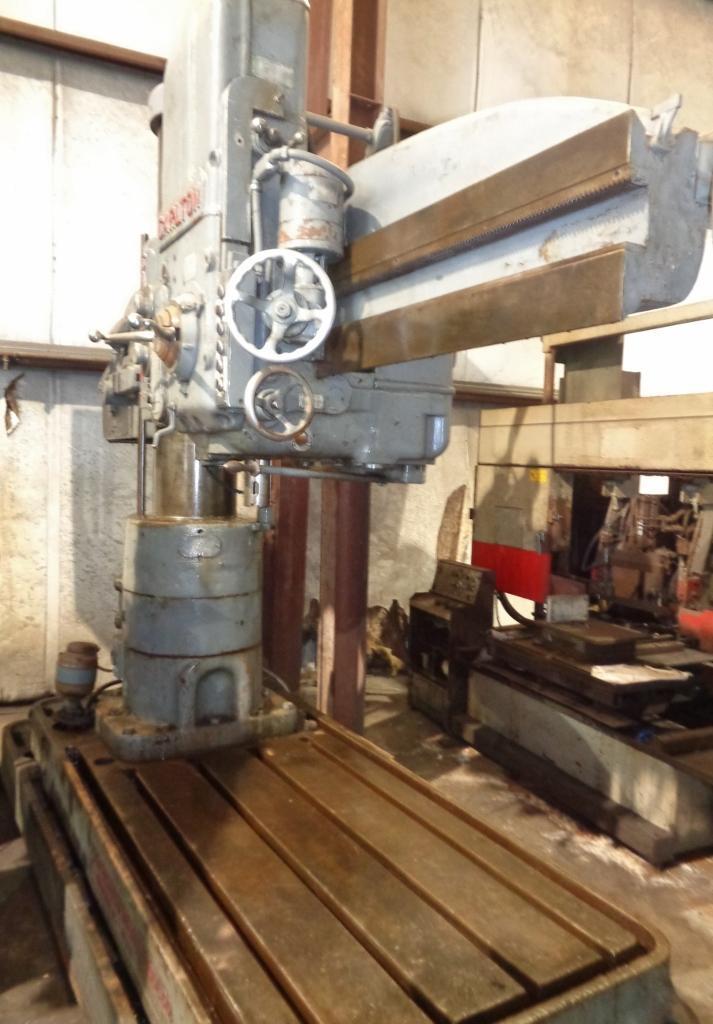

USED 5' x 13" CARLTON MODEL 3A RADIAL ARM DRILL
Year
1956
Stock #
18006
Condition
Not specified
Keep Scrolling To Learn More
Specifications
Equipped With
USED 5' x 13" CARLTON MODEL 3A RADIAL ARM DRILL
New 1956
Arm Length: ............................................................... 60"
Distance Face of Column to Spindle C/L:...................................... 15" – 60"
Head Traverse on Arm:.............................................................. 45"
Arm Travel on Column:.......................................................... 31-1/2"
Column Diameter:................................................................... 13"
Distance Spindle to Base:.................................................. 10.5" – 72"
Working Surface of Base:..................................................... 65" x 42"
Spindle Traverse in Head:.......................................................... 18"
Spindle Taper: .......................................................... No, 5 MT
Spindle Speeds: ................................................. (36) 15 – 1500 RPM
Spindle Feeds: ....................................... (18) 0.004" – 0.125" / Rev.
Threading Capacity:.............................................. 8", 11-1/2", 14", 18"
Motor: .................................................. 15 HP 3/60
Overall Dimensions (Approx.):...................................... 132" x 45" x 127" H
Weight (Est.): ............................................,........ 17,500 Lbs.
Equipped With:
Power Clamping
Power Head Traverse
Power Elevation
Universal Tilting Table
Coolant System
Attachments
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
