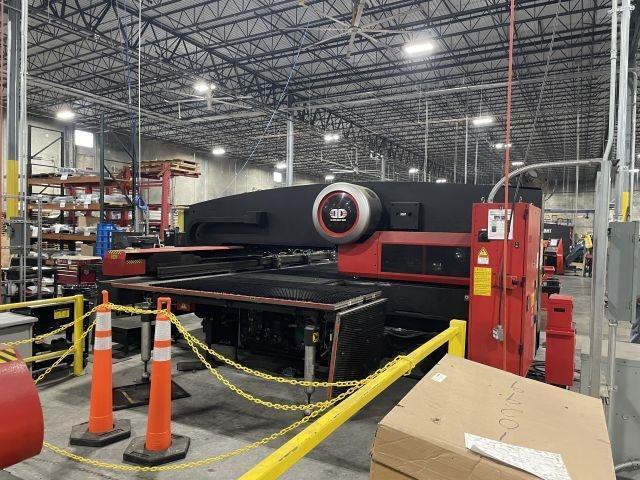

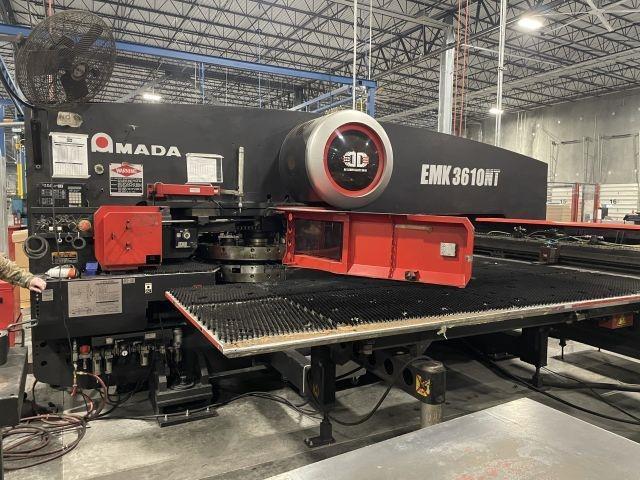

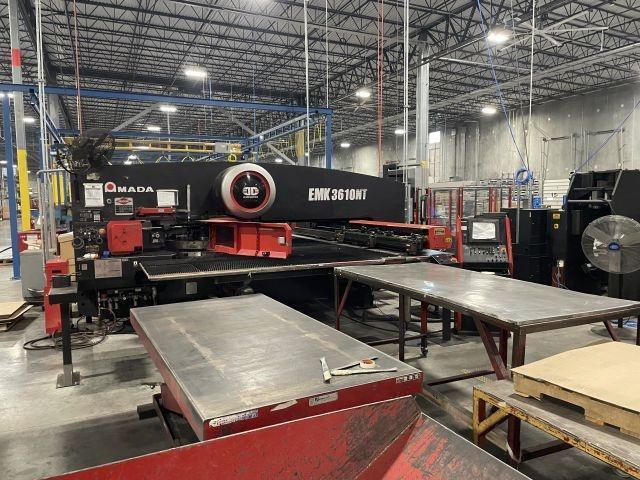

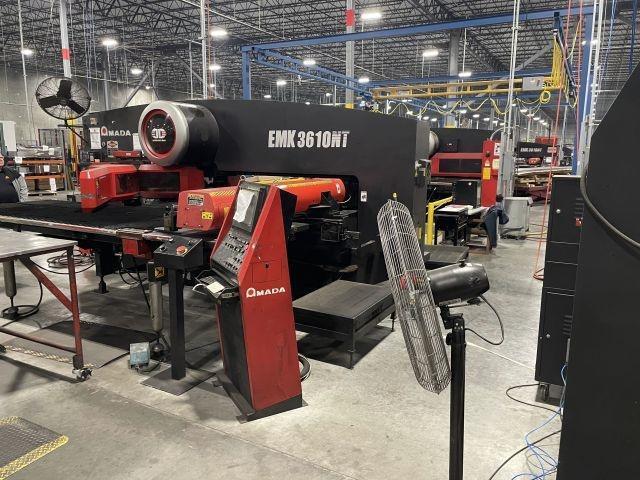

USED AMADA EMK-3610NT SERVO DRIVE (ELECTRIC) CNC TURRET PUNCH
New 2007

MODEL: EMK-3610NT

 CAPACITY................................ 33 TONS

 MAX SHEET SIZE.......................... 120" X 60"

 THROAT DEPTH............................ 50"

 TRAVELS (X-AXIS......................... 120"

 TRAVELS (Y-AXIS......................... 60"

 STROKE.................................. 1.45"

 MAX SHEET THICKNESS..................... 187"

 TURRET STATIONS......................... 58 W/ (4) A/I

 TURRET TOOLING STYLE.................... THICK

 TURRET ROTATION SPEED................... 30 RPM

 FEED CLEARANCE.......................... .984"

 EQUIPPED WITH:

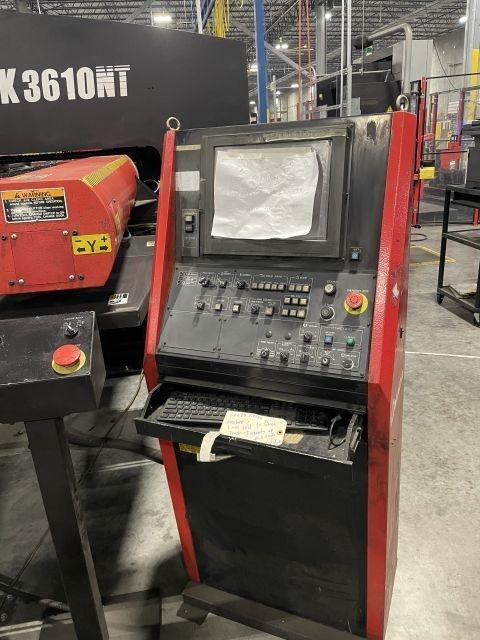

 NT CONTROL

 58 STATION TURRET W/ (4) AI

 (3) WORK CLAMPS

 BRUSH TABLE

 SLUG CONVEYOR

 Overall Size, Approximate: 210"(LR) X 245"(FB) X 95"(H)

 Weight, Approximate: 44000 Lbs.
