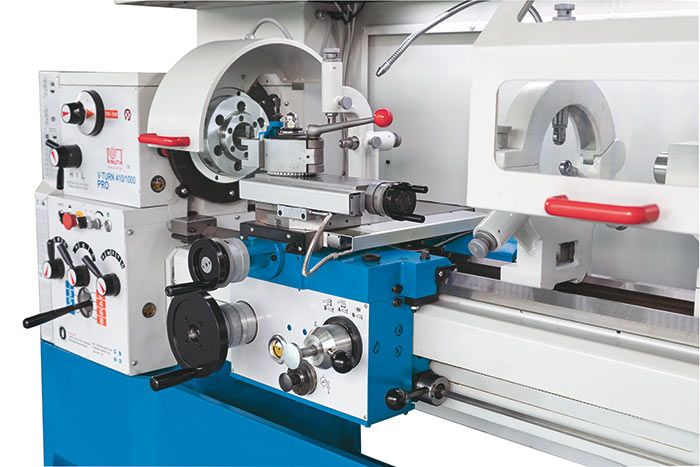

15" x 40" KNUTH MODEL "V-Turn 410 PRO" ENGINE LATHE

Manufacturer

KNUTH

Model

V-Turn 410 PRO

Year

Not provided

Stock #

16192

Condition

New

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

Working Area
Center width39.37 in
Center height8 in
Turning diameter over bed15 in
Turning diameter over gap bridge23 in
Turning-¯ over support10 in
Gap bridge length10 in
Bed width10 in
Travels
Travel X-axis8.3 in
Travel Z1-axis6 in
Swing range of top slide± 45¡
Headstock
Speed range, high550 - 3,000 rpm
Speed range, low30 - 550 rpm
Spindle bore2 in
Spindle mountCamlock D1-6
Spindle taperMT 6
Feed
Feed X-axis0.00051 - 0.01772 in/R
Feed Z-axis0.00102 - 0.03543 in/R
Tapping
Tapping, metric(39) 0.2-14 mm
Tapping, diametric(21) 8-44 DP
Tapping, module(18) 0.01 - 0.14 in
Tapping, withworth(45) 2-72 TPI
Tailstock
Tailstock quill diameter2 in
Tailstock taperMT 4
Tailstock quill stroke5 in
Tailstock traverse adjustment± 13 in
Drive Capacity
Motor rating main drive7.4 Hp
Measures and Weights
Overall dimensions (length x width x height)77x40x60 in
Weight2,662 lbs
Part No. 300822

  • Incl. 3-axis position indicator with integrated spindle speed display, fully assembled
  • The redesigned machine enclosure and added safety features make this machine even more ergonomic, complementing functionality and design
  • Constant speed: during face turning, the spindle speed automatically adapts to the changing workpiece diameter Ð the constant cutting speed at the cutting edge of the turning tool ensures superior turning results with quality comparable to CNC lathes
  • A heavily ribbed machine bed, rigid headstock and a massive one-piece cast-iron stand form a solid machine base
  • Wide, induction-hardened guideways ensure superior turning results and long life

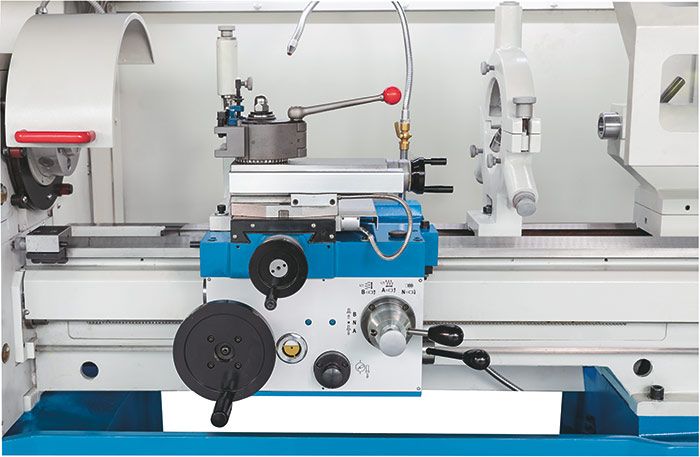

  • Facing and top slides feature adjustable guideways and spindle nuts
  • High-precision pre-loaded spindle bearings ensure superior concentricity and load capacity
  • A powerful 7.4 HP main spindle motor ensures rapid acceleration and powerful chip removal across the entire speed range
  • Back-gearing ensures high torque for highly efficient machining
  • Rugged feed switch at the support simplifies operation
  • The extensive features of the X.Pos Position Indicator are complemented here with a digital speed indicator and an easy to program auxiliary function

3-axis position indicator

  • More accuracy
  • Lower error rate
  • Increased productivity
  • Resulting in valuable time savings
  • For increased productivity
  • Easy to read display
  • Operator-specific features
  • Convenient keyboard layout
  • Resolution: 0.0004 / 0.0002"
  • Default coordinates
  • Axis position is maintained when display is turned off
  • Storage for 10 tools
  • Radius / diameter toggle
  • Mm/inch conversion
  • Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes

  • 3-axis position indicator
  • 4-jaw face plate chuck ¯ 10 inch
  • face plate (13" diam.)
  • change gears
  • quick-change tool holder head WB
  • quick change tool holder WBD 25120
  • coolant system
  • steady and follow rests
  • chip tray
  • fixed splash guard (wall)
  • protective shield for support
  • alignment elements
  • operating tools
  • operator instructions
