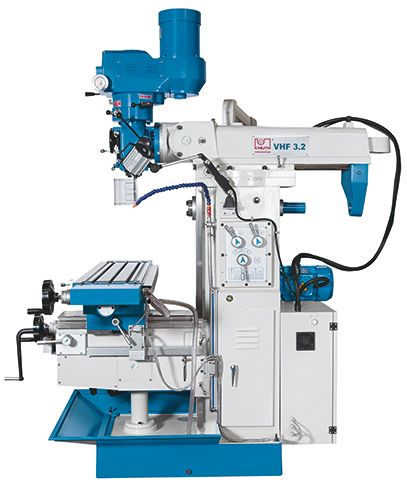

KNUTH VHF 3.2 UNIVERSAL MILLING MACHINE
Year
Not provided
Stock #
16219
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| Table set up area | 54x13 in |
| Table load capacity (max.) | 660 lbs |
| Number of T-slots | 3 positions |
| T-slot (width x spacing) | 0.55x3.15 in |
| Milling table swivel range | 45 deg |
| Travel X-axis | 39.4 in |
| Travel Y-axis | 14 in |
| Travel Z-axis | 16 in |
| Speed range | 50 - 3,750 rpm |
| Spindle mount | ISO 40 |
| Throat | 7 - 34 in |
| Vertical spindle-to-table surface distance | 6.3 - 22.05 in |
| Milling head swivel range | 90 deg |
| Cutter head tilt angle | 45 deg |
| Rapid feed X-/ Y-axis | 53 in/min |
| Rapid Feed Z-axis | 39.37 in/min |
| Spindle speeds | (12) 35 - 1,500 rpm |
| Spindle mount | ISO 40 |
| Horizontal spindle-to-table surface distance | 3 - 19 in |
| Feed speed X-axis | (8) 1 - 33 in/min |
| Feed speed Y-axis | (8) 1 - 33 in/min |
| Feed speed Z-axis | (8) 1 - 25 in/min |
| Main drive motor rating (vertical) | 5 Hp |
| Main drive motor rating (horizontal) | 4 Hp |
| Overall dimensions (length x width x height) | 75x69x93 in |
| Weight | 4,290 lbs |
| Part No. | 301411 |
- Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
- Quiet, precision-made headstock gears with hardened and ground gears

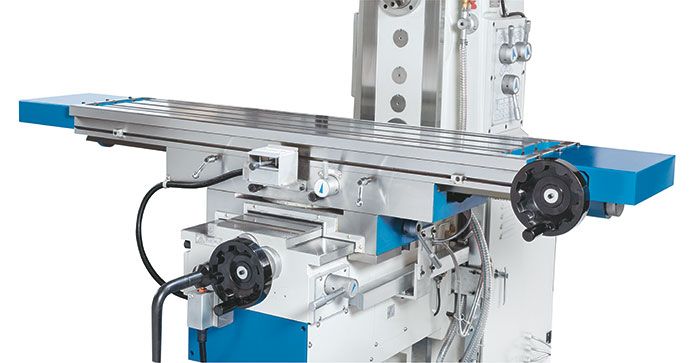

- The milling table features a large setup area and can be rotated in linear direction
- The cutter head quill features a 3-step automatic feed and automatic depth shut-off, but can also be moved manually
- For angular bores, the vertical cutter head swivels in two directions: r + l ±90¡; tilt fwd + rev ±45¡
- Spindle speed of vertical cutter head is infinitely variable over a wide speed range; an auxiliary gearbox ensures powerful torque
- Vertical and horizontal spindle each have their separate drive
- Standard outer arbor support with bronze plain bearings accommodates long milling arbors in the horizontal spindle
- Powerful axis servo-motors allow infinite adjustment of feeds on all 3 axes
- Minimum downtime due to rapid positioning of work table and rapid feeds in all axes
- Control panel swivels for comfortable operation
- Coolant system and chip tray are included
- chip tray
- coolant system
- central lubrication
- 3-axis position indicator
- operator instructions
- M16 draw bar
- operating tools
- cutter arbor ¯ 1"
Attachments
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
