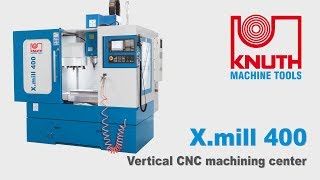

X.mill 400


Not provided

Stock #




Request A Quote

Keep Scrolling To Learn More


Equipped With

Working Area
Table dimensions24x12 in
Table load capacity330 lbs
Number of T-slots3 positions
T-slots, width0.6 in
T-slots, spacing3.9 in
Spindle nose-to-table surface distance4 - 23 in
Travel X-axis15.7 in
Travel Y-axis9 in
Travel Z-axis18 in
Spindle speed8,000 rpm
Spindle mountBT 40
Rapid feed X-axis472 in/min
Rapid feed Y-axis472 in/min
Rapid feed Z-axis394 in/min
Work feed X-axis0 - 394 in/min
Work feed Y-axis0 - 394 in/min
Work feed Z-axis0 - 394 in/min
Tool Head
Number of tool stations12 positions
Tool ¯2.16 (4.72) in
Tool length (max.)8 in
Tool weight max.7 lbs
Tool-change time tool/tool7 sec
Positioning accuracies0.0008 in
Repeatabilities0.0004 in
Drive Capacity
Motor rating main drive5 Hp
Motor rating for X-axis drive1 Hp
Motor rating for Y-axis drive1 Hp
Motor rating for Z-axis drive1.3 Hp
Measures and Weights
Overall dimensions (length x width x height)83x75x97 in
Weight4,840 lbs
Part No. 181359

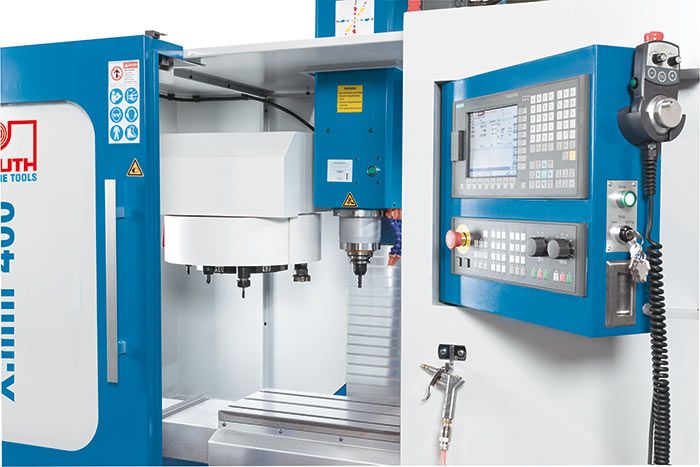

  • Reliable, compact machining center with extensive equipment for streamlined, cost-effective series productions
  • Massive cast-iron machine body integrates many years of experience and state-of-the-art technology
  • All axes move on premium, fully enclosed linear guideways and precision ball screws and are driven by dynamic servo-motors
  • The premium spindle unit features a large tool mount and a spindle oil cooler, which are of great advantage in continuous operations
  • Fast rapid feeds and rugged horizontal tool changer allow for efficient machining with minimum downtime
  • The totally enclosed work space features a large door and side doors for easy access, safety and cleanliness
  • Siemens 808D control: cost-effective, easy to handle, superior reliability backed by worldwide service
  • Electronic hand-wheel simplifies machine set-up
  • The automatic central lubrication system ensures proper lubrication of all lube points

  • SINUMERIK 808D ADVANCE -- the perfect solution for modern standard machines
  • CNC and drive communicate via a high-speed bus to ensure efficient positioning control plus high precision and optimum cutting performance
  • This is topped by a guaranteed superior price/performance ratio
  • This globally leading CNC technology provides high performance and power for the control of standard lathes
  • In combination with a new generation of spindle and axis drives, the SINUMERIK 808D ADVANCE with 8.4" LCD provides an innovative ready-to-use digital CNC solution for modern standard machines

Advantages - Digital solution provides higher precision:

  • Increased overload capacity supports a faster acceleration and deceleration of machine tools
  • Constant cutting speeds result in an increased surface quality of the workpiece

Increased ruggedness:

  • During heavy machining operations, an automatic spindle torque adjustment will help protect machining tools and spindle systems.
  • The SINAMICS features a wide voltage range to prevent machine shut-downs during poor voltage supply conditions. This will significantly reduce machine down-times.

Increased operator comfort:

  • A fast Ethernet connection facilitates easy start-up and diagnostics of machine tools and simplifies NC program use

  • Siemens 808D Advance control
  • 12-station automatic tool changer
  • electronic hand-wheel
  • coolant system
  • operational health status indicator
  • automatic central lubrication
  • enclosure
  • Level pads and bolts
  • work lamp
  • compressed air gun
  • operating tools
  • operator manual
