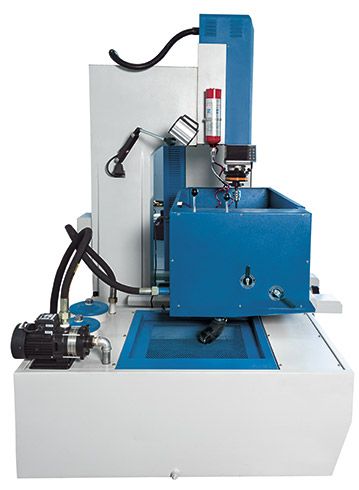

KNUTH ZNC CONVENTIONAL DIE SINKER EDM
Year
Not provided
Stock #
16163
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| ZNC-EDM 250 | ZNC 435 L | ZNC 760 L | |
|---|---|---|---|
| Working Area | |||
| Table dimensions | 18x11 in | 28x18 in | 28x47 in |
| Electrode holder-to-table distance | 7.87 - 15.75 in | 9.84 - 23.62 in | 11.81 - 34.25 in |
| Work piece weight (max.) | 440 lbs | 1,540 lbs | 4,400 lbs |
| Quill stroke | 8 in | 10 in | 12 in |
| Electrode weight (max.) | 66 lbs | ||
| Travels | |||
| Travel X-axis | 9.8 in | 17.7 in | 27.6 in |
| Travel Y-axis | 8 in | 14 in | 24 in |
| Generator | |||
| Generator power consumption | 3.5 kVA | 7.5 kVA | 9 kVA |
| Removal rate (max.) | 0.62 in?/min | 0.78 in?/min | 1.24 in?/min |
| Electrode wear, min. | ² 0,2 % | ||
| Mean generator capacity | 40 | 80 | 100 |
| Generator weight | 0 lbs | 440 lbs | 440 lbs |
| Accuracies | |||
| Roughness | < 0,3 µm Ra | ||
| Measures and Weights | |||
| Overall dimensions (length x width x height) | 55x59x83 in | 60x63x83 in | 74x65x101 in |
| Weight | 2,200 lbs | 3,960 lbs | 8,360 lbs |
- User-friendly CNC control assists the user in the selection of work parameters
- The machine frame design incorporates modern aspects plus many years of manufacturing experience
- X and Y- axes are equipped with preloaded ball screws for low maintenance and high precision
- The main axis is positioned by a precision spindle, which has its own lubricant circuit - ensuring constant temperature conditions at the spindle, minimum friction and maximum precision
- The dielectric system is driven by a premium pump made by a renowned European manufacturer
- Machine operation is user-oriented and easy to learn
- Fine-incremented work parameters allow high powered material removal and finishing in one process
- Diagnostics information is very helpful
Low-Cost Entry-Level Electric Discharge Technology
- control unit
- fire extinguishing system
- work lamp
- filter system
- scales for X / Y- axis
- chuck
- operating tools
- operator instructions
