Equipped With

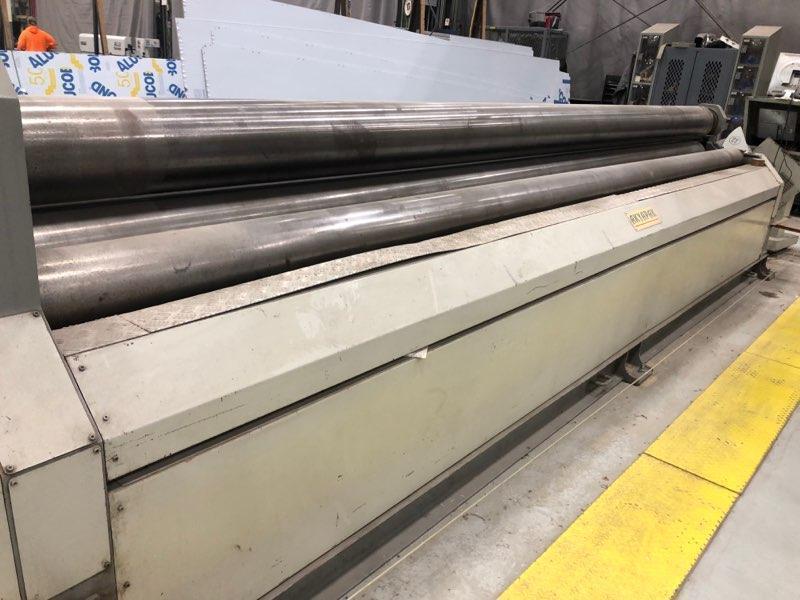

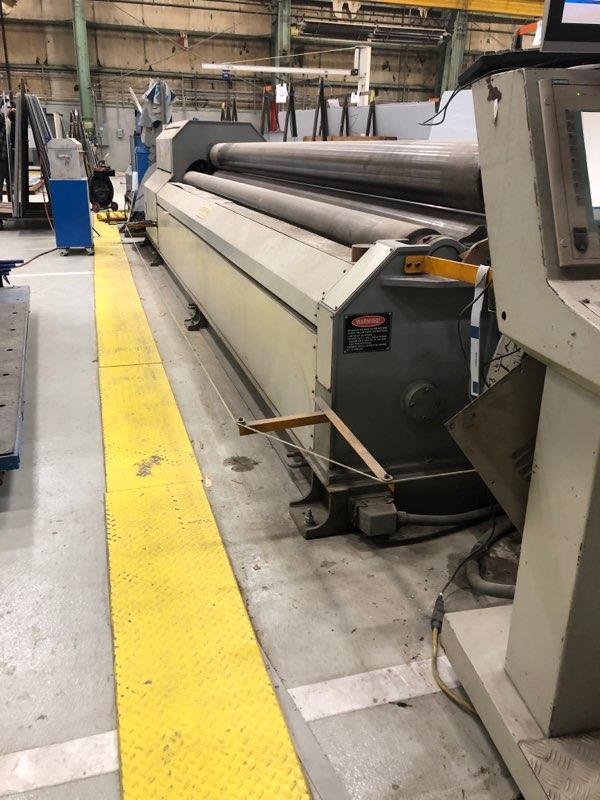

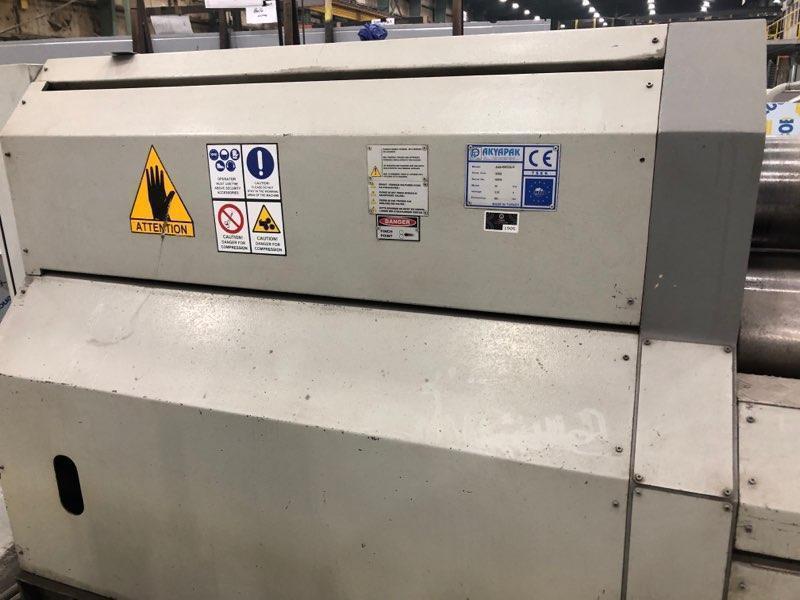

1/8" x 16' AKYAPAK AHS-5100 4-ROLL CNC PLATE ROLL
New 2003

Prebend Capacity (based on Y.P 240 N/mm2 material strength rolling to 20” Diameter):
⅛” @ 16’
9 Gage @ 10’
7 Gage @ 8’
0.250” (Steel) X 6’

PreBend Capacity: 0.125” @ 16’
Working Length: 200” (16.6’)
Top Roll Diameter: 9.85”
Bottom Roll Diameter: 9.85”
Side Roll Diameter: 7.87””
Motor HP: 15
Length: 264”
Height: 62”
Width: 74”
Weight: 24,700 LBS

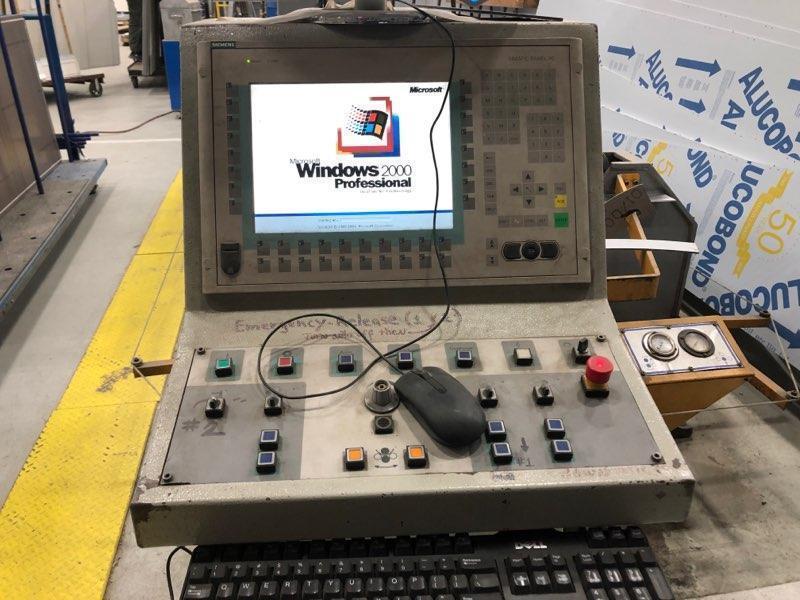

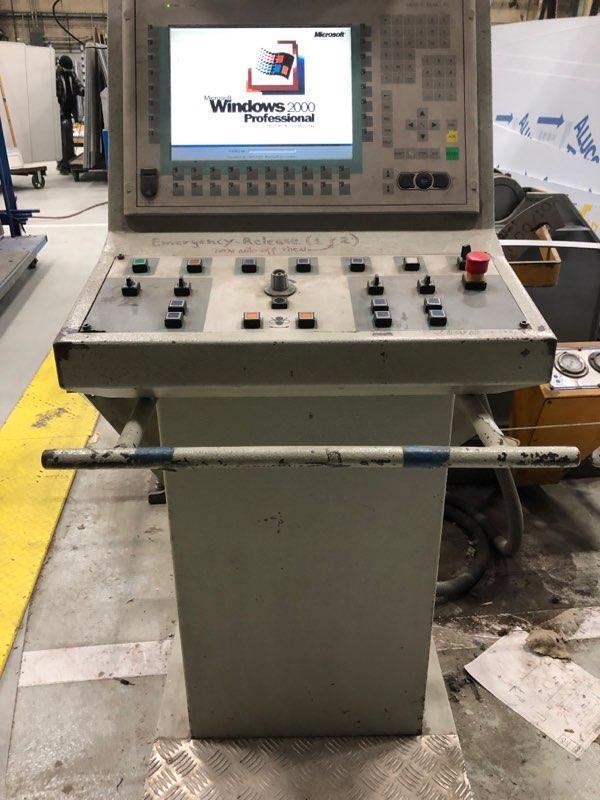

Akyapak PC Based CNC Controller

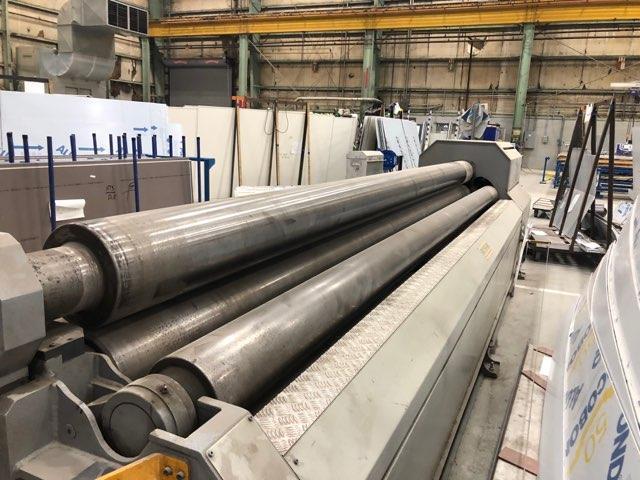

Hardened and Ground Rolls with Hydraulic Bottom Roll Crowning Support

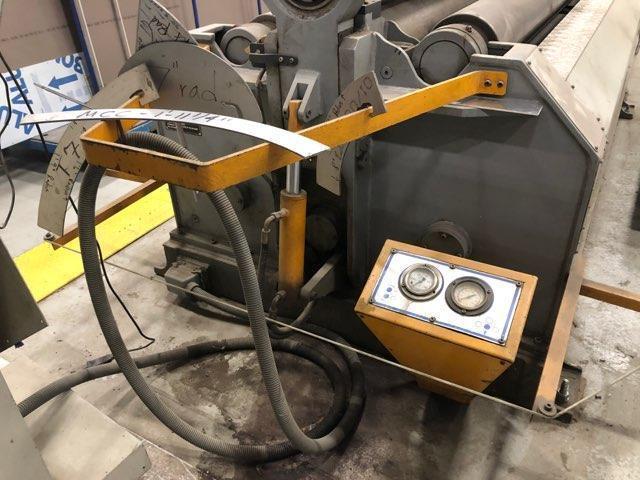

15 HP Drive with Hydraulic Drop End for Easy Material Removal
