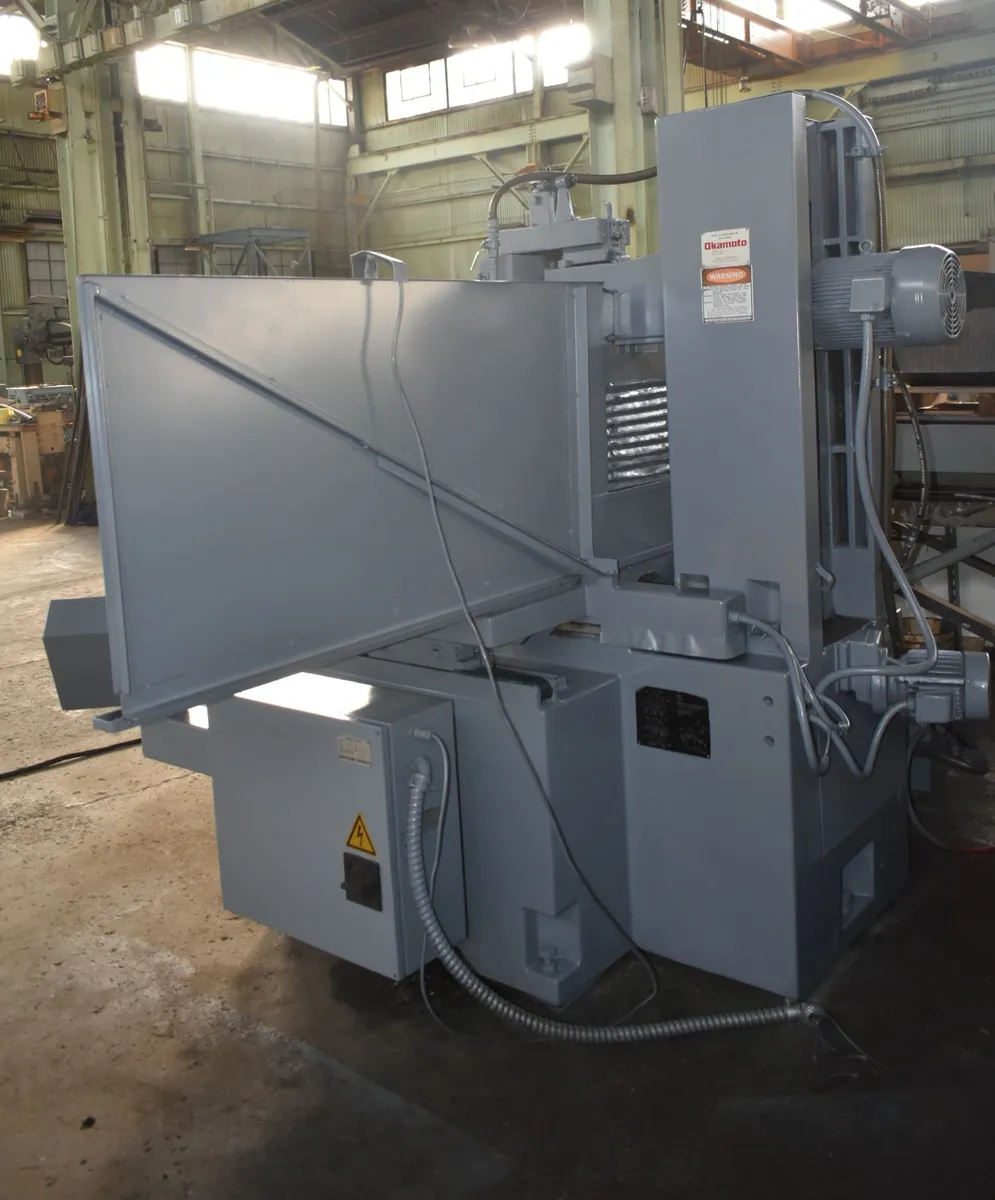

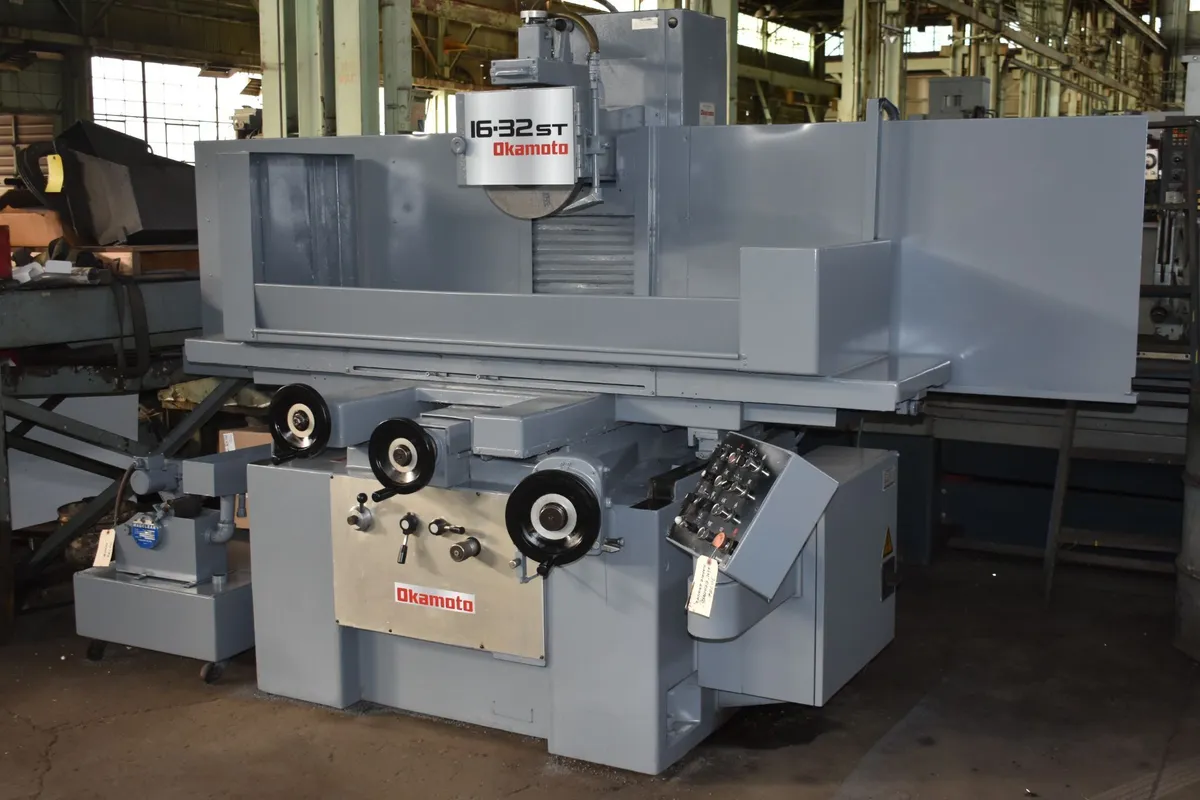

16" × 32" OKAMOTO ACC-16.32ST 3-AXIS SADDLE-TYPE HORIZONTAL-SPINDLE SURFACE GRINDER

Specifications:
Table Working Surface:  16 in × 33.5 in
Grinding Width Capacity:  16 in
Grinding Length Capacity:  32 in
Table Load Capacity:  1,540 lbs
Maximum Height Wheel to Table:  21.6 in

Longitudinal Table Travel:  37.5 in
Cross Table Travel:  17.5 in
Longitudinal Table Speed:  10 to 82 FPM (Variable)
Cross Table Feed Range:  0.02 to 0.8 IPM
Automatic Down Feed:  0.0002 to 0.0015 IPM (Variable)

Grinding Wheel Diameter:  12 in
Grinding Wheel Width:  1.5 in Maximum
Grinding Wheel Hole Diameter:  5 in

Grinding Wheel Motor:  5 HP
Hydraulic System Motor:  3 HP

Overall Dimensions:  132 in × 87 in × 82 in
Approximate Weight:  8,800 lbs

Equipped with:

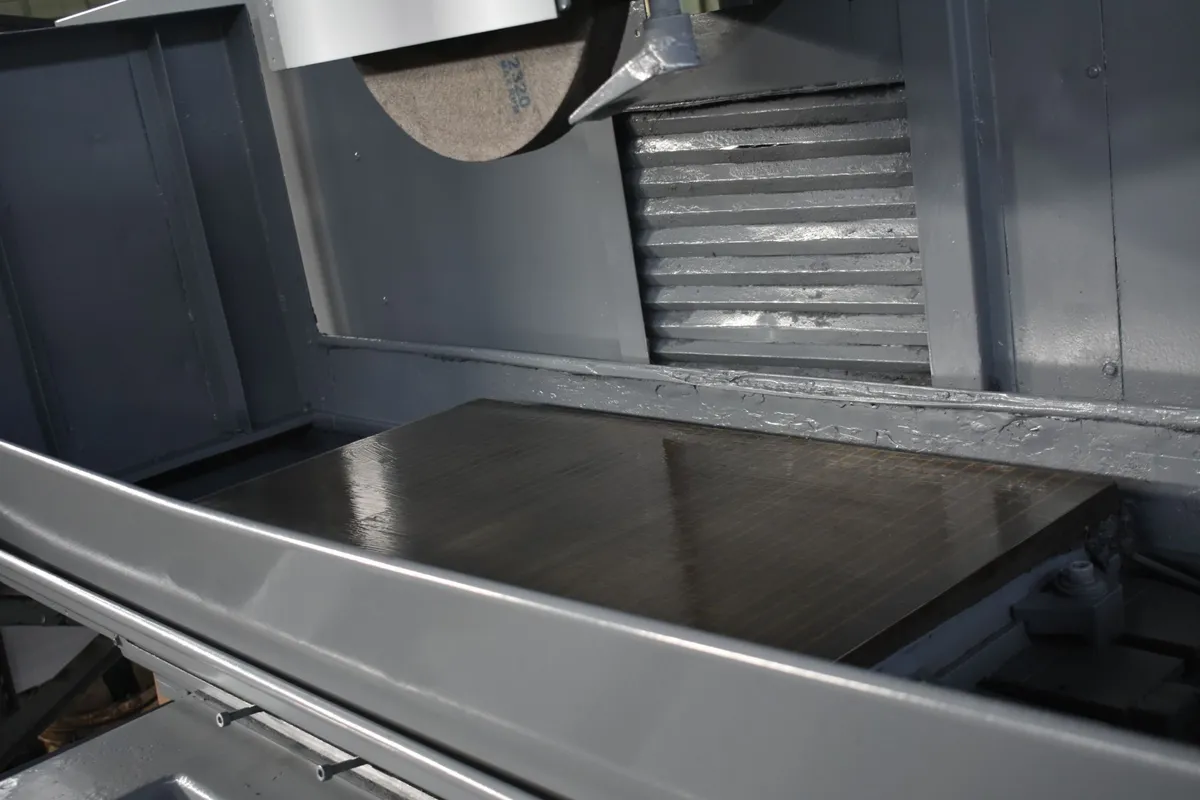

Electro-Magnetic Chuck
Incremental Power Down Feed
Hydraulic Overhead Wheel Dresser

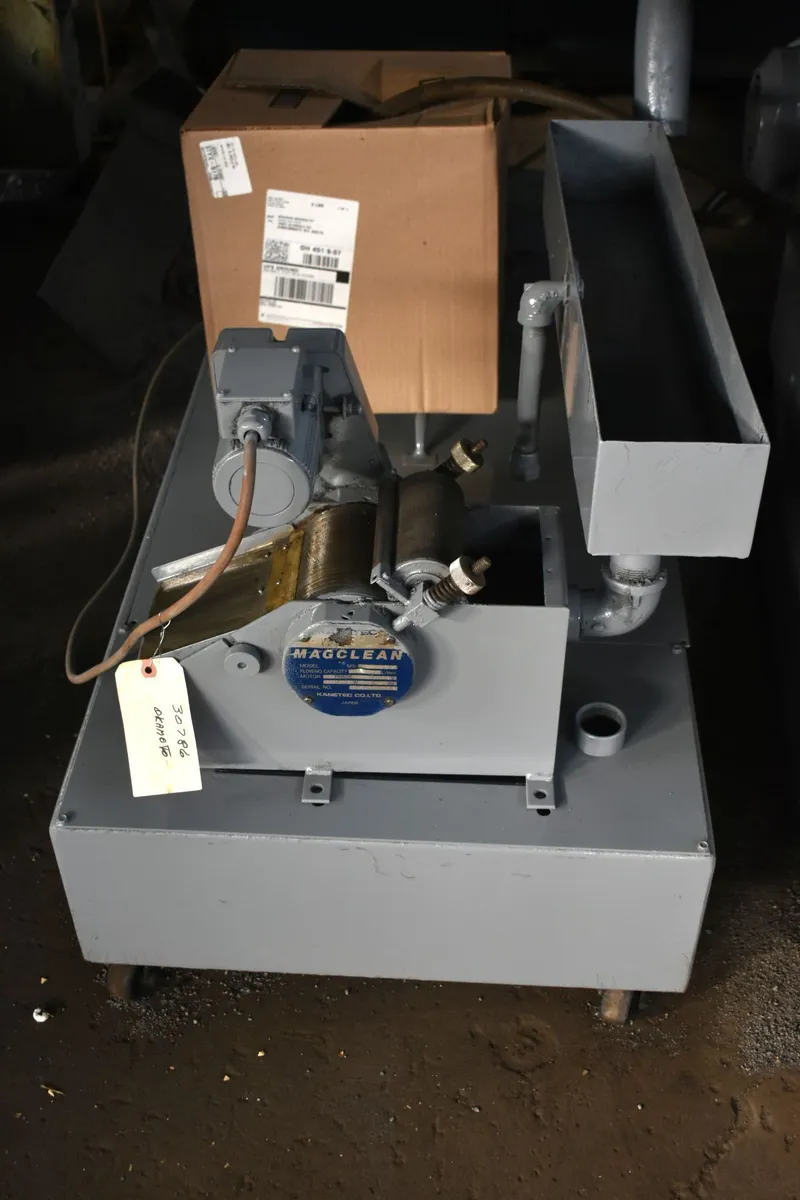

Coolant Filtration System
