18.5" X 10.6" CLAUSING KALAMAZOO MS1318SA MITERING HORIZONTAL BAND SAW
Year
Not provided
Stock #
30291
Condition
Very Good
Keep Scrolling To Learn More
Specifications
Equipped With

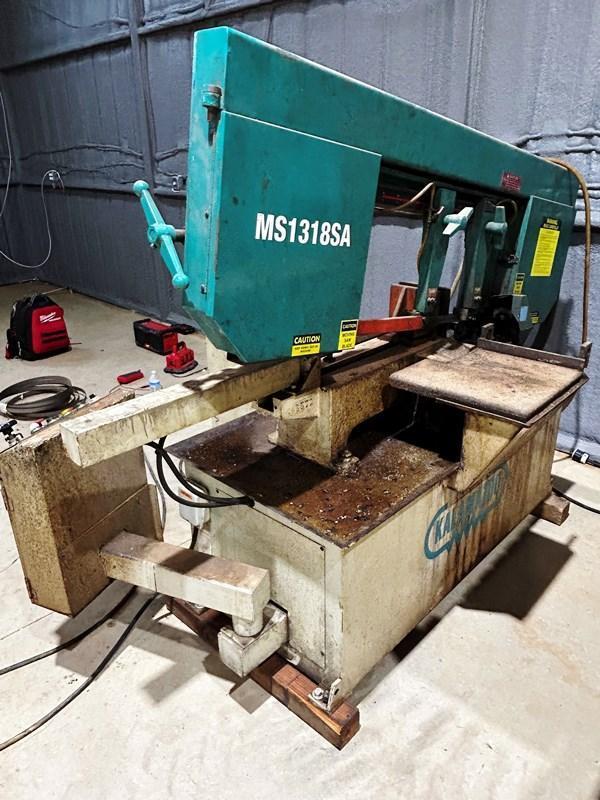

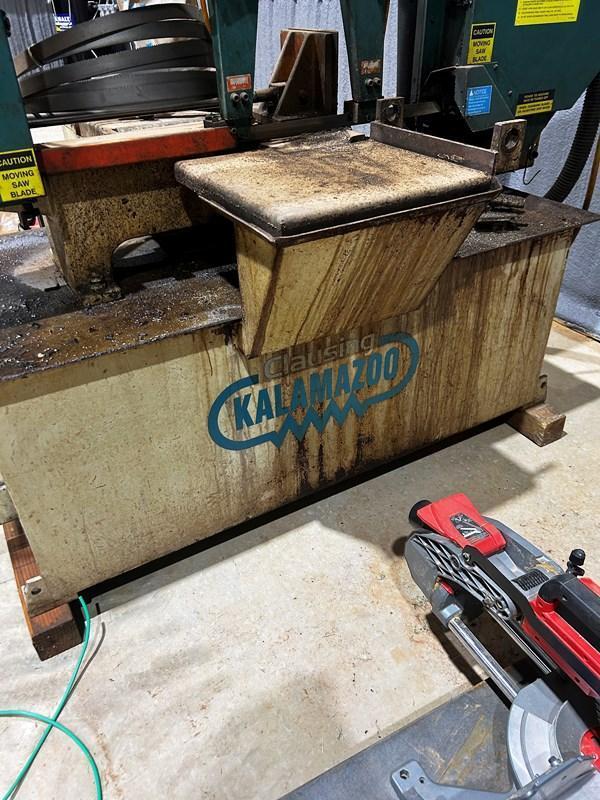

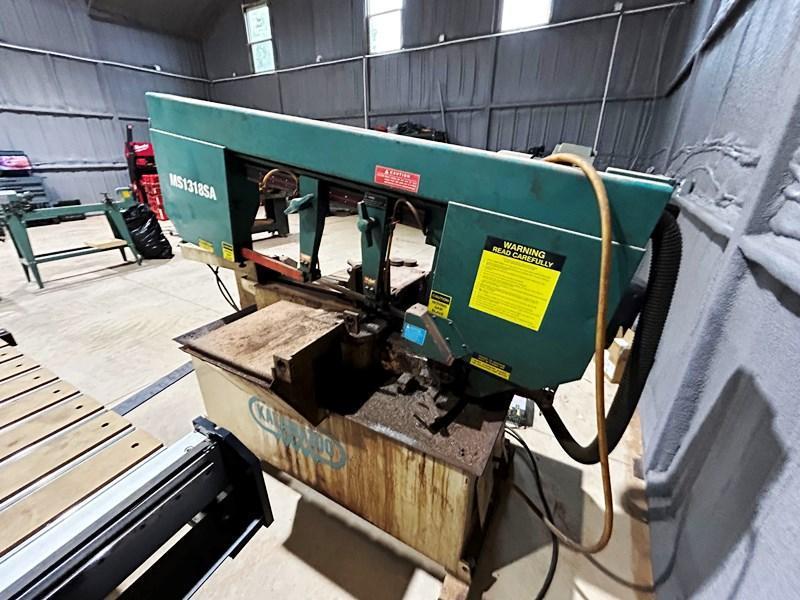

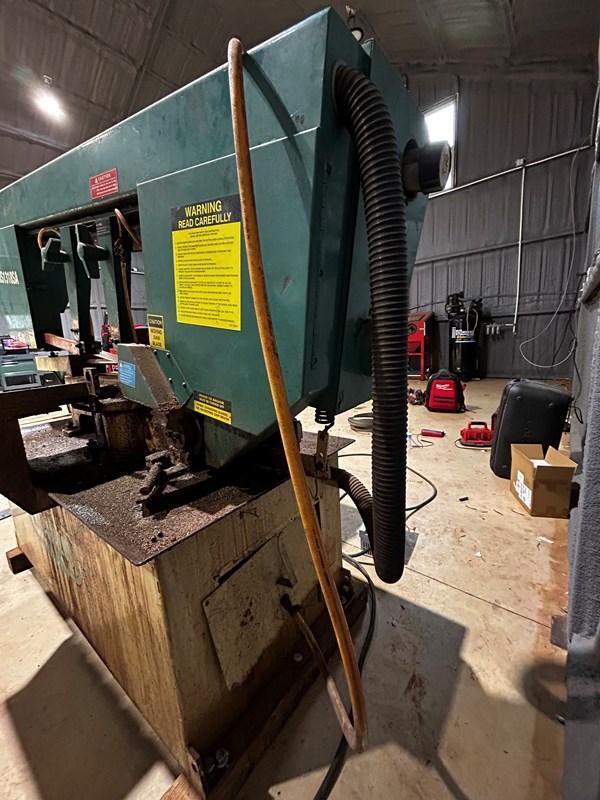

18.5" X 10.6" CLAUSING KALAMAZOO MS1318SA MITERING HORIZONTAL BAND SAW

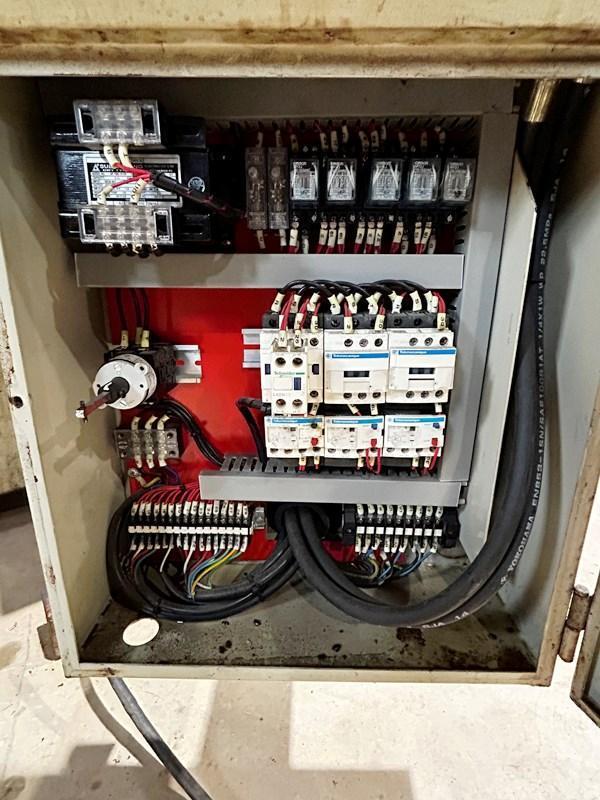

Motor Driven with 3 HP, 3-Phase, 60 Cycle, AC Motor & Controls
DESCRIPTION
Clausing Kalamazoo 13″ Semi-Automatic Swivel Head Mitering Horizontal Band Saw, MS1318SA
Advanced hydraulic system provides dependable power for powered clamping and raising the saw head at the end of the cut

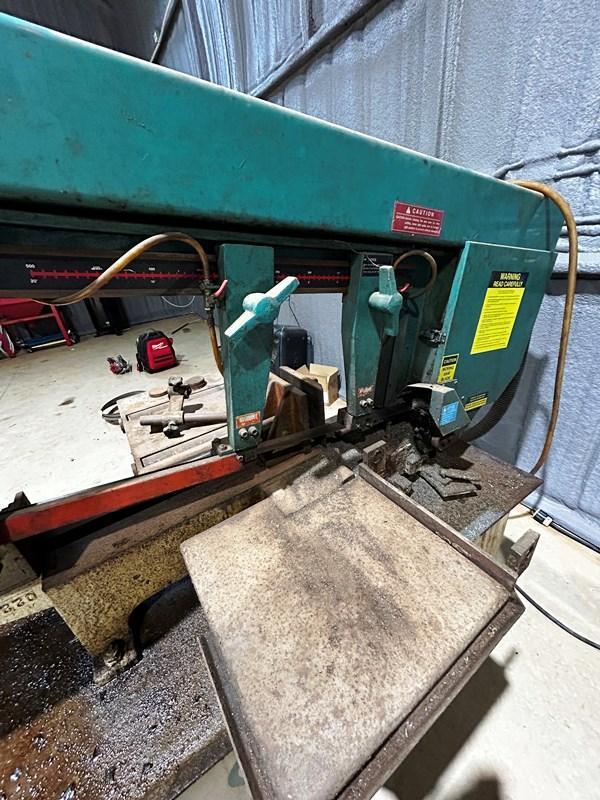

Full stroke machine vise for tight clamping of any material from operator’s panel

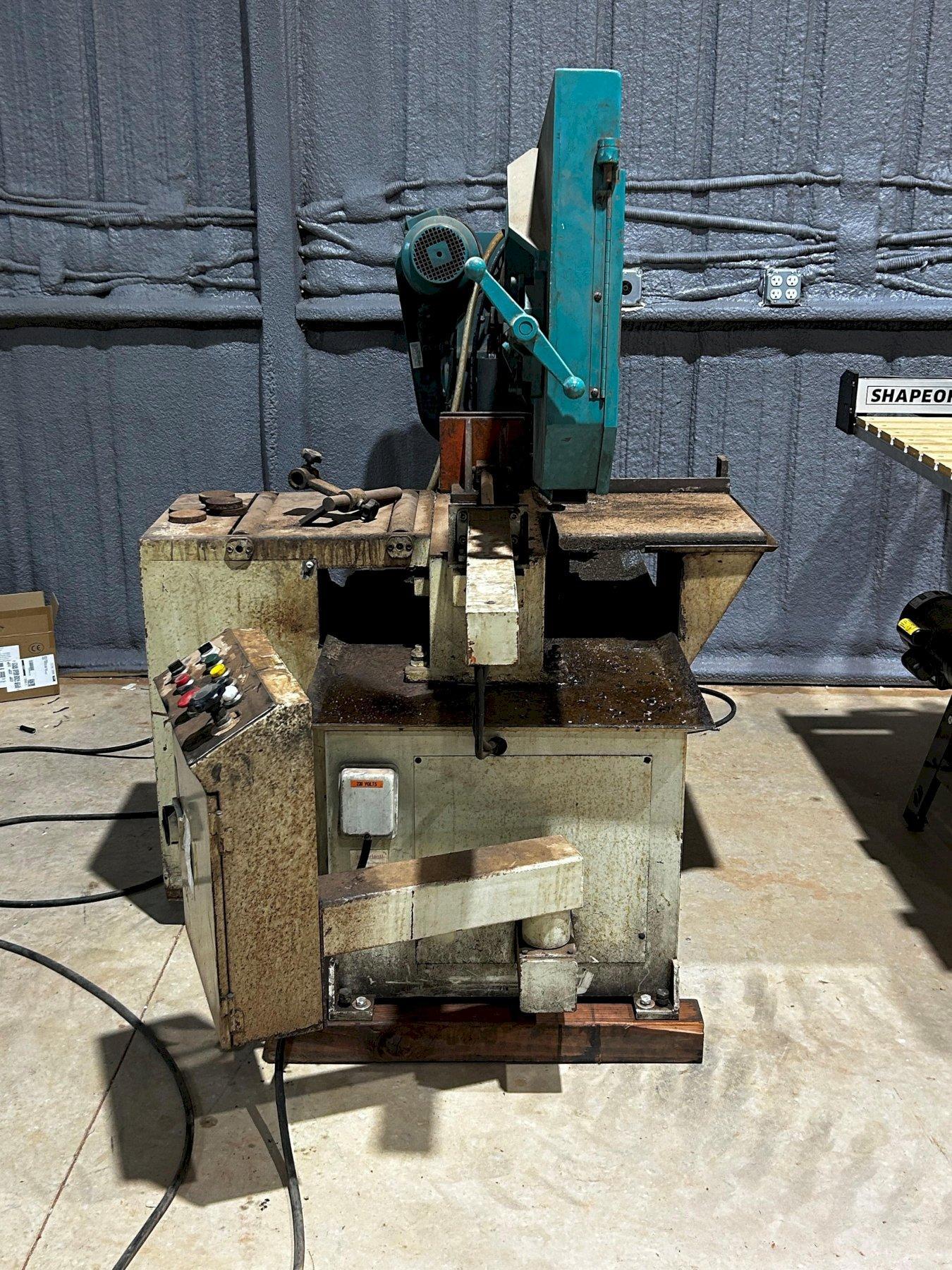

Operator’s panel pivots allowing operator to control the saw from the rear of the machine
EQUIPPED WITH: Coolant
SPECIFICATIONS:
Capacity Rectangles @ 60 Degrees 18.5" x 10.6"
Capacity Rectangles @ 60 Degrees 8.7" X .8.7"
Capacity Rectangles @ 45 Degrees 10.5" X 10.5
Capacity Rectangles @ 45 Degrees 10.5" X 10.5
Capacity Round @ 90 Degrees 13"
Capacity Round @ 45 Degrees 11.8"
Capacity Round @ 60 Degrees 8.7"
Capacity Squares @ 90 Degrees 10.6"
Capacity Squares @ 60 Degrees 10.5"
Capacity Squares @ 45 Degrees 8.7"
Blade Speeds 98 to 328 FPM
Head Miters 0 to 60 Degrees
Vises 7-1/2" x 6-1/2"
Blade Dimension 13.7" X 1" X .035"
Approximate Dimensions 75" x 34" x 55.5" H
Approximate Weight 1,500 Lbs.
Capacity Round @ 45 Degrees 11.8"
Capacity Round @ 60 Degrees 8.7"
Capacity Squares @ 90 Degrees 10.6"
Capacity Squares @ 60 Degrees 10.5"
Capacity Squares @ 45 Degrees 8.7"
Blade Speeds 98 to 328 FPM
Head Miters 0 to 60 Degrees
Vises 7-1/2" x 6-1/2"
Blade Dimension 13.7" X 1" X .035"
Approximate Dimensions 75" x 34" x 55.5" H
Approximate Weight 1,500 Lbs.
