Equipped With

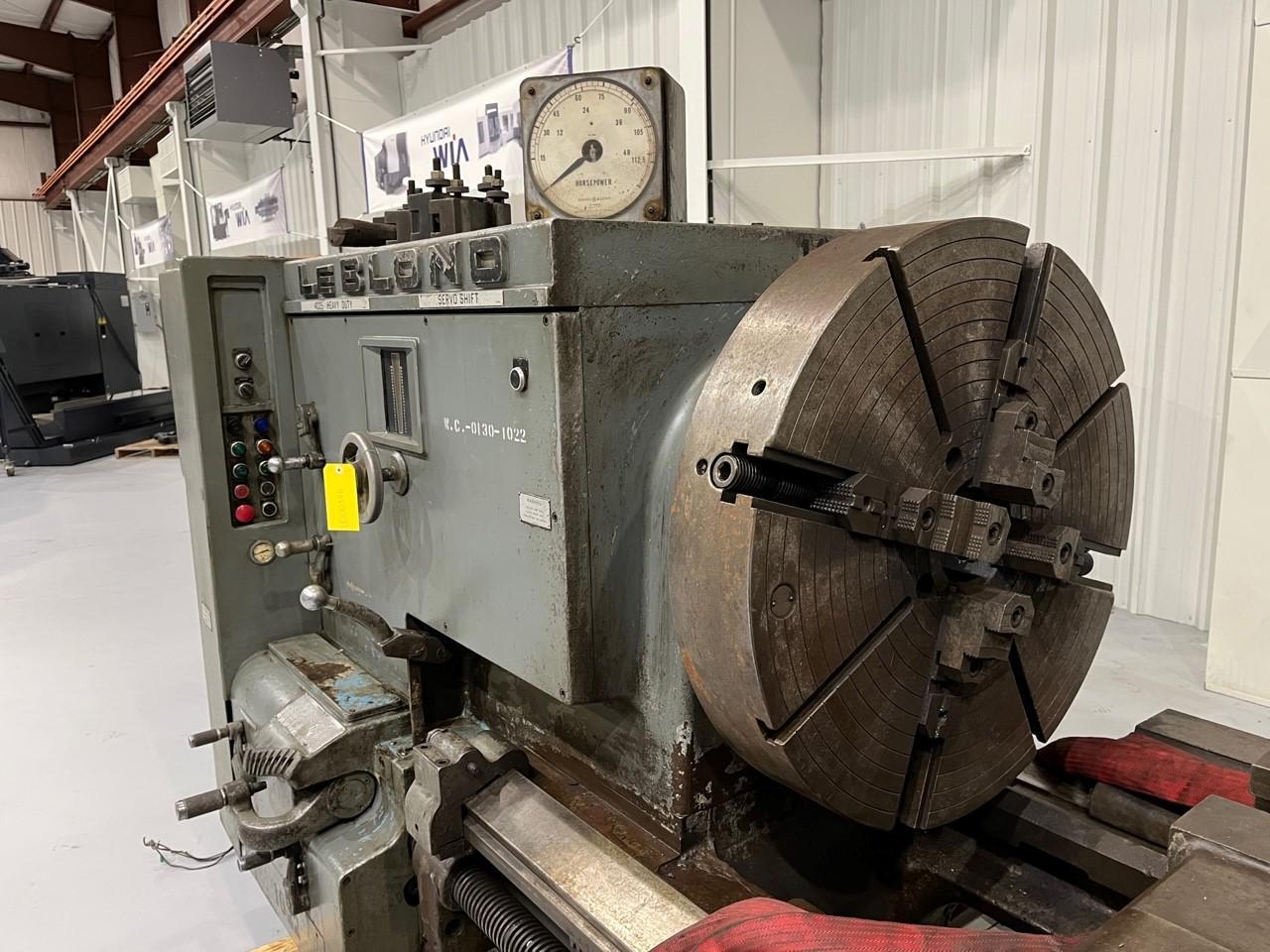

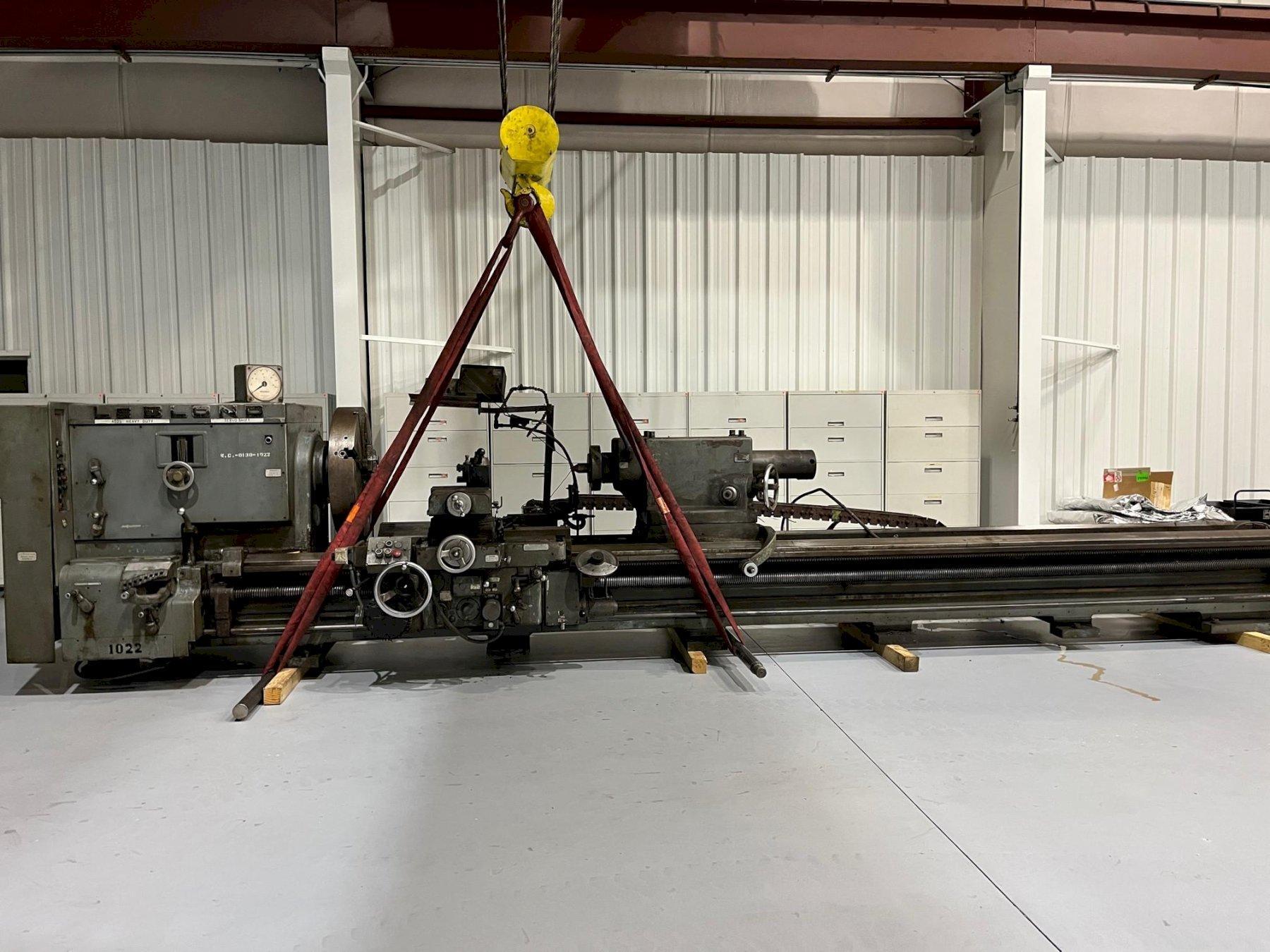

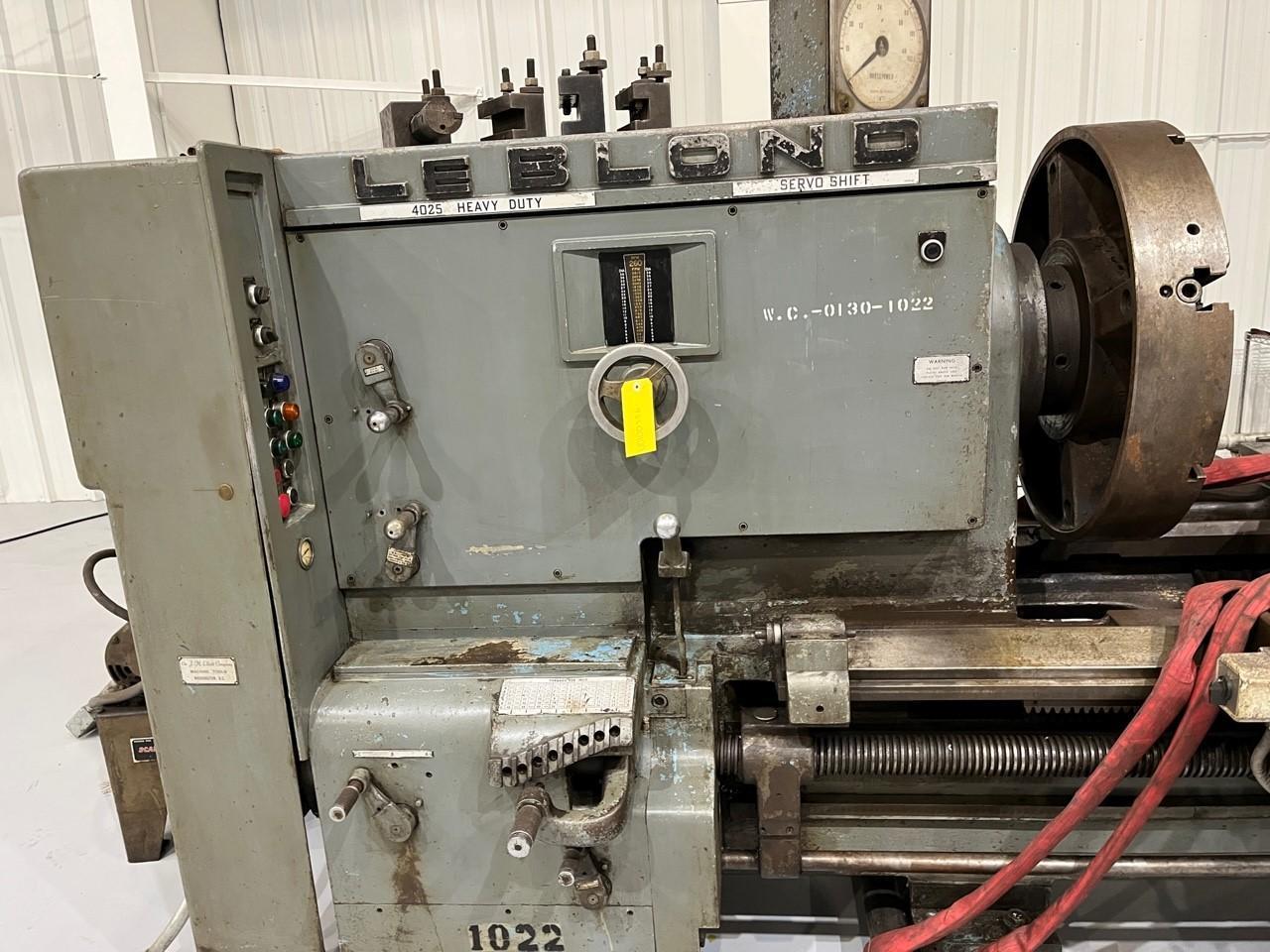

40" X 204" LEBLOND MODEL NK 4025 HEAVY DUTY SERVO SHIFT ENGINE LATHE

New 1969

SPECIFICATIONS:
Swing over bed ways ....................................................................................... 40"
Swing over cross slide ..................................................................................... 25”
Distance between centers (17’) .....................................................................204"
Bed width ............................................................................................................. 34"
Bed depth ............................................................................................................. 26"
Spindle mount ..................................................................................................... 11”A1 S
pindle center to floor ........................................................................................ 44”
Hole thru spindle ................................................................................................ 3.062" S
pindle RPM (36 speeds) .................................................................................... 5.4 to 600 RPM
Threads per inch ................................................................................................. ¾” to 46
TPI Feeds ...................................................................................................................004” to .250” IPR
Tailstock, quill diameter ..................................................................................... 8"
Tailstock,quill taper ...........................................................................................  #6
Tailstock,quill travel ........................................................................................... 18"
Tailstock, quill taper ........................................................................................... #6 MT
Tailstock, quill chuck mount ............................................................................11” A1
Main motor horsepower ...................................................................................75 HP
Electrics – 220/440 ............................................................................................. 440 volt (wired)
Floor space (l x w x h) ........................................................................................ 355’ x 90” x78”
Weight ..................................................................................................................... 43,000 lbs.

EQUIPPED WITH:
Hardened and ground bed ways

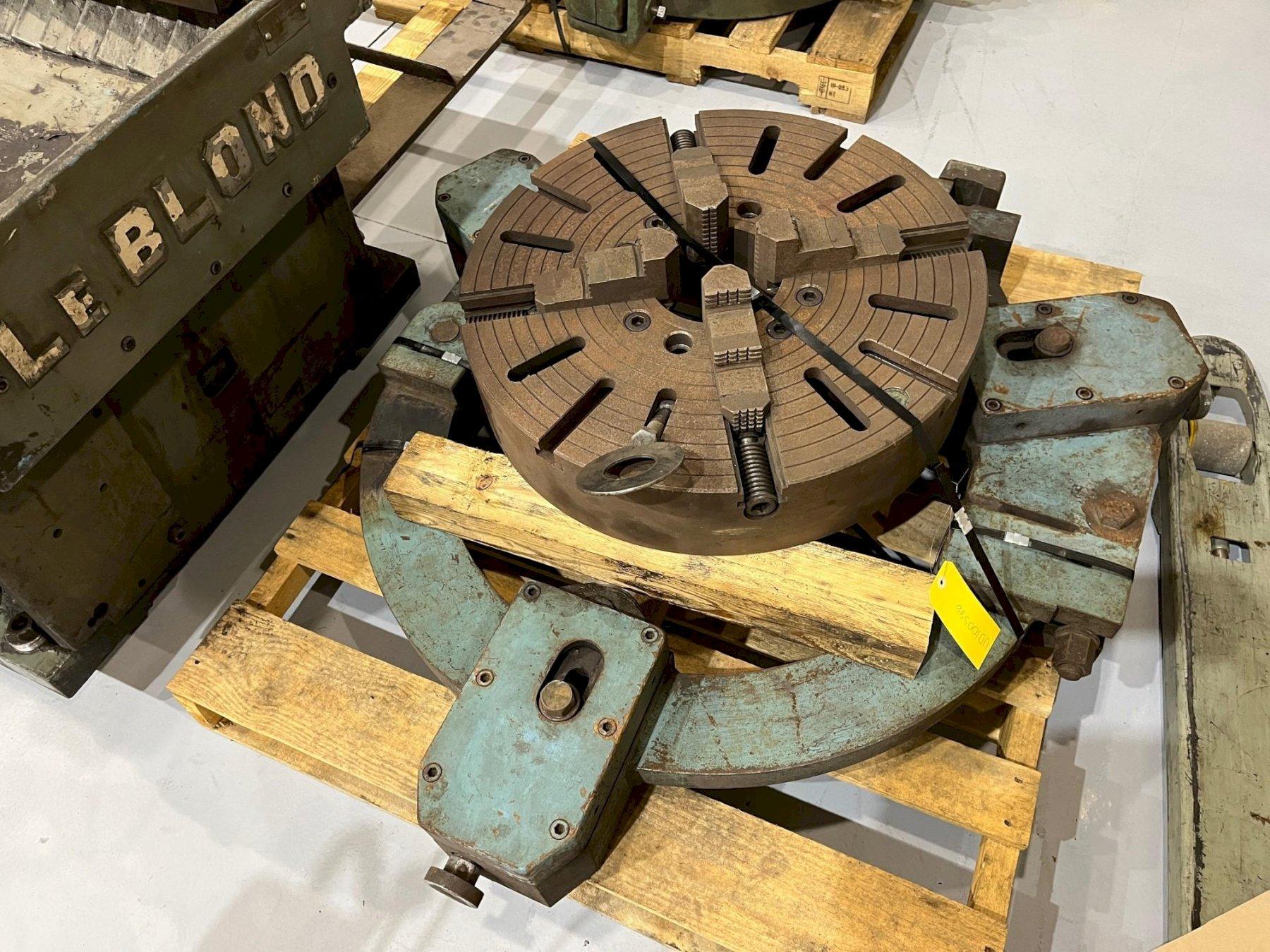

32" chuck, 4-jaw, t-slotted
25" chuck, 4-jaw, t-slotted
Rapid traverse
Threading dial  Micrometer carriage stop
Aloris EA tool post with EA1 holder
(1) steady rest,24“ capacity
(1) steady rest, 20“ capacity
(1) steady rest, 12“ capacity

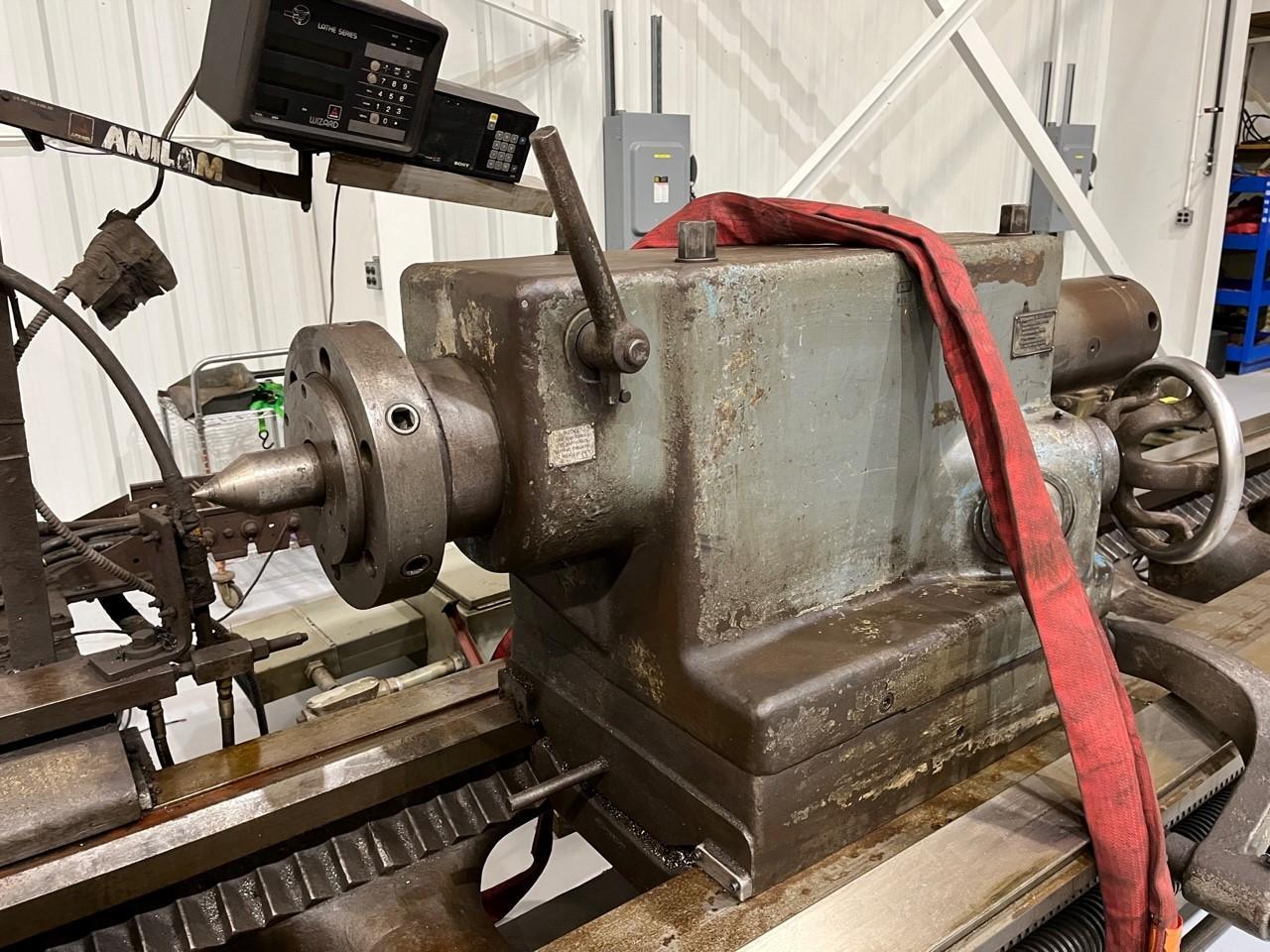

Tailstock live quill, w/ 11”-A1 chuck mount
