Equipped With

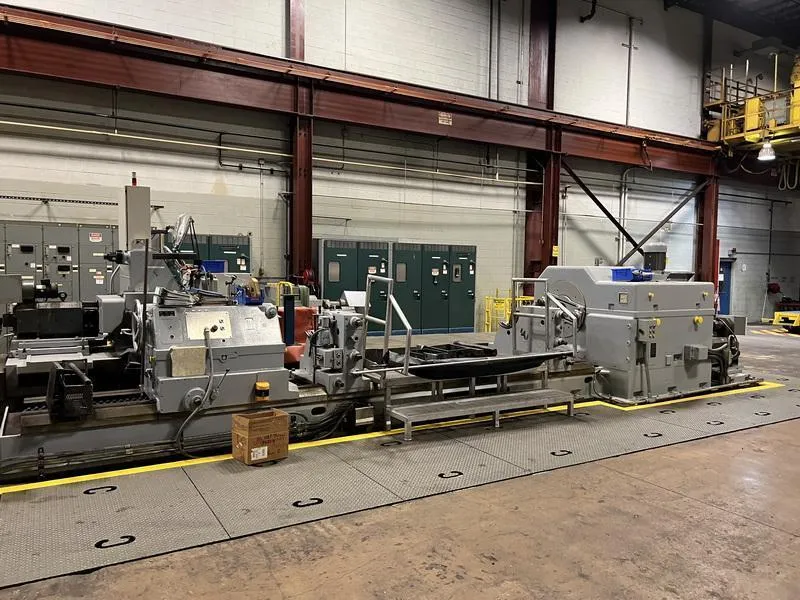

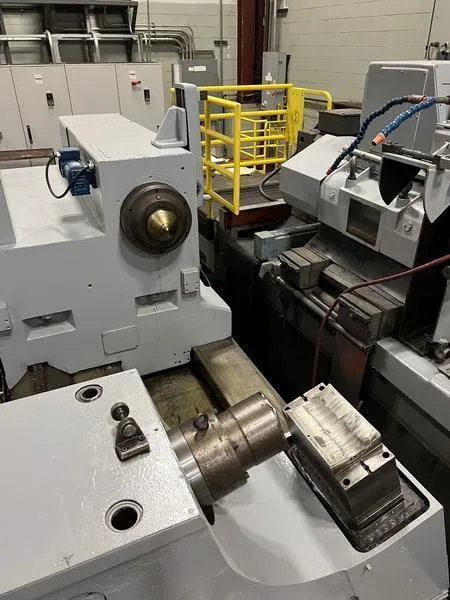

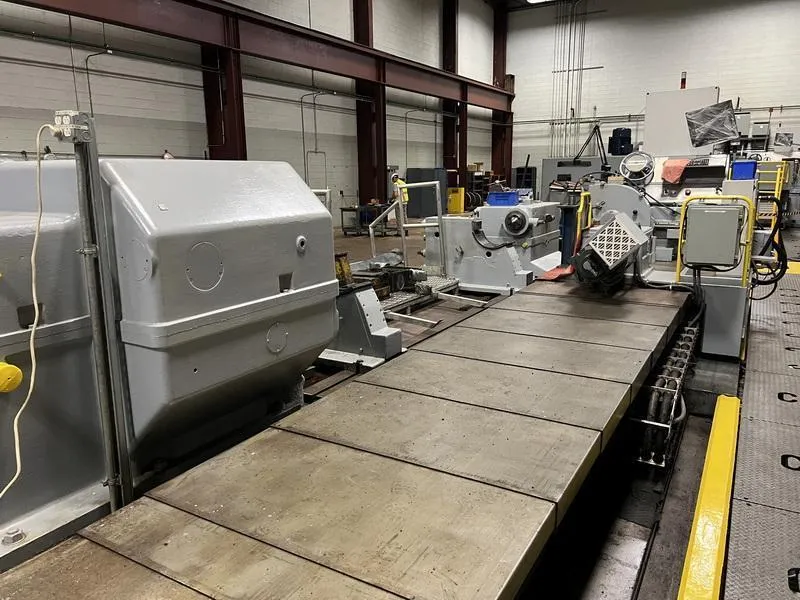

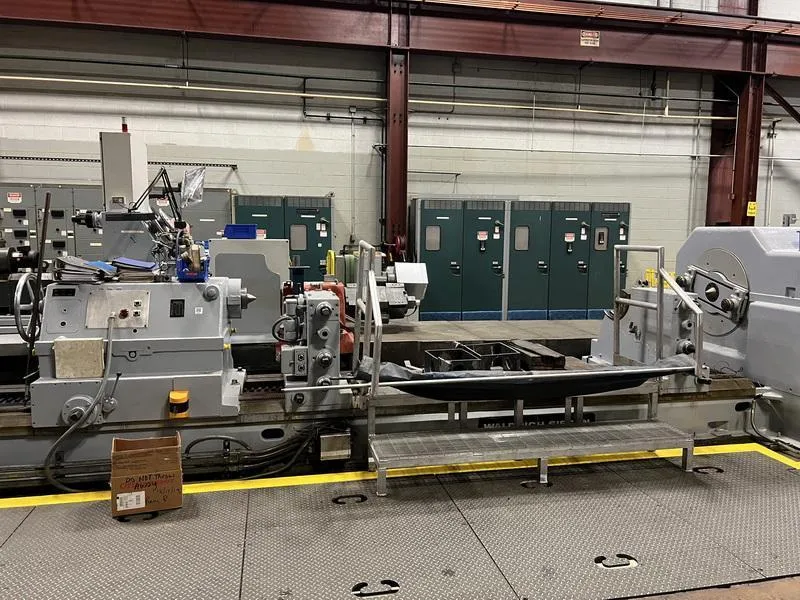

1260MM (50") X 5000 MM (16') WALDRICH SIEGEN MODEL V/S II b 35 x 5000 ROLL GRINDER


Crowning and Cambering Capabilities

Stationary Rotating Roll with Travelling Grinding Carriage
2 Steadies

Servo Drives: Headstock & Grinding Wheel,

Max Roll Diameter: 1260mm (50")
Min Roll Diameter: 140mm (5.5")
Distance Between Centers: 5000mm (16')
Max Grinding Wheel Diameter: 800mm
Max Roll Weight: 35 Tons (70,000 Lbs)

Face Plate RPM: 7 - 70 RPM
Grinding Carriage Feed: 60 - 4000 mm/min
Cross Slide Traverse Infeed: 560mm
Rapid Traverse Cross Slide: 400mm/min
Fine In-Feed Hand Wheel: .0125mm/1 Umdr
Coarse In-Feed Hand Wheel: .25mm/1 Umdr
End Feed by Motor: .01 - .1 mm/Hub

Grinding Wheel:
Max Diameter: 800mm (31.5")
Width: 80mm (3.15")
Hole: 305mm (12")

Headstock: 60 HP : 240/960/2400 RPM
Grinding Wheel: 40 HP : 720/1800 RPM
Carriage Drive: 5 HP : 24/1600 RPM

Rapid Traverse Cross Slide
Grinding Spindle Lubrication
Bedway Lubrication
Quill Rapid Traverse - Tailstock

2008 Electrical Upgrade
Computer Controlled
Allen Bradley Powerflex Digital Drives
Allen Bradley 1606-XL Power Supply
N-Tron 508 XT Ethernet Card
Allen Bradley Panelview Plus 1250 Digital Readouts
Allen Bradley PLC CompactLogix L32E
