Equipped With

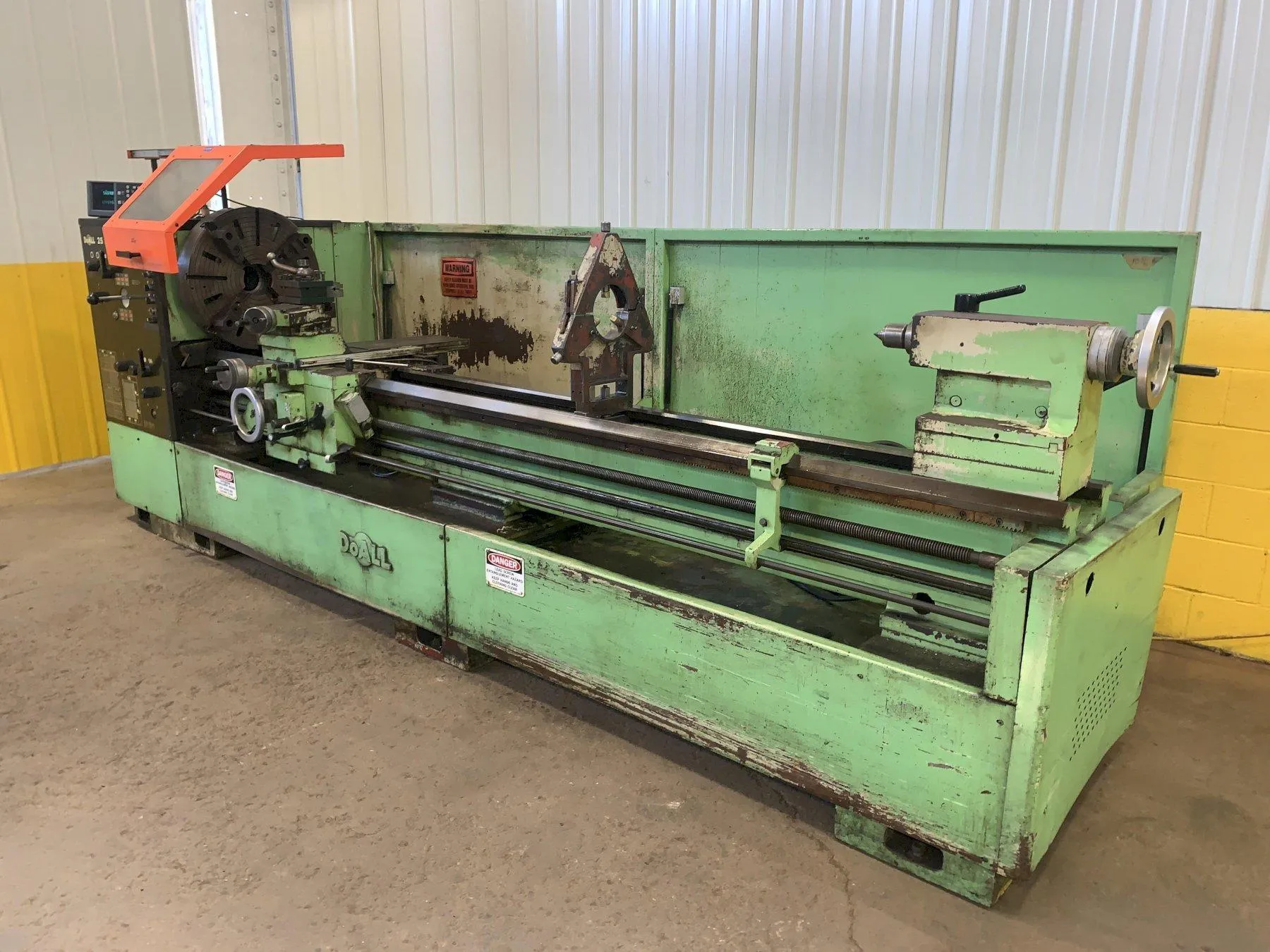

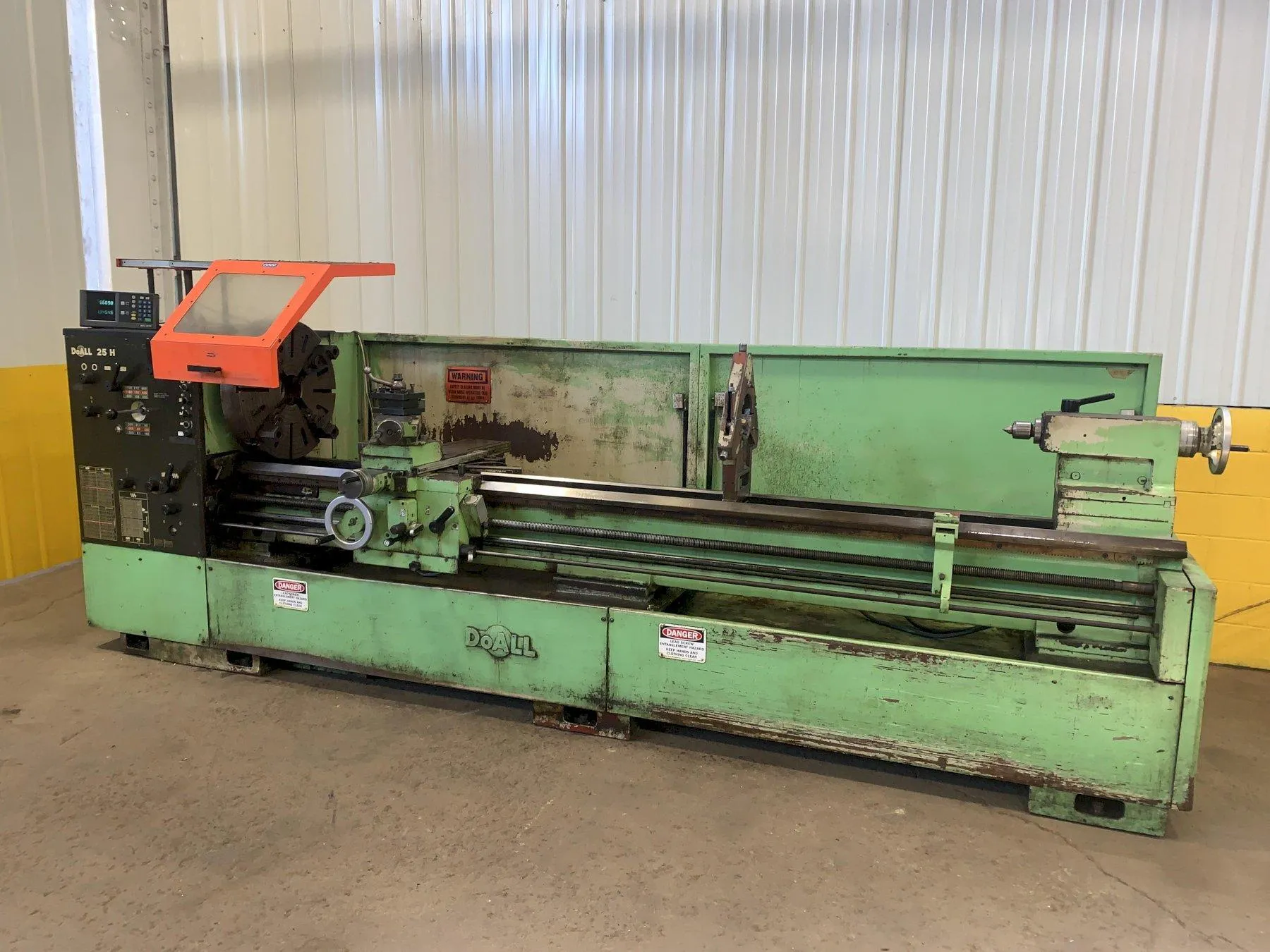

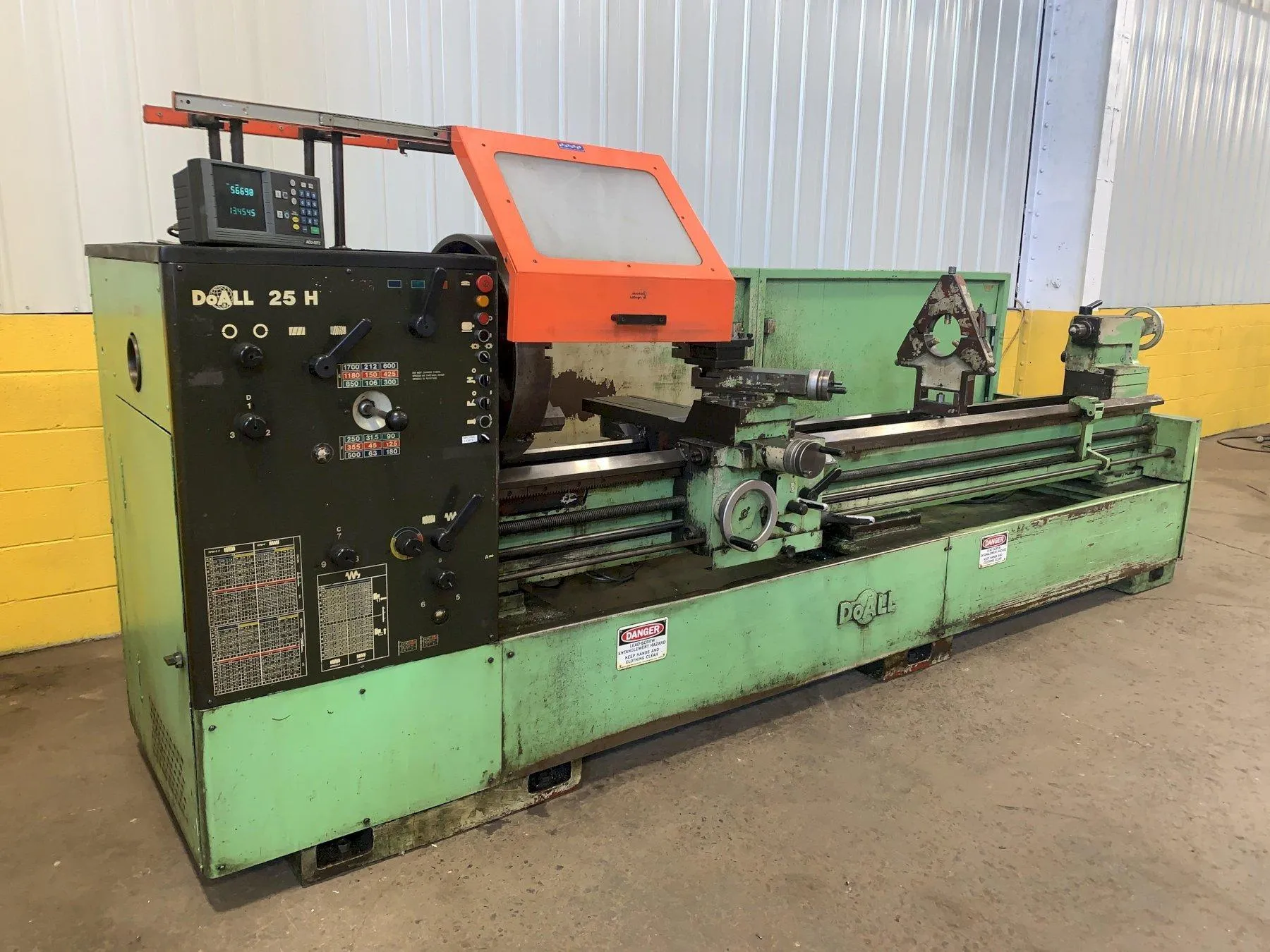

25" X 120" DOALL ROMI MODEL 25H GAP BED ENGINE LATHE W/ 4" HOLE

Motor Driven with 15 HP, 3-Phase, 60 Cycle, AC Motor & Dontrols

SPECIFICATIONS:
Swing Over Ways                                                25"
Swing Over Cross Slide                                       18"
Swing In Gap                                                       35"
Length Of Gap                                                    15"
Distance Between Centers                                  120"
Spindle Speeds                                                   63 To 1700 RPM
Spindle Hole Diameter                                       4-1/8"

EQUIPPED WITH:
Standard Feeds & Threads
Metric Feeds & Threads
6" Steady Rest
Thread Dial Digital Readouts
Coolant
Splash Guards
Rapid Traverse
4 MT Tail Stock Taper
