Equipped With

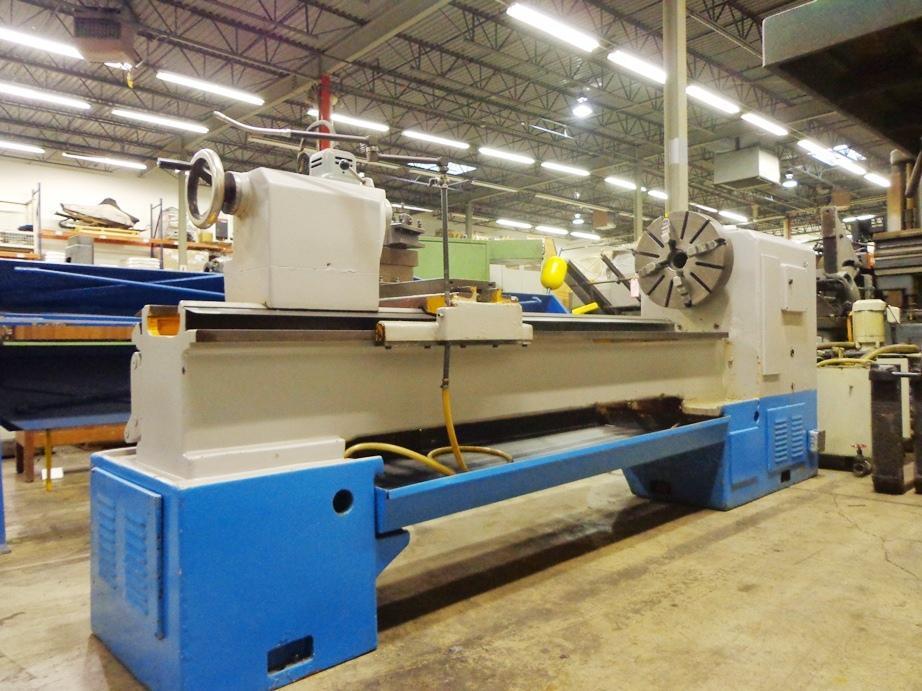

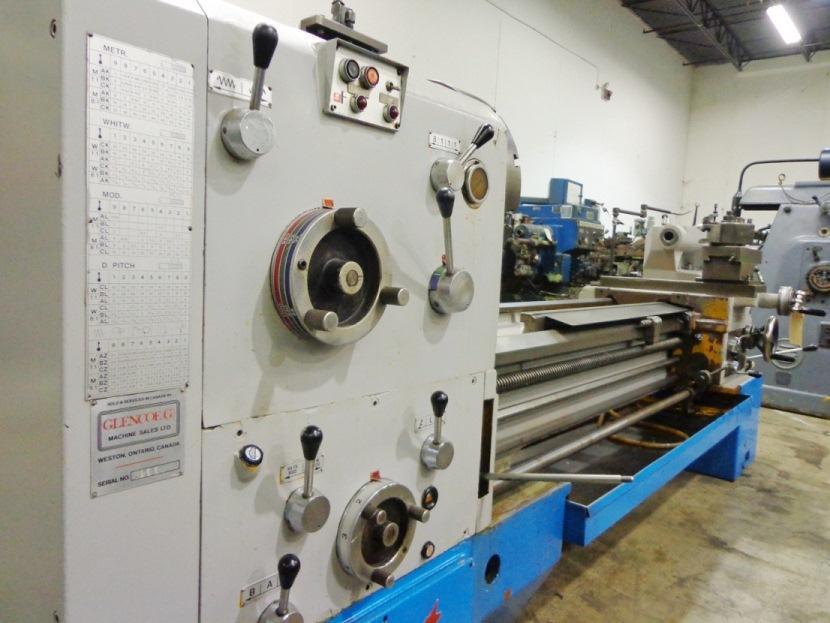

26"/30" x 80 GIANA GAP BED ENGINE LATHE

Swing Over Bed on ways                 26"

  Swing In Gap (permanent gap)           30"

  Swing Over Cross Slide                 16"

  Distance Between Centers               80"

  Gap Length, approx.                    10"

  Spindle Thru Hole                      3-1/8"

  Spindle Mount                          D1-8 Camlock

  Spindle Speeds (18)                    17 to 1700 R.P.M.

  Threading                              1 - 60 MM (Metric)

                                         1-60 TPI (English)

  Motor                                  15 H.P.

  Equipped With:

  19-1/2" 4-jaw Chuck

  Inch & Metric Threading

  Enco E4 Quick Change Tool Post

  One-Shot Lubrication

  Carriage Stop

  Oil Pan Bed

  Permanent Gap in Bed

  Approximate Dimensions:                 144"(LR) X 48"(FB) X 60"(H)

  Approximate Weight:                     7,000 Lbs.
