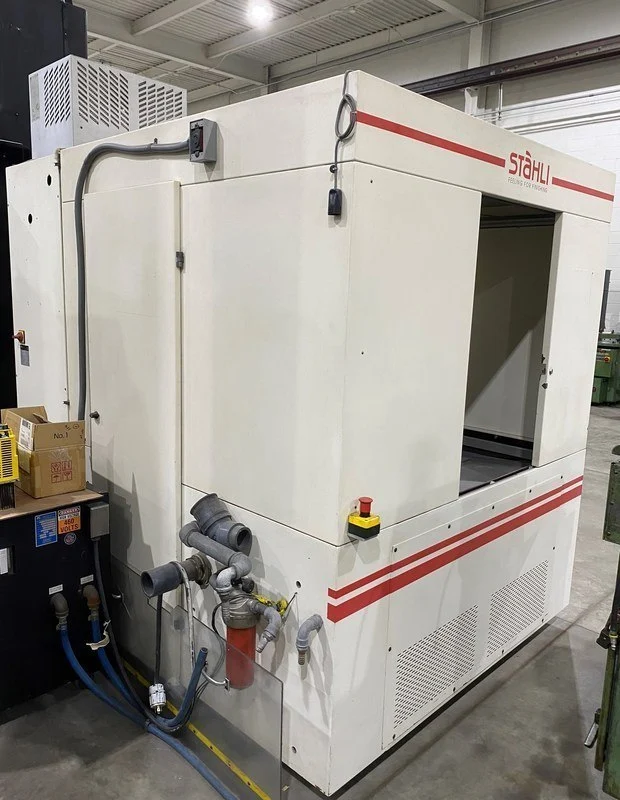

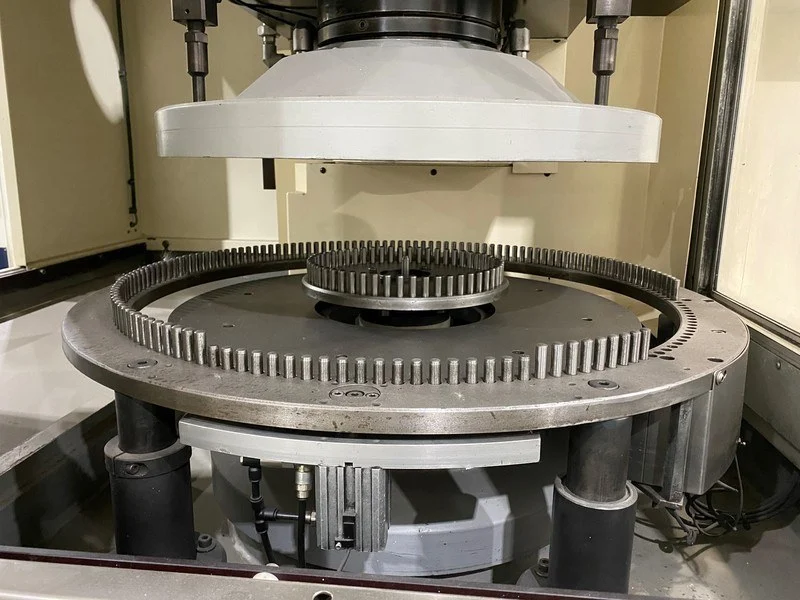

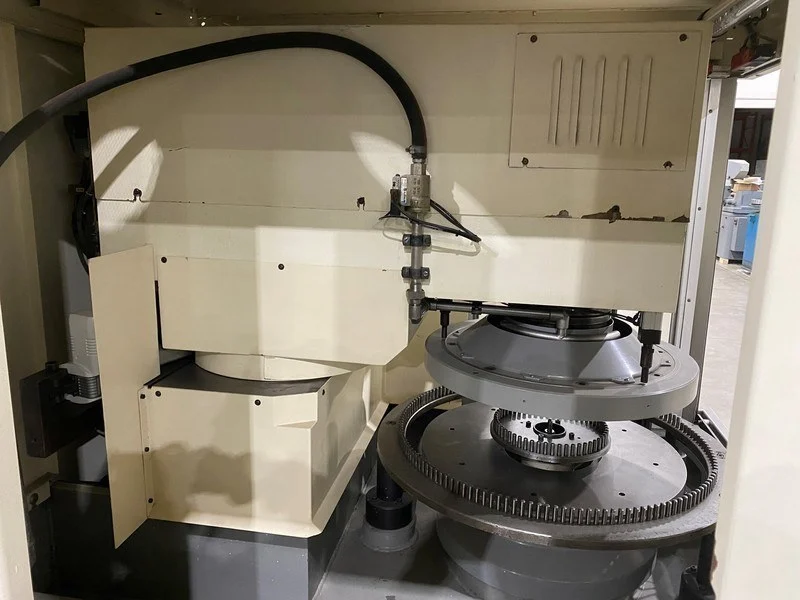

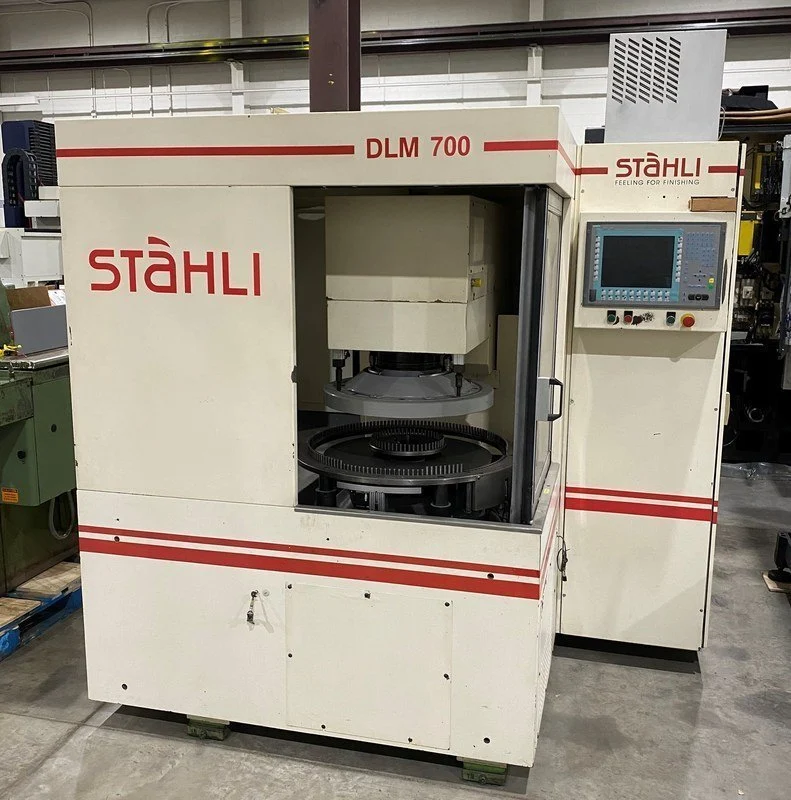

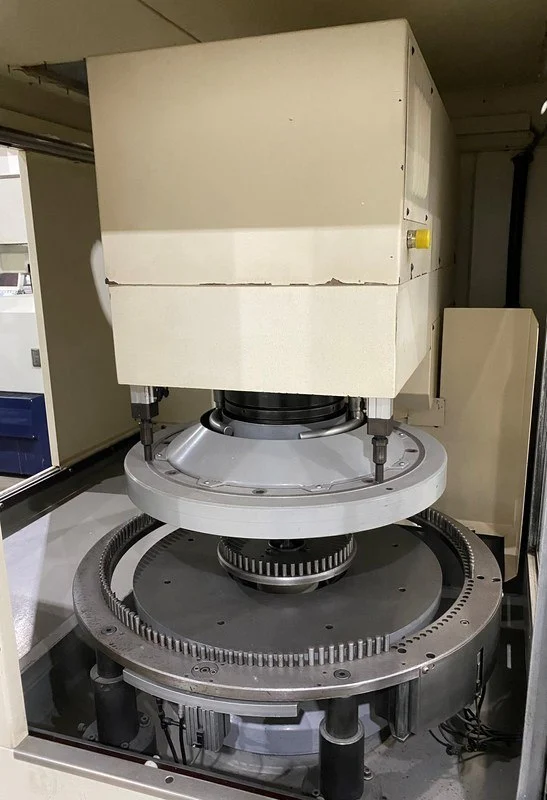

28" Stahli Model DLM 700-3 Two Wheel Lapping/Flat Honing (Microgrinding) Machine

New 2002

SPECIFICATIONS:

Working Range:
Wheel Diameter - Maximum............27.559"/700mm
Wheel Ring Width - Maximum............7.874"/200mm
Work Piece Height - Maximum............3.937"/100mm

Speeds:
Top Wheel - Continuously Variable............0 - 200 RPM
Bottom Wheel - Continuously Variable............0 - 200 RPM
Center Drive - Continuously Variable............0 - 100 RPM

Drive Power:
Top and Bottom Wheels - Each............12.7 HP/9.5kW
Center Drive............5.0 HP/3.8kW
Operating Pressure Adjustment - Continuously Variable...0-1300 daN (Pneumatic)
Electrical Equipment:
Equipment w/DIN 57 113/VDE Completely Installed
Main Power............220VAC/60Hz
Control Voltage............V 230/50+24=
Connected Load/Power Requirement............23kW/80A
Cable-Cross............25mm2

Operating Pressure:
Air Connected - Minimum............6 Bar

Digital Measuring Instrument:
Range............0.3937"/10mm
Accuracy............0.00003937"/0.001mm

Workplace-Based Noise Emission Value:
AP 1 - Idle Operation............Approximately 75dB(A)
Working Noise............Approximately 78dB(A)
Machine Dimensions without Coolant System............86.6"L x 76"W x 105"H
Weight without Accessories............5,071 Lbs/2300 kg


EQUIPPED WITH:

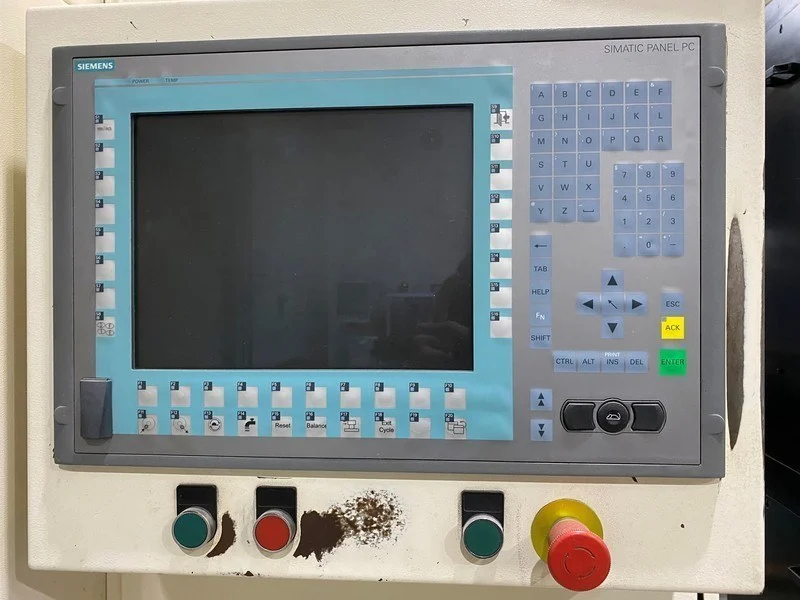

Siemens Simatic Panel PC Controller
Loading and Unloading Tables
Koolant Koolers Model KV-1000 Chiller
20" Inspection Straightedge with (2) Dial Gauges
