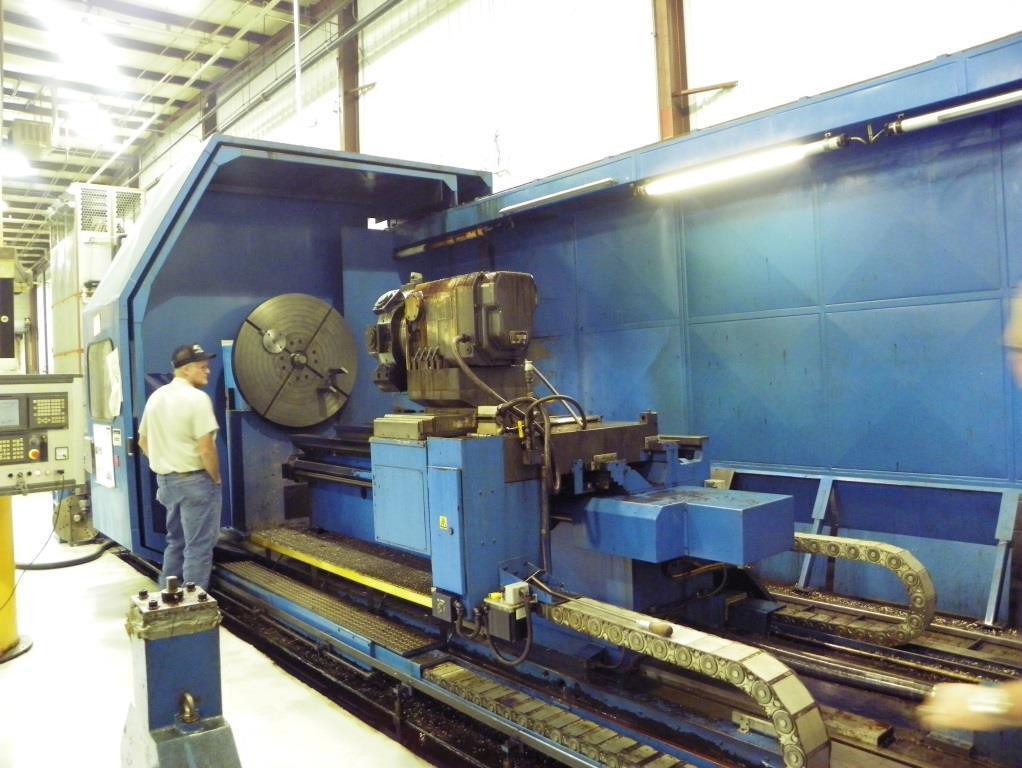

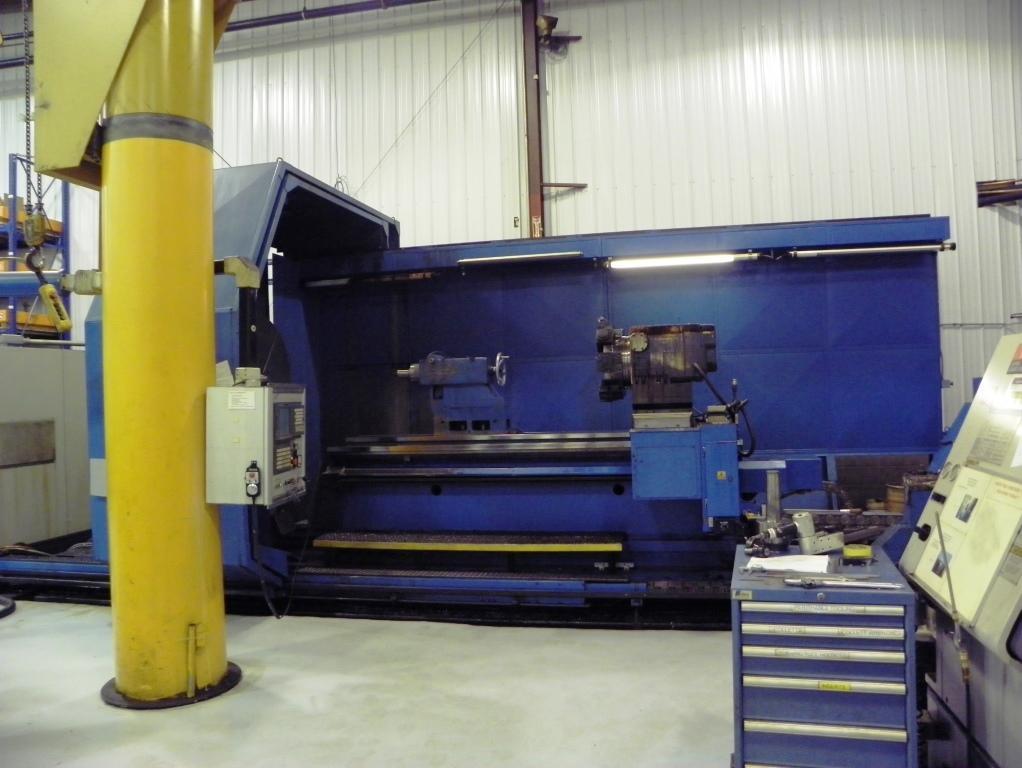

39"/120" x 98"/157"BINNS & BERRY Universal Sliding Bed Gap Lathe

Manufacturer

Not provided

Model

Not provided

Year

2002

Stock #

16953

Condition

Not specified

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

39"/120" x 98"/157"BINNS & BERRY Universal Sliding Bed Gap Lathe

New 2002

Specifications:
Swing Over Bed Plate (in Gap) – 120”
Adjustable Gap Width From Nose – 0-72”
Center Distance, Gap Closed – 98.4”
Center Distance, Gap Open – 157.4”
Swing Over Machine Bed – 39.3”
Swing Over Cross Slide – 31.5”
Z-Axis Along Machine Bed – 98.4”
X-Axis Cross Travel - 19.6”
Spindle Bore – 5.9”
Spindle Nose – A2-15
Spindle Speeds – 2.3 to 1000 RPM
Spindle HP, Continuous – 50 HP
Tailstock Quill Diameter – 6.7” x #6MT
Unsupported Weight Capacity – 17,600 Lbs.
Machine Weight, Approx - Estimated 35-40,000 lbs.

Equipped with:

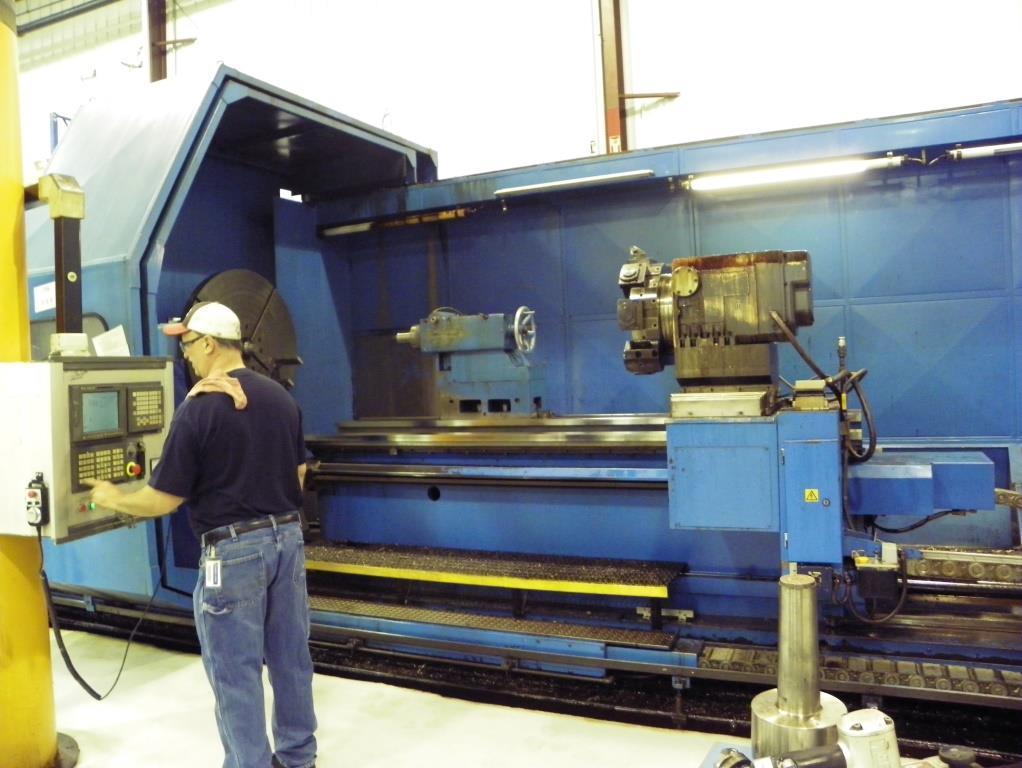

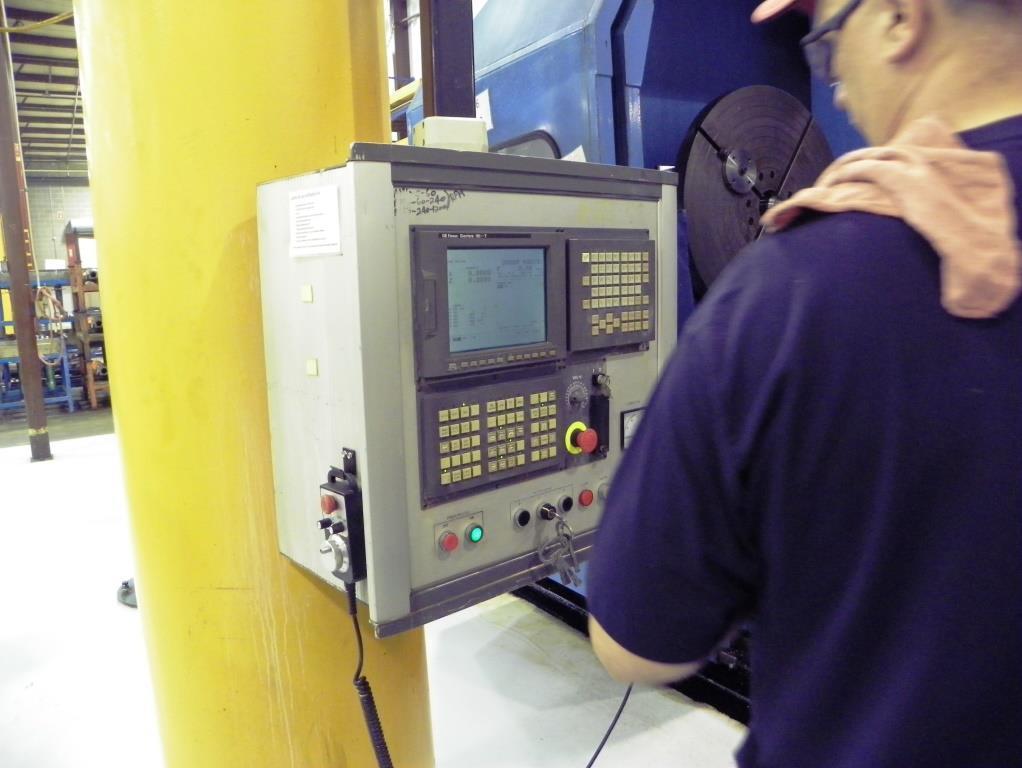

Fanuc 18iTA CNC Control
Fanuc AC Variable Frequency Servo Drives
Fanuc AX Variable Frequency Spindle Drive Motor
Spindle Speeds Infinitely Variable, CSFM Programming
Three Range Headstock with Automatic M Code Programmable Change

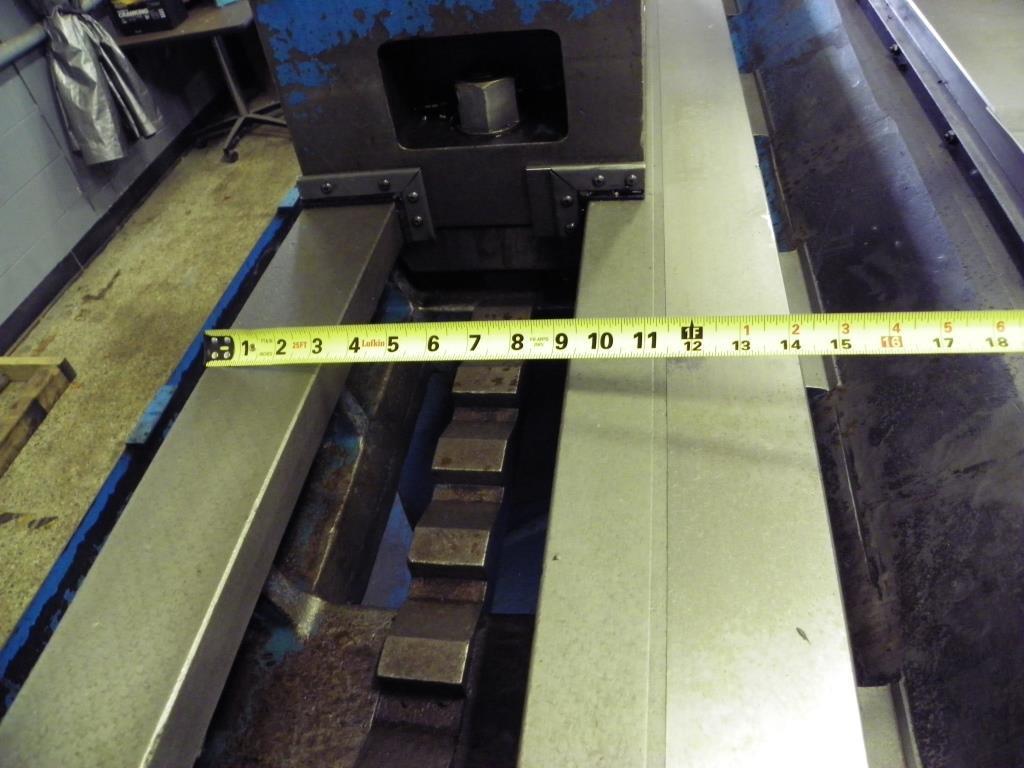

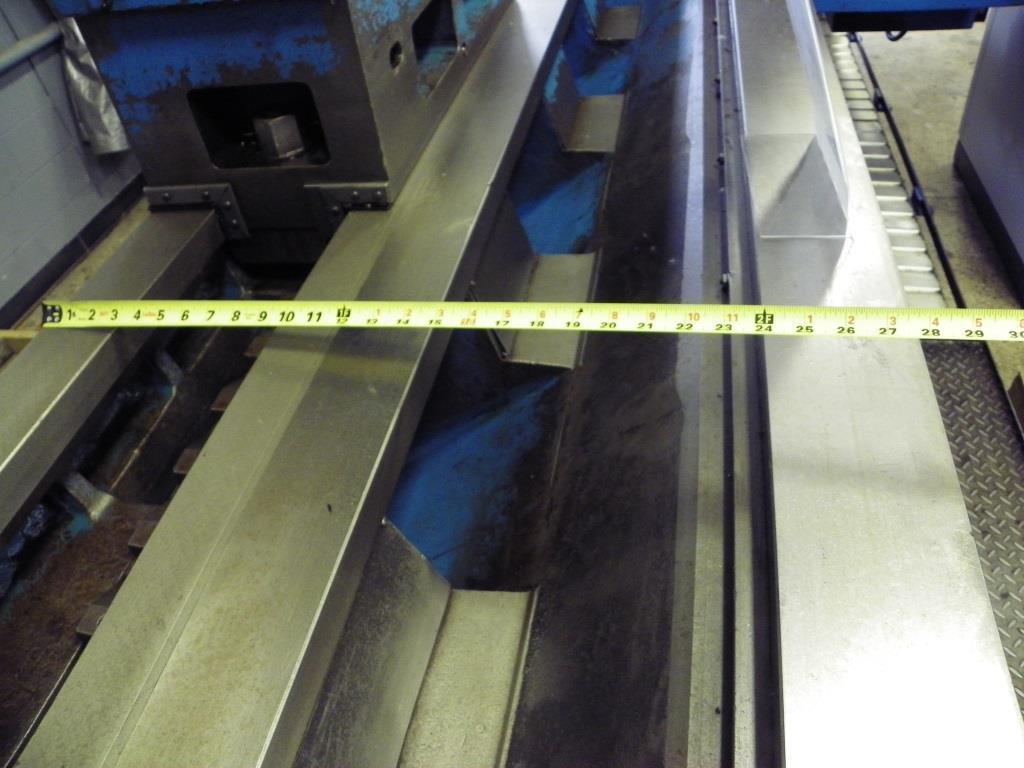

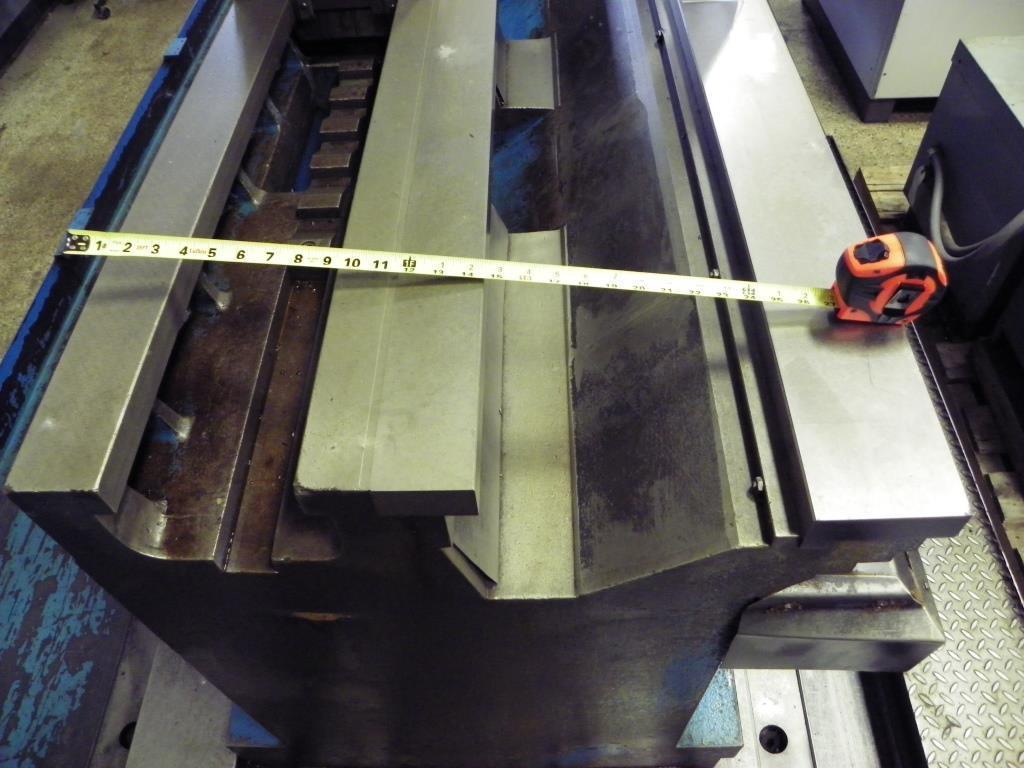

Powered Sliding Machine Bed Movement with Hydraulic Clamping

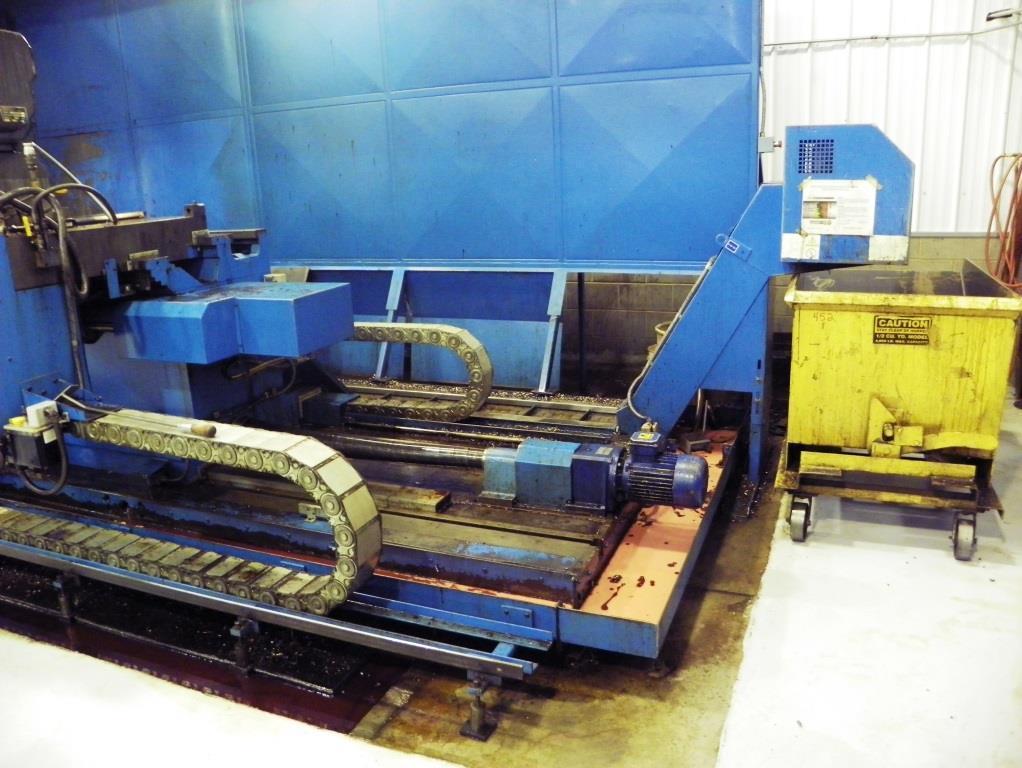

120” Swarf Chip Conveyor

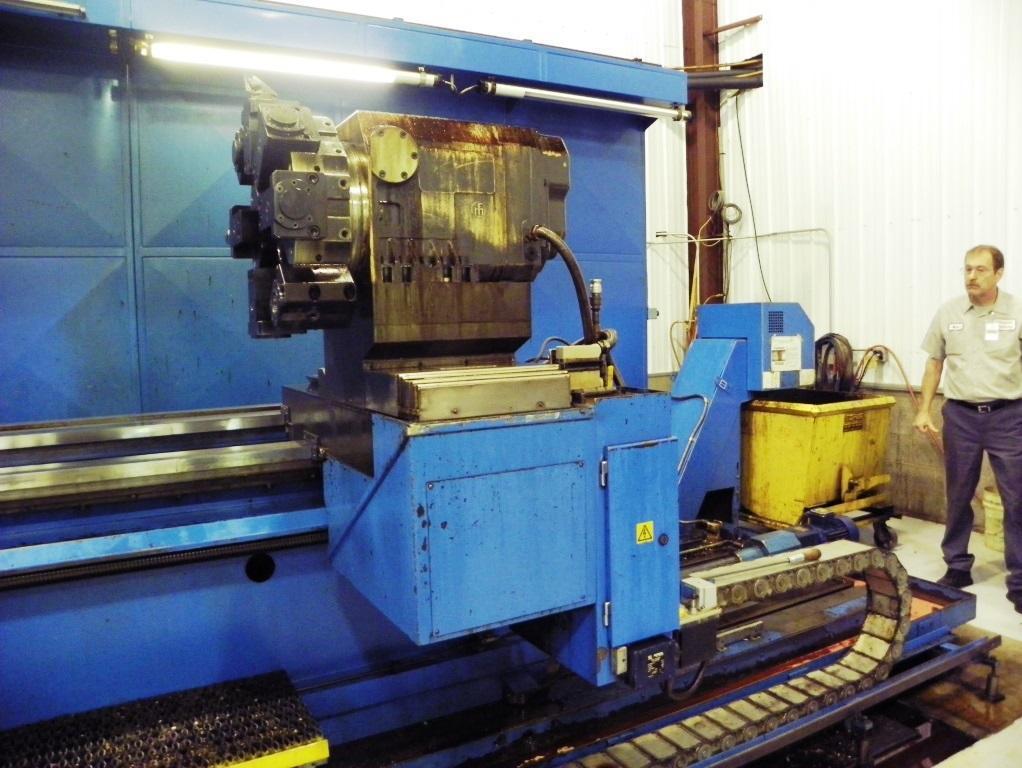

SAUTER 8 Position Vertical Disk Turret
120” Gap
72” Travel in Gap
Tailstock

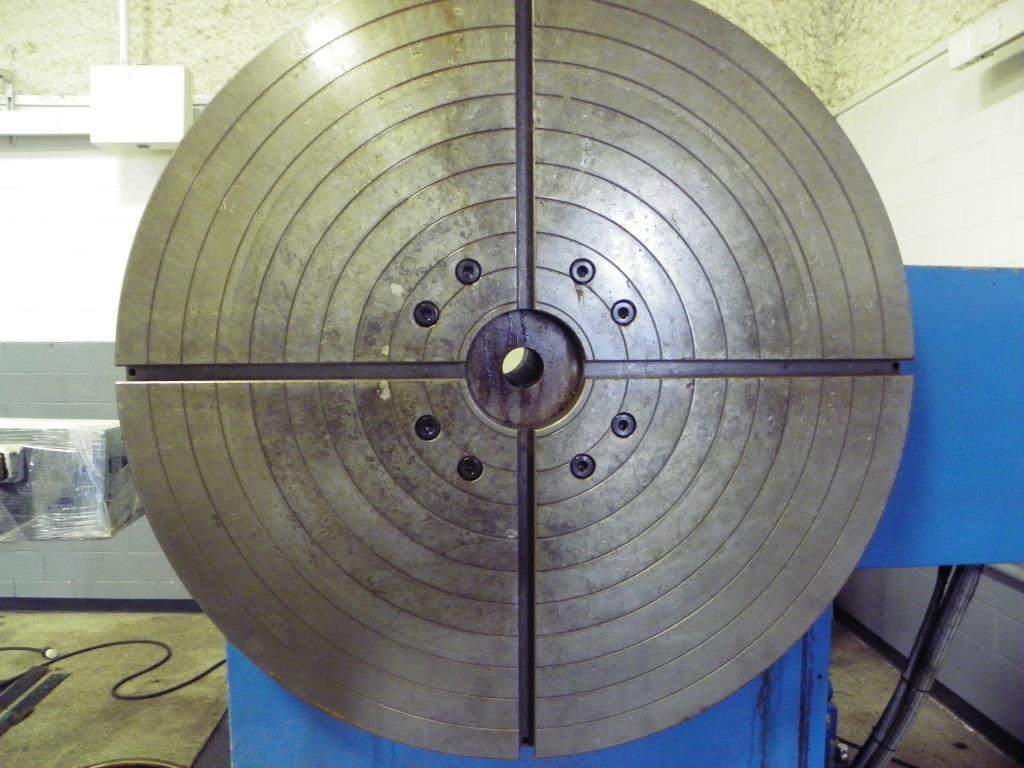

Faceplate with T-Slots
12” Full Surround Steady with Roller Jaws
Flood Coolant
