Equipped With

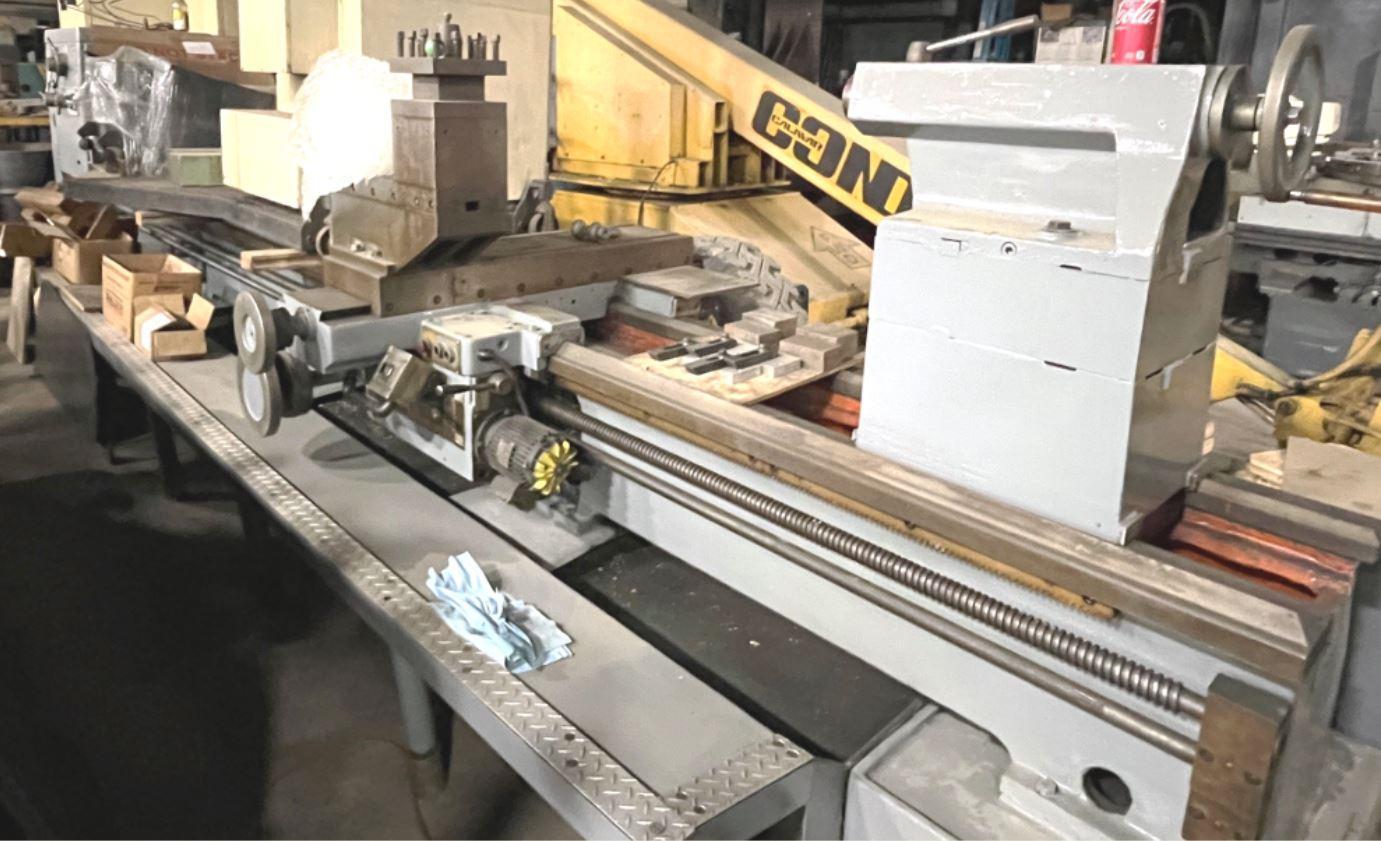

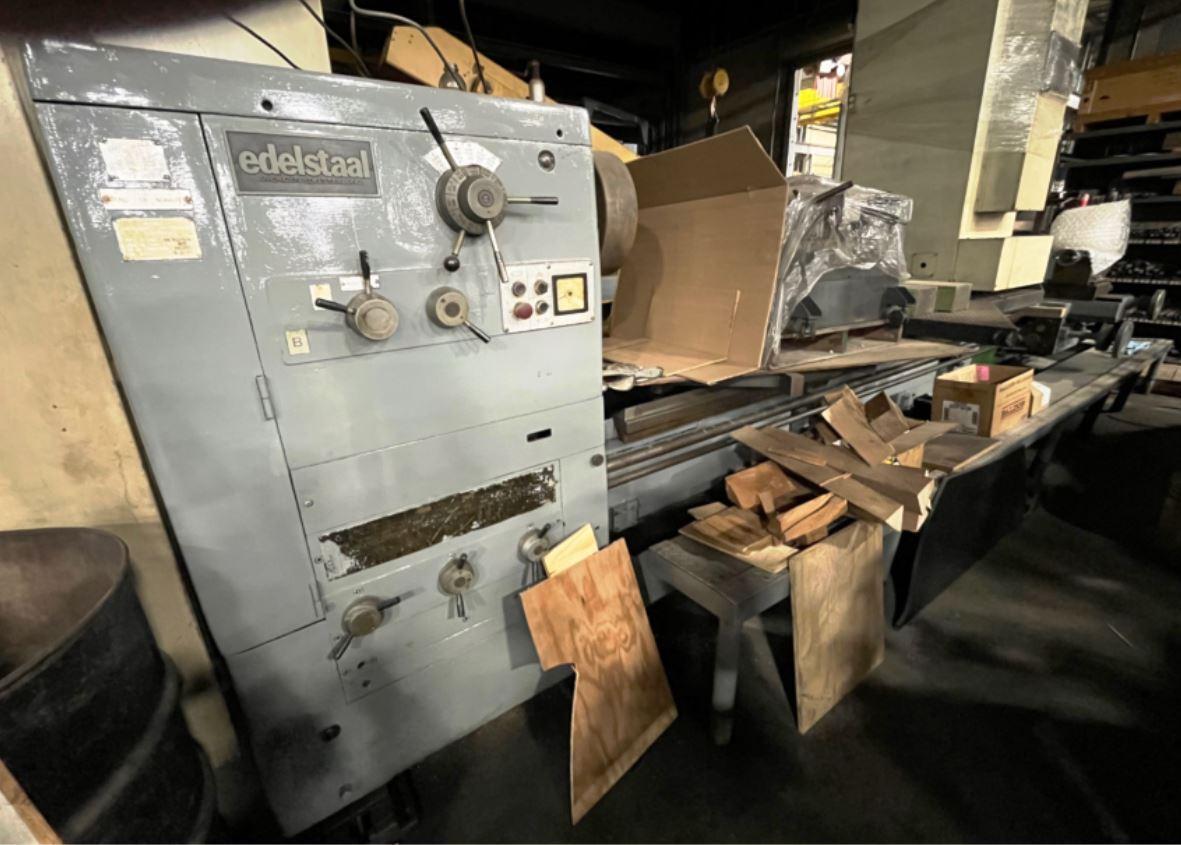

52" X 200" EDELSTAAL HEAVY DUTY ENGINE LATHE

New 1978

SPECIFICATIONS:

Swing over bed…………………………….…....……… 52"

Swing over cross slide…………………….....…………. 36"

Swing in gap……………………................………….. 61.5"

Distance between centers………………….……....….. 200"

Spindle nose (Camlock)…………………............…. D-1-11

Hole in spindle……………………………….……… 4-1/8"

Spindle speeds (23)……………………...….. 8 – 1,250 rpm

Feeds (44 each)

  Longitudinal…………………………….. 0.0024 - 0.56 ipr

  Cross……………………………………. 0.0012 – 0.28 ipr

Rapid traverse (long./cross)……………...…...... 150/75 ipm

Threading;

  English (40)………………………….…...…… 1/4 - 80 tpi

  Metric (43)…………………………………… 1 – 176 mm

  Diametral (40)………………………….........…. 2-1/2 – 64

  Module (39)………………………..………...…… 0.5 – 80

Cross slide travel……………………..……..…… 19-11/16"

Top slide travel………………………..……..……. 17-5/16"

Tail stock spindle travel………………..…………… 12-3/4"

Tail stock spindle taper……………………………… #6 MT

Main motor……………………..…….... 30Hp/3/60/220/440

Weight (approx.)………………..………………... 16,750 lb.

EQUIPPED WITH:

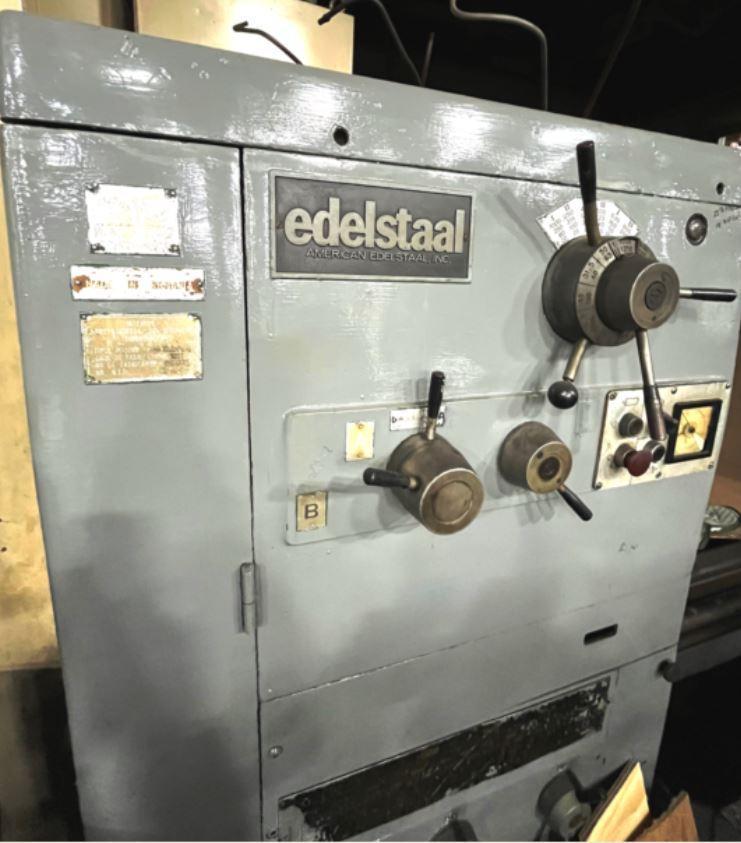

Raised head stock

In/Met threading

Hardened & ground bed ways

19.5" 3-Jaw chuck

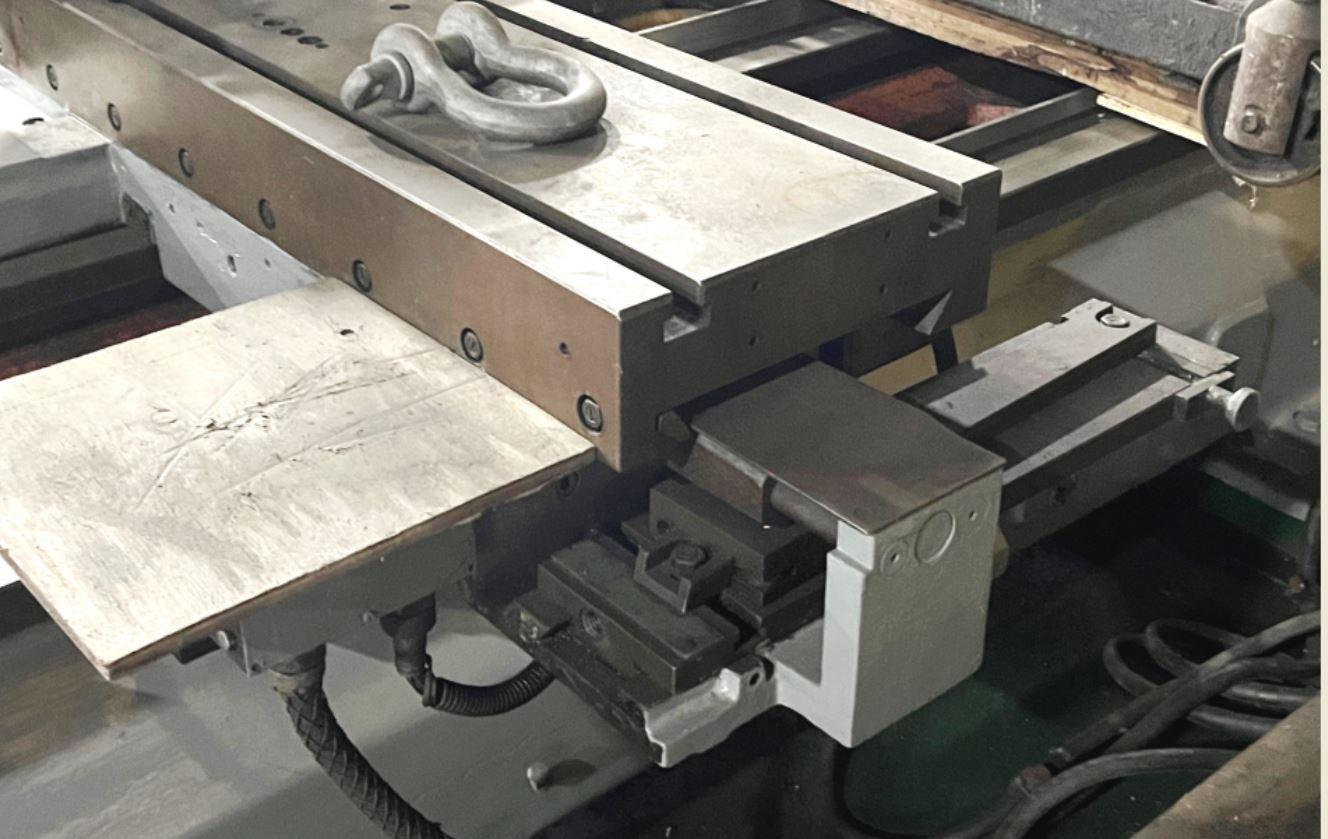

4-Way tool post

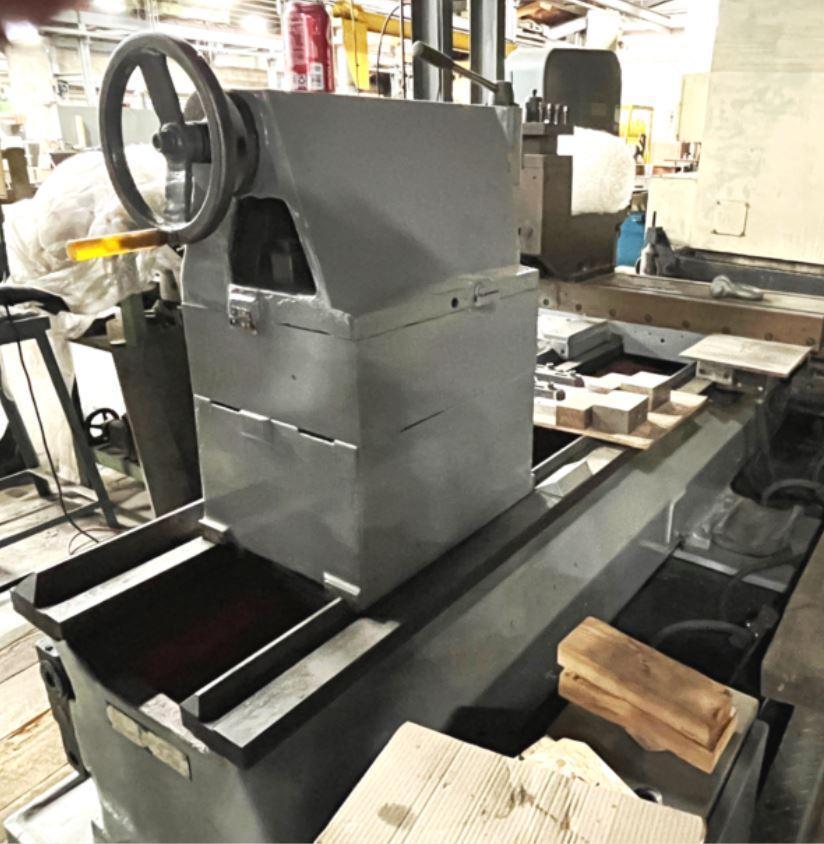

Tail stock

Taper attachment

4-Way rapid traverse
