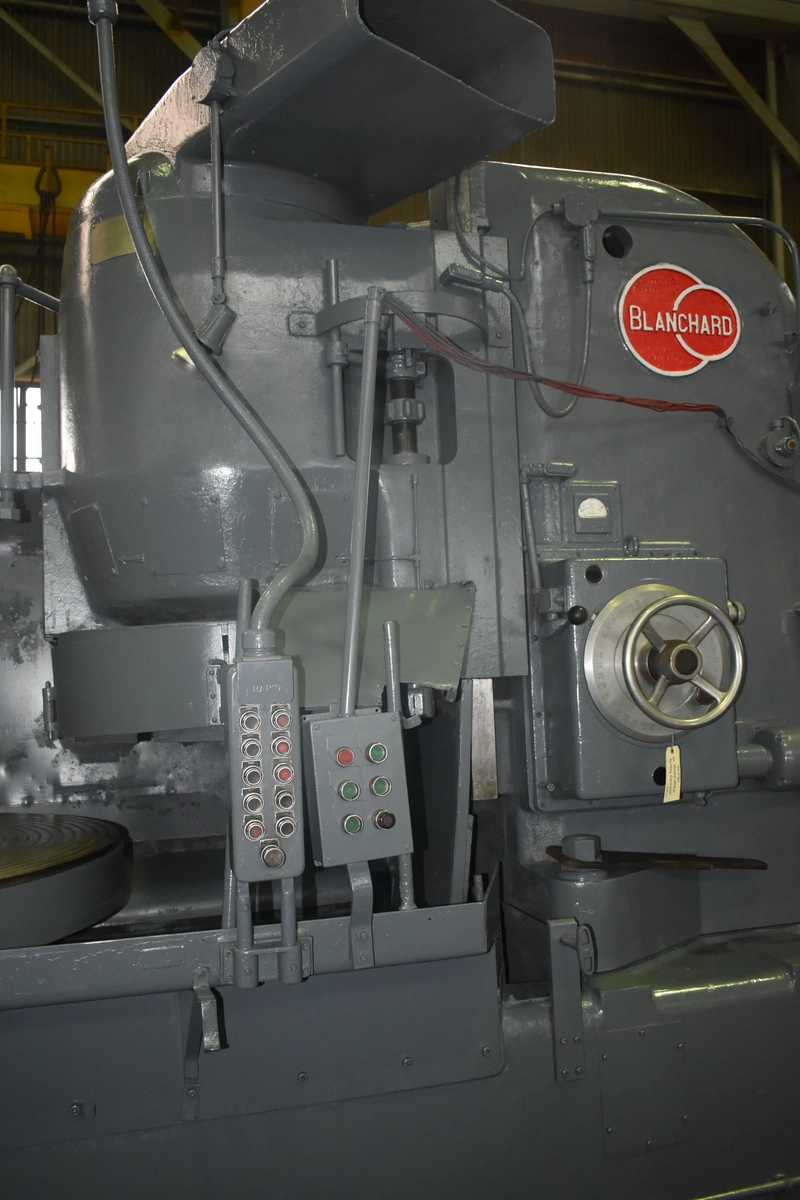

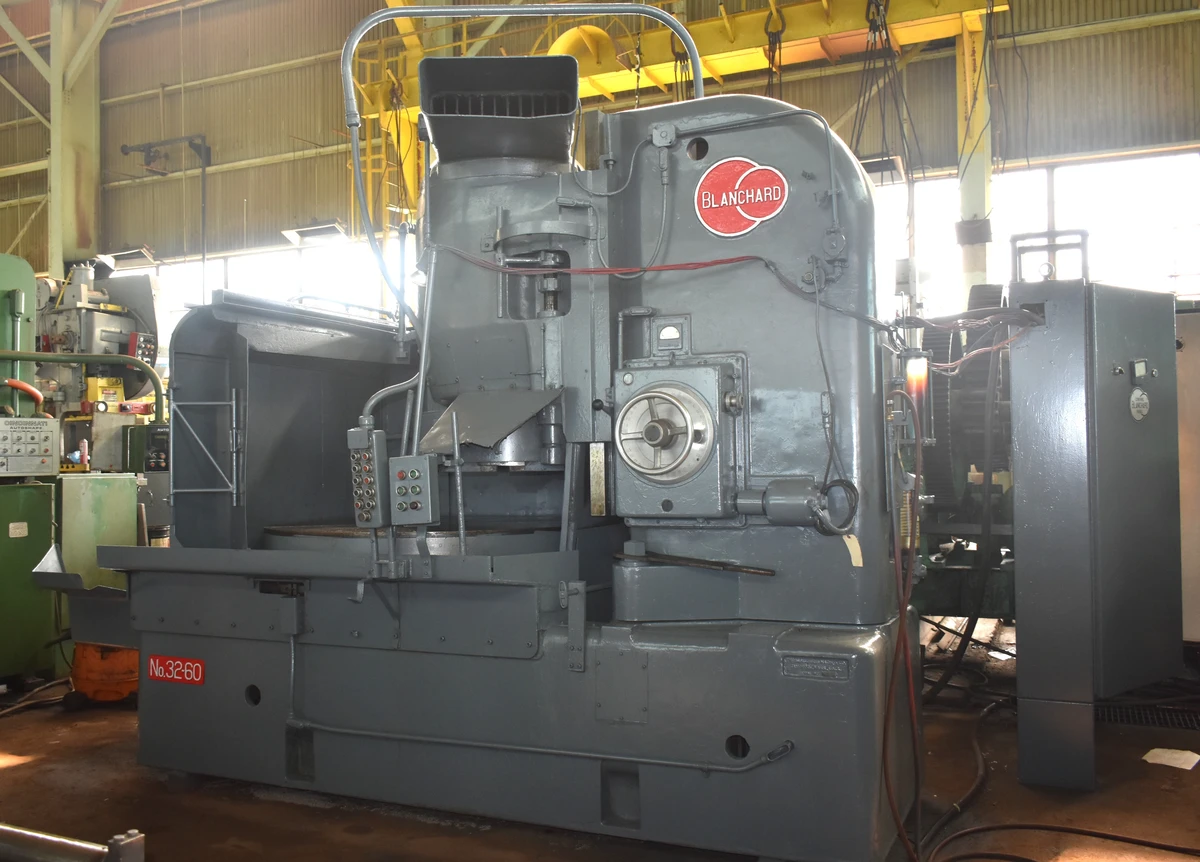

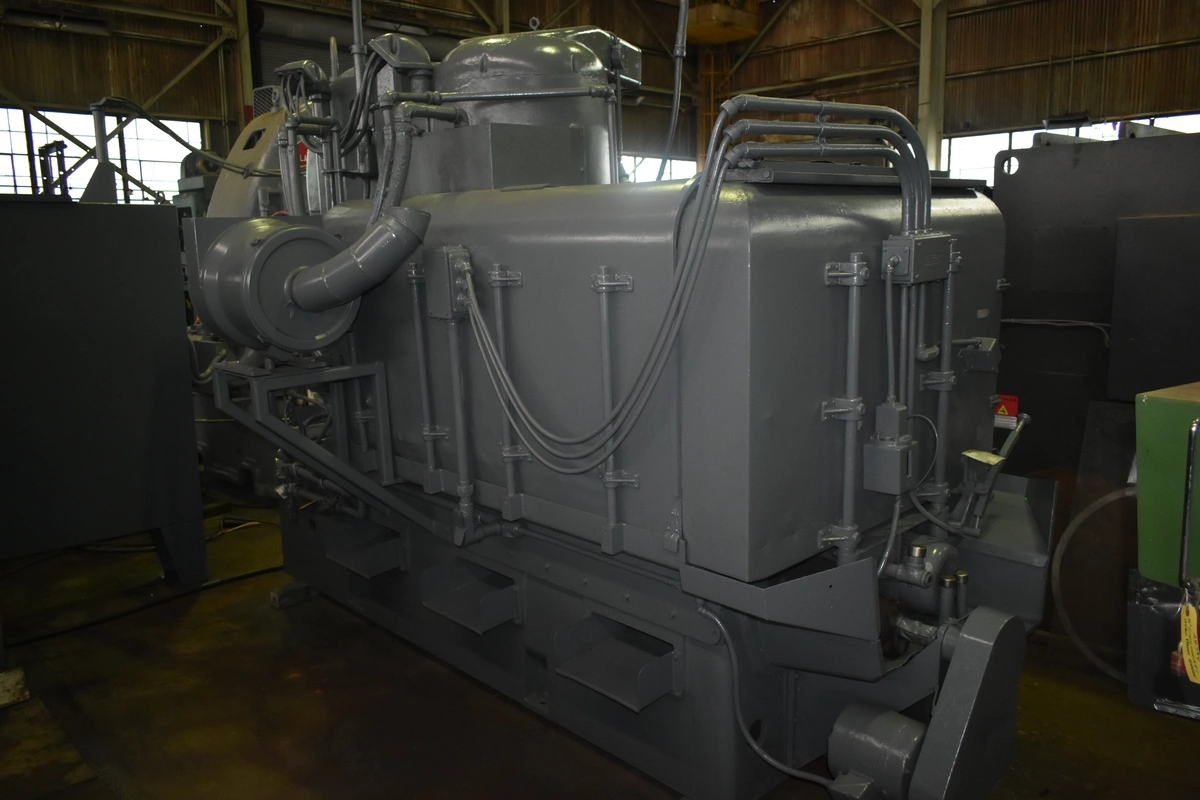

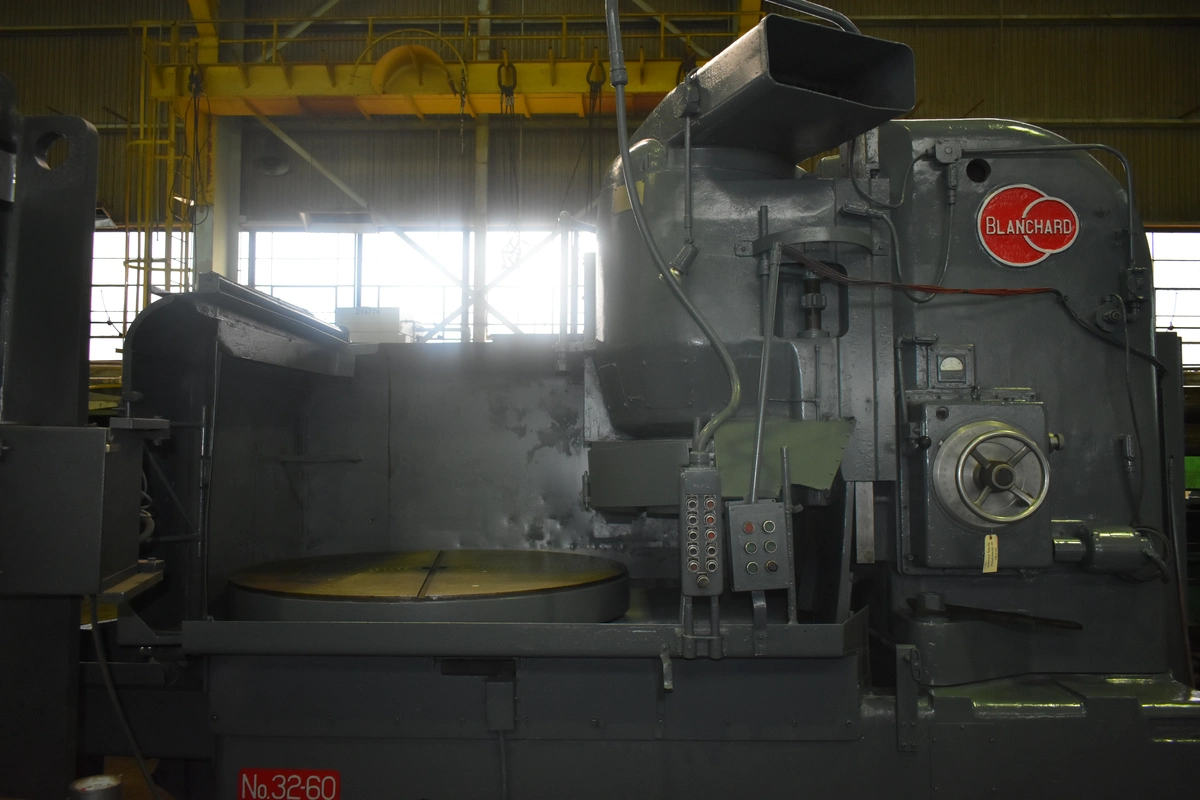

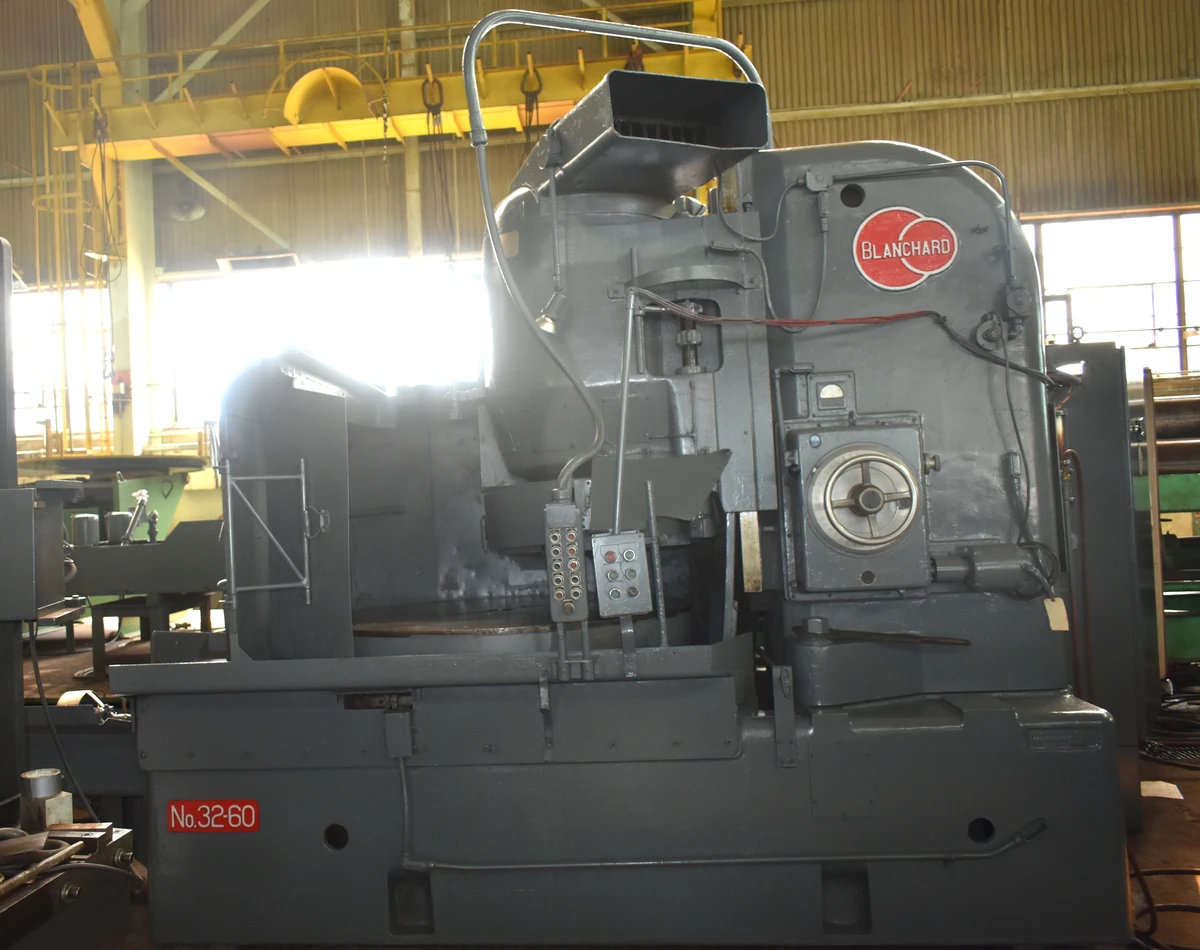

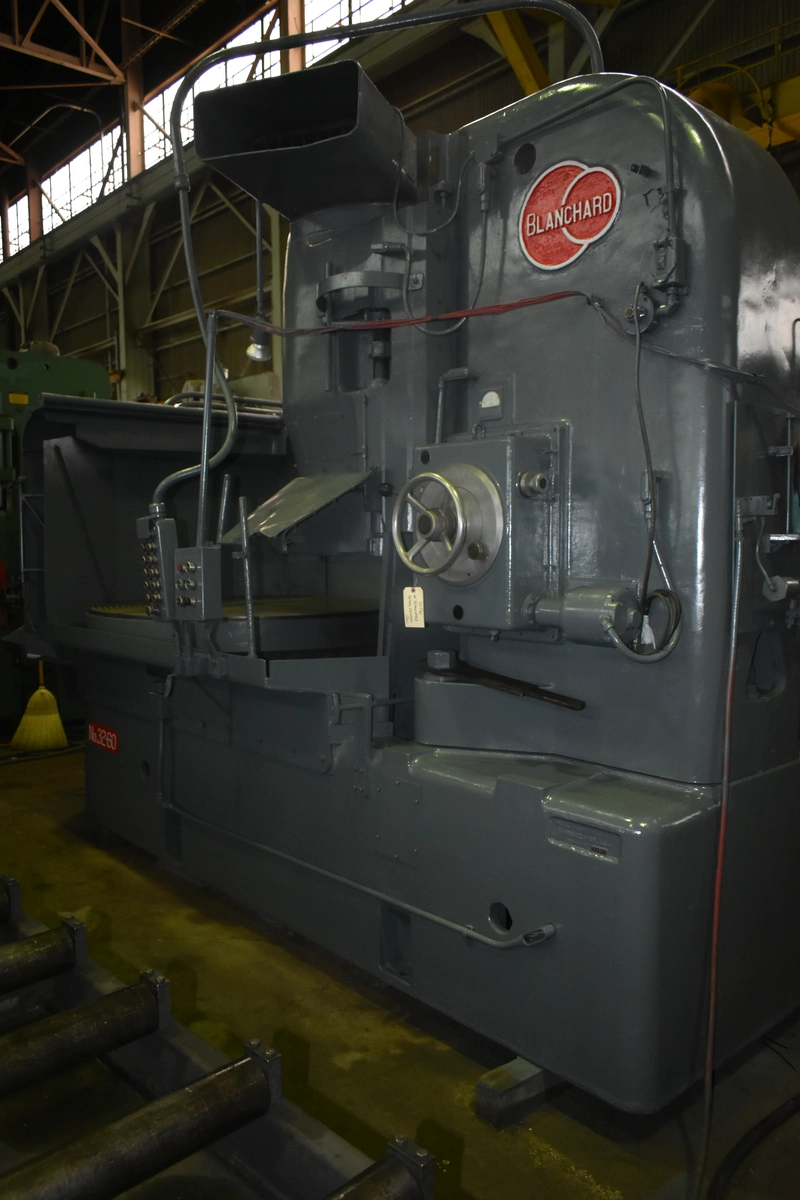

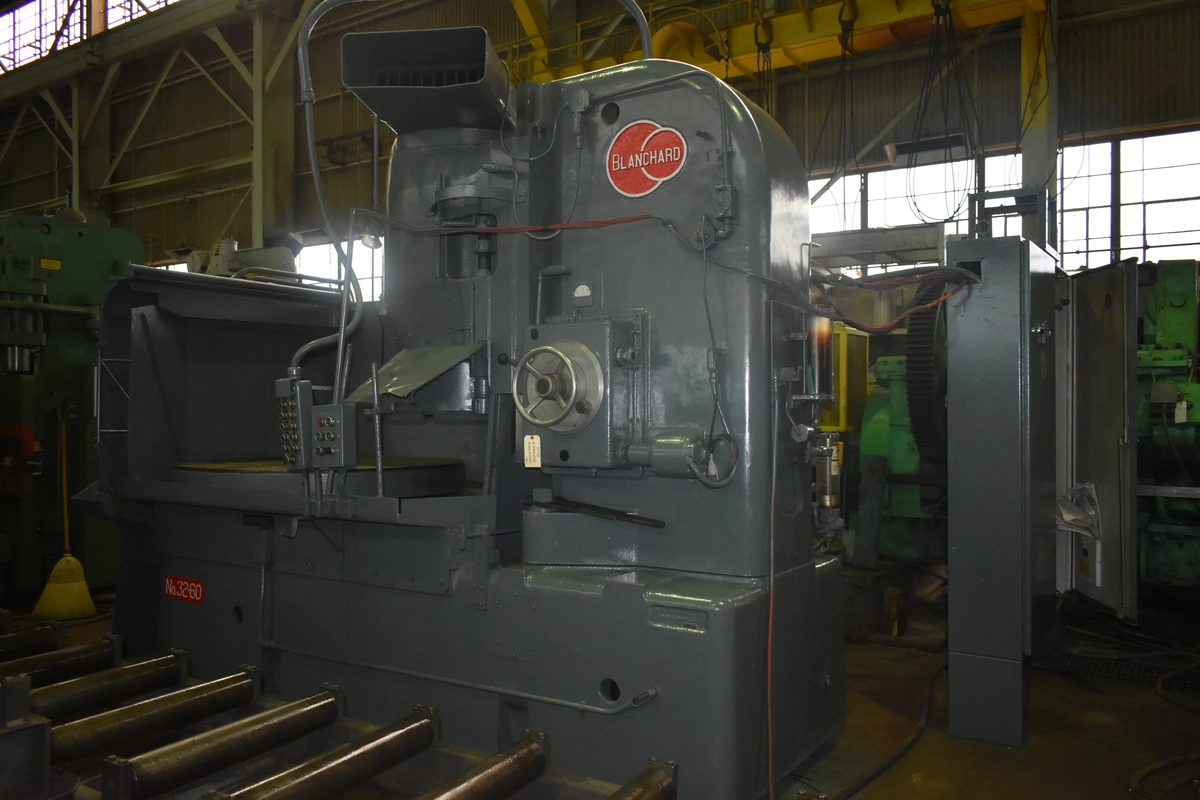

60" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER

New: 1963

Specifications:
Chuck Diameter:  60 in
Grinding Type:  Vertical Spindle Rotary Surface Grinder
Maximum Vertical Range Under Wheel:  24 in
Grinding Wheel Diameter:  32 in
Grinding Wheel Speed:  514 RPM

Chuck Speed Range:  5.6 to 20.7 RPM
Power Down Feed Range:  0.004 to 0.080 IPM
Maximum Down Feed Before Trip:  0.198 in

Magnetic Chuck Load Capacity:  6,000 lbs

Spindle Motor:  100 HP
Chuck Rotation Motor:  5 HP
Electrical:  440V / 3 Phase / 60 Cycle

Overall Dimensions:  12 ft 4 in × 7 ft 1 in × 10 ft 9 in
Approximate Weight:  34,000 lbs

Equipped with:

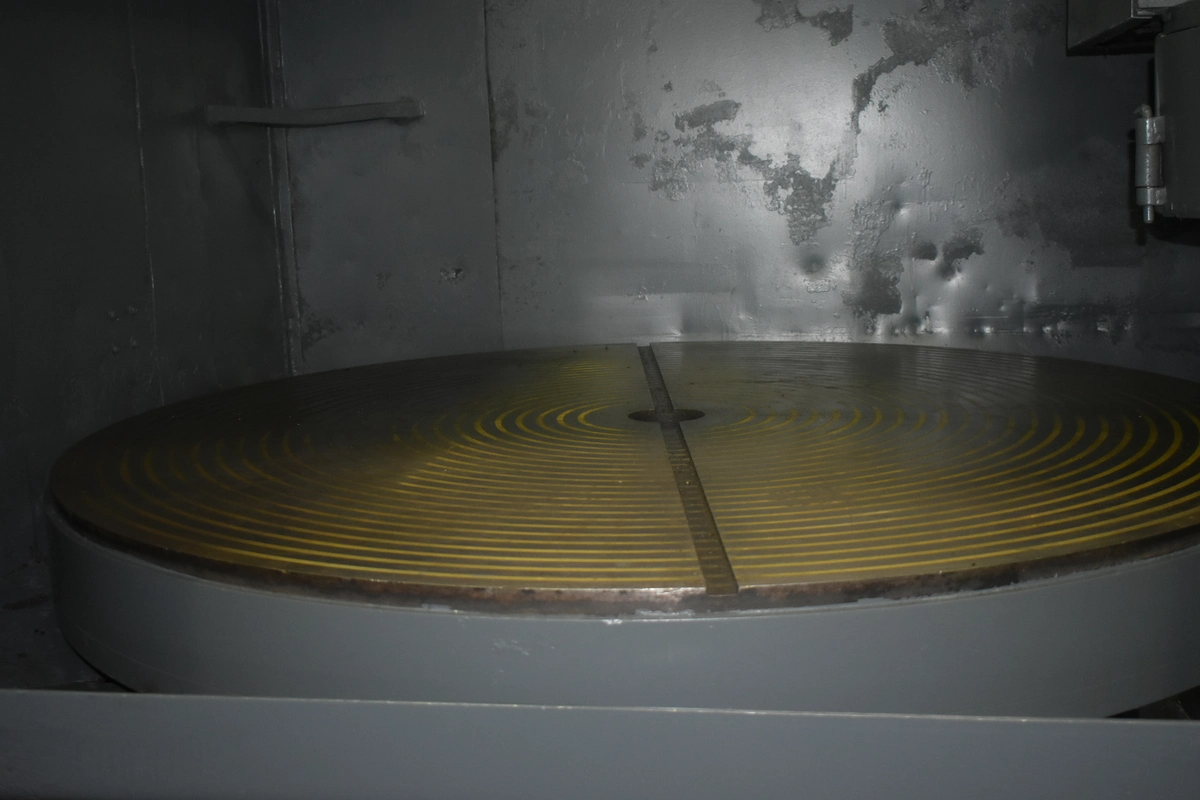

60 in Diameter Magnetic Chuck with Variable Neutrofier
32 in Cortland Segmented Grinding Wheel with (7) Segments
Power Rapid Raise & Lower Wheelhead
Trabon Lubrication System
Standard Dry Base Design
