Equipped With

60" x 0.250" x 45,000 LB WEAN/MCKAY CUT TO LENGTH LINE

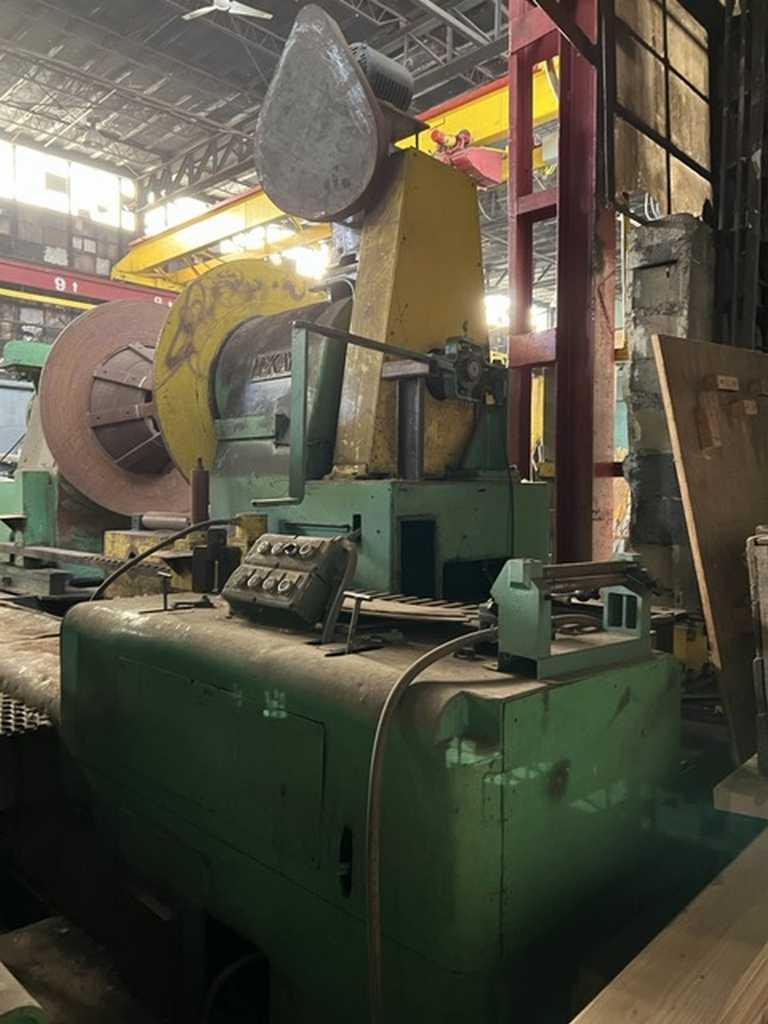

-Uncoiler:  Mckay

  Coil Weight:  45,000 lbs.

  Coil Width:  60"

  Coil ID:  TBD

  Coil OD:  60" (estimated)

  Double Cone Type

  Hydraulic Expansion

  Load Car

  Wichita Brake

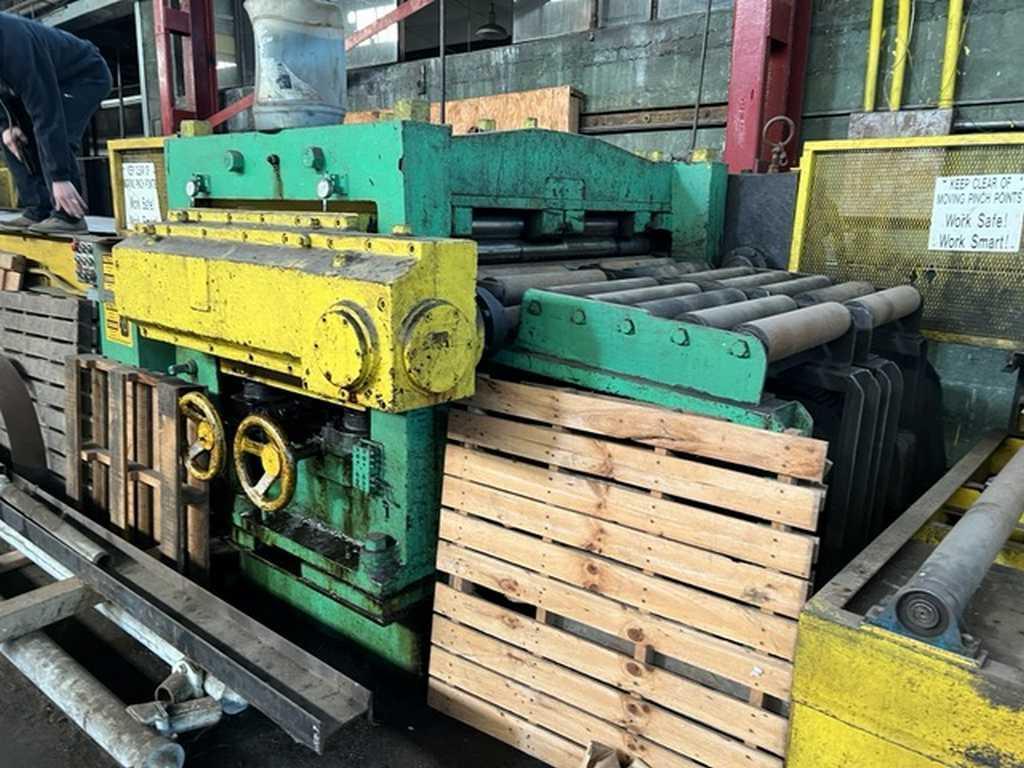

-Wean Flattener:

  Serial Number:  7510-33

  Gear Ratio:  18.33:1

  Material Width:  60"

  Material Capacity:  0.250" - to be verified

  (2) Entry Pinch Rolls

  (5) Leveling Rolls - 3 over 2 Rolls - Approx. 6" Dia.

  100 HP Reliance Electric Super RPM DC Drive Motor

  Brake Bar

  Peeler

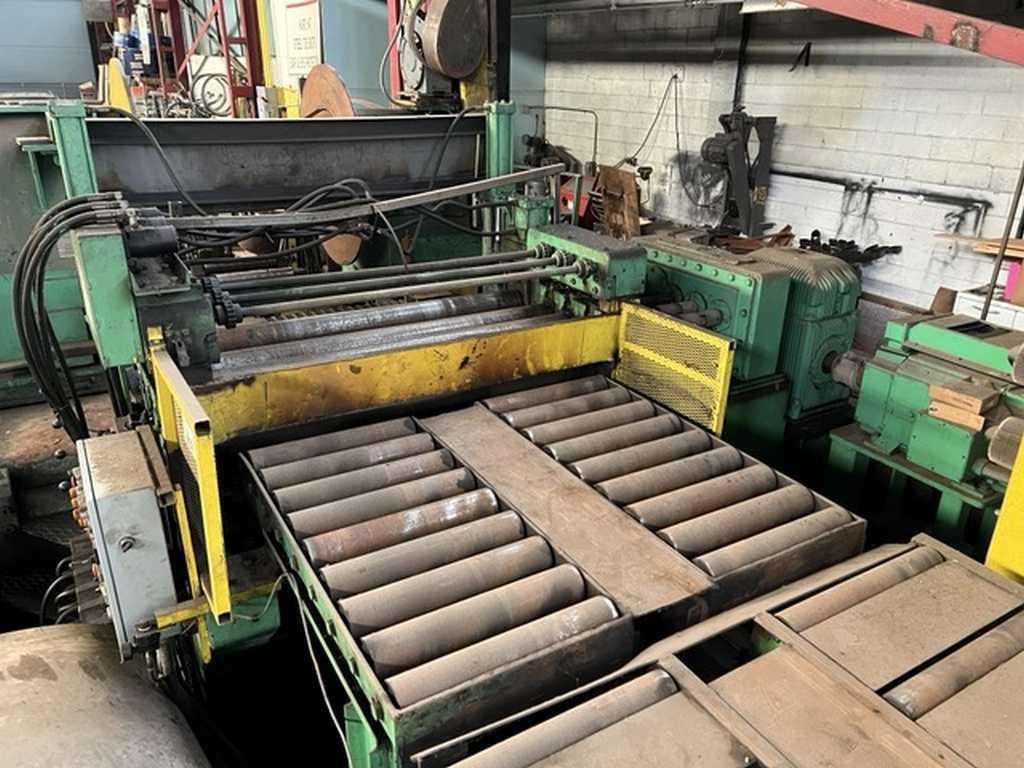

-Roller Table:  60" Wide x 20'

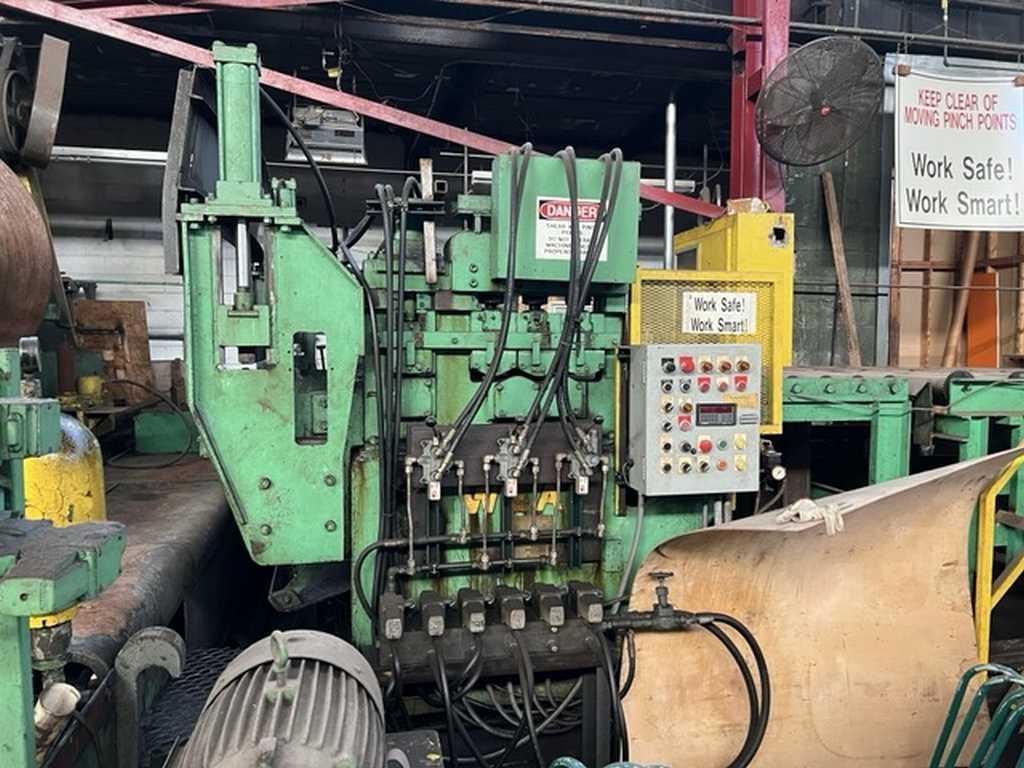

-Wean Shear:

  60" Wide x 0.250" Capacity

  40 HP Motor

  Upacting

-Belt Conveyor Table:

  60" Wide x 25'

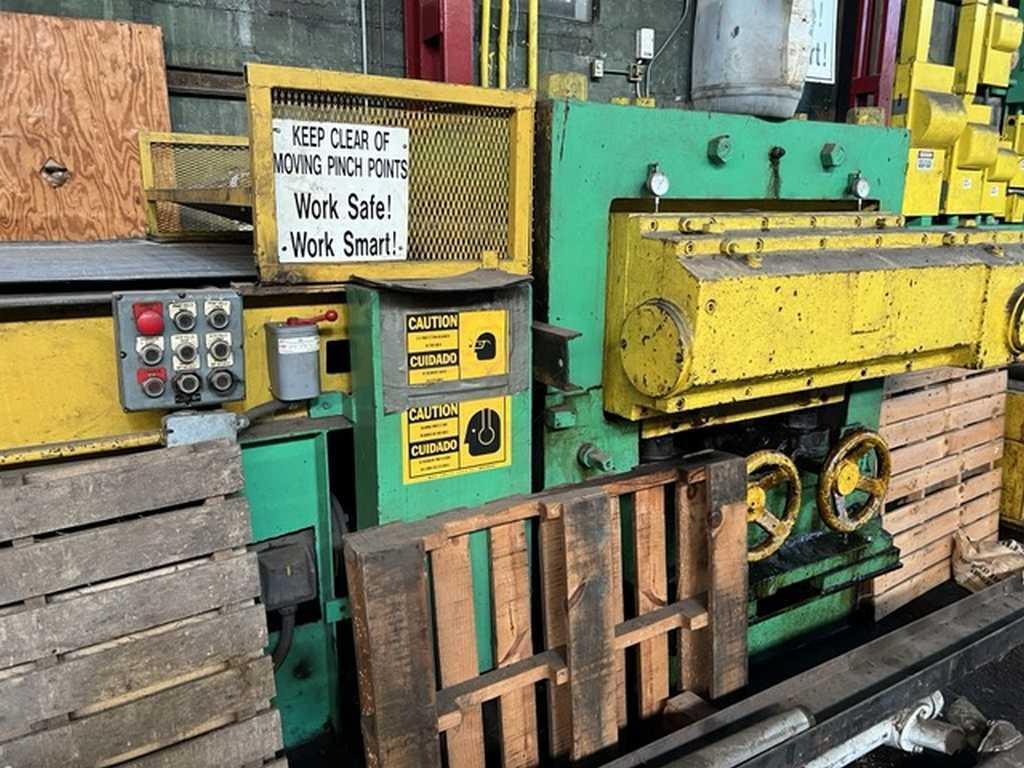

-Mesta Leveler:

  Material Width:  60"

  Material Capacity:  0.500" - to be verified

  (15) Rolls

  Backed Up

  7 over 8 Rolls - Approx. 4" Diameter

-Roller Stacker Table:

  60" Wide x 25'
