Equipped With

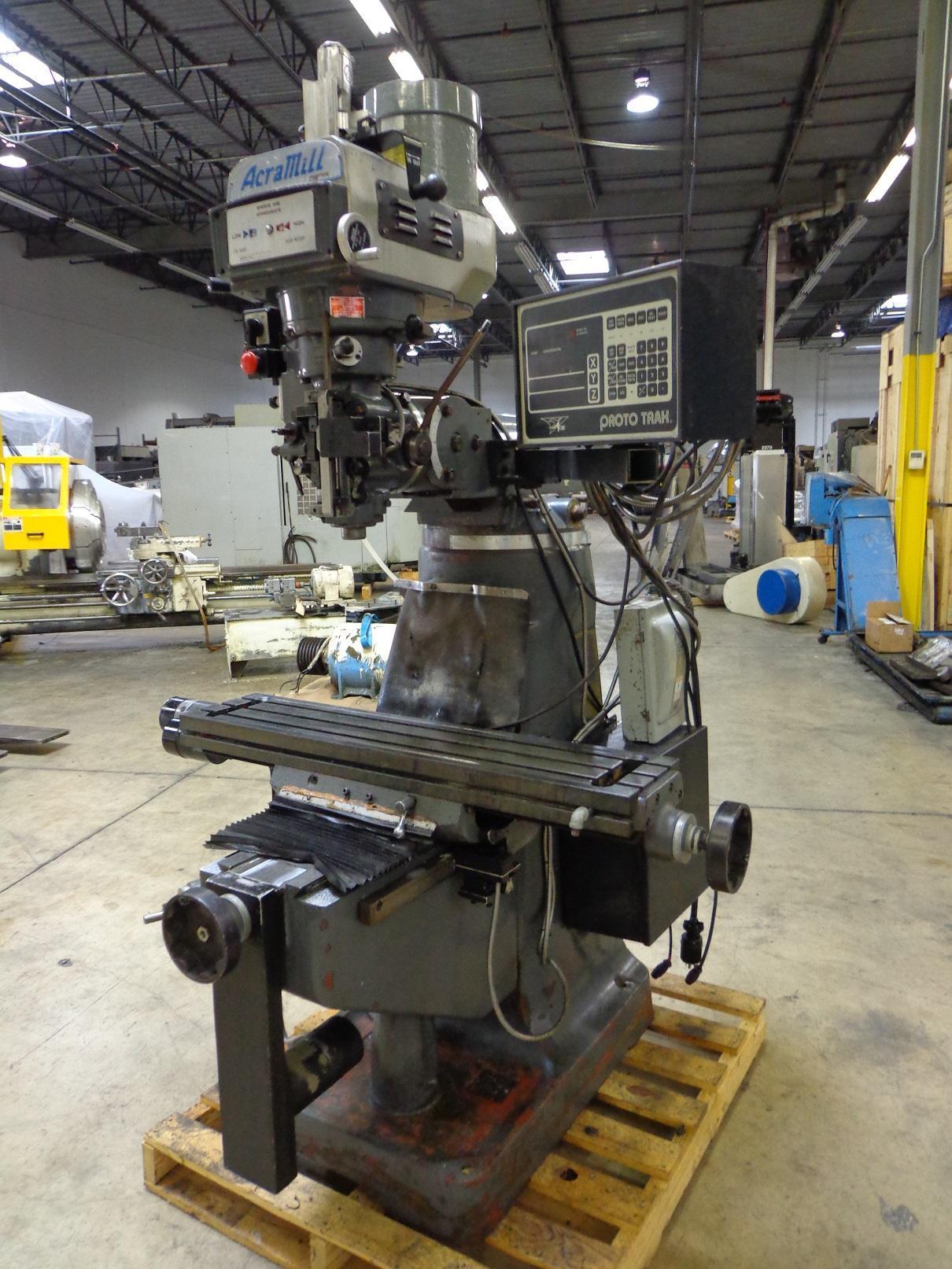

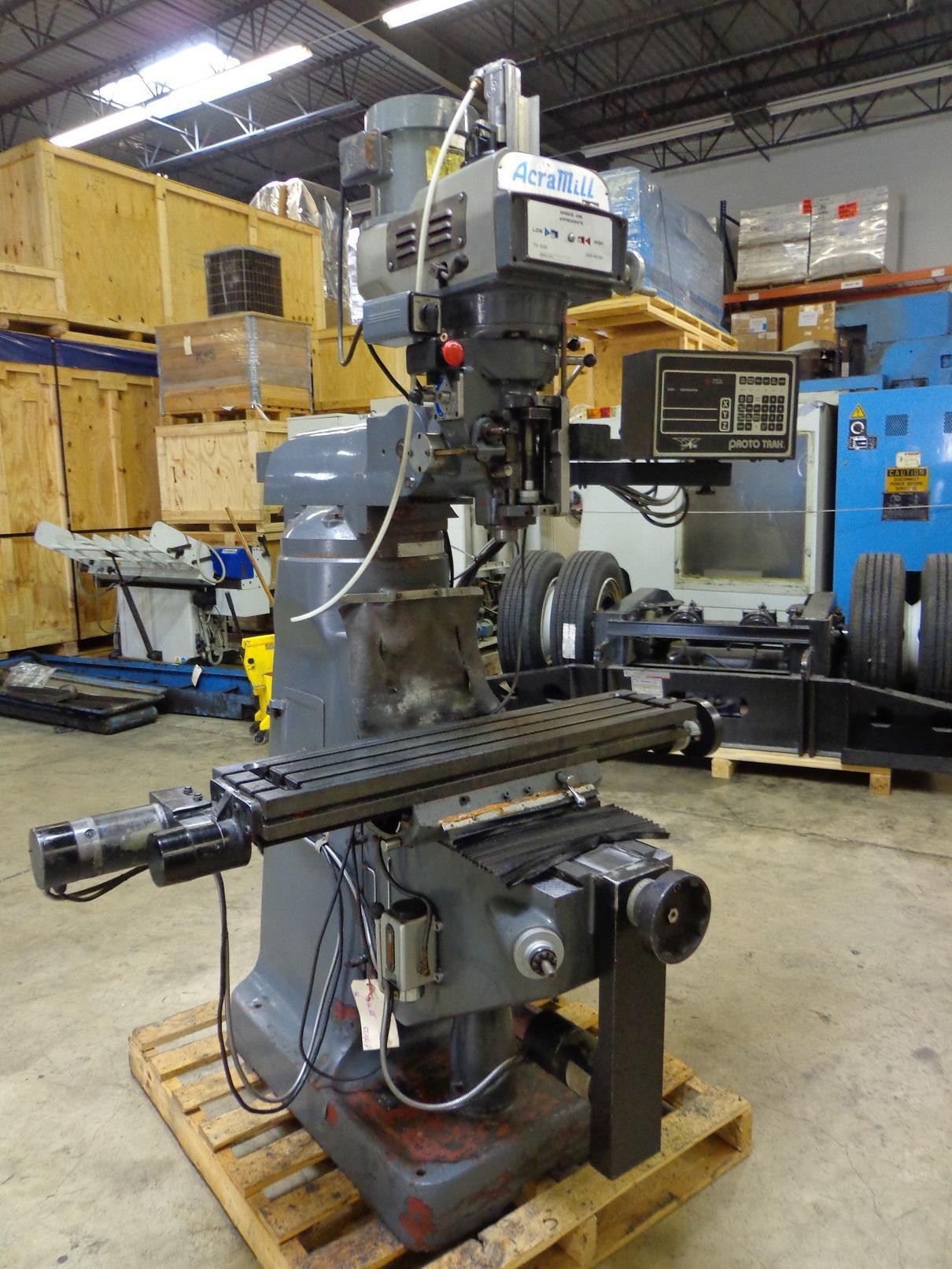

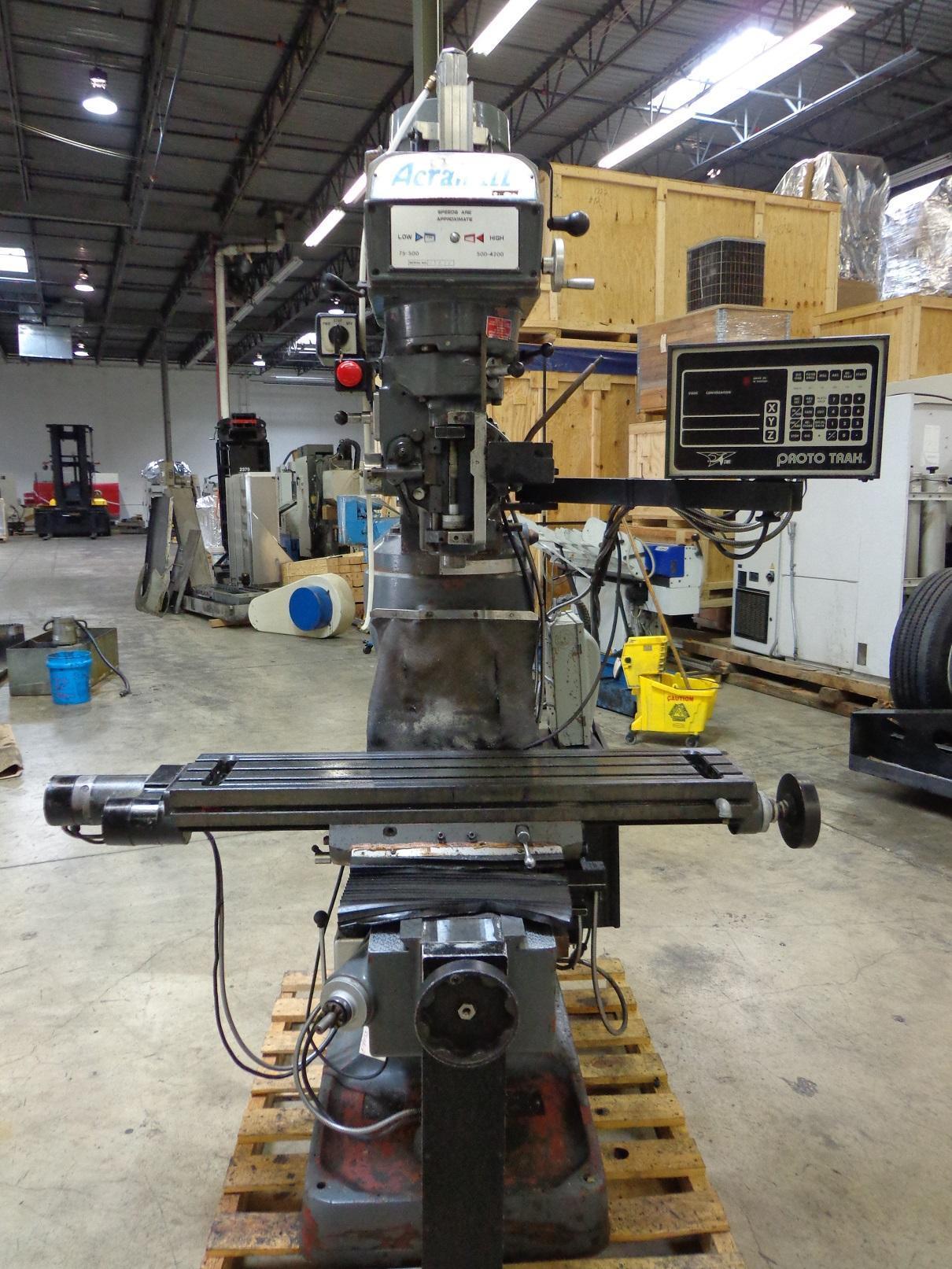

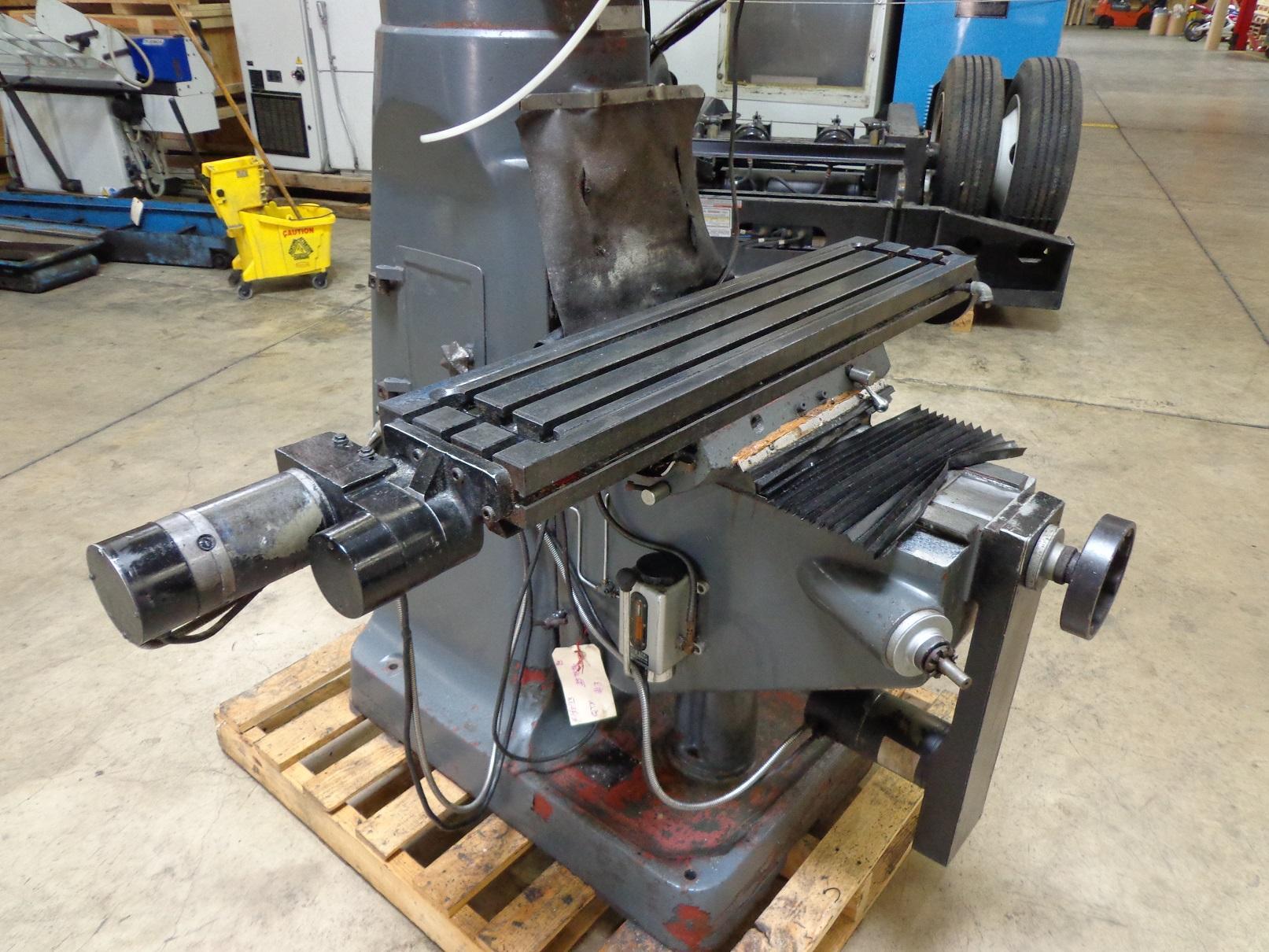

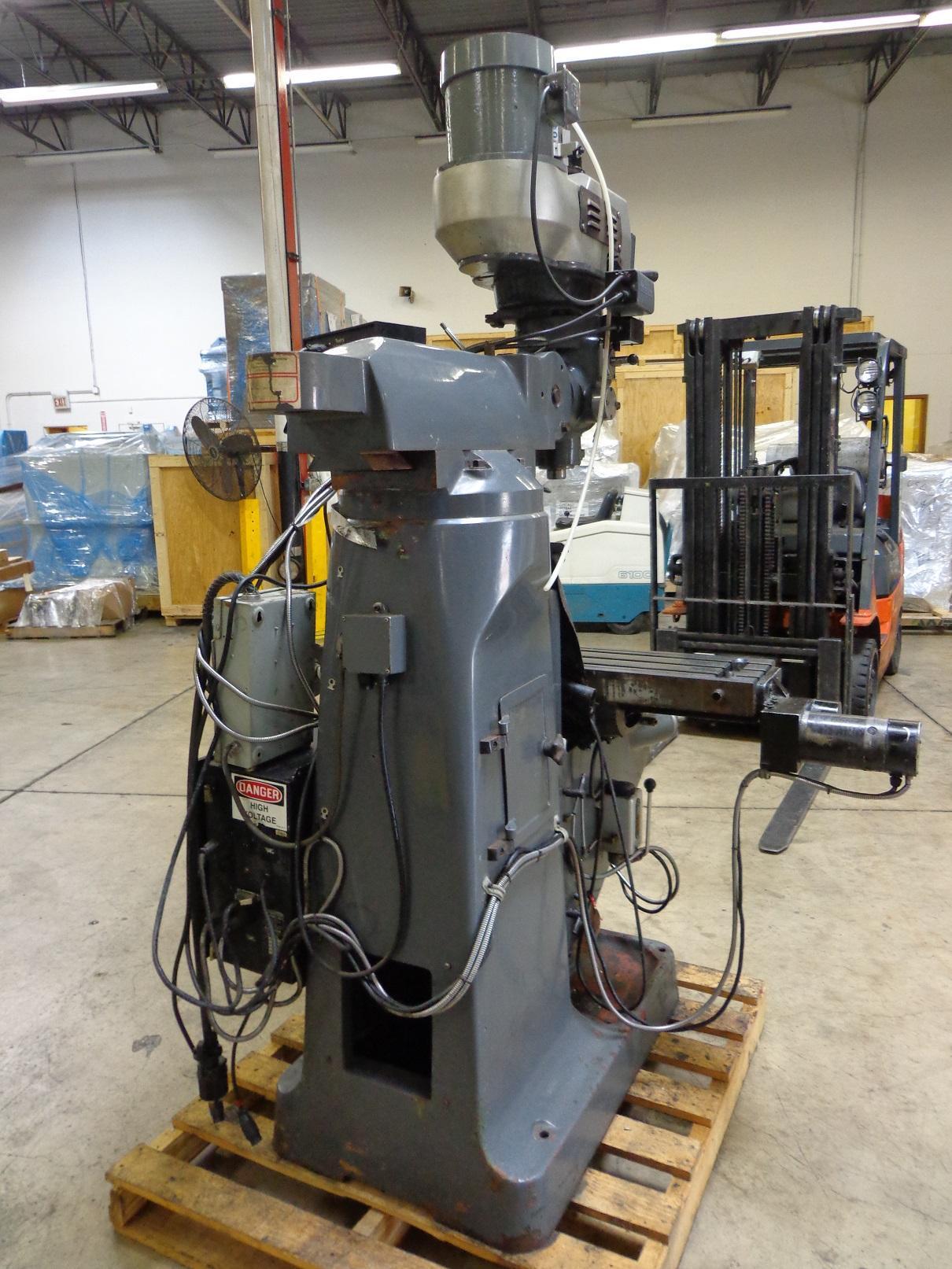

ACRAMILL SOUTHWESTERN INDUSTRIES AM2V CNC VERTICAL MILL
New 1994

T Slotted Table Size:                   9 x 42

  Max Table Load:                         550 LBS

  X Axis Travel:                          26"

  Y Axis Travel:                          12"

  Z Axis Travel:                          5"

  Spindle to Table:                       18.75"

  Spindle Speeds:                         75-4200 RPM

  Rapid Rates:                            200 IPM (X,Y)

  Rapid Rates:                            100 IPM (Z)

  Main Motor Drive:                       3 HP

  Current Electrical Arrangement:         220/440/3/60

  Complete With

  Southwestern Industries Proto Trak 3 Axis CNC Control

  Kurt Power Draw Bar

  Approximate Dimensions:                 54"(LR) X 48"(FB)

  Approximate Weight:                     2,400 Lbs.
