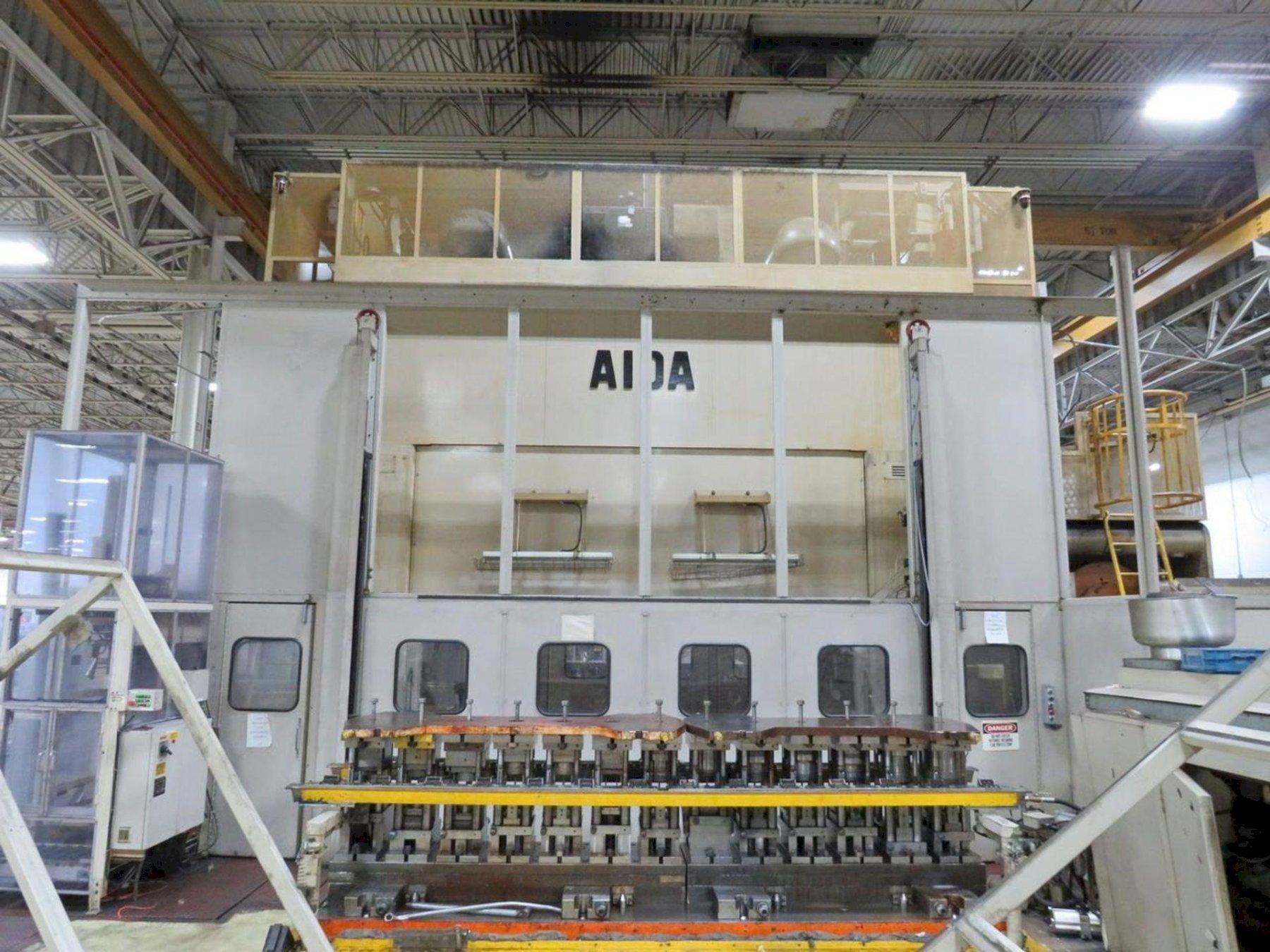

Aida 550 US Ton Model TMX-S2-500 Straight Side Mechanical Press
Year
1995
Stock #
17959
Condition
Excellent
Keep Scrolling To Learn More
Specifications
Equipped With
Aida 550 US Ton Model TMX-S2-500 Straight Side Mechanical Press
New 1995
SPECIFICATIONS:
Capacity.... ................................................. 500 Metric Tons
Bed Area........................................................ 153.54” x 47.24”
Slide Area………………………………….. 153.54” x 43.30”
Stroke............................................................. 20.07”
Adjustment..................................................... 3.93”
Shut Height.................................................... 35.82” SDAU
Strokes per Minute.........................................15-30
Feed Stroke of Transfer……………………. 11.81”
Clamp Stroke of Transfer………………….. 5.51”
Windows…………………………………… 60” wide approx.
EQUIPPED WITH:
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
Dual Rolling Bolsters (F-B)

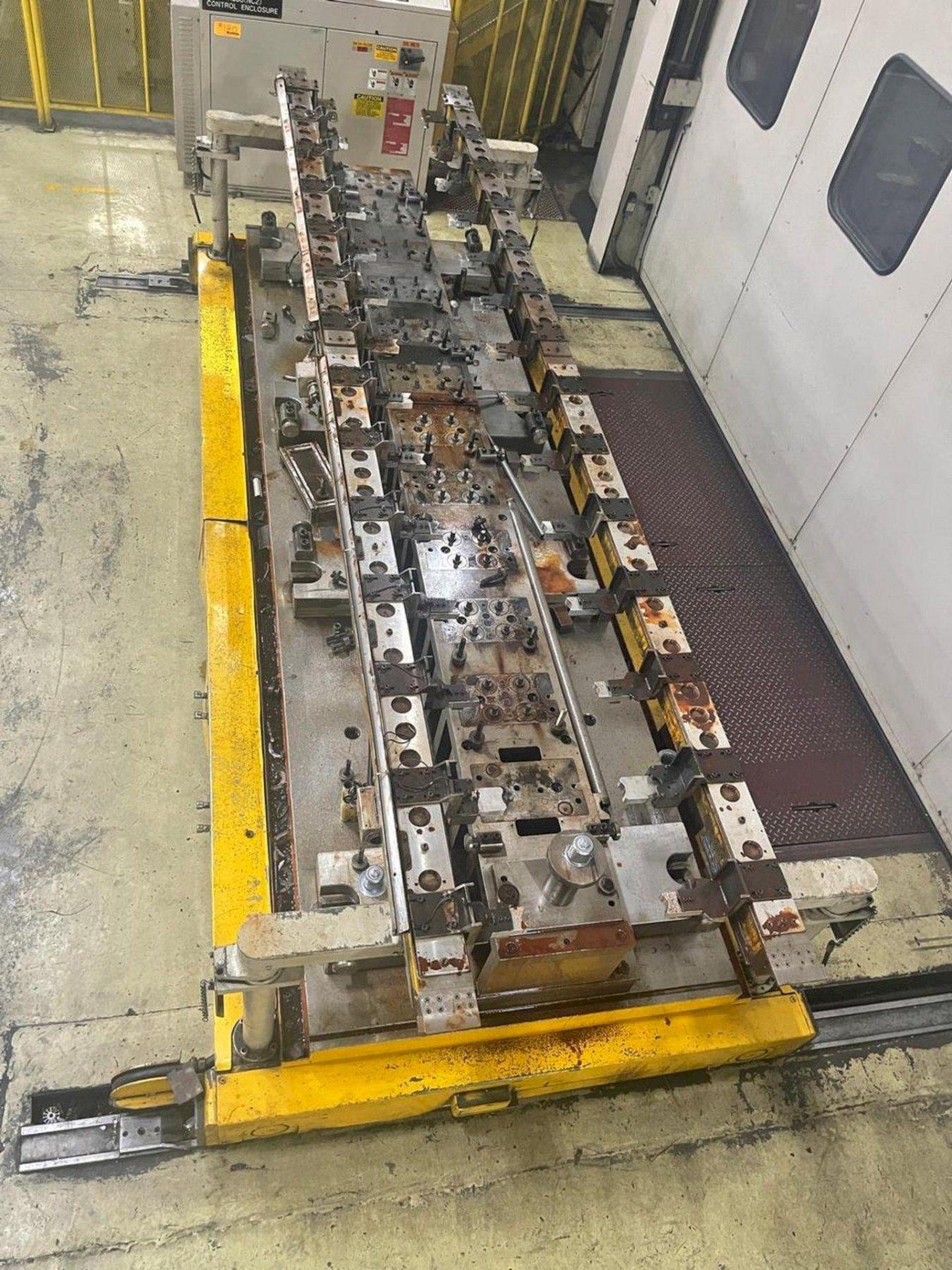

Transfer System
Die Cushions
8 Point Gibbing
Electrical Control Cabinet
Variable Speed Motor
Motors and Controls
Palm Buttons
Dual Ross Air Valve
Motorized Ram Adjustment
Main Motor Fwd./Reverse
