Equipped With

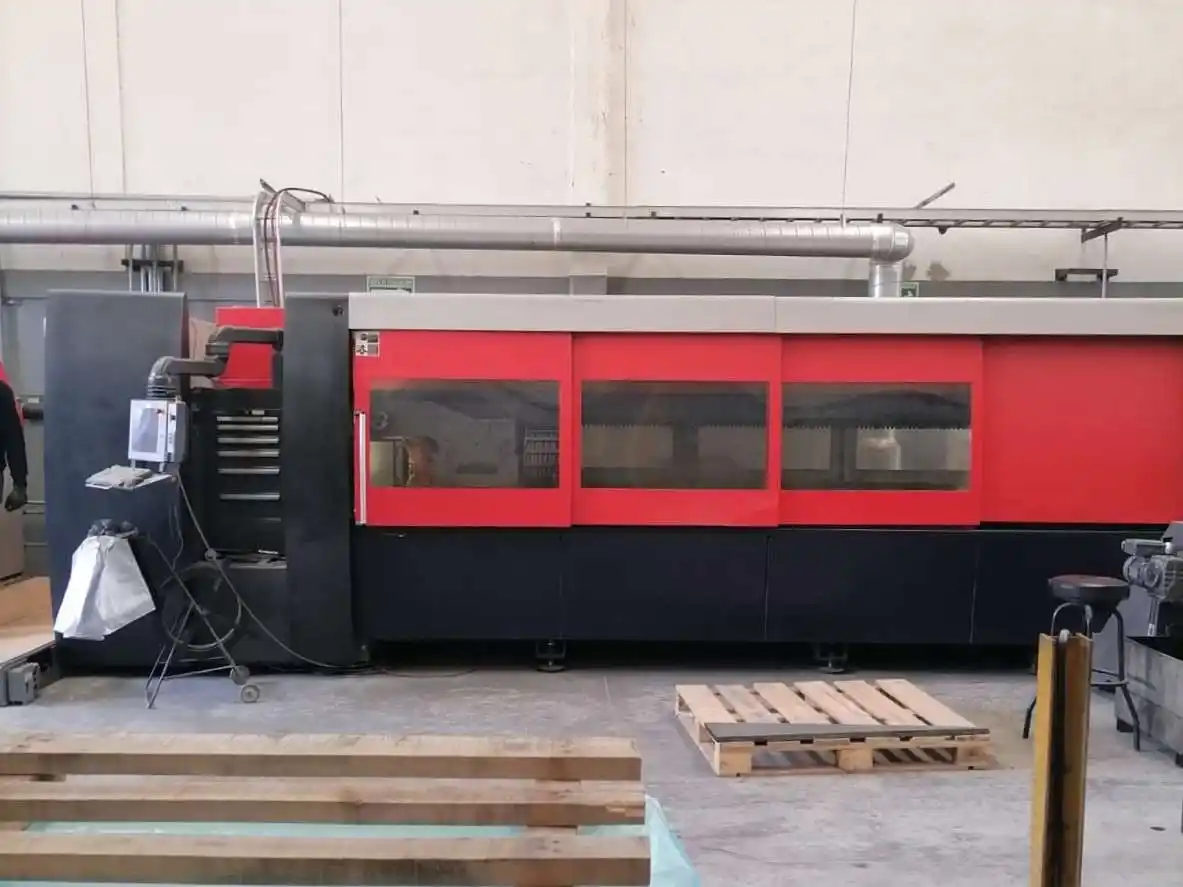

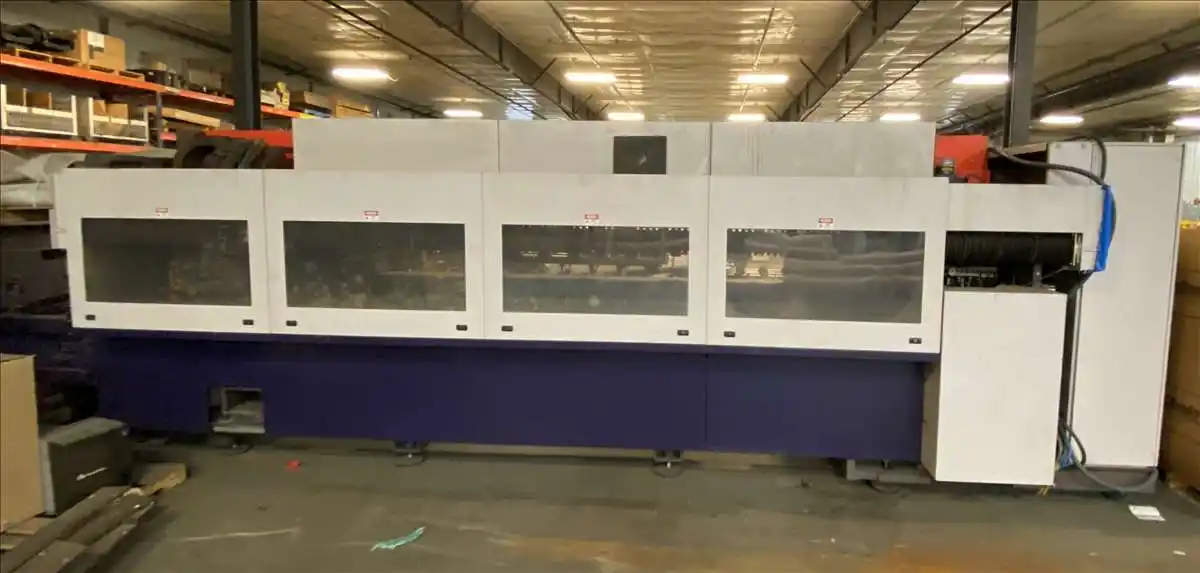

BYSTRONIC BYSPEED PRO 3015 6000W CNC LASER

New: 2012

Specifications:
Nominal Sheet Size:  9 ft 10 in × 4 ft 11 in
Cutting Area:  5 ft (X) × 10 ft (Y) × 3.9 in (Z)

Maximum X & Y Positioning Speed:  4,724 IPM
Maximum Simultaneous Positioning Speed:  5,472 IPM

Positioning Accuracy:  ±0.004 in
Repeatability:  ±0.002 in
Edge Detection Accuracy:  ±0.02 in

Maximum Workpiece Weight:  1,962 lbs

Maximum Material Capacity:
Steel:  0.98 in
Stainless Steel:  0.98 in
Aluminum:  0.59 in

Laser Specifications:
Laser Type:  CO₂
Laser Power:  6,000 Watts
Power Control Range:  150 – 6,000 Watts
Wavelength:  10.6 μm
Polarization:  Circular

Total Electrical Consumption:  78 kW

Laser Source Dimensions:  87.4 in × 43.3 in × 68.9 in
Laser Source Weight:  4,188 lbs

Equipped with:
ByVision Touchscreen CNC Control

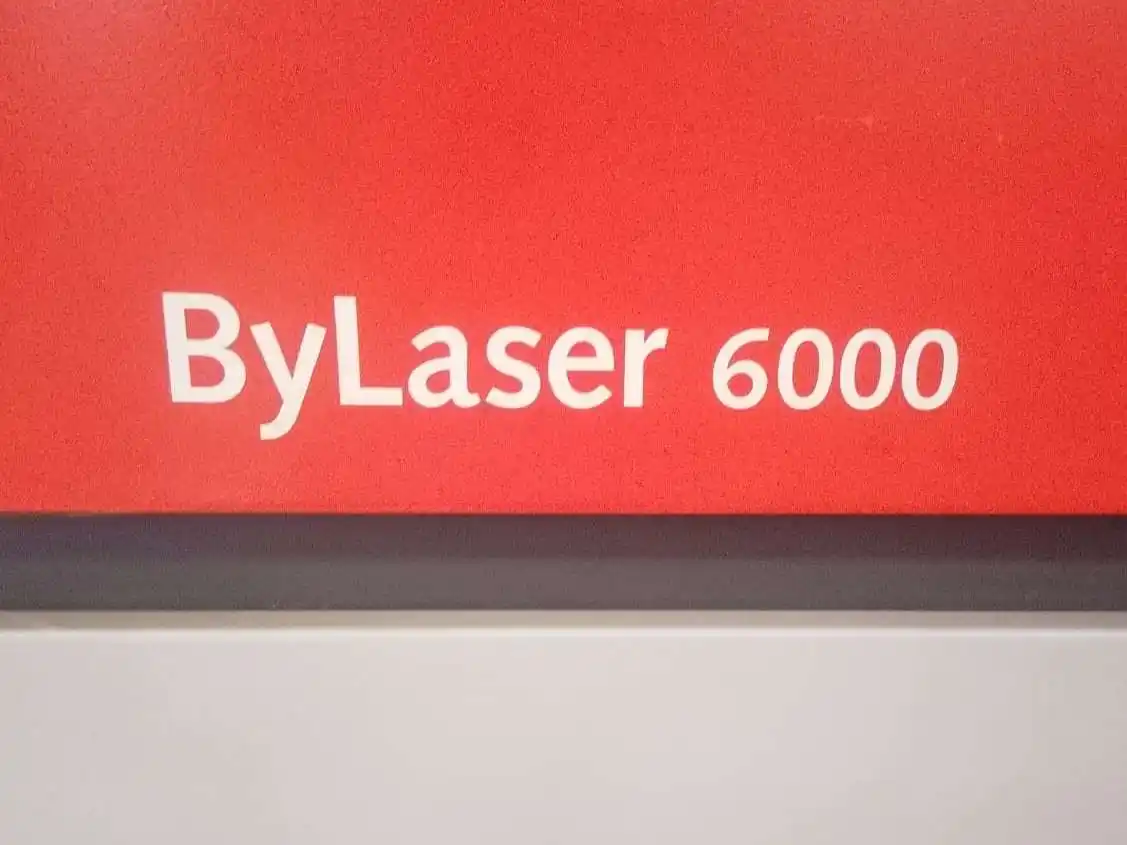

6000W Bystronic ByLaser Resonator

Notes:
Price:  $90,000 for All Three (3) Units
Units May Be Purchased Individually
Seller Is Open to Offers
Machines Are In Plant, Under Power, and Available for Inspection
